Beckhoff BC9050 - Used
Description

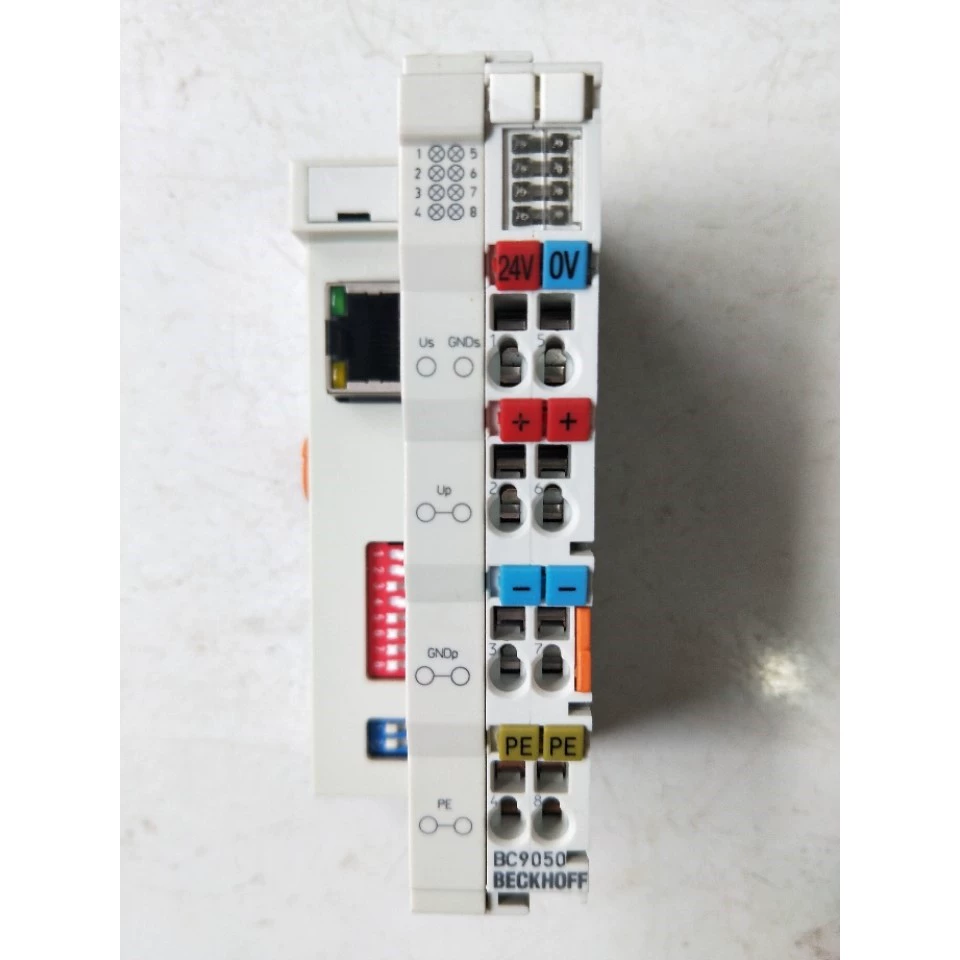

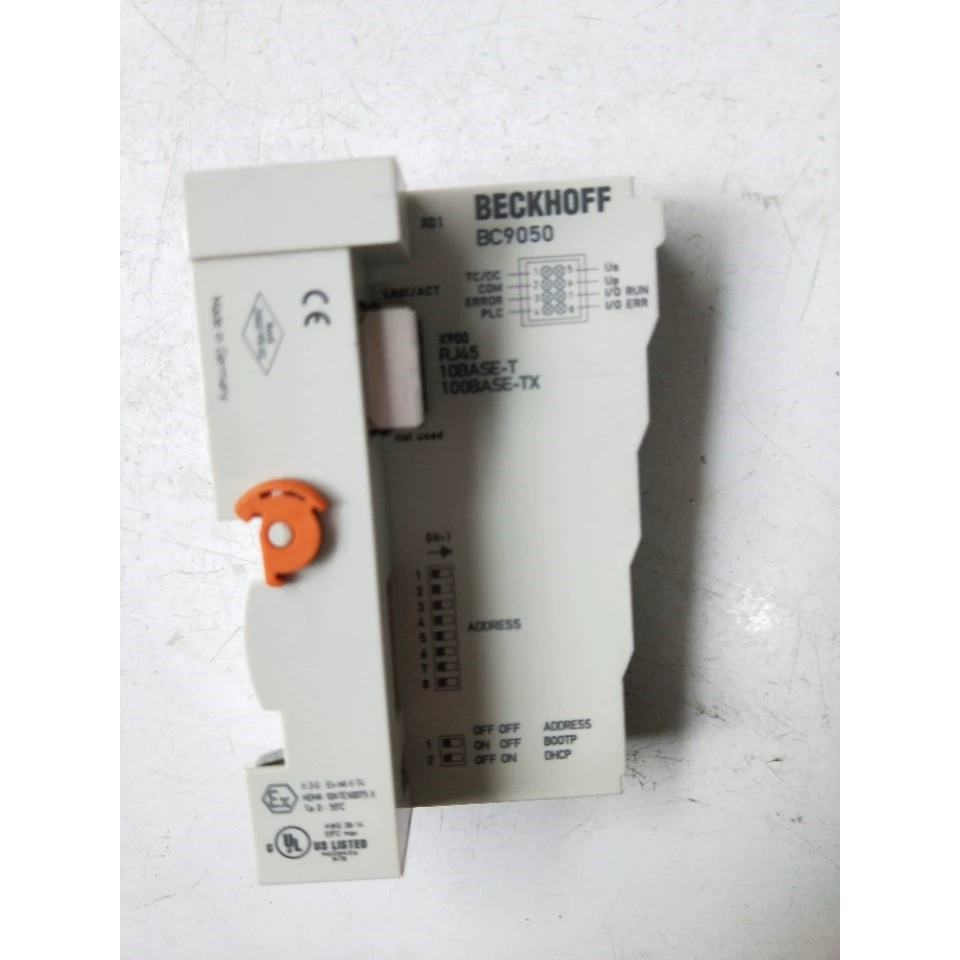

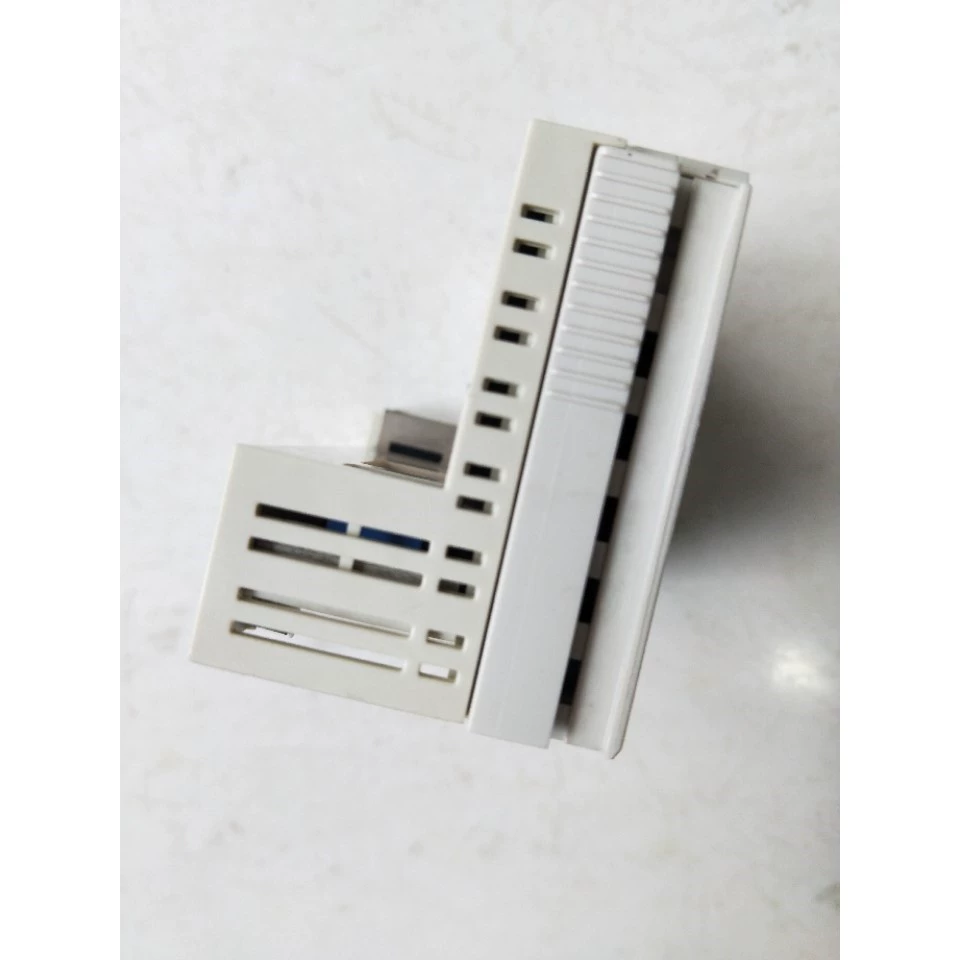

Used Beckhoff BC9050 removed from equipment. Brand is Beckhoff, model BC9050.
Specifications
| Brand | Beckhoff |
|---|---|
| Model | BC9050 |
| Protocol | TwinCAT ADS, Modbus TCP |
| Power supply | 24 V DC (-15%/+20%) |
| Bus interface | 1 x RJ45 |
| Transmission rate | 10/100 Mbit/s, automatic recognition of the transmission rate |
| Power contacts | max. 24 V DC/max. 10 A |
| Input current | 70 mA + (total K-bus current)/4, 500 mA max. |
| Starting current | approx. 2.5 x continuous current |
| Weight | approx. 100 g |
| Operating temperature | 0…55 °C |
| Storage temperature | -25…+85 °C |
| Dimensions (W x H x D) | 44 mm x 100 mm x 68 mm |
| Ex marking | ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
| Analog peripheral signals | 512 inputs/outputs |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, cFMus |
| Configuration | via KS2000 or Ethernet |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Current load power contacts | I max: 10 A |
| Current supply K-bus | 1750 mA |
| Data memory | 32 kbytes |
| Design form | compact terminal housing with signal LEDs |
| Digital peripheral signals | 2,040 inputs/outputs |
| Electrical isolation | 500 V (power contact/supply voltage/fieldbus) |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |

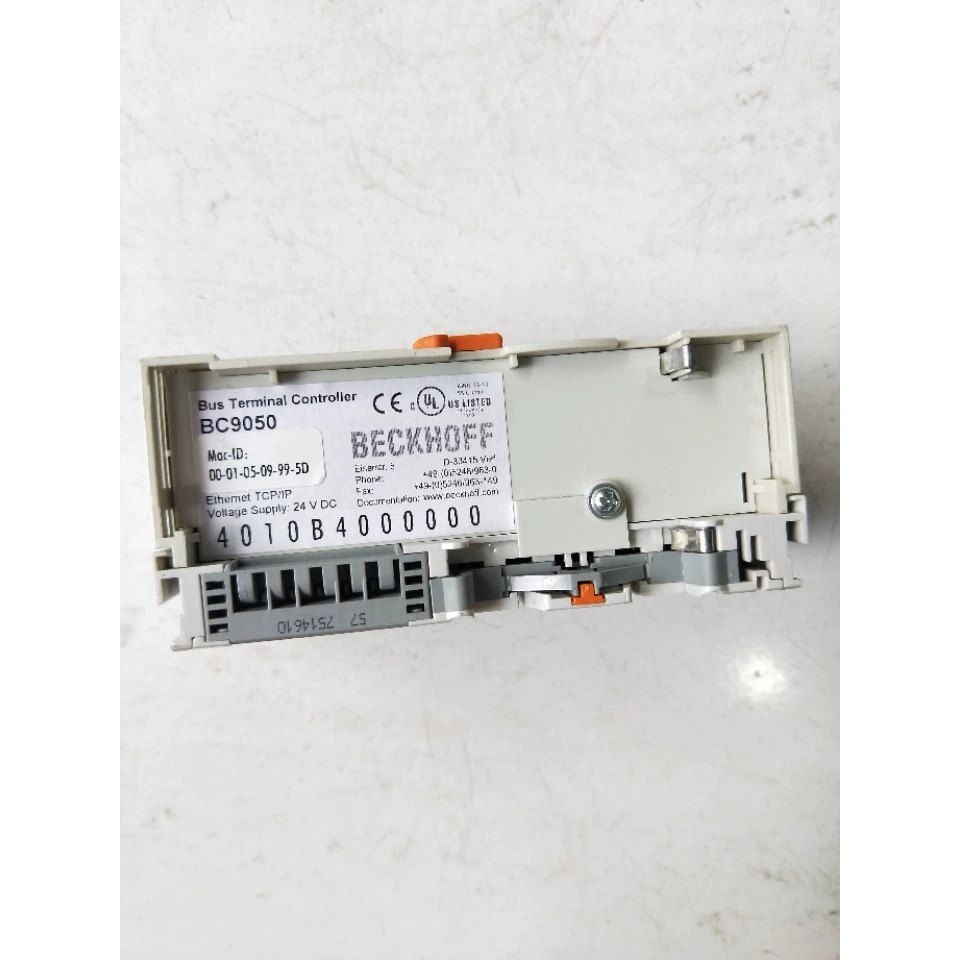

| Mac ID | 00-01-05-09-99-5D |
| Marking | labeling of the BZxxxx series |
| Material | polycarbonate |
| Max. number of bytes fieldbus | 512 byte input and 512 byte output |
| Max. number of bytes process image | 2048 byte input and 2048 byte output |
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Online change | yes |
| PLC cycle time | approx. 1.5 ms for 1,000 instructions (without I/O cycle, K-bus) |
| Program memory | 48 kbytes |
| Programming | via TwinCAT and programming interface or Ethernet |
| Programming languages | IEC 61131-3 (IL, LD, FBD, SFC, ST) |
| Protect. rating/installation pos. | IP20/variable |
| Recommended fuse | ≤ 10 A |
| Remanent data | 2 kbytes |
| Runtime system | 1 PLC task |
| Side by side mounting by means of | double slot and key connection |
| Stripping length | 8…9 mm |
| Voltage Supply | 24 V DC |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
