B&R X20PS2100 Power Supply Module - Used
Description

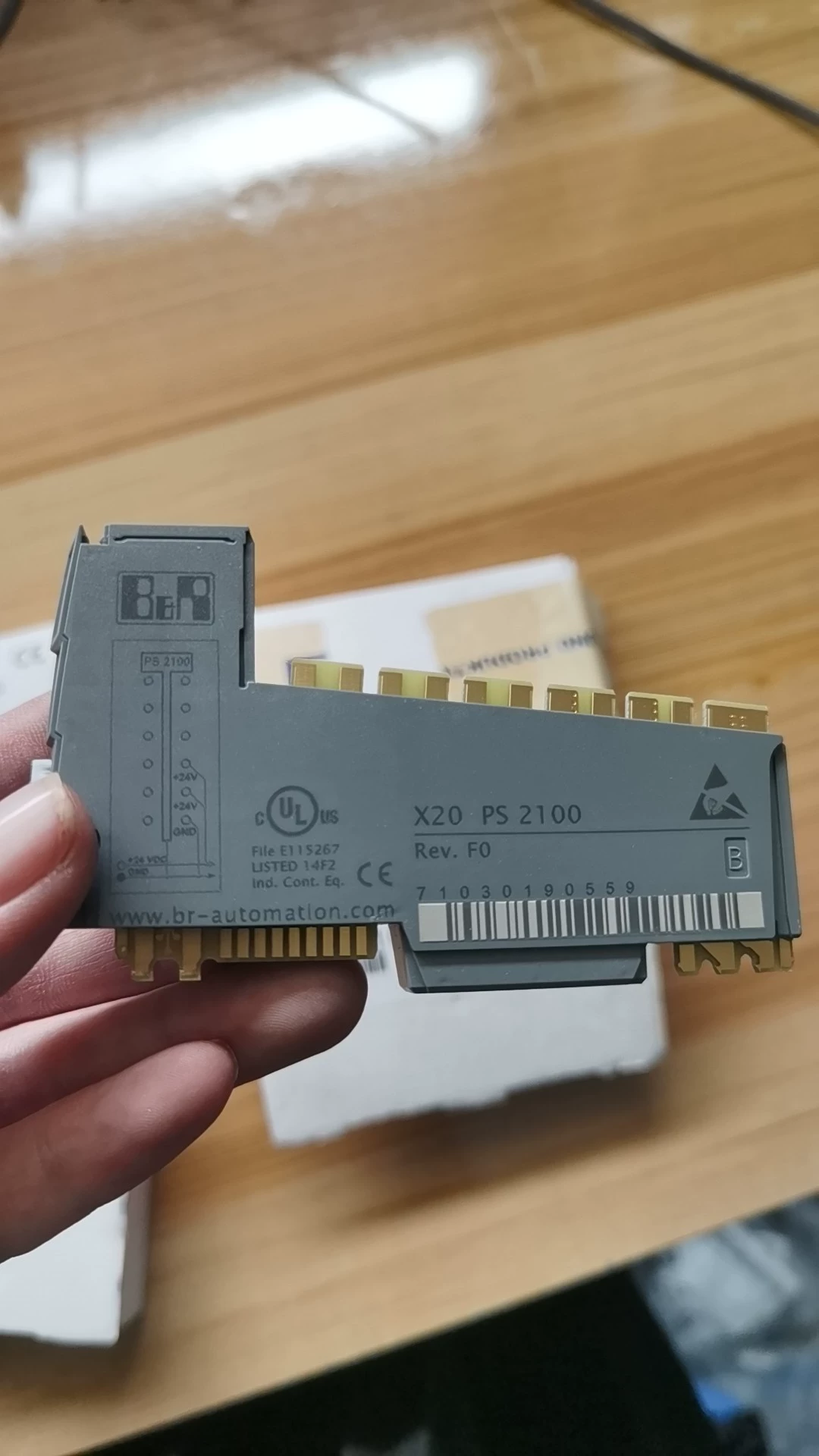

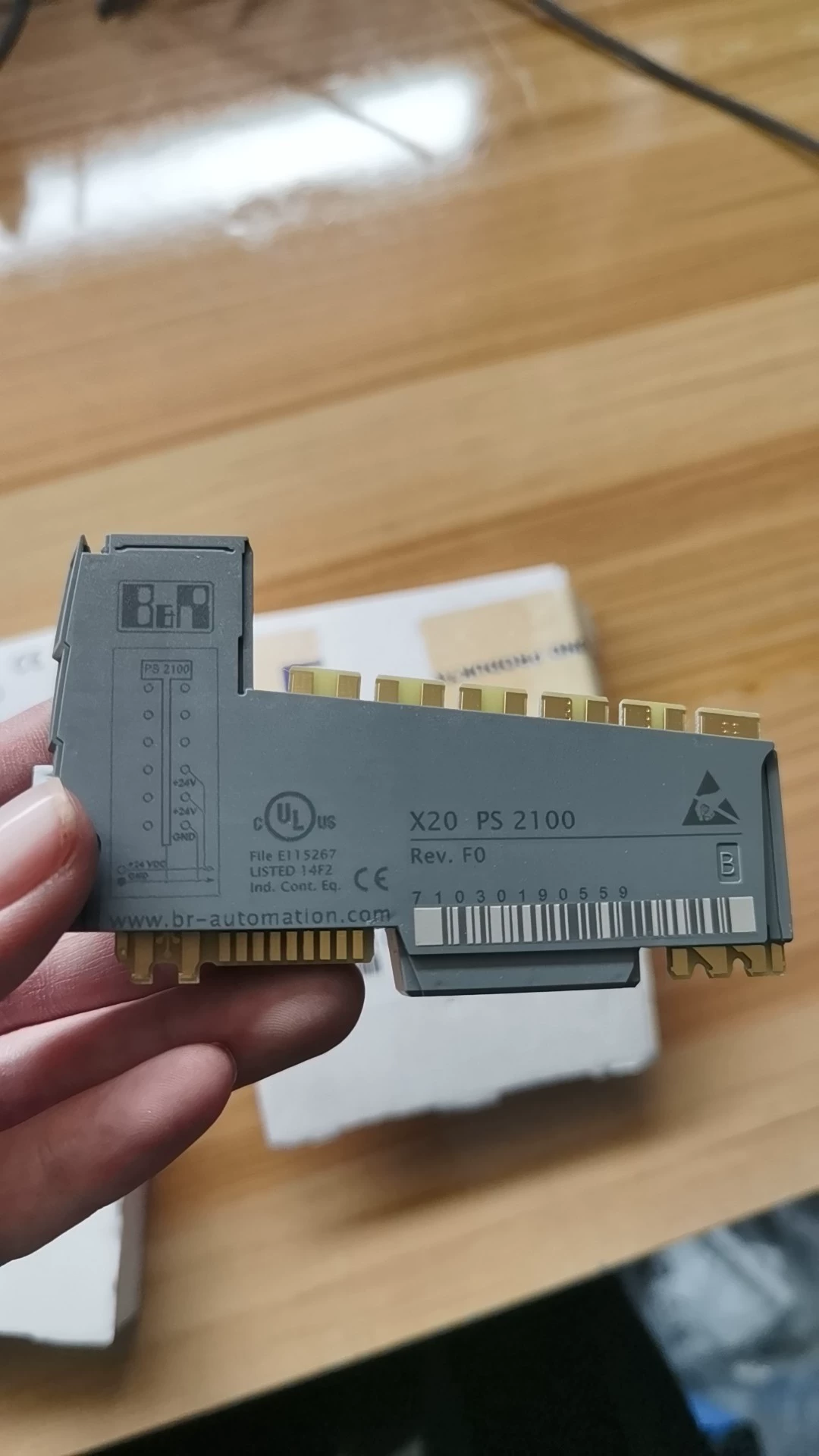

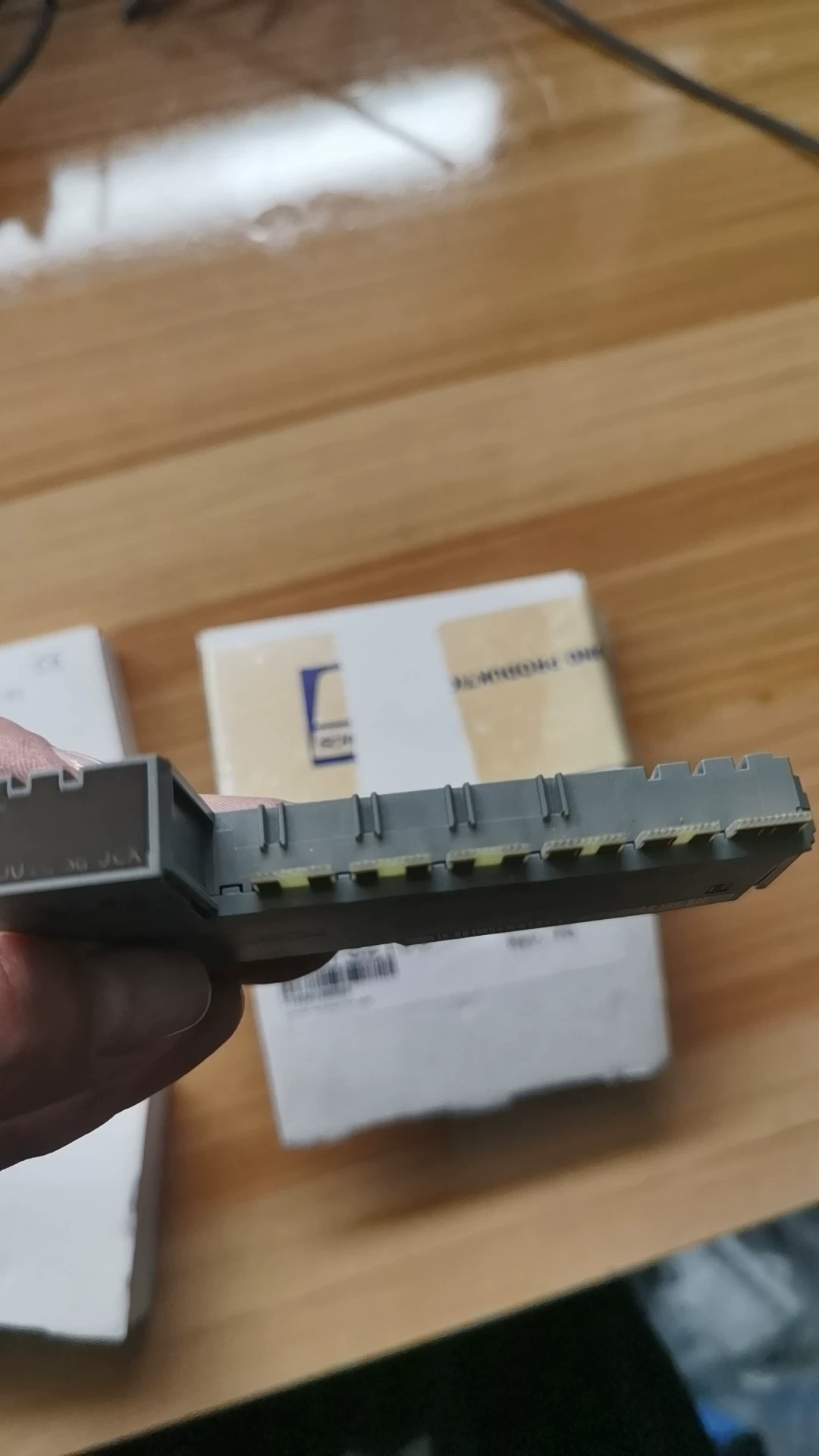

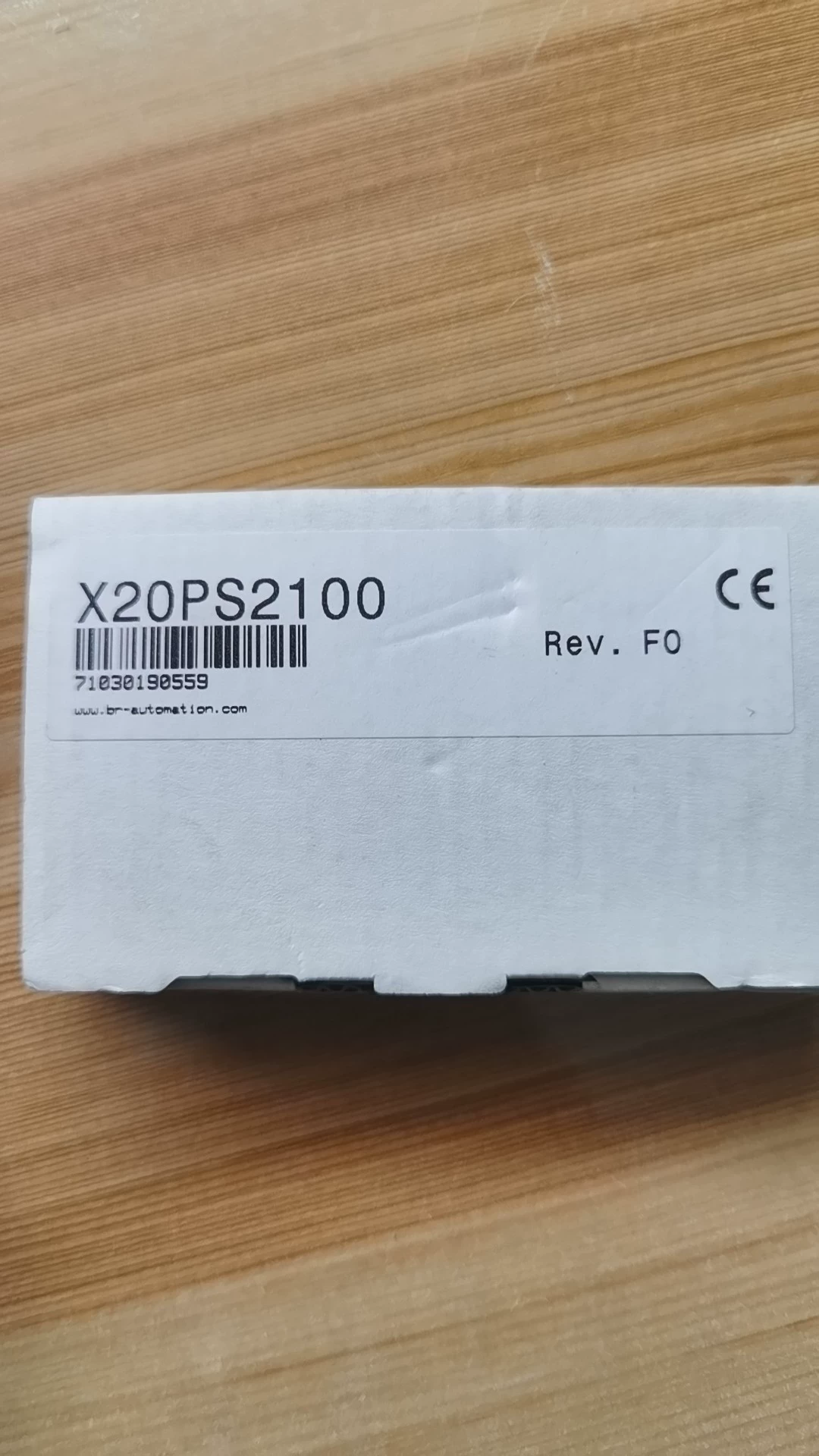

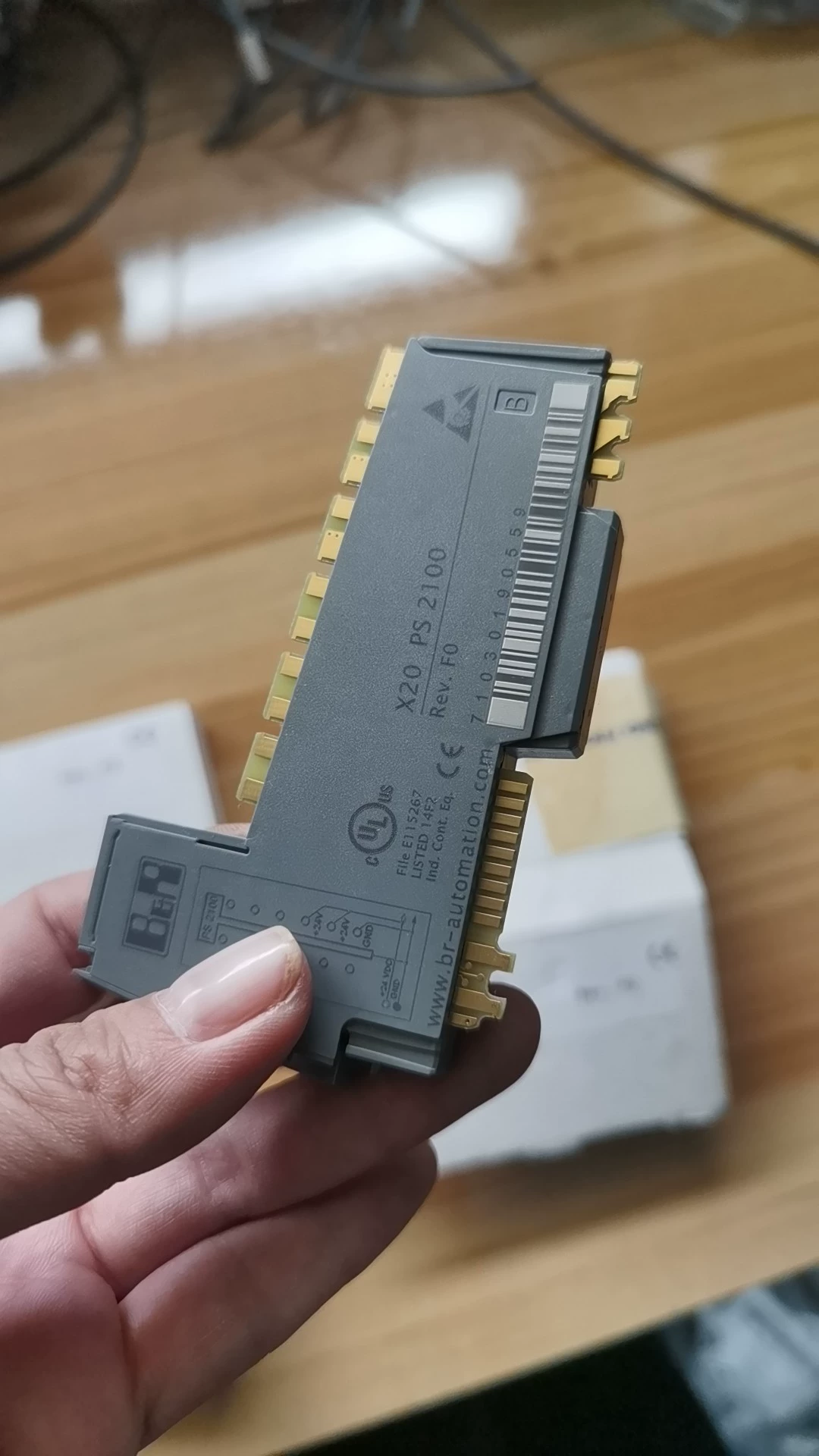

Used B&R X20PS2100 power supply module, Rev.F0, with original packaging; shows no oxidation on interfaces.
Specifications
| Brand | B&R |
|---|---|
| MPN | X20PS2100 |
| Input voltage | 24 VDC -15% / +20% |
| Nominal output voltage | 24 VDC |
| Reverse polarity protection | No |
| ABS | Yes |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| B&R ID code | 0x1BBF |
| Behavior on short circuit | Required line fuse |
| Bus | 0.2 W |
| BV | EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck |
| CCS | Yes |
| CE | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| DNV | Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck) |
| Electrical isolation | I/O supply not isolated from I/O power supply |
| Fuse | Required line fuse: Max. 10 A, slow-blow |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| Horizontal | Yes |
| Horizontal mounting orientation | -25 to 60°C |
| Installation elevation above sea level | Reduction of ambient temperature by 0.5°C per 100 m |
| Installation elevation above sea level | No limitation |
| Installation elevation above sea level | IP20 |
| Internal I/O | 0.6 W |
| KC | Yes |
| KR | Yes |
| LR | ENV1 |
| Module run/error | Yes, using LED status indicator and software |
| Operation | 5 to 95%, non-condensing |
| Permissible contact load | 10 A |
| Pitch | 12.5 +0.2 mm |
| Status indicators | Operating state, module status |
| Storage | -40 to 85°C |
| Storage | 5 to 95%, non-condensing |
| Transport | -40 to 85°C |
| Transport | 5 to 95%, non-condensing |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| Vertical | Yes |
| Vertical mounting orientation | -25 to 50°C |
