Allen-Bradley 22D-D012N104 - Used
Description

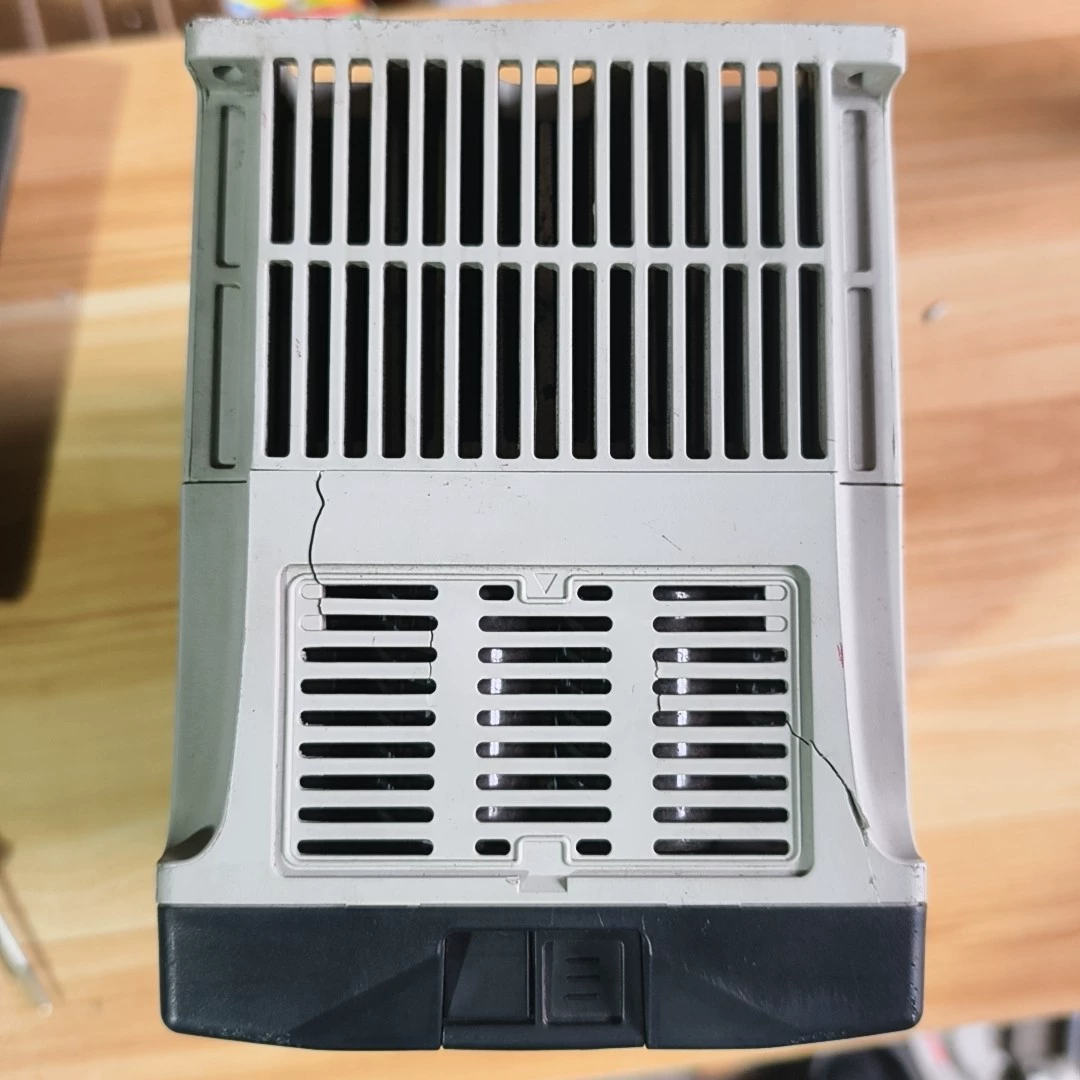

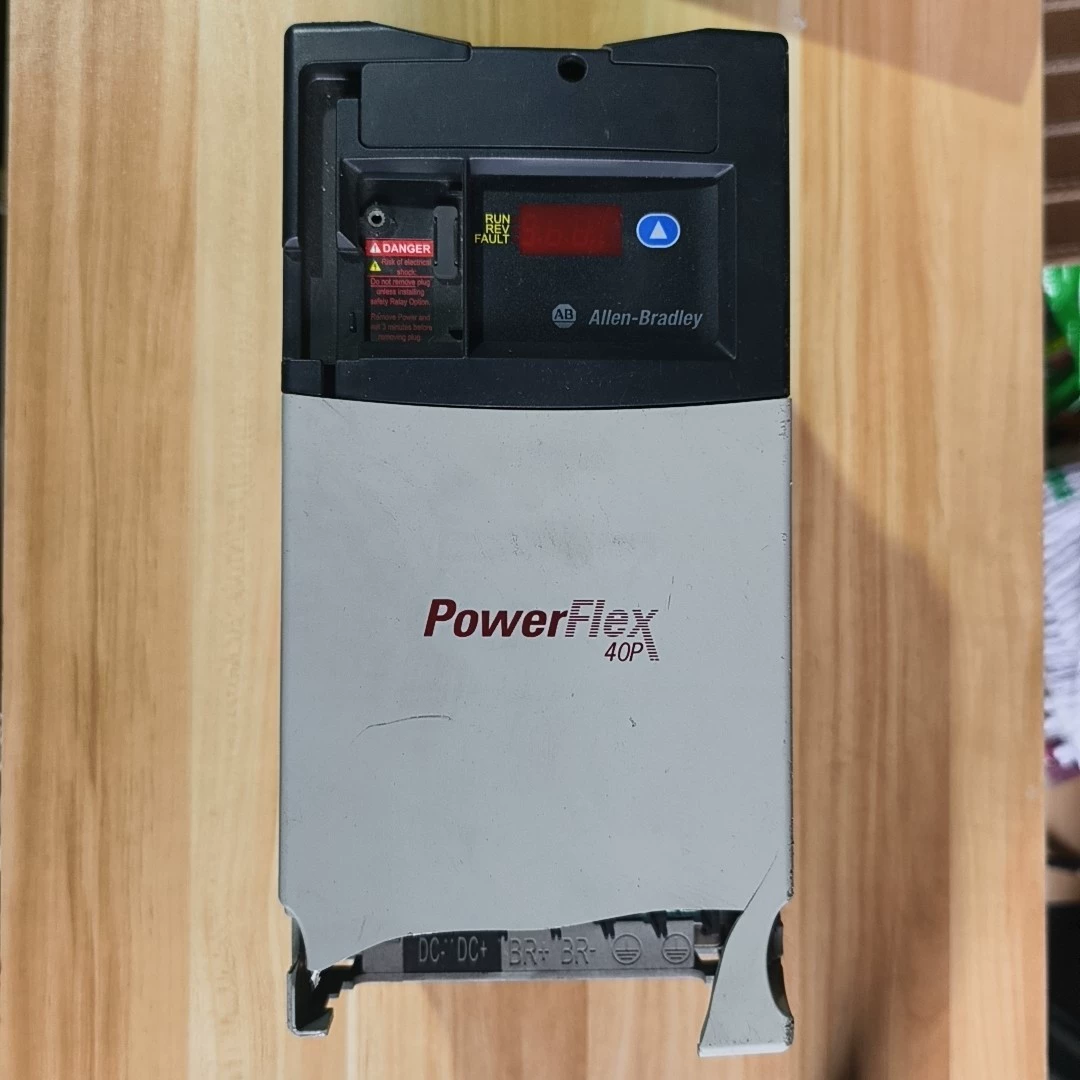

Used Allen-Bradley 22D-D012N104 variable frequency drive with a broken housing. Input voltage is 380~480 V; output is 3 Phase, 0~500 Hz.

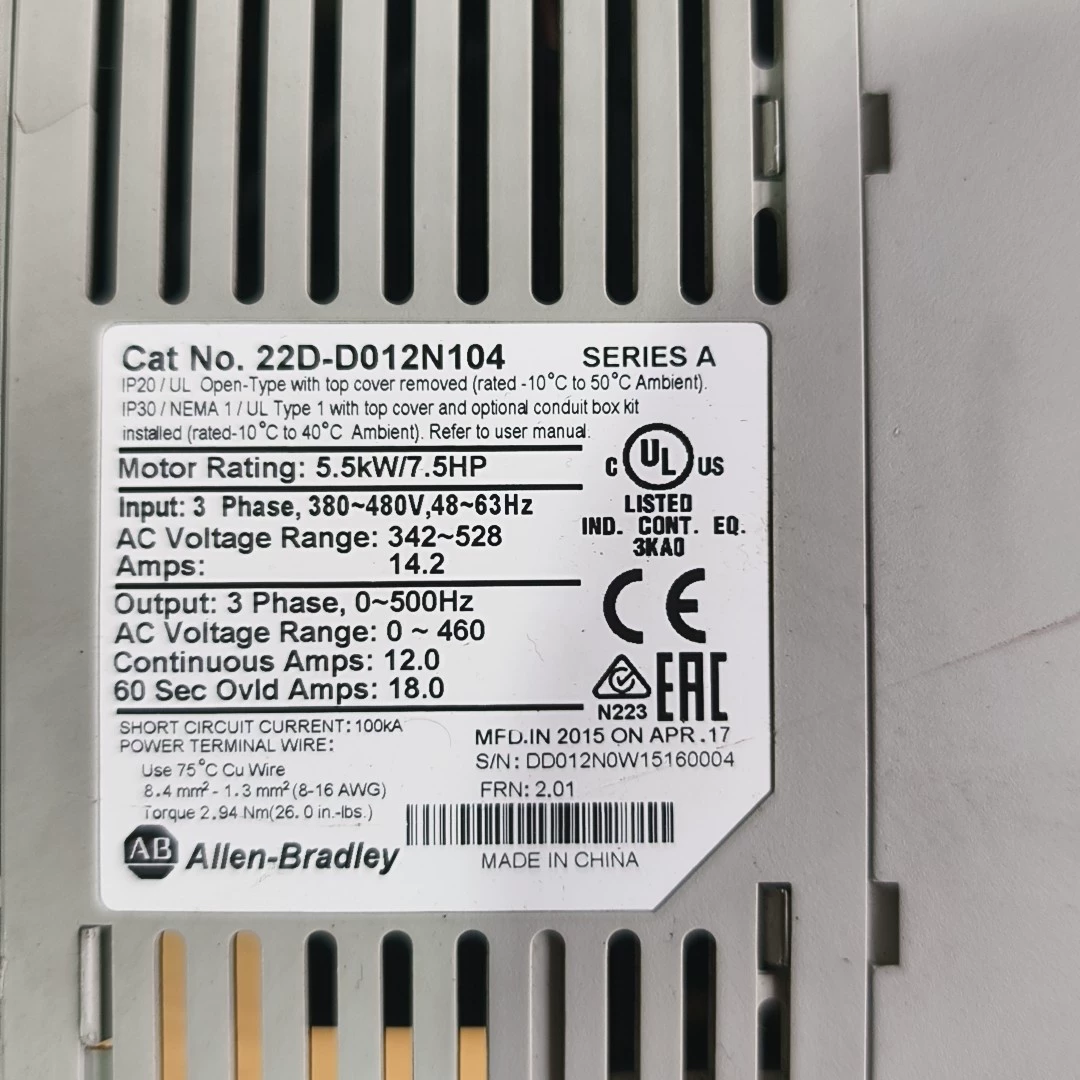

Specifications
| Brand | Allen-Bradley |
|---|---|
| Catalog Number | 22D-D012N104 |
| HS Code | 850440 |
| Origin | China |
| Input Voltage | 380~480 V |
| Input Frequency | 48~63 Hz |
| Power Terminal Wire | Use 75°C Cu Wire |
| Short Circuit Current | 100KA |
| Output AC Voltage Range | 0 ~ 460 |
| Output Frequency | 0~500 Hz |
| Wire Size Range | 8.4 mm² - 1.3 mm² (8-16 AWG) |
| Ambient Temperature | -10°C to 50°C |
| 60 Sec Ovid Amps | 18.0 |
| 60 Sec Ovld Amps | 18.0 |
| Continuous Amps | 12.0 |
| Frn | 2.01 |
| Input | 3 Phase, 380-480 V, 48-63 Hz |
| Input Phase | 3 Phase |
| IP Rating | IP20 / UL Open-Type |
| Motor Rating | 5.5kW/7.5HP |
| Output | 3 Phase, 0~500 Hz |
| Output Phase | 3 Phase |
| Series | A |
| Torque | 2.94 Nm (26.0 in.-lbs.) |
| Wire Temp Rating | 75°C |
