Advantech EKI-1521 EKI-1521-AE serial device server - New
Request a Quote
Tell us what you need and we will follow up about availability and pricing.
Start requestDescription

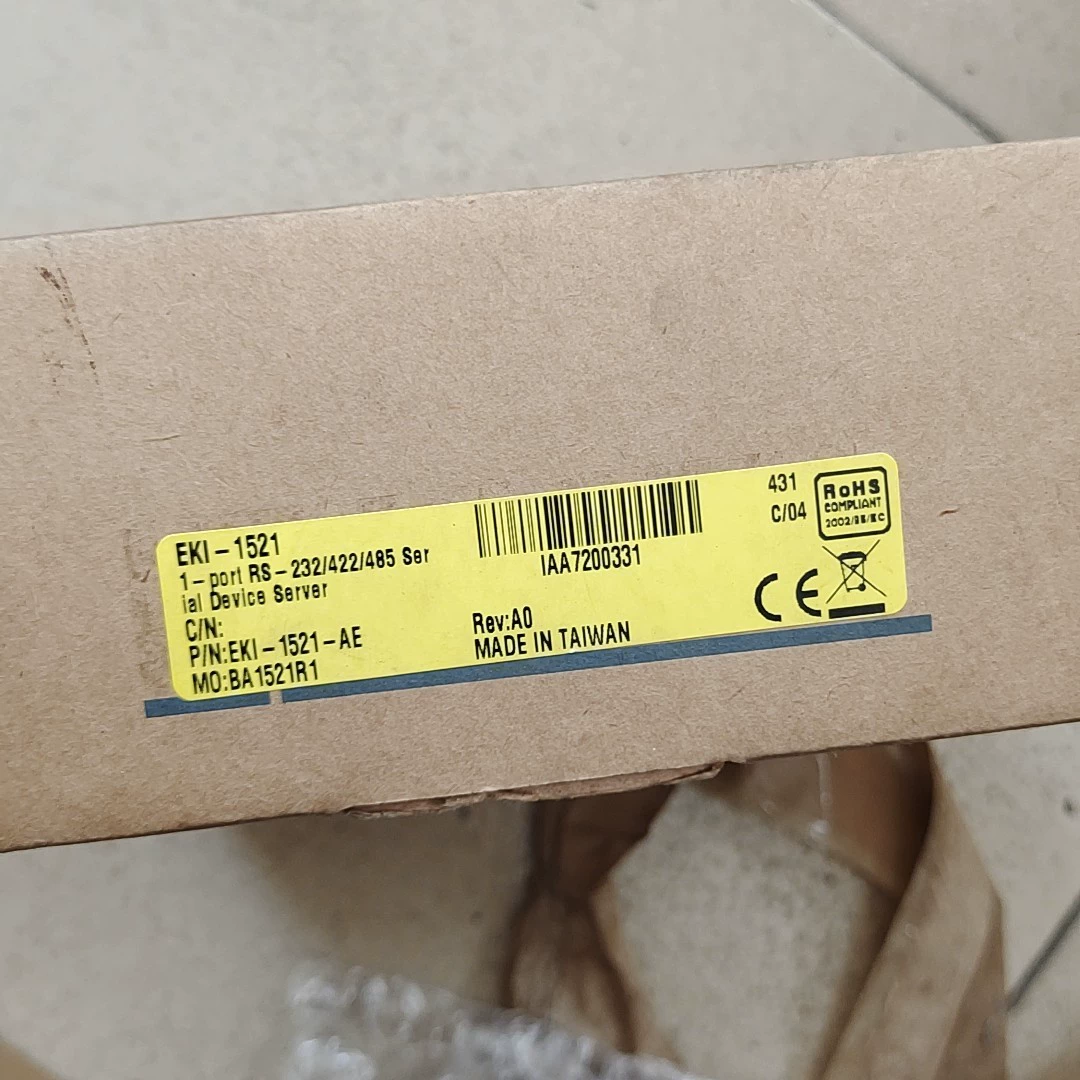

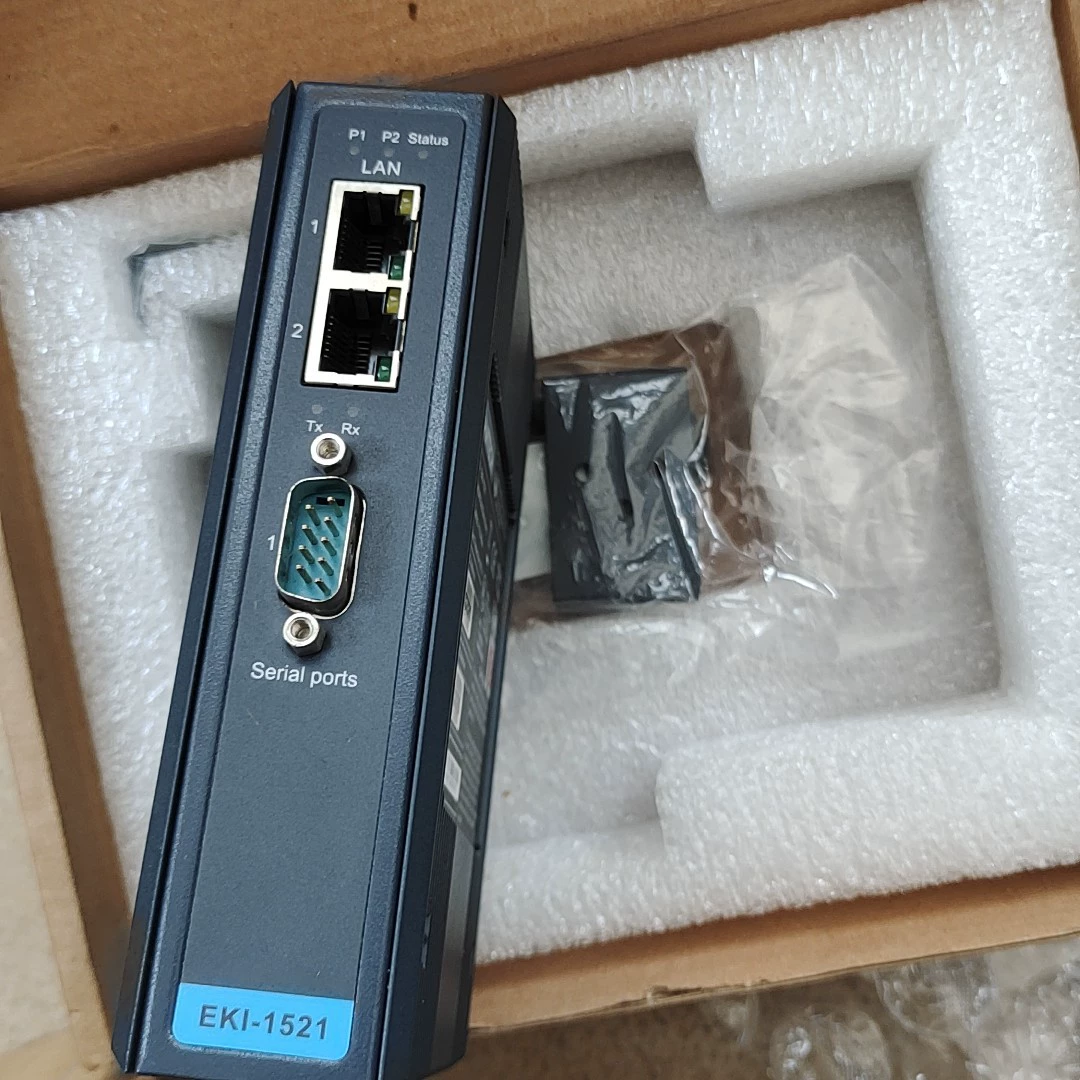

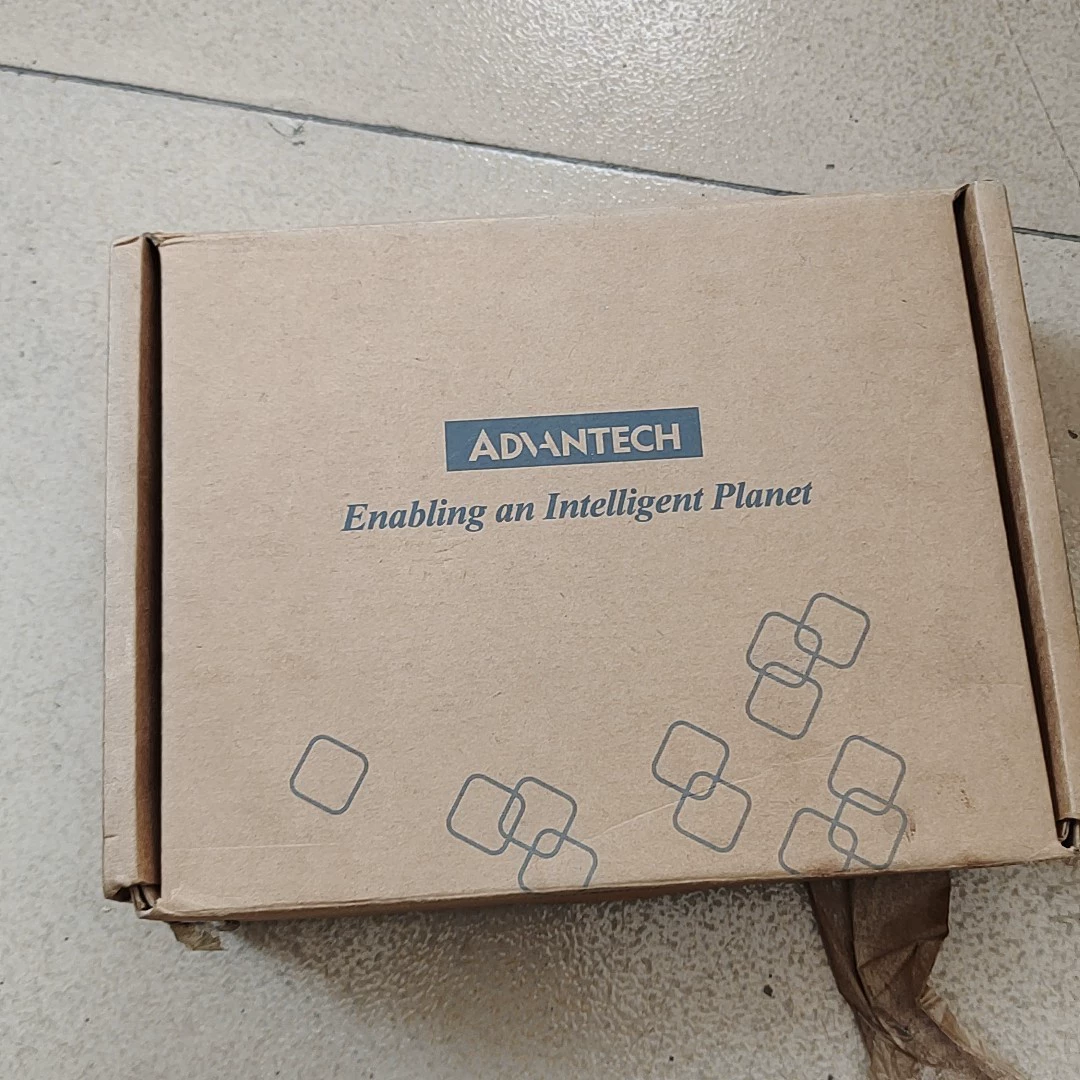

Advantech EKI-1521 serial device server, manufactured in Taiwan, new old stock. Includes original packaging, never disassembled or repaired. Supports 12-48 VDC input, one RS-232/422/485 port, and two LAN ports.
Specifications
| Brand | Advantech |
|---|---|
| Model | EKI-1521 |
| MPN | EKI-1521-AE |
| Origin | Taiwan |
| RS-232 | Yes |
| RS-422 | Yes |
| RS-485 | Yes |
| Weight | 432 g |
| Revision | A0 |
| Baud Rate | 50 ~ 921.6 Kbps |
| IP Rating | IP30 |
| Dimensions (W x H x D) | 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.) |
| ESD Protection | 15 KV ESD protection for all serial signals |
| Serial Ports | 1 |
| Mounting (Wall) | Yes |
| Ethernet Ports | 2 |
| Ethernet Speed | 10/100 Mbps |
| DC Input Voltage | 12 ~ 48 VDC |
| Warranty Period | 5 years |
| RJ-45 Port Number | 2 |
| Serial Interface | RS-232/422/485 |
| Ethernet Standard | IEEE 802.3, 802.3u |
| Mounting (DIN-rail) | Yes |
| Power Consumption | 3.2 W |
| Serial Port Number | 1 |
| Ethernet Port Count | 2 |
| Power Input Voltage | 12 ~ 48 VDC |
| Storage Temperature | -20 ~ 80°C (-4 ~ 176°F) |
| Operating Temperature | -10 ~ 60°C (14 ~ 140°F) |
| RJ-45 Transmission Speed | 10/100 Mbps |
| Serial Port Connector Type | DB9 male |
