Advantech ADAM-4024 Data Acquisition Module - Used
Request a Quote
Tell us what you need and we will follow up about availability and pricing.
Start requestDescription

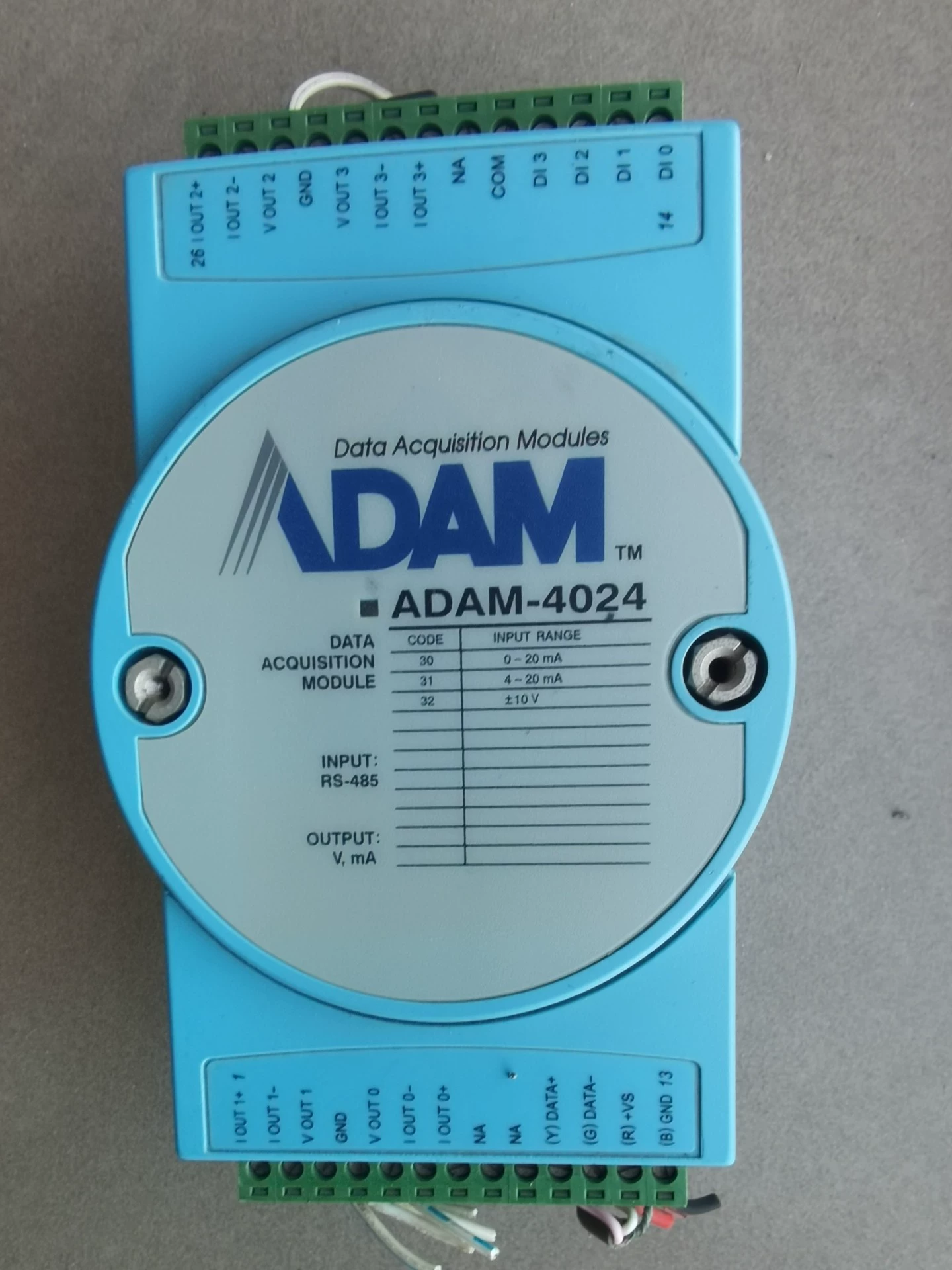

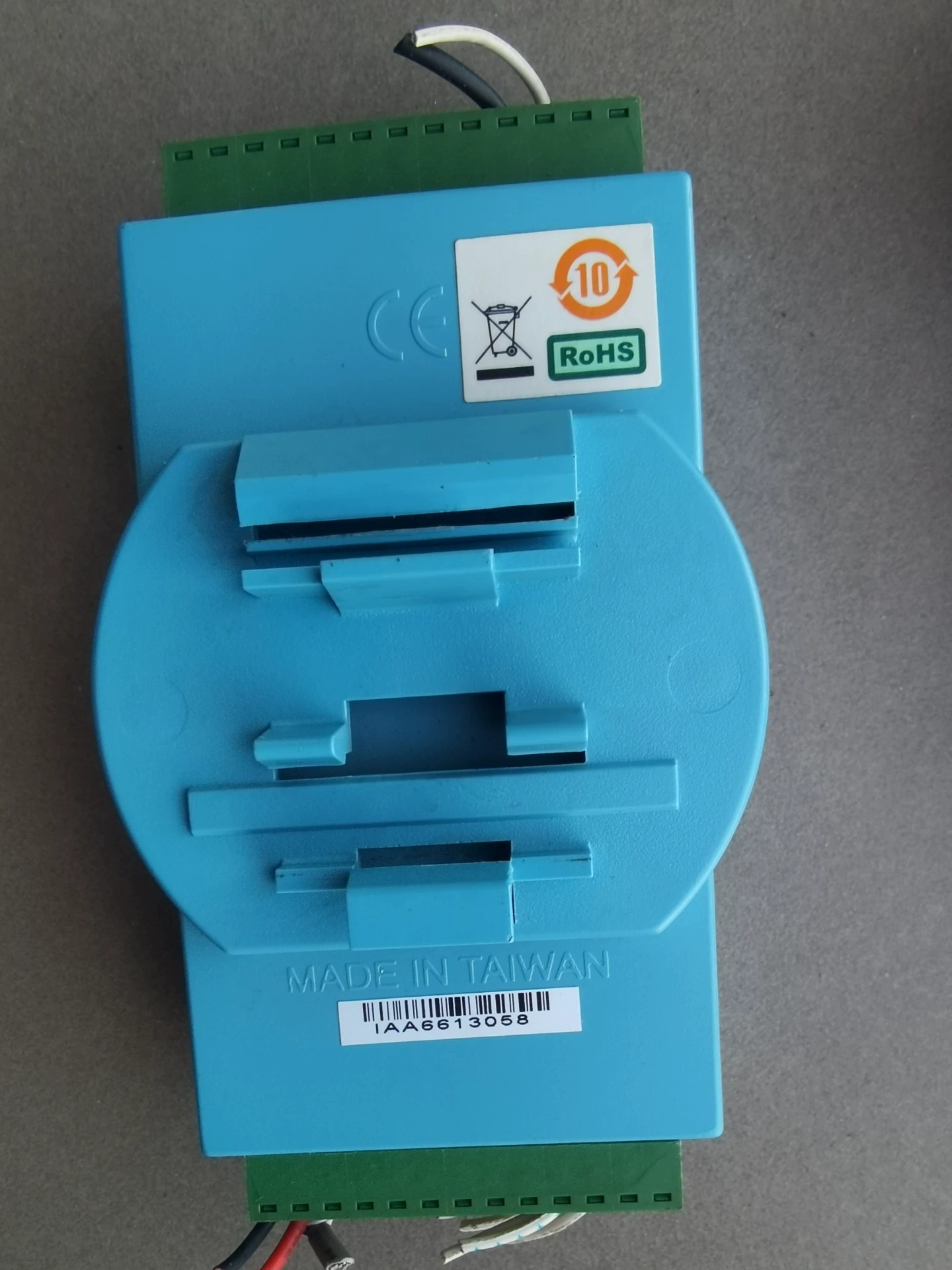

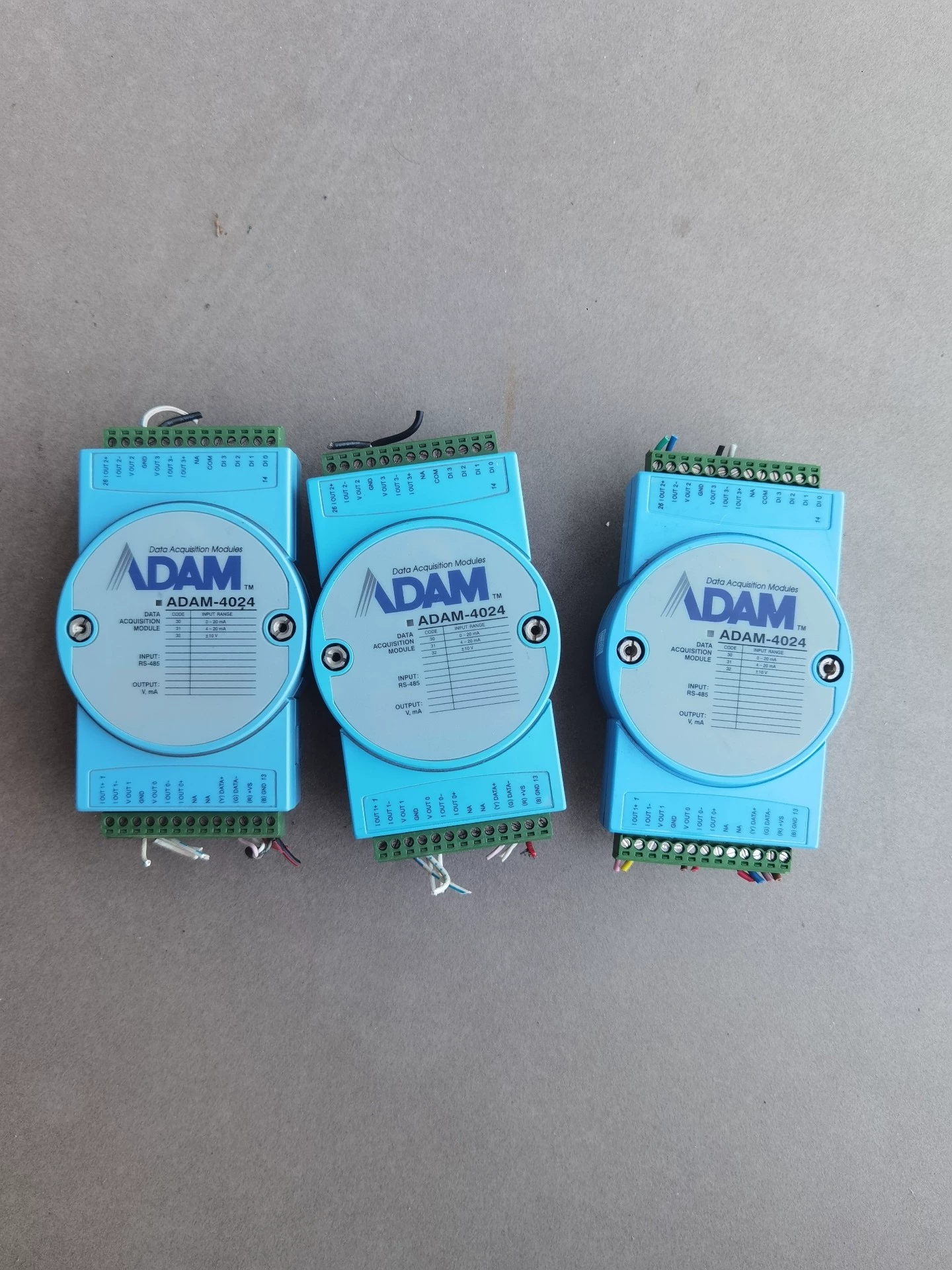

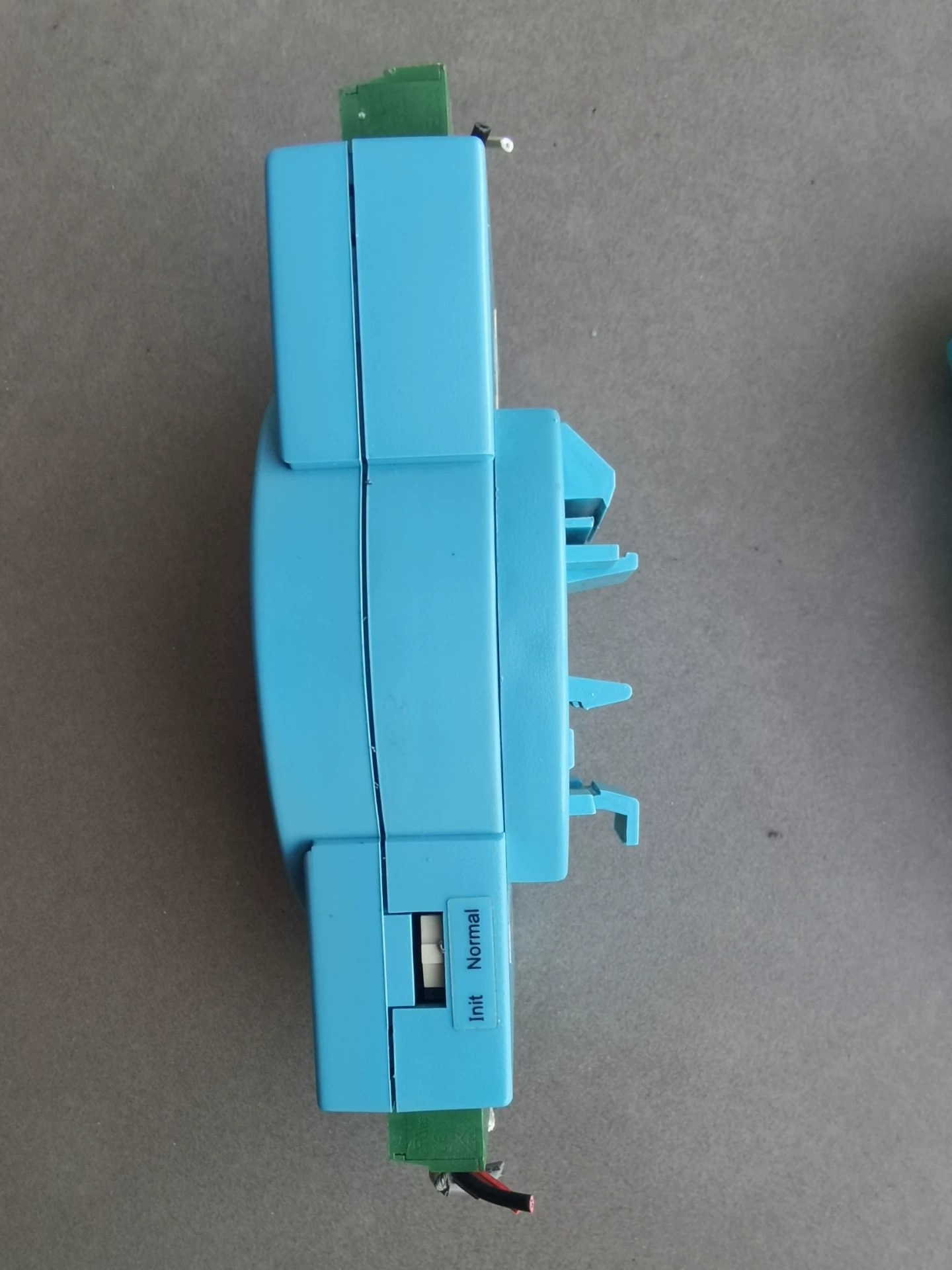

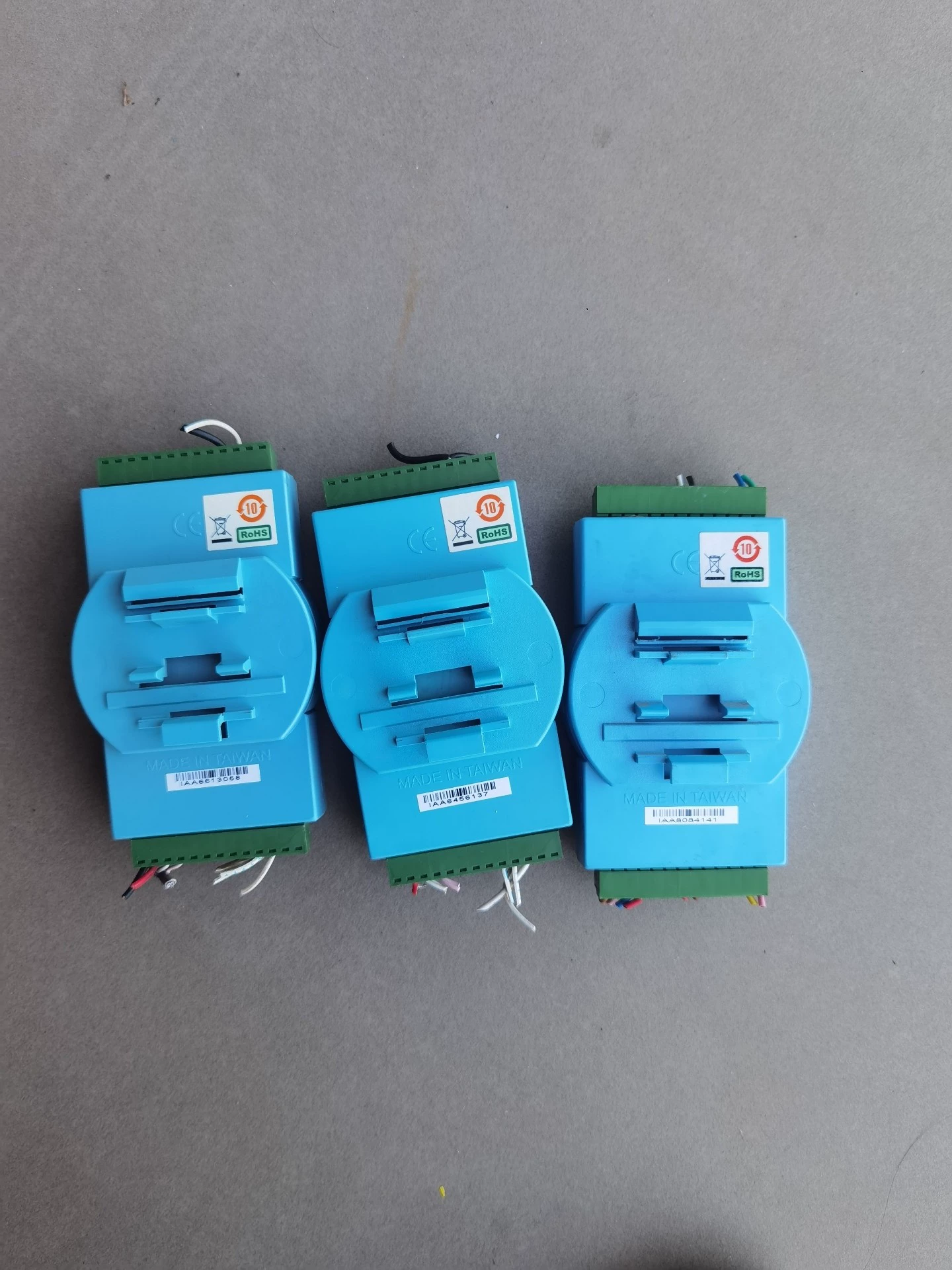

Advantech ADAM-4024 data acquisition module. Removed from equipment, shows light signs of use.
Specifications
| Brand | Advantech |
|---|---|
| Model | ADAM-4024 |
| Protocol | ASCII command, Modbus/RTU |
| Connectors | 2 x 13-pin plug-in screw terminal |
| Resolution | 16-bit |
| Output Type | V, mA |
| Certification | CE, FCC |
| Input Voltage | 10~30 VDC |
| Output Ranges | 0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA |
| Input Interface | RS-485 |
| Analog Output Type | V, mA |
| Input Range Code 30 | 0-20 mA |
| Input Range Code 31 | 4-20 mA |
| Input Range Code 32 | ±10 V |
| Power Input Voltage | 10~30 VDC |
| Analog Output Ranges | 0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA |
| Isolation Protection | 3,000 VDC |
| Operating Temperature | -10~70 °C (14~158 °F) |
| Analog Output Channels | 4 |
| Digital Input Channels | 4 (Isolated) |
| Communication Interface | RS-485 |
| Analog Output Resolution | 16-bit |
| Communications Interface | RS-485 |
| Digital Input Voltage Dry Contact | Logic level 1: close to Iso.GND, Logic level 0: open |
| Digital Input Voltage Wet Contact | Logic level 1: 10~30 VDC, Logic level 0: 0~1 VDC |
