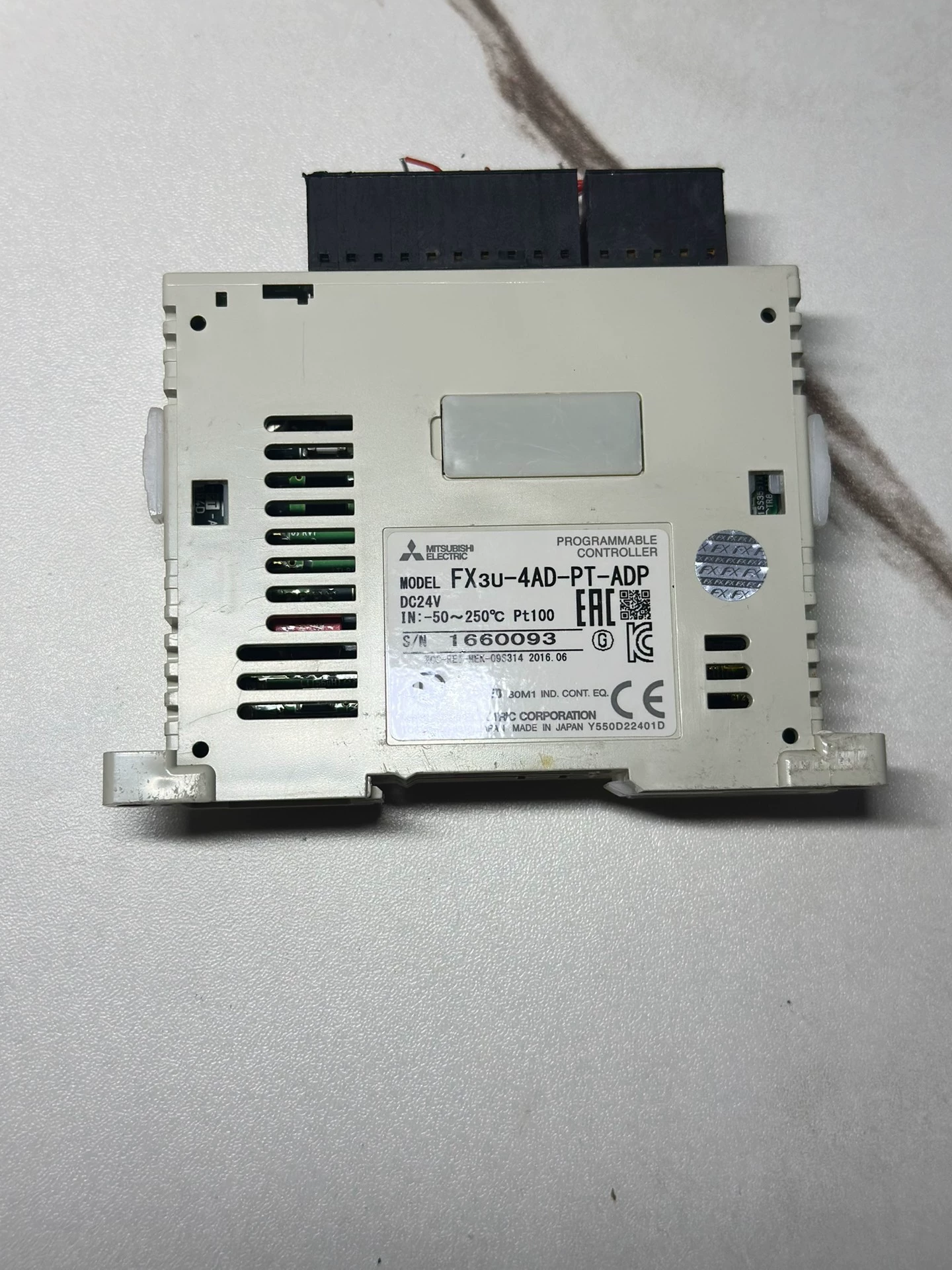

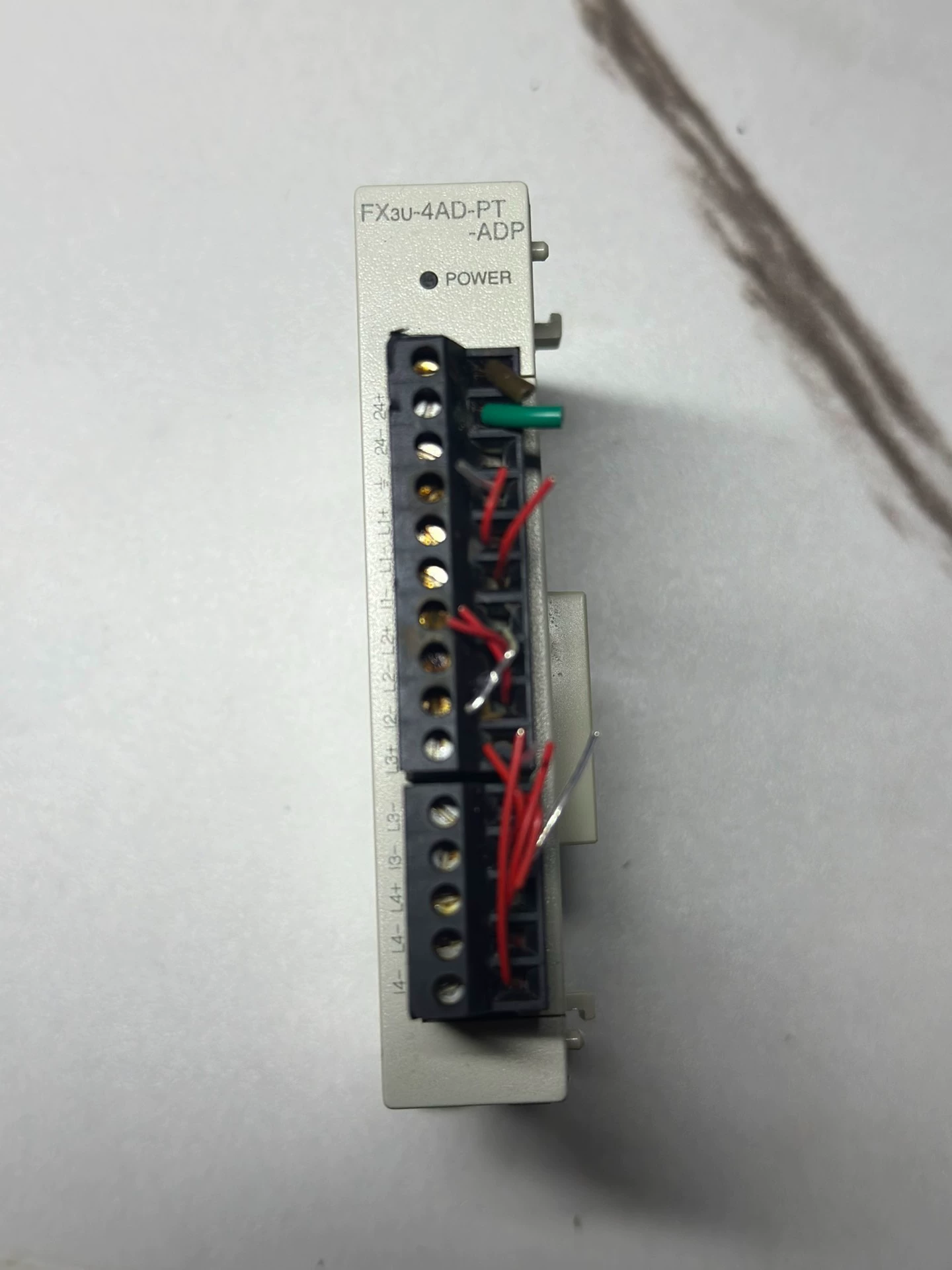

Mitsubishi Electric FX3U-4AD-PT-ADP 温度モジュール - 中古
説明
中古のMitsubishi Electric FX3U-4AD-PT-ADP 温度モジュール、4チャンネル、DC 24 V電源。
仕様
| Brand | Mitsubishi Electric |
|---|---|
| Model | FX3U-4AD-PT-ADP |
| Supply Voltage | DC 24 V |
| Input Range | -50~250℃ |
| 24V DC power supply | 24 V DC +20%/-15%, 50 mA |
| 5V DC interface power | 5 V DC, 15 mA |
| Weight | Approx. 0.1 kg |
| A/D conversion time for FX3S/FX3G/FX3GC | 250 µs |
| A/D conversion time for FX3U/FX3UC | 200 µs |
| Channels | 4 |
| Conformance standard | UL cUL CE(EMC) CE(RoHS) KC(EMC) LR NK DNV ABS RINA BV KR |
| Digital output (°C) | -500 to +2500 |
| Digital output (°F) | -580 to +4820 |
| Input signal | 3-wire platinum resistance thermometer sensor Pt100 JIS C 1604-1997 |
| Input Type | Pt100 |
| Occupied points | 0 |
| Resolution (°C) | 0.1 °C |
| Resolution (°F) | 0.18 °F |
| Sales status | On sale |
| Temperature range (°C) | -50 to +250 °C |
| Temperature range (°F) | -58 to +482 °F |
| Total accuracy at 0 to 55°C | ±1.0% for full scale |
| Total accuracy at 25°C | ±0.5% for full scale |
ドキュメント
FX3U-4AD-PT-ADP USER'S MANUAL
データシート
開く
