Keyence VT3-W4MT パネル - 中古
説明

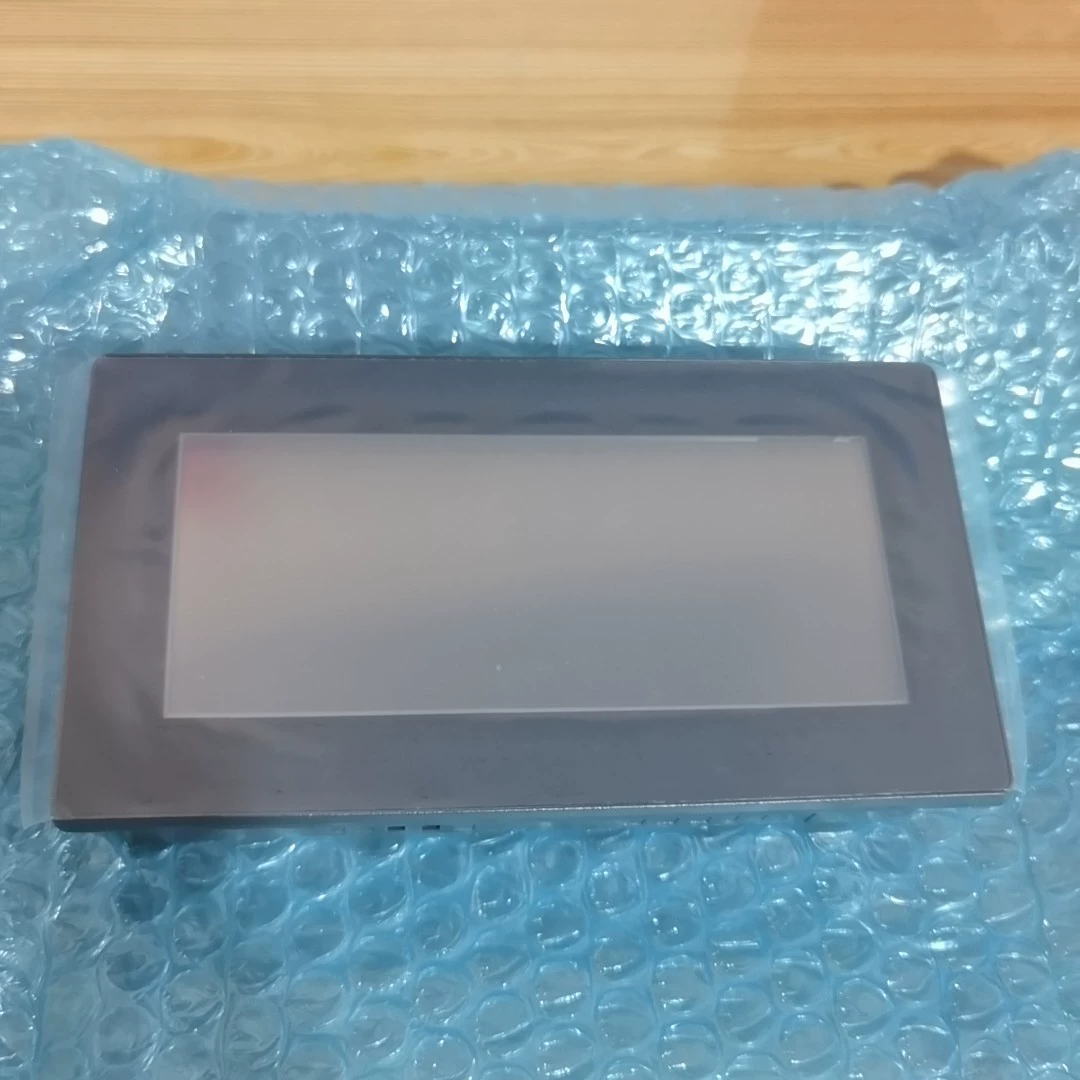

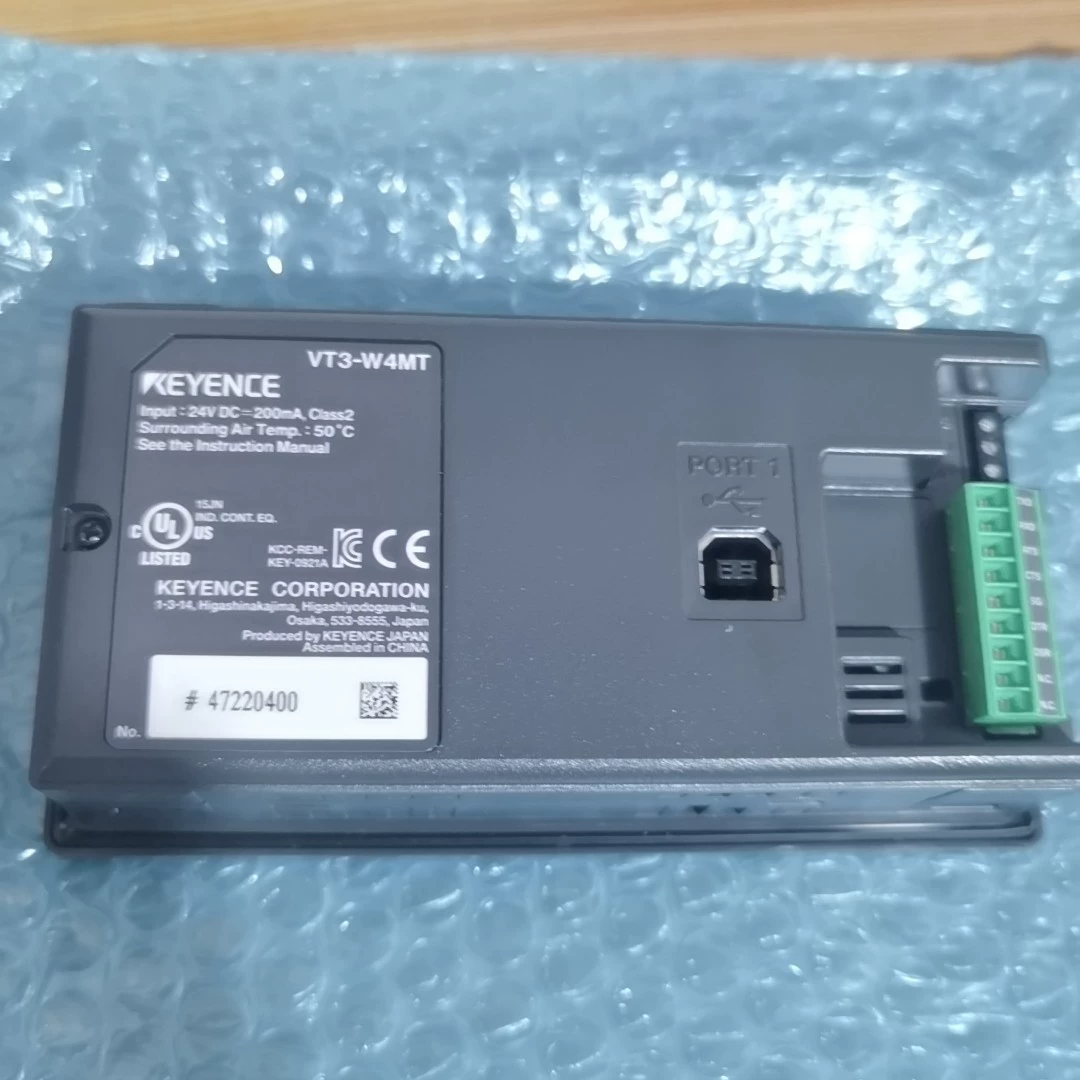

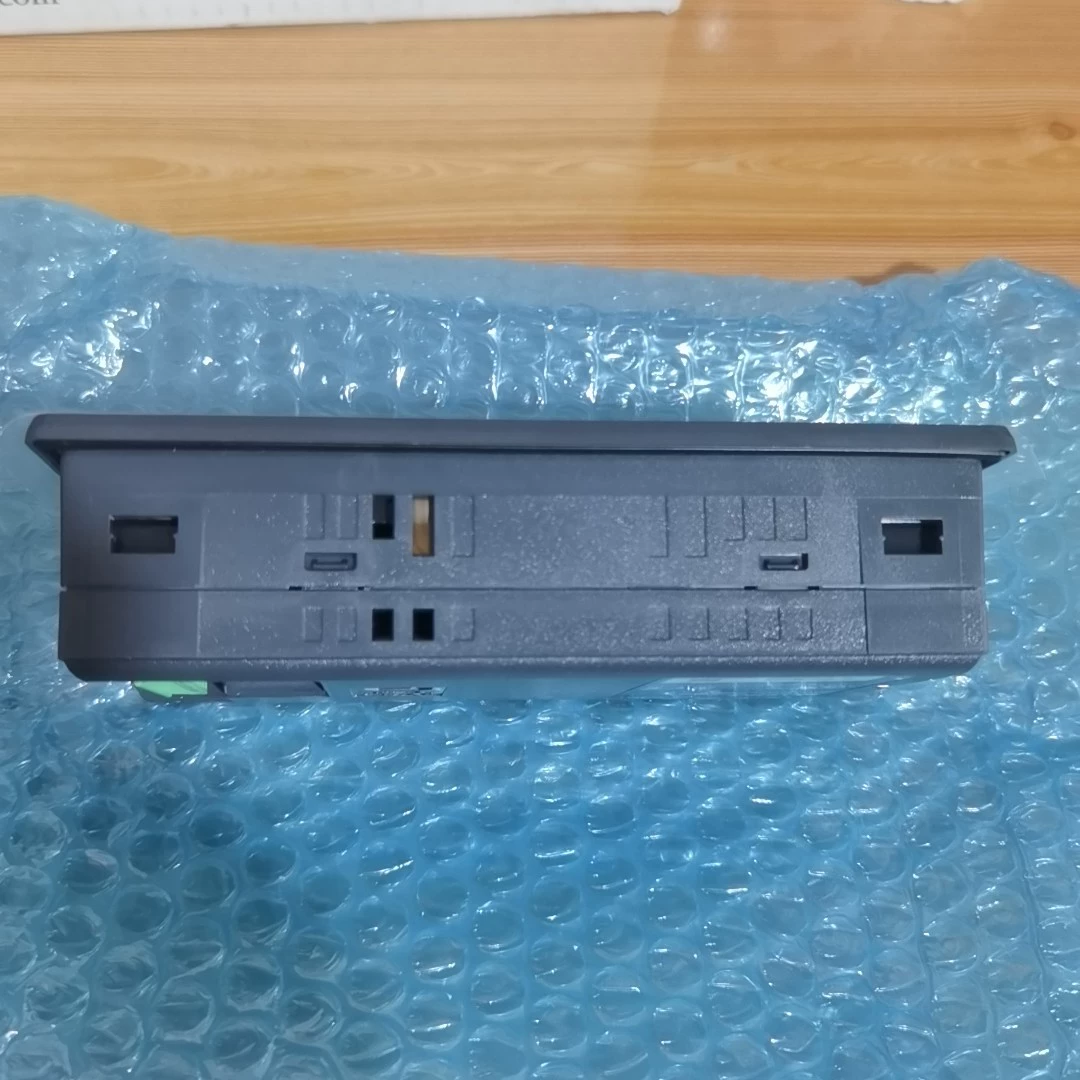

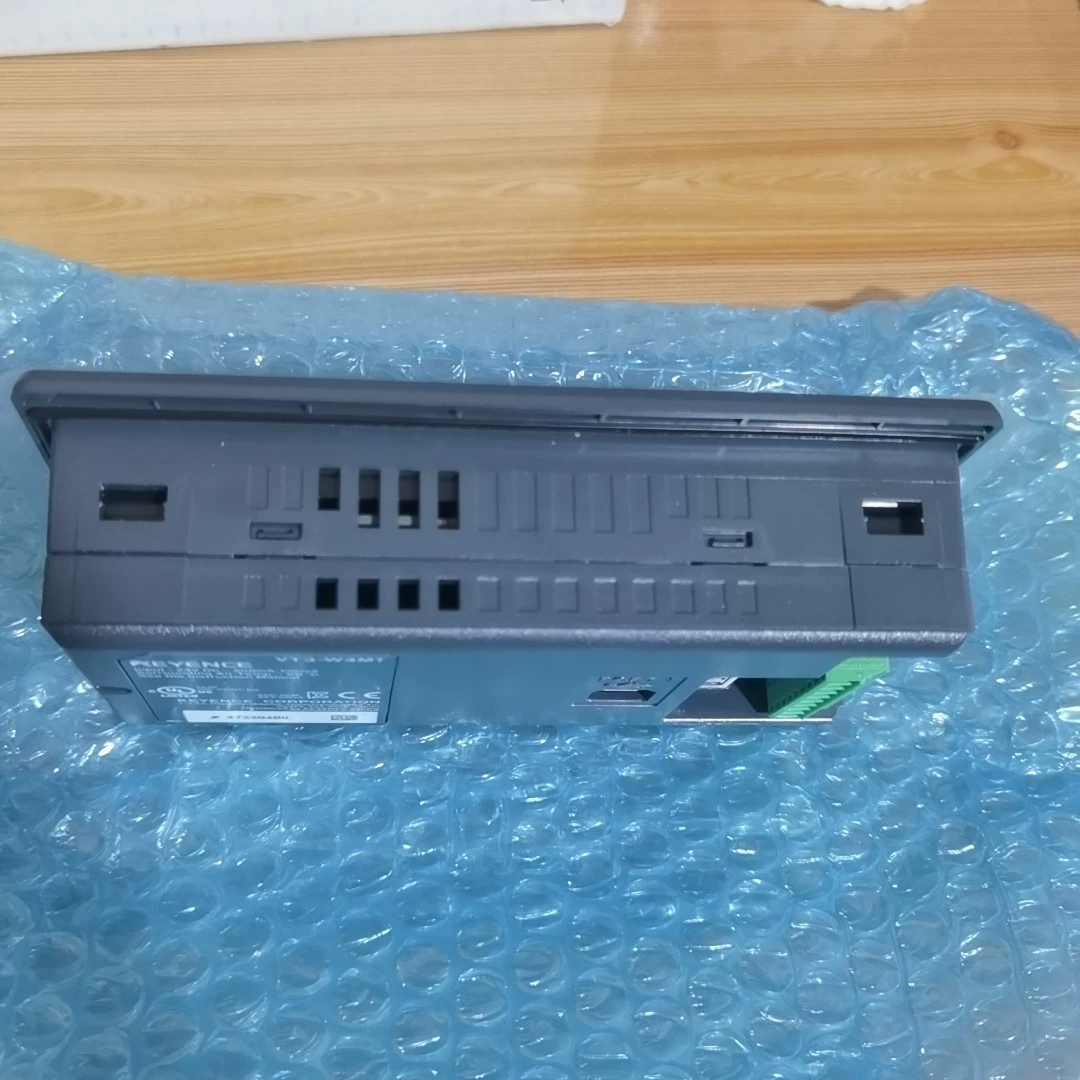

中古のKeyence VT3-W4MTパネル、装置から取り外されたもの。DC 24 V、200 mAで動作、クラス2入力に対応。
仕様
| Brand | Keyence |
|---|---|
| Model | VT3-W4MT |
| HS Code | 853710 |
| Power Voltage | 24 VDC ±10% |
| Serial I/F Communication Speed | 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, 57,600, 115,200 bps |
| Withstand Voltage | 1500 VAC 1 minute (between power terminal and housing) |
| Weight | Approx 250 g |
| Ambient Operating Temperature | 0 to +50°C |
| Ambient Storage Temperature | -20 to +60°C (No freezing) |
| Surrounding Air Temperature | 50°C |
| Active Display Area | W 110.4 × H 44.2 mm |
| Ambient Operating Humidity | 35 to 85%RH (No condensation) |
| Ambient Storage Humidity | 35 to 85%RH (No condensation) |
| Backlight Display Colour | 3 colours (white/pink/red) |
| Backlight Life-span | Approx 50000 h |
| Backlight System | White LED (Not replaceable) |
| Calendar Timer | Accuracy:±40s/month (25°C), Backup:1lithium battery (5 years above of service life at 25°C) |
| Character Font | Outline font, Bitmap font, Windows font, IMAGE font, Small font |
| Current Consumption | ≤200 mA |
| Display Colour | 32 greyscale |
| Display Elements | TFT LCD |

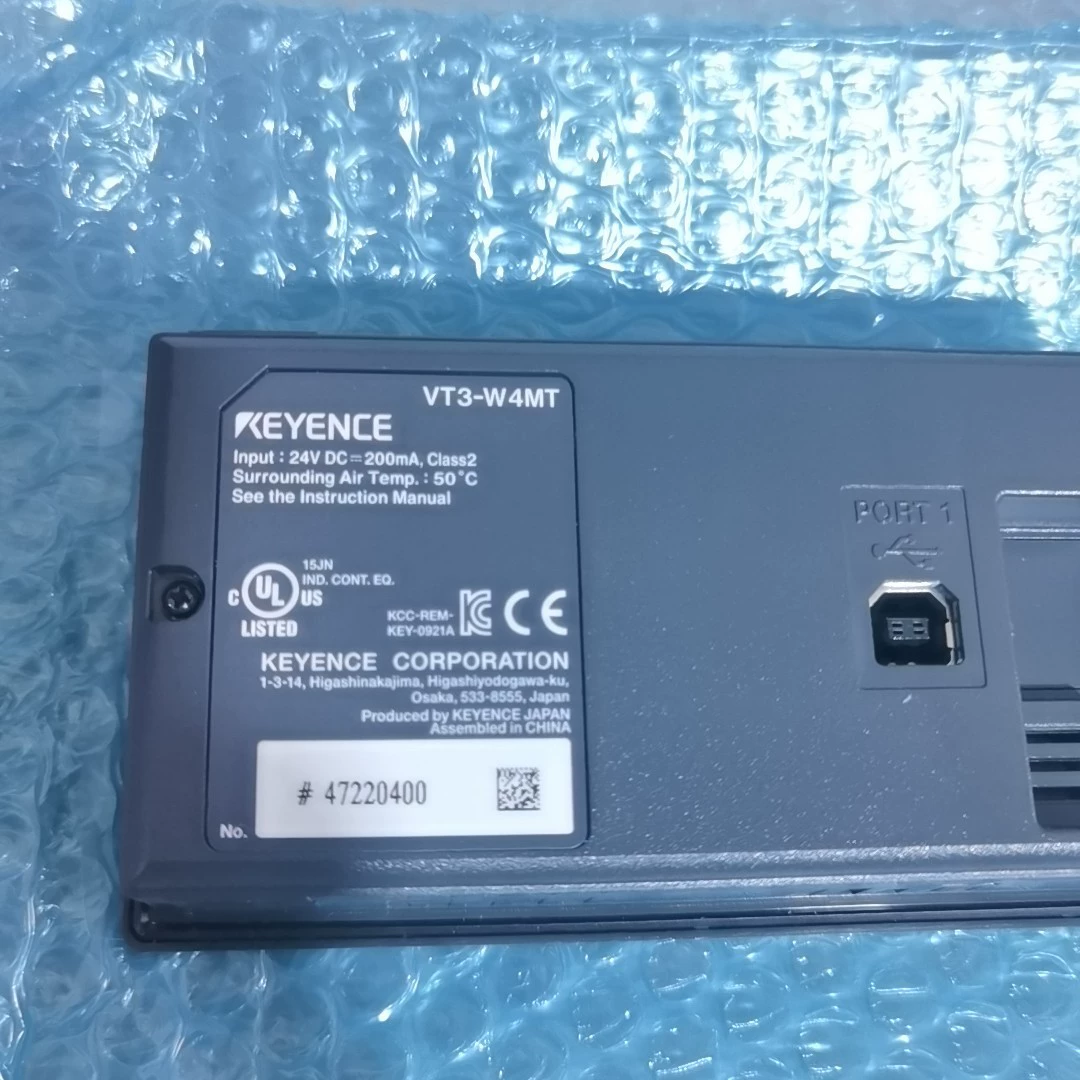

| Input | 24 V DC=200 mA, Class2 |
| Insulation Resistance | 50 MΩ or more tested by 500 VDC megohmmeter (between power terminal and housing) |
| Memory Capacity | 3 MB |
| Noise Resistance | 1500 Vp-p pulse width 1 µs (common mode, based on noise simulator) |
| Number of Points Displayed | W 320 × H 128 points |
| Operating Environment | Minimal amount of dust and corrosive gas present |
| Overvoltage Category | I |
| Pollution Degree | 2 |
| Recording Data | SRAM backup:lithium battery |
| Screen Data Data Backup | Flash ROM can be erased for 100000 times |

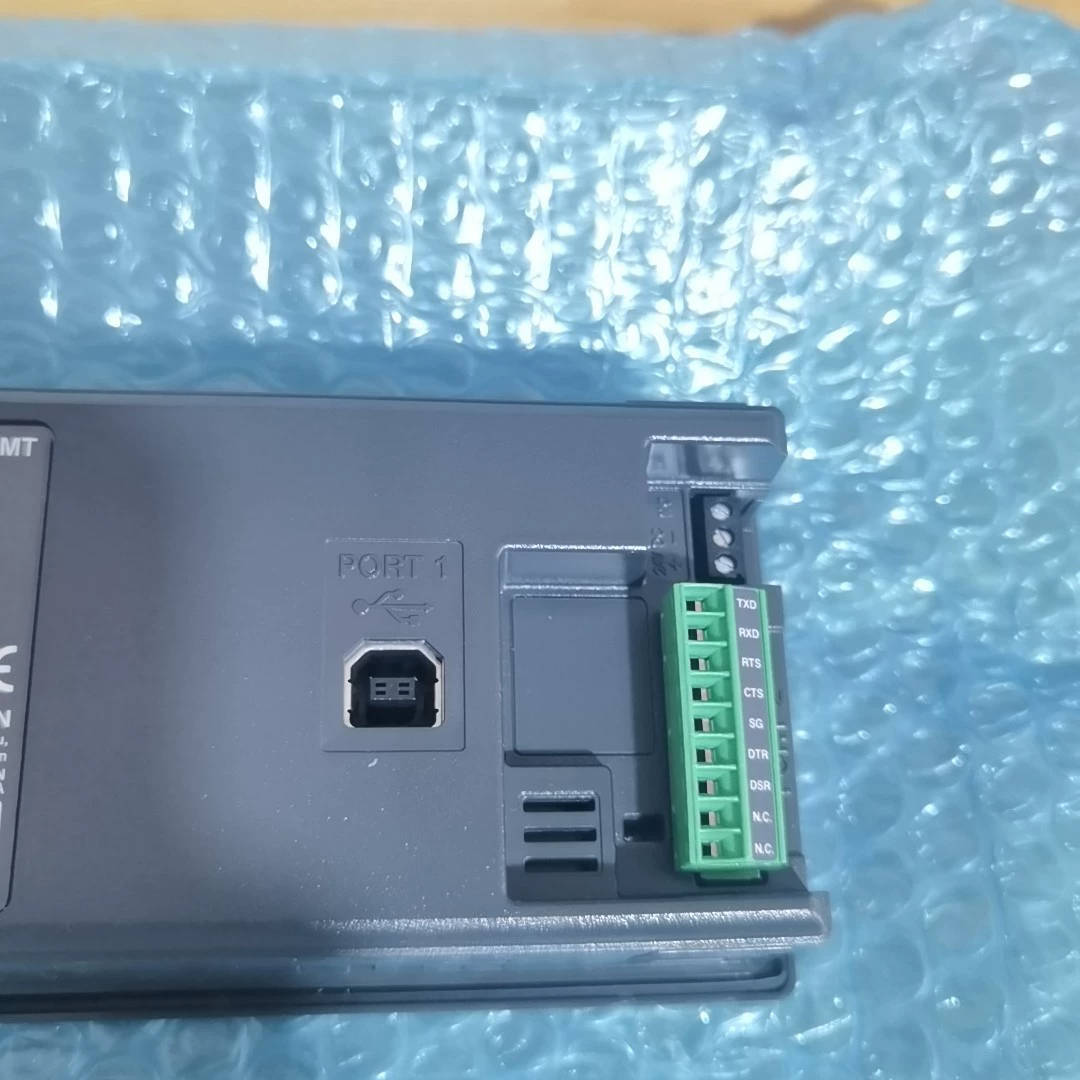

| Serial I/F (PORT 2) for connecting PLC/MegaLink/multi-link/external devices | Conforms to EIA RS-232C |
| Serial I/F Communication Distance | 15m |
| Serial I/F Data Length | 7 or 8 bits |
| Serial I/F Parity | Even, odd, none |
| Serial I/F Synchronisation between the transmitter and receiver | Start-stop, half duplex |
| Service Life (Normal Temperature and Humidity) | Approx 50000 h |
| Structure | Panel built-in type, IP65f equivalent dust-proof, waterjet-proof on only front panel |
| Surrounding Air Temp | 50°C |
| Touchswitch Life-span | 1,000,000 times or more |
| Touchswitch Number of Switches | 40×16/screen |
| Touchswitch Operating Force | 0.98N or less N |
| Touchswitch System | Analogue resistive membrane type |
