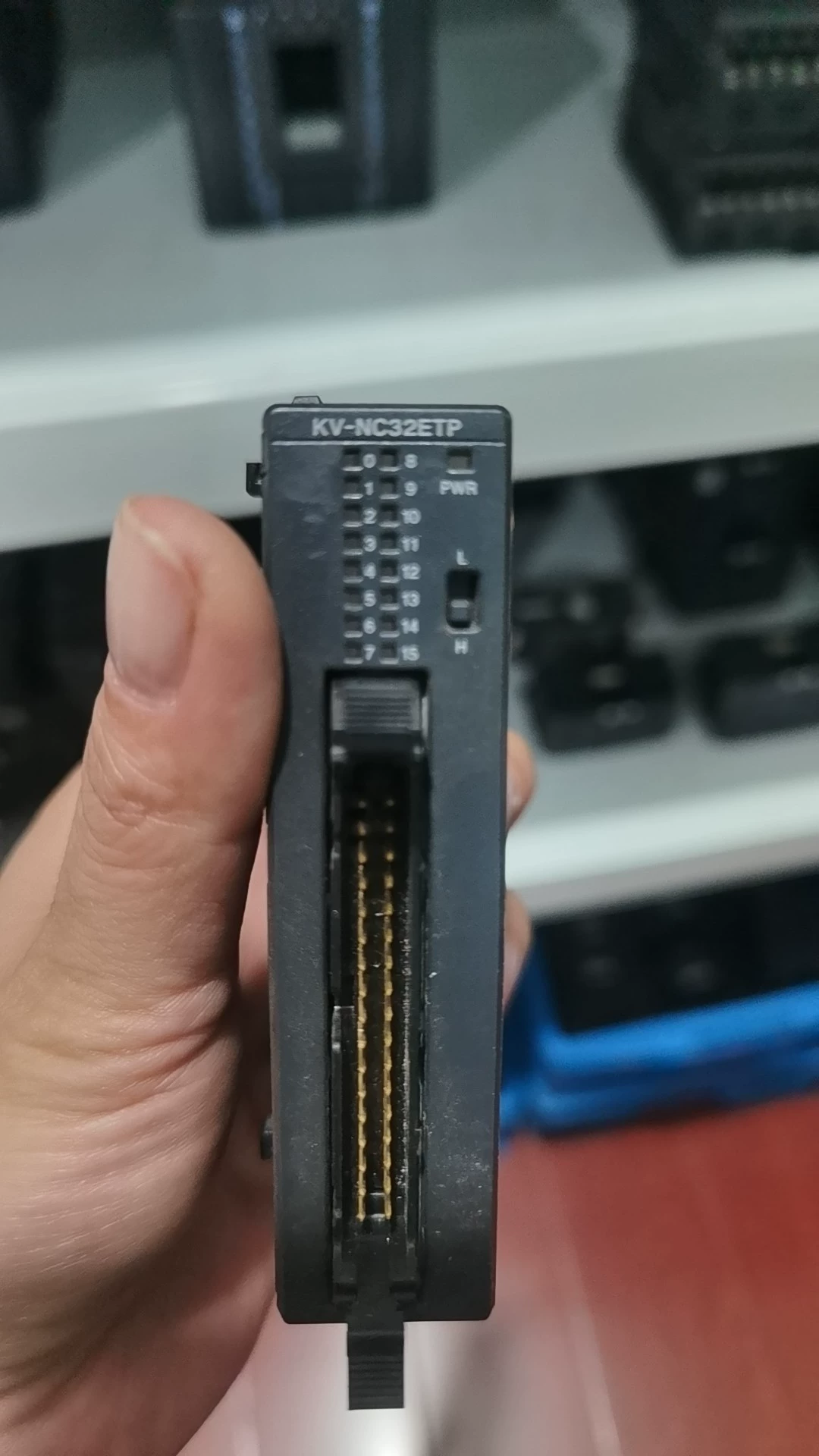

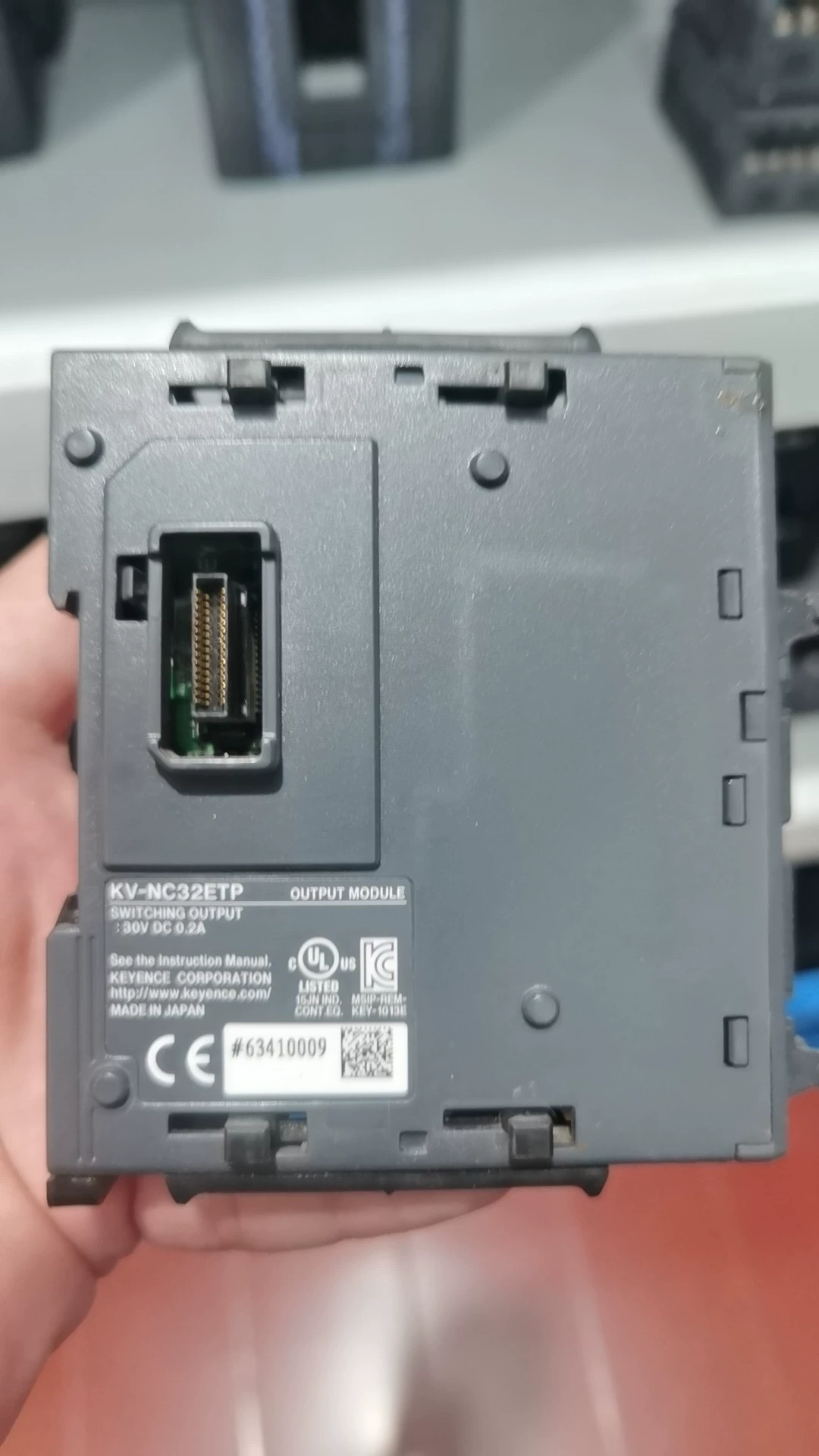

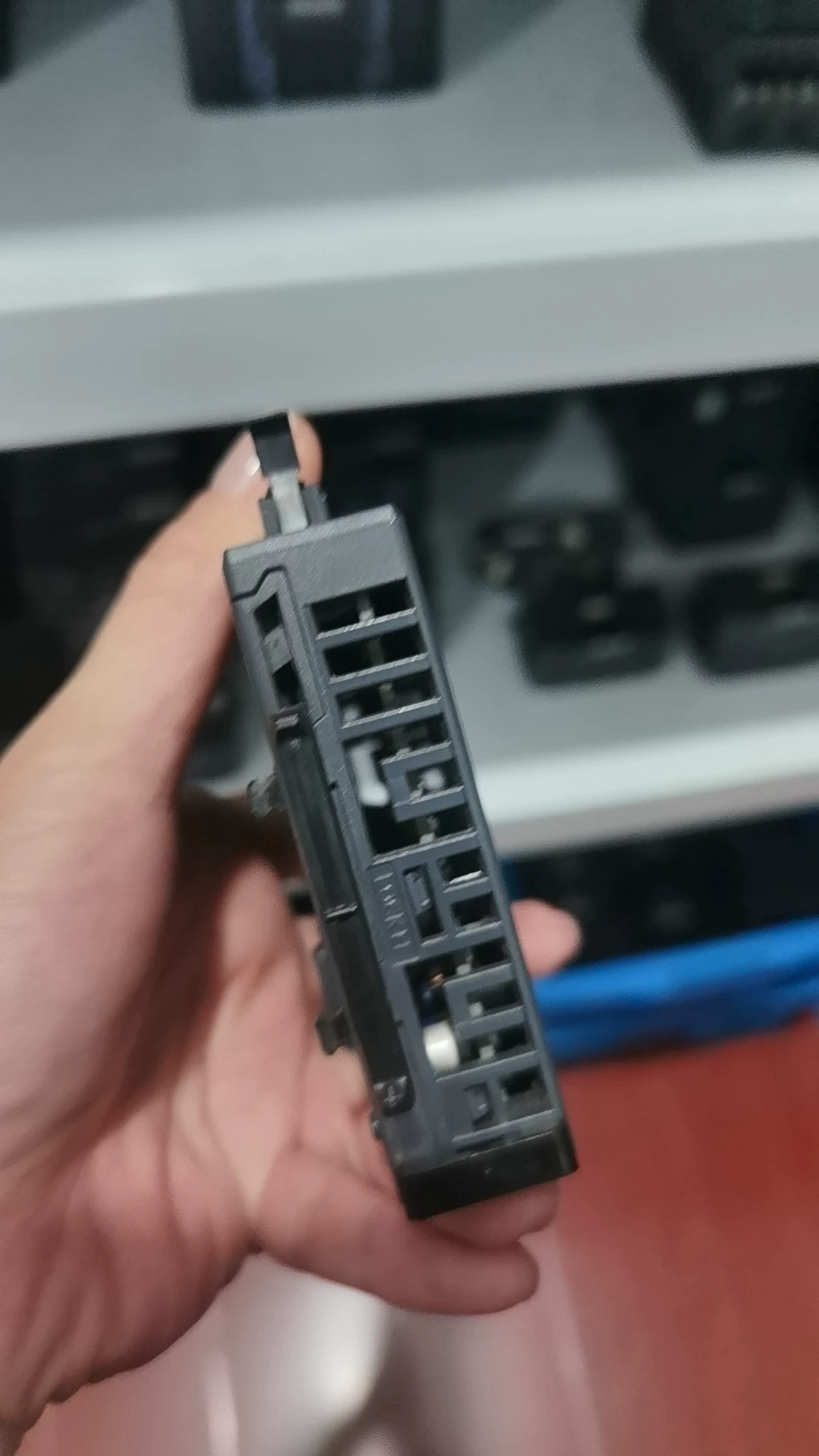

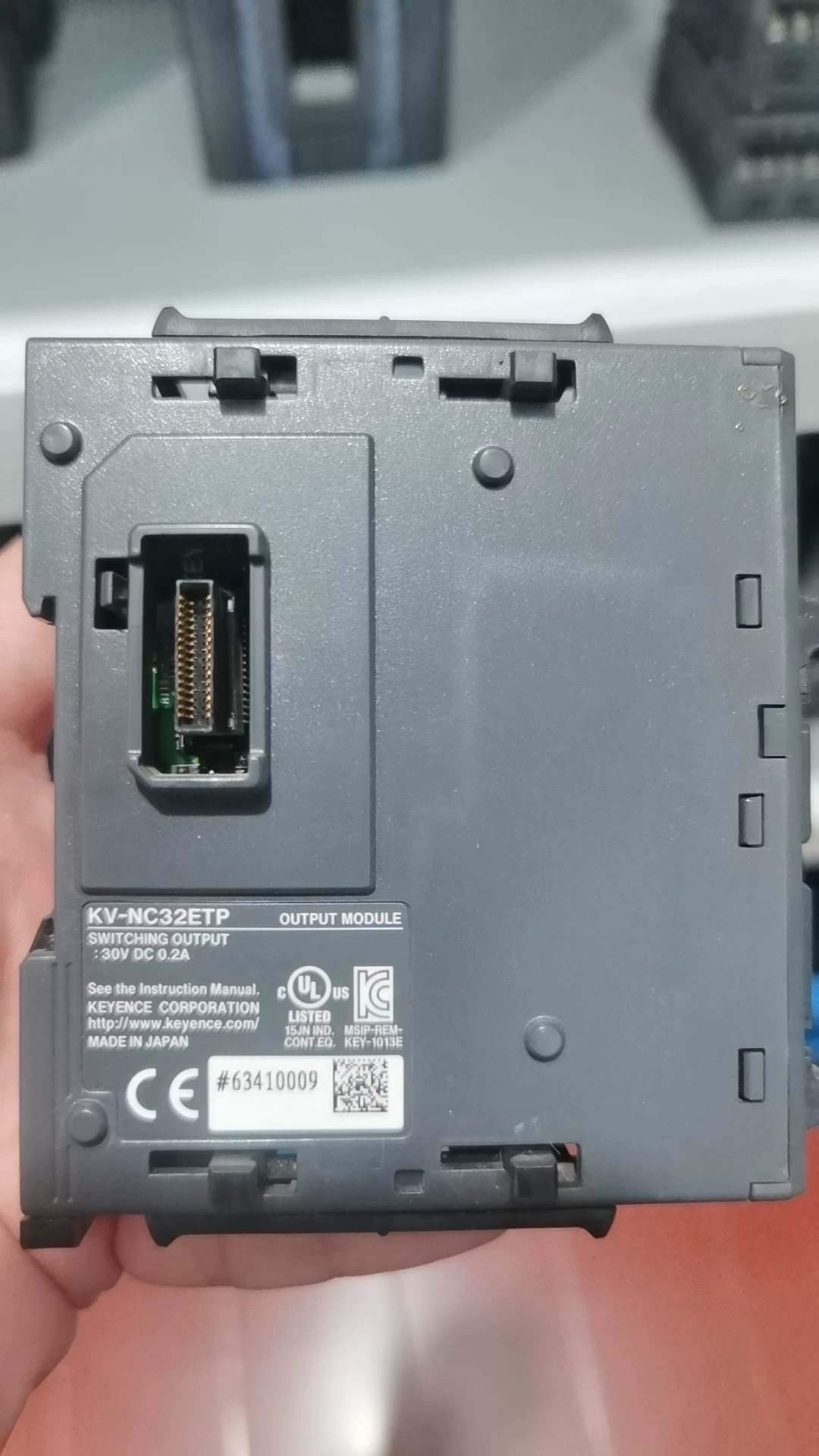

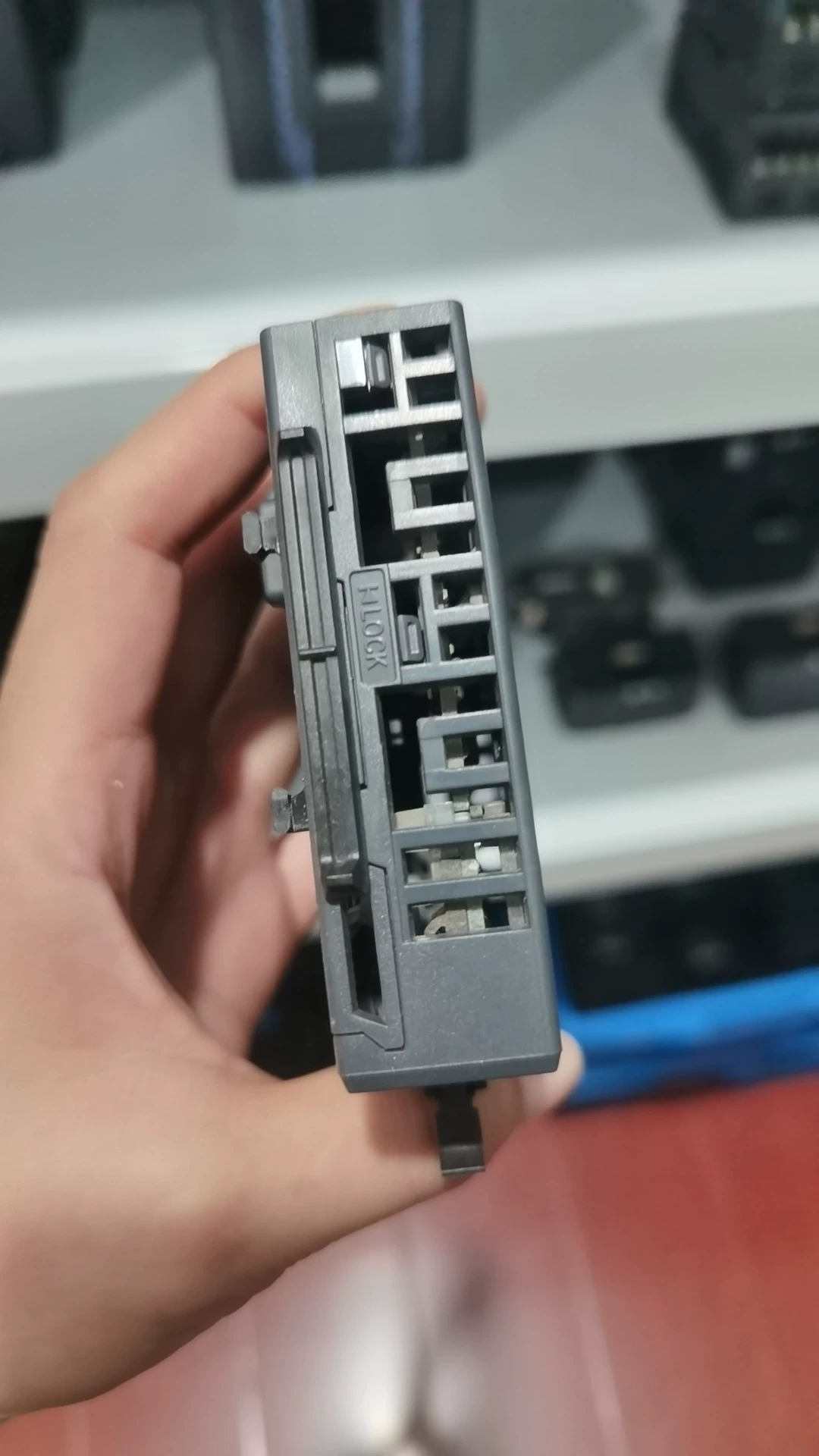

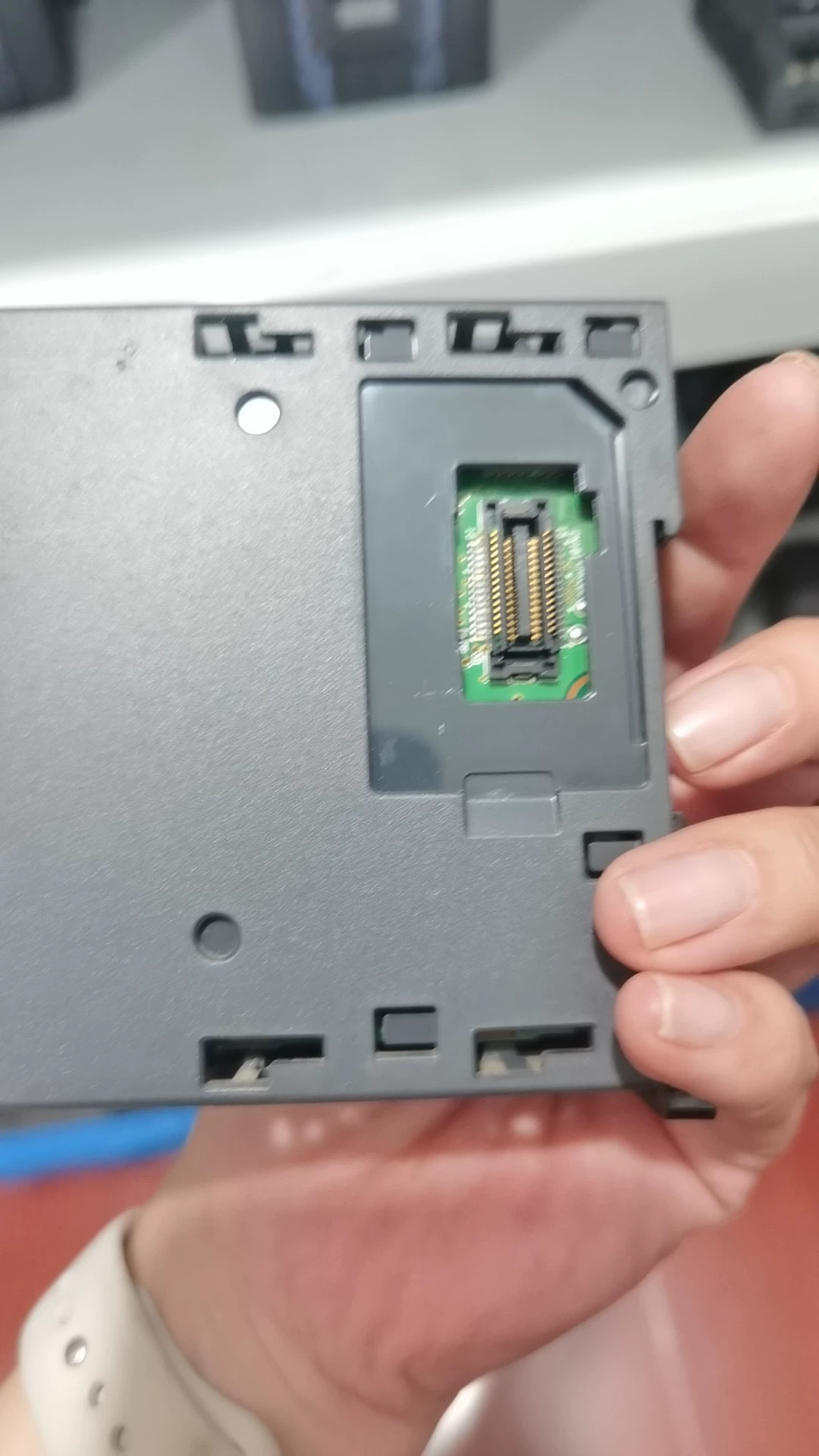

Keyence KV-NC32ETP - 中古
説明
Keyence KV-NC32ETP 出力モジュール、中古品、装置から取り外し。
仕様
| Brand | Keyence |
|---|---|
| Model | KV-NC32ETP |
| Origin | Japan |
| Weight | Approx. 110 g |
| Common method | 32 points/1 common (2 terminals) *4 *7 |
| External connection method | Connector |
| External connectionmethod | MOSFET (With overcurrent protection function) *6 *2 |
| Internal current consumption | ≤50 mA |
| Leakage current (when output is OFF) | 100 μA or less |
| OFF to ON | 100 μs or less (with a load of 1 mA or more) |
| ON resistance | − |
| ON to OFF | 200 μs or less (with a load of 1 mA or more) |
| Rated load | 30 VDC. 0.2 A *3 |
| Relay life | − |
| Residual voltage (at ON) | 0.6 VDC or less |
