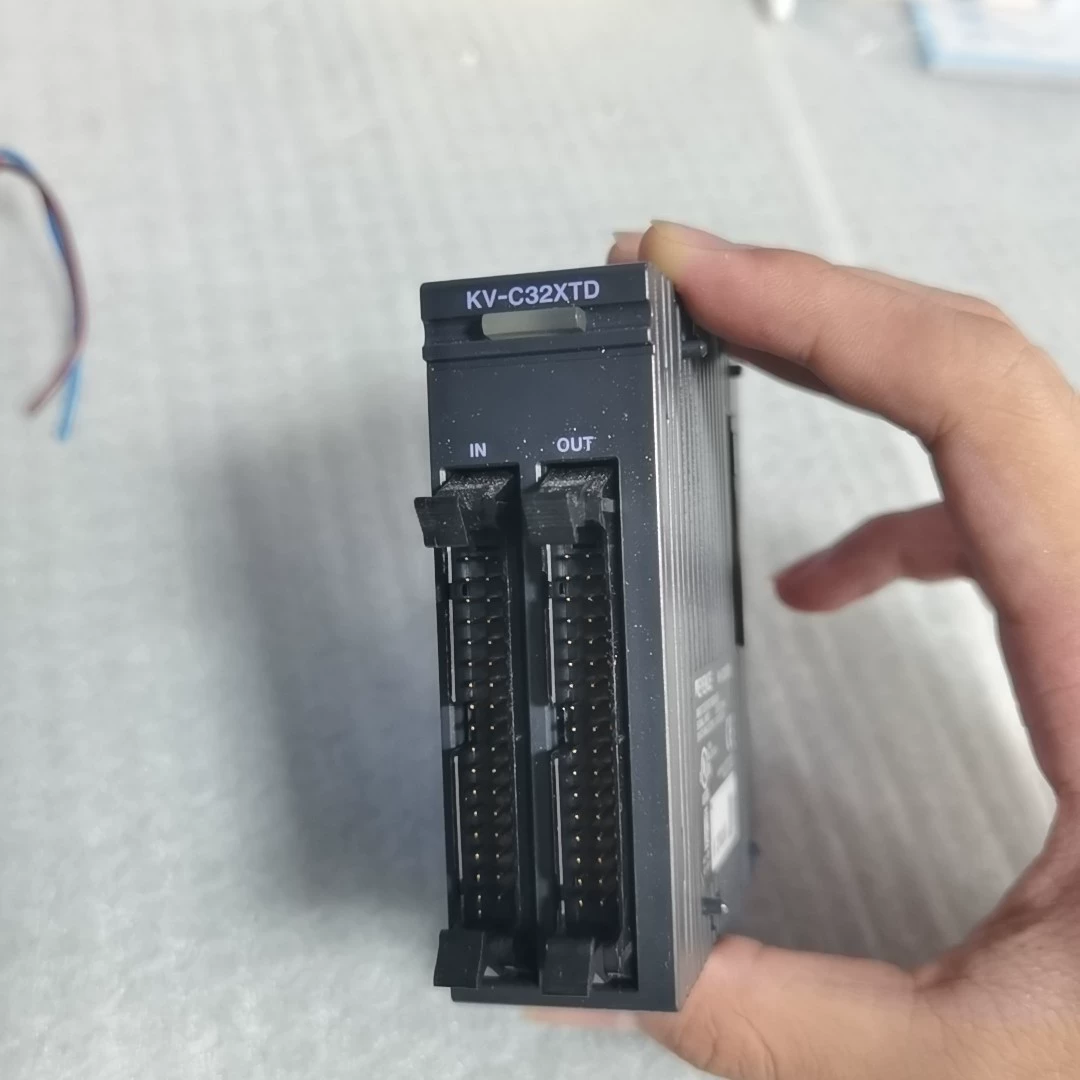

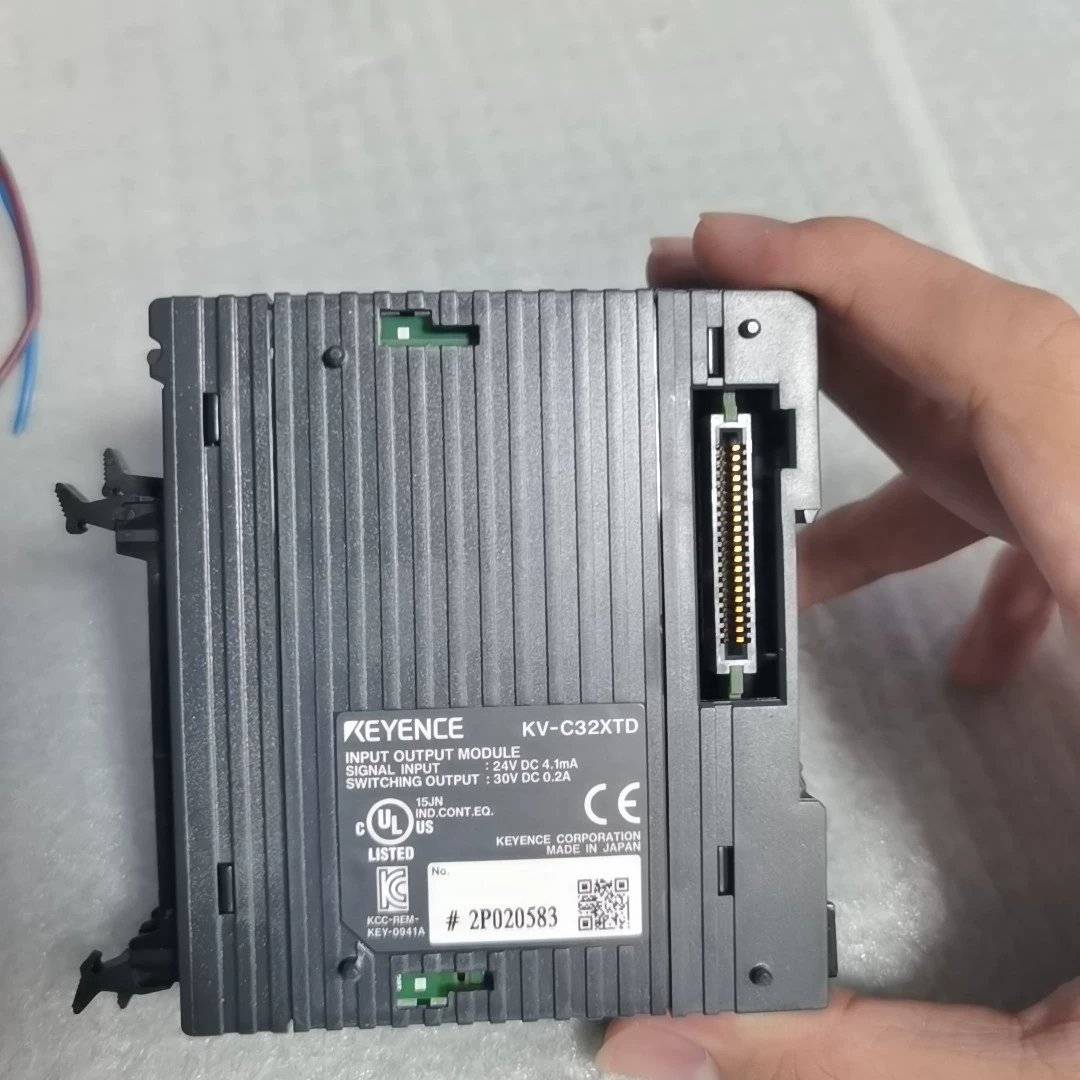

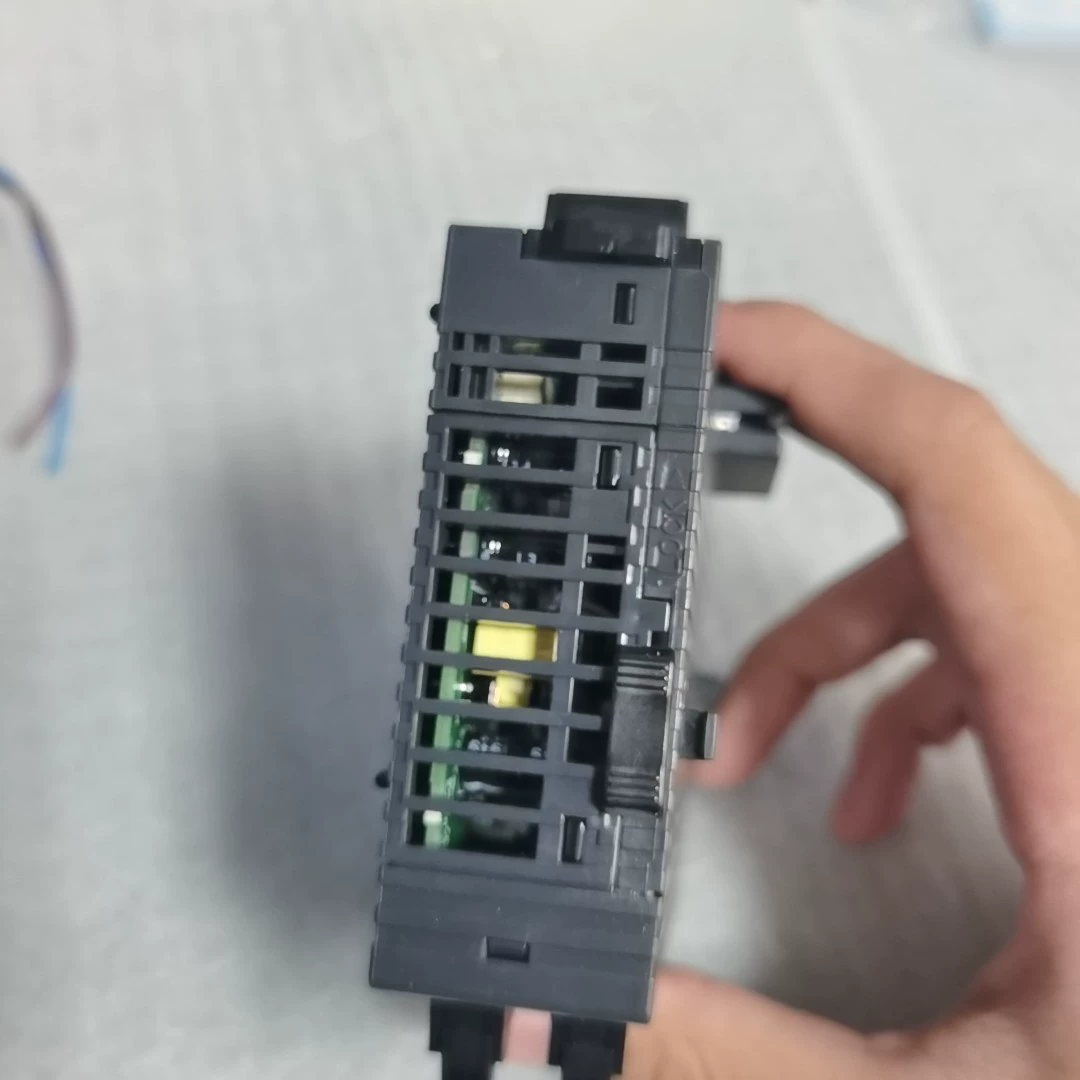

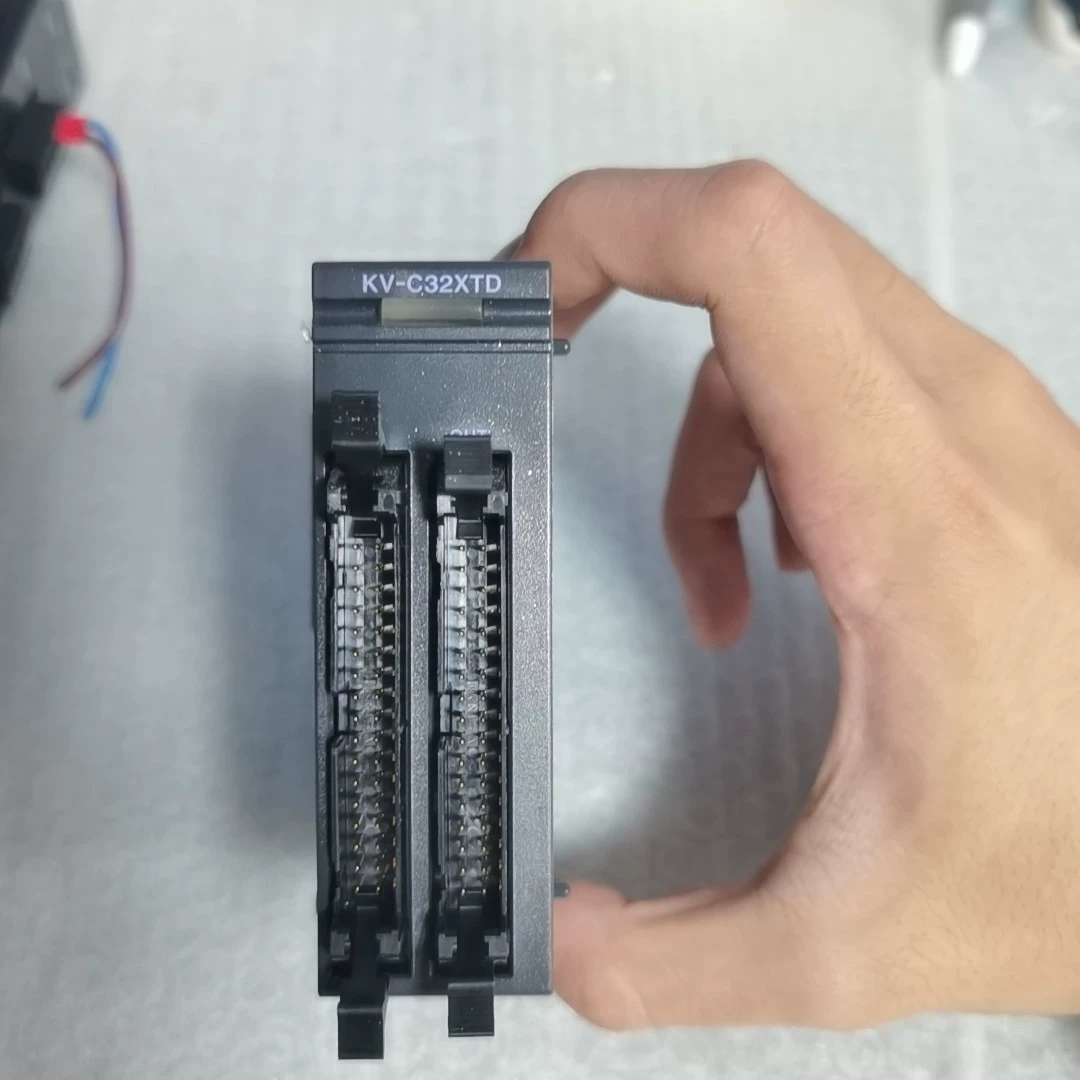

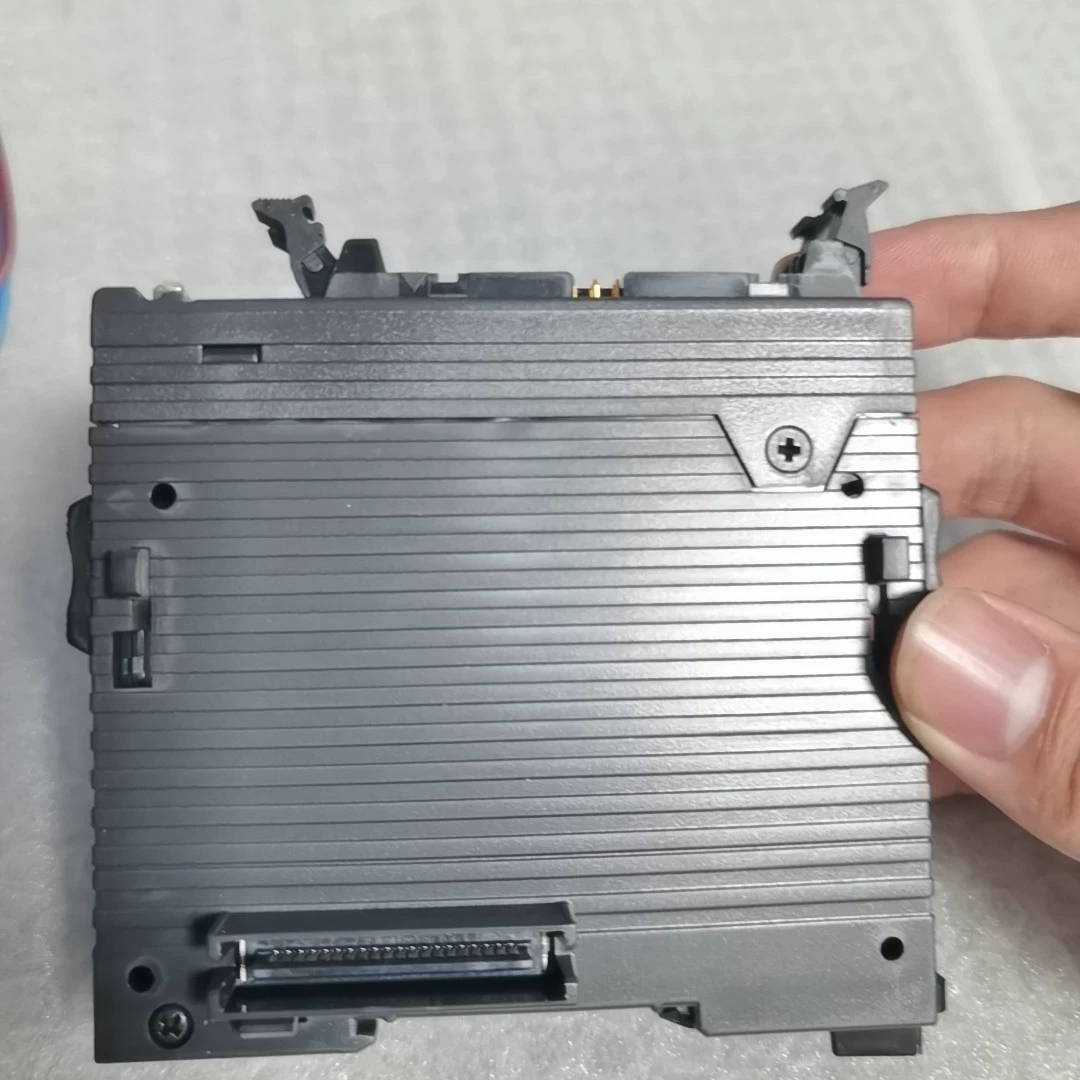

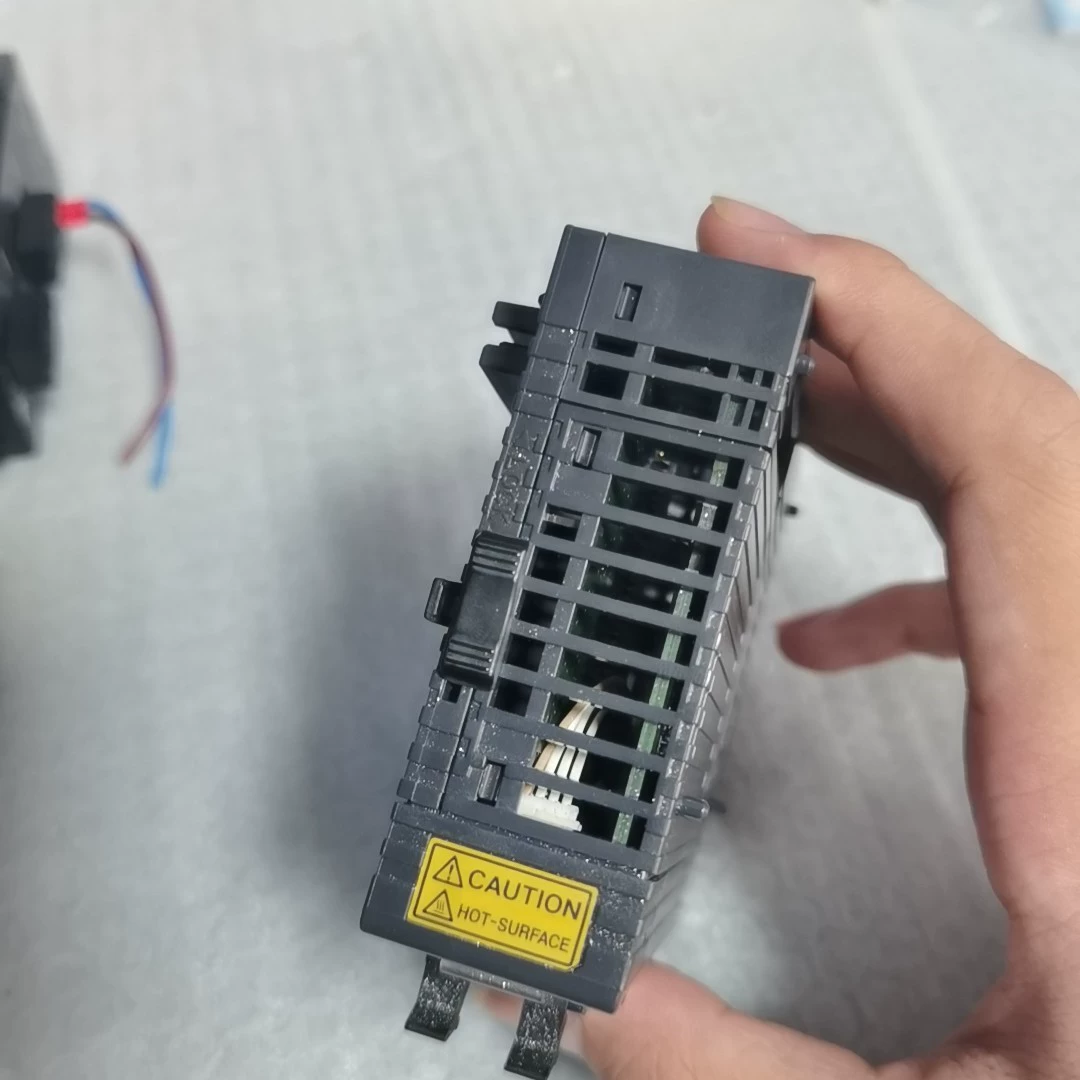

Keyence KV-C32XTD 入出力モジュール - 中古
説明
Keyence KV-C32XTD 入出力モジュール（中古）、装置より取り外し。原産国：日本。
仕様
| Brand | Keyence |
|---|---|
| Model | KV-C32XTD |
| Origin | Japan |
| Maximum input voltage | 26.4 VDC |
| Maximum OFF current | 1.5 mA |
| Minimum ON voltage | 19 V |
| Rated input voltage | 24 VDC, 4.1 mA |
| Weight | Approx. 130 g |
| Common method | 32 points/1 common (2 terminals) *4 |
| Common method | 32 points/1 common (2 terminals) *4 |
| External connection method | Connector (MIL standard) *2 |
| Input impedance | 5.6 kΩ |
| Input mode | 24 VDC mode *3 |
| Input time constant | 25 μs/300 μs *1 /1 ms/10 ms |
| Internal current consumption | ≤65 mA |
| Leakage current at OFF | 100 μA or less |
| Number of inputs | 32 points |
| Number of outputs | 32 points |
| Operation time | OFF to ON:150 μs or less, ON to OFF: 300 μs or less |
| Output mode | MOSFET (sink) (with overcurrent protection function) |
| Rated load | 30 VDC, 0.2 A |
| Residual voltage at ON | 0.5 VDC or less |
| Type | I/O unit |
