Keyence IV-500CA カラービジョンセンサー - 中古
説明
Keyence IV-500CAは、マシンインスペクション用のオートフォーカス機能を備えたカラービジョンセンサーです。24 V DCで動作し、設置距離50～500 mmに対応します。この中古センサーは設備から取り外されたものです。
仕様
| Brand | Keyence |
|---|---|
| Model | IV-500CA |
| Origin | Japan |
| Output Current | 50 mA |
| Power voltage (rating) | 24 VDC ±10 % (including ripple) |
| Weight | Approx. 270 g |
| Ambient temperature | 0 to +50 °C (32 to 122 °F); no freezing |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm (0.06 in); 2 h each in X, Y, Z directions *12 |
| Class | Class2 |
| Condition | NG only/All is selectable *6 |
| Connector | M12 4pin connector *10 |
| Current consumption | ≤0.6 A |
| Enclosure rating | IP67 *11 |
| Exposure time | 1/10 to 1/50,000 |
| Focus adjustment | Auto *1 |
| Function | IN1: External trigger, IN2 to IN6: Enable by assigning the optional functions Assignable functions: Program switching, Clear error, External master image registration |
| Function | Enable by assigning the optional functions Assignable functions: Total judge result, RUN, BUSY, Error, Position adjustment result, Judge result of each tool, Result of the logical operation of each tool |

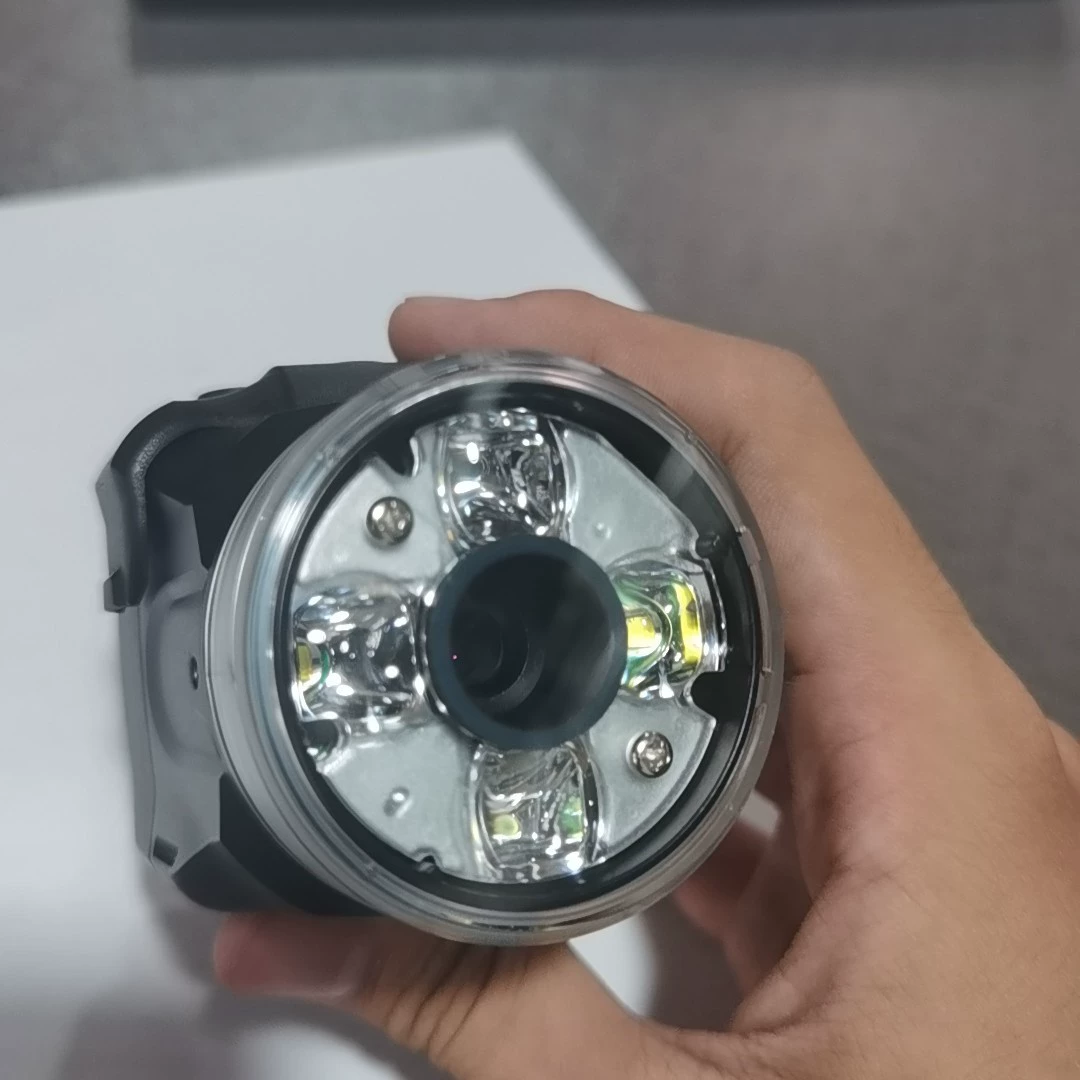

| Illumination | White LED |

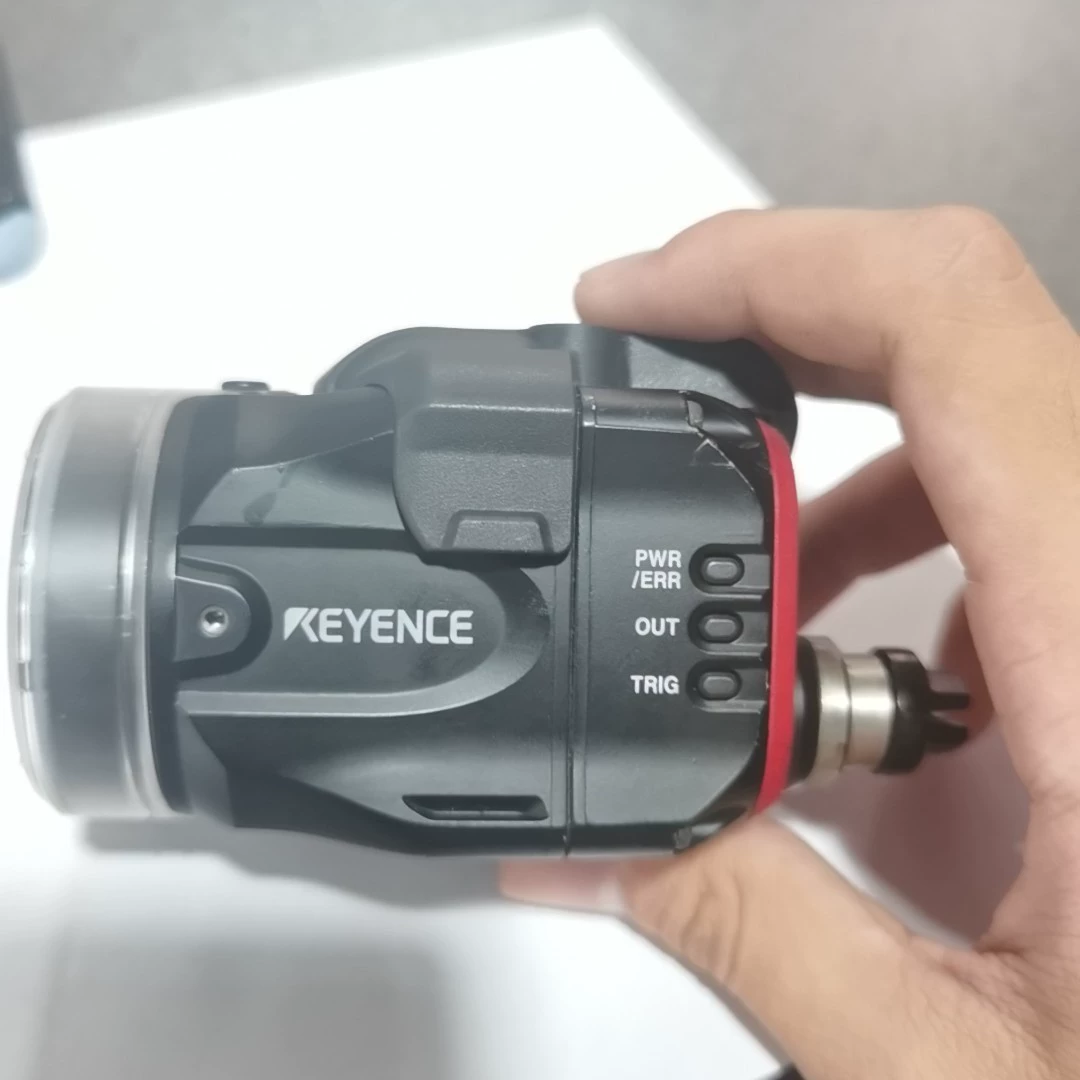

| Indicators | PWR/ERR, OUT, TRIG, STATUS, LINK/ACT |
| Input Rating | 24 V DC |
| Inputs | 6 inputs (IN1 to IN6) |
| Installed distance | 50 to 500 mm 1.97" to 19.69" |
| Lighting method | Pulse lighting/DC lighting is switchable |
| Material | Main unit case: Aluminium die-casting, Packing: NBR, Front cover: Acrylic, Mounting adapter: POM |
| Network function | FTP client, EtherNet/IP™, PROFINET |
| Number | Detection tools: 16 tools, position adjustment tool: 1 tool *4 |
| Numbers | 100 images *5 *6 |
| Other functions | HDR, HighGain, Color filters *2, Digital zoom *8, Brightness correction, Tilt correction, White balance *2, Mask outline, Mask area, Test run, ToolAutoTune, Input monitor, Output test, Security settings, Simulator *9 |
| Outputs | 4 outputs (OUT1 to OUT4) |
| Pixel | 752 (H) x 480 (V) 29.61" (H) x 18.90" (V) |
| Shock resistance | 500 m/s², 3 times in each of 6 directions *12 |
| Standard | 100BASE-TX/10BASE-T *10 |
| Switch settings (programs) | 32 programs |
| Type | Standard distance |
| Type | Shape Detection, Color Area *2, Area *3, position adjustment |
| Type | Open collector output NPN/PNP is switchable, N.O./N.C. is switchable For open collector NPN output: Maximum rating 26.4 V 50 mA, remaining voltage 1.5 V or lower For open collector PNP output: Maximum rating 26.4 V 50 mA, remaining voltage 2 V or lower |
| Type | 1/3 inch color CMOS |
| View | Installed distance 50 mm 1.97" : 25 (H) x 18 (V) mm 0.98" (H) x 0.71"(V) to installed distance 500 mm 19.69" : 210 (H) x 157 (V) mm 8.27" (H) x 6.18" (V) |
