Keyence IL-1000 - 中古品
説明

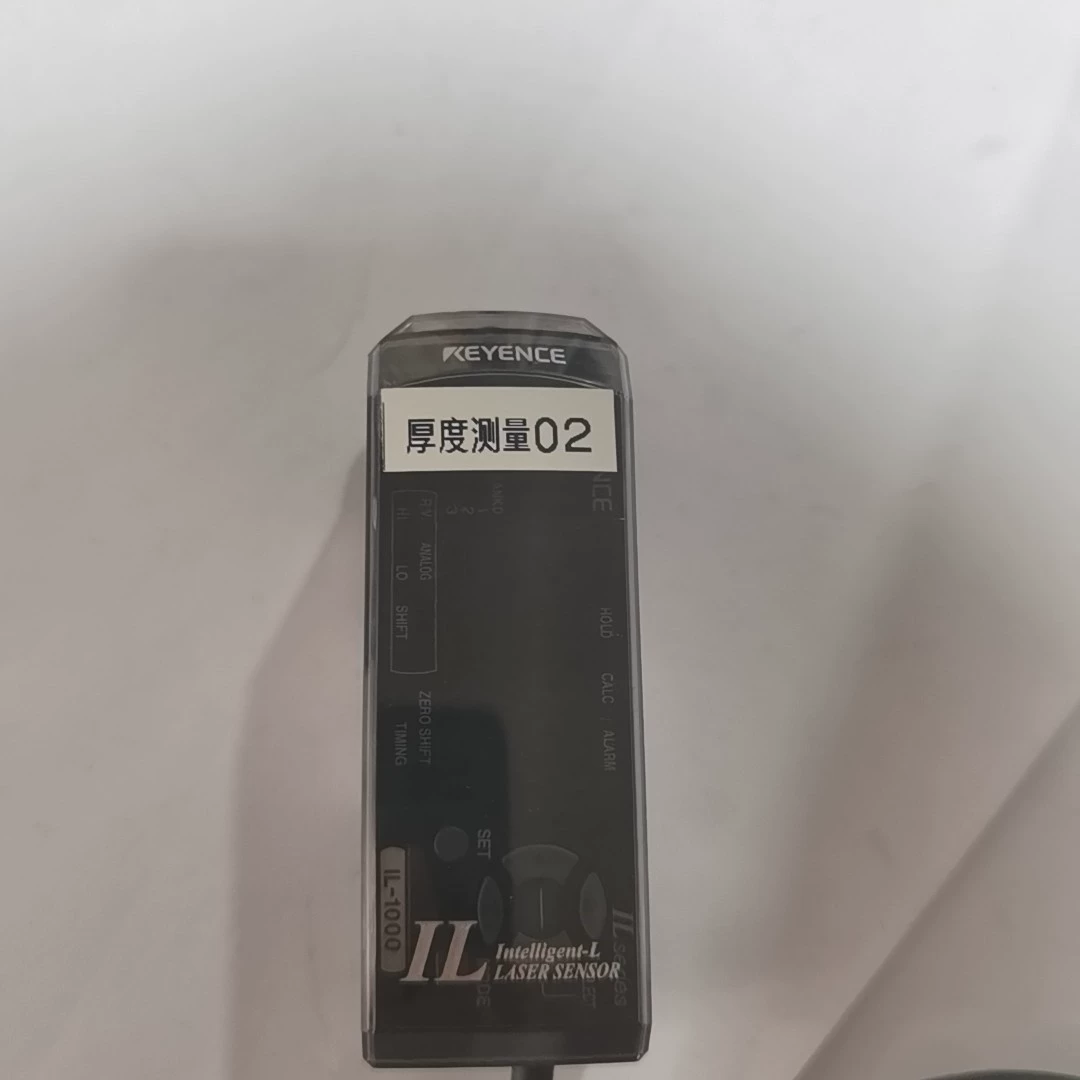

中古のKeyence IL-1000 レーザーセンサアンプ。
仕様
| Brand | Keyence |
|---|---|
| Model | IL-1000 |
| Power Supply | 10-30 V DC, 18 W max, Class2 or LPS |
| Display range | IL-030/IL-065/IL-100: ±99.999 mm to ±99 mm (4 levels selectable), IL-300/IL-600: ±999.99 mm to ±999 mm (3 levels selectable), IL-2000: ±9999.9 mm to ±9999 mm (2 levels selectable) |
| Rated Power | 2300mW |
| Power voltage | 10 to 30 VDC ripple (P-P) 10% included, Class 2 *4 |
| Weight | Approx. 150 g (including attachments) |
| Ambient temperature | -10 to +50 °C (14 to 122 °F) (No condensation or freezing) |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm (0.06 in); 2 h each in X, Y, Z directions |
| Alarm output | Open collector output (NPN, PNP changeover possible/N.C.) *3 |
| Analog current output | 4 to 20 mA Maximum load resistance of 350 Ω *1 |
| Analog voltage output | ±5 V, 1 to 5 V, 0 to 5 V Output impedance 100 Ω *1 |
| Bank switch input | Non-voltage input *2 |
| Display rate | Approx. 10 times/sec. |
| Head compatibility | Compatible |
| Judgement output | Open collector output (NPN, PNP changeover possible/N.O., N.C. changeover possible) *3 |
| Main unit/Expansion unit | Main unit |
| Material | Case / Front sheet: Polycarbonate; Key tops: Polyacetel; Cable: PVC |
| Minimum displayable unit | IL-030: 1 µm, IL-065/IL-100: 2 µm, IL-300: 10 µm, IL-600: 50 µm, IL-2000: 100 µm |
| Pollution degree | 2 |
| Power consumption | ≤2300 mW (at 30 V: ≤77 mA) |
| Reset input | Non-voltage input *2 |
| Stop emission input | Non-voltage input *2 |
| Timing input | Non-voltage input *2 |
| Type | DIN-rail mount |
| Zero-shift input | Non-voltage input *2 |
