Keyence FS-V1P - 中古
説明

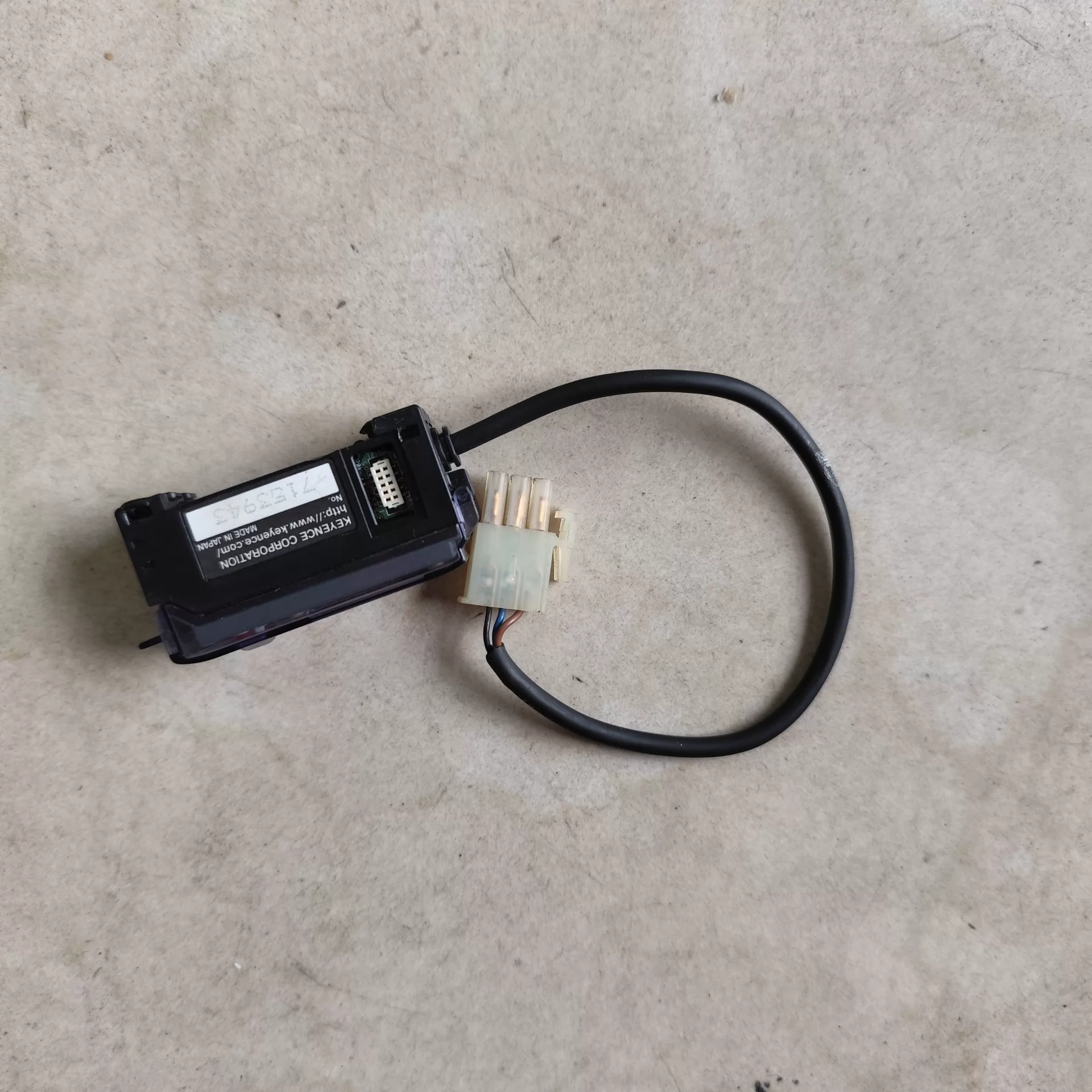

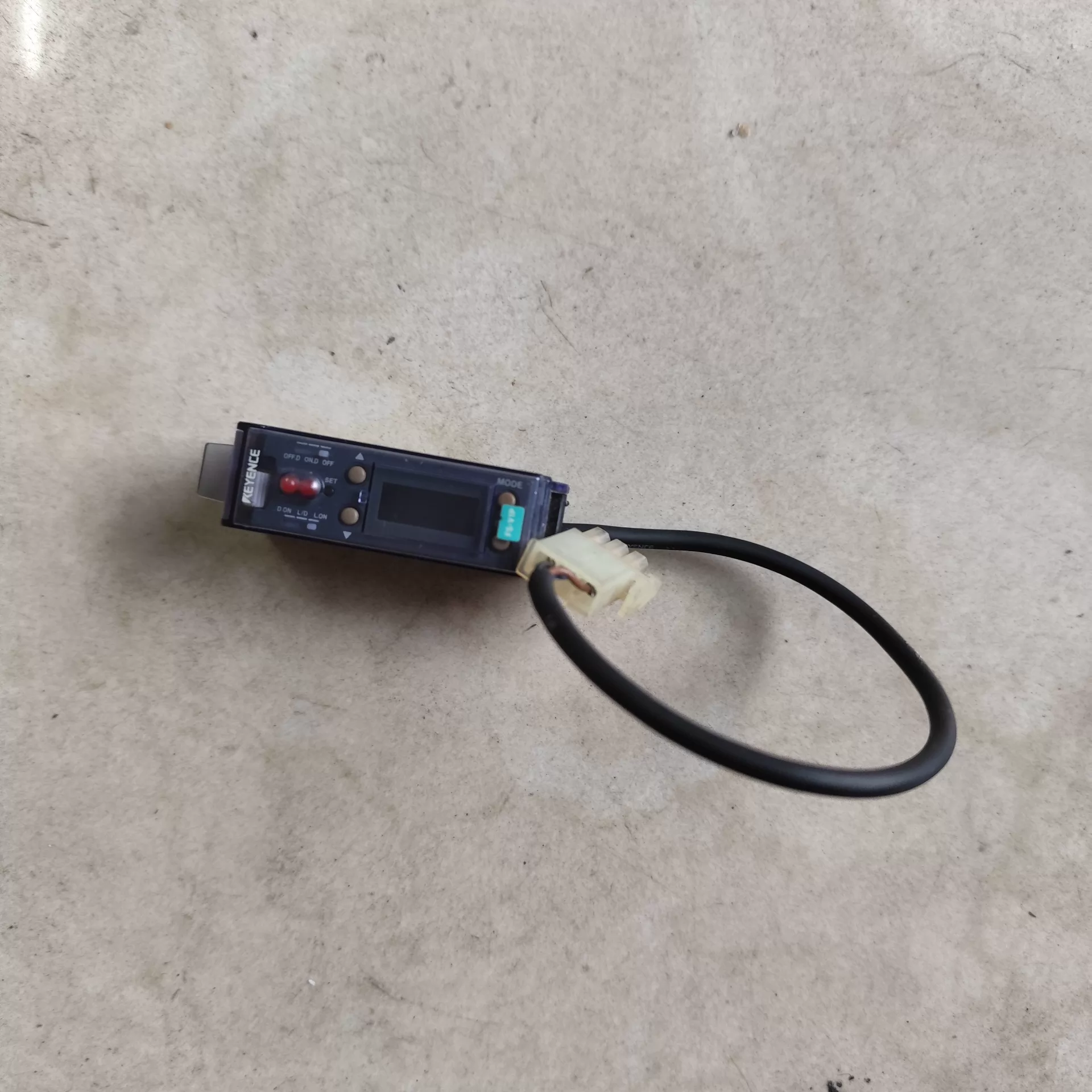

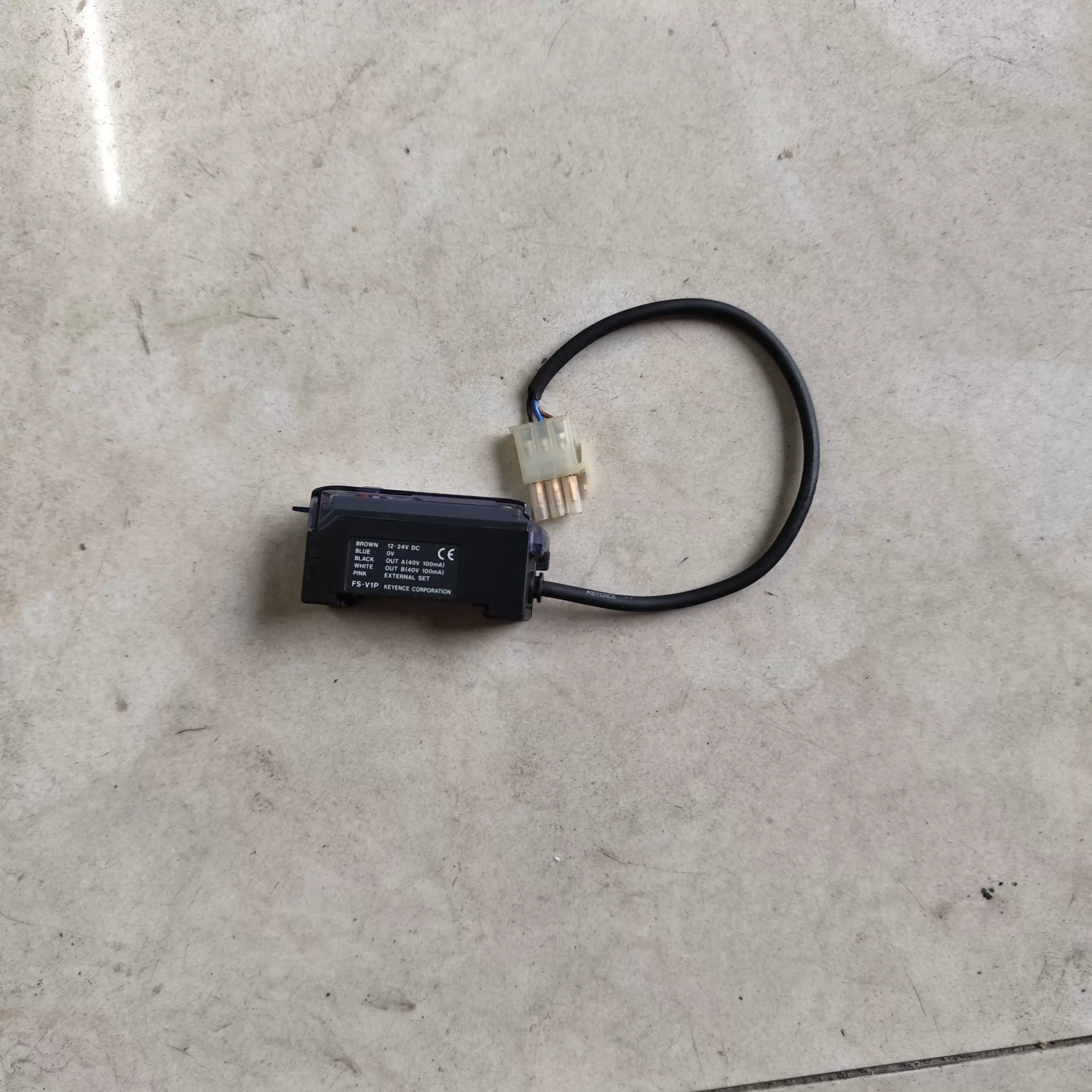

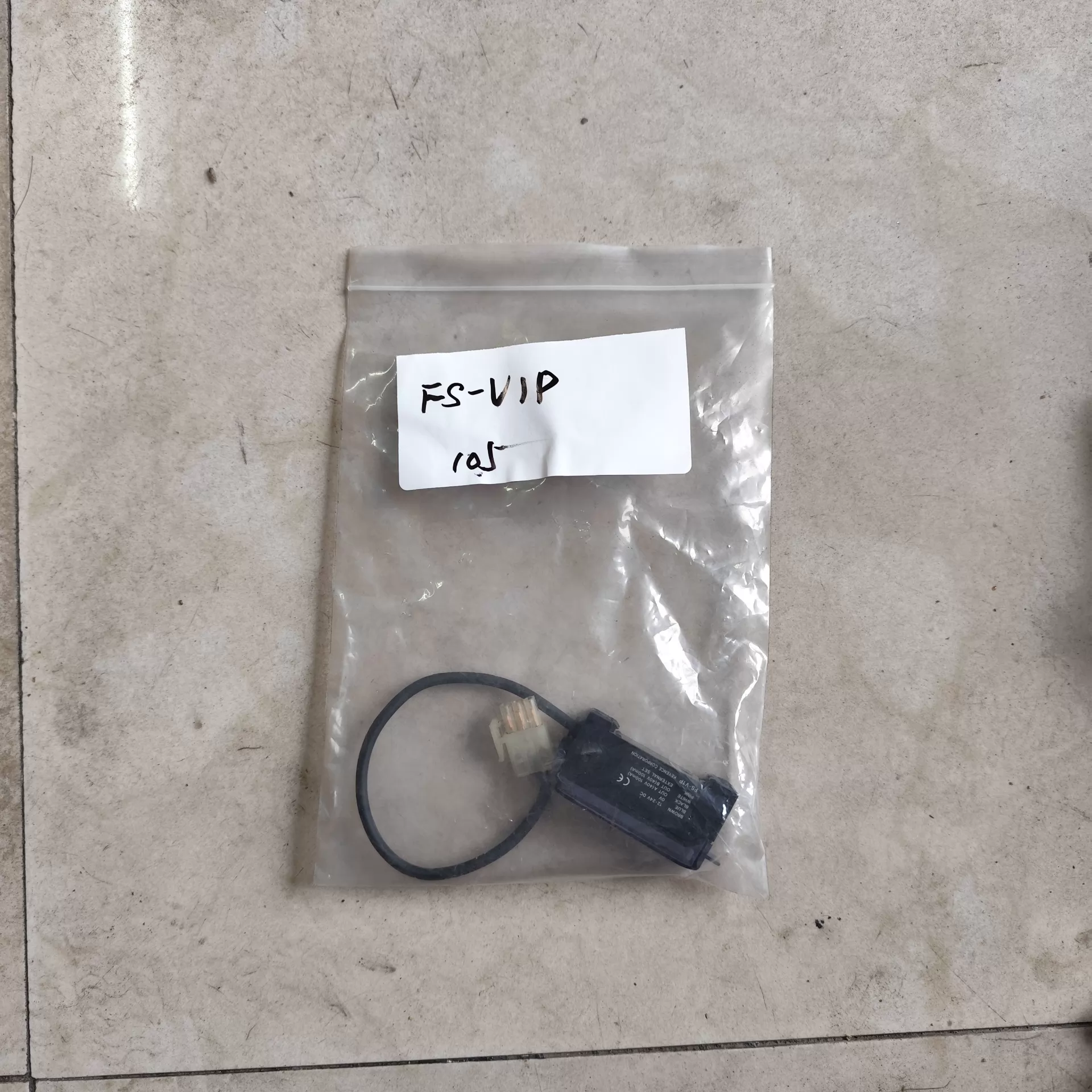

Keyence FS-V1P ファイバアンプ、中古。12-24 V DC 電源に対応し、PNP 出力を備えています。
仕様
| Brand | Keyence |
|---|---|
| Model | FS-V1P |
| Supply Voltage | 12-24 V DC |
| Response time | 250 µs |
| Power voltage | 12 to 24 VDC ±10 %, Ripple (P-P) ≤10 % |
| Weight | Approx. 80 g |
| Ambient temperature | -10 to +55 °C; no freezing |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 h each in X, Y, Z directions |
| Ambient light | Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max. |
| Case material | Polycarbonate |

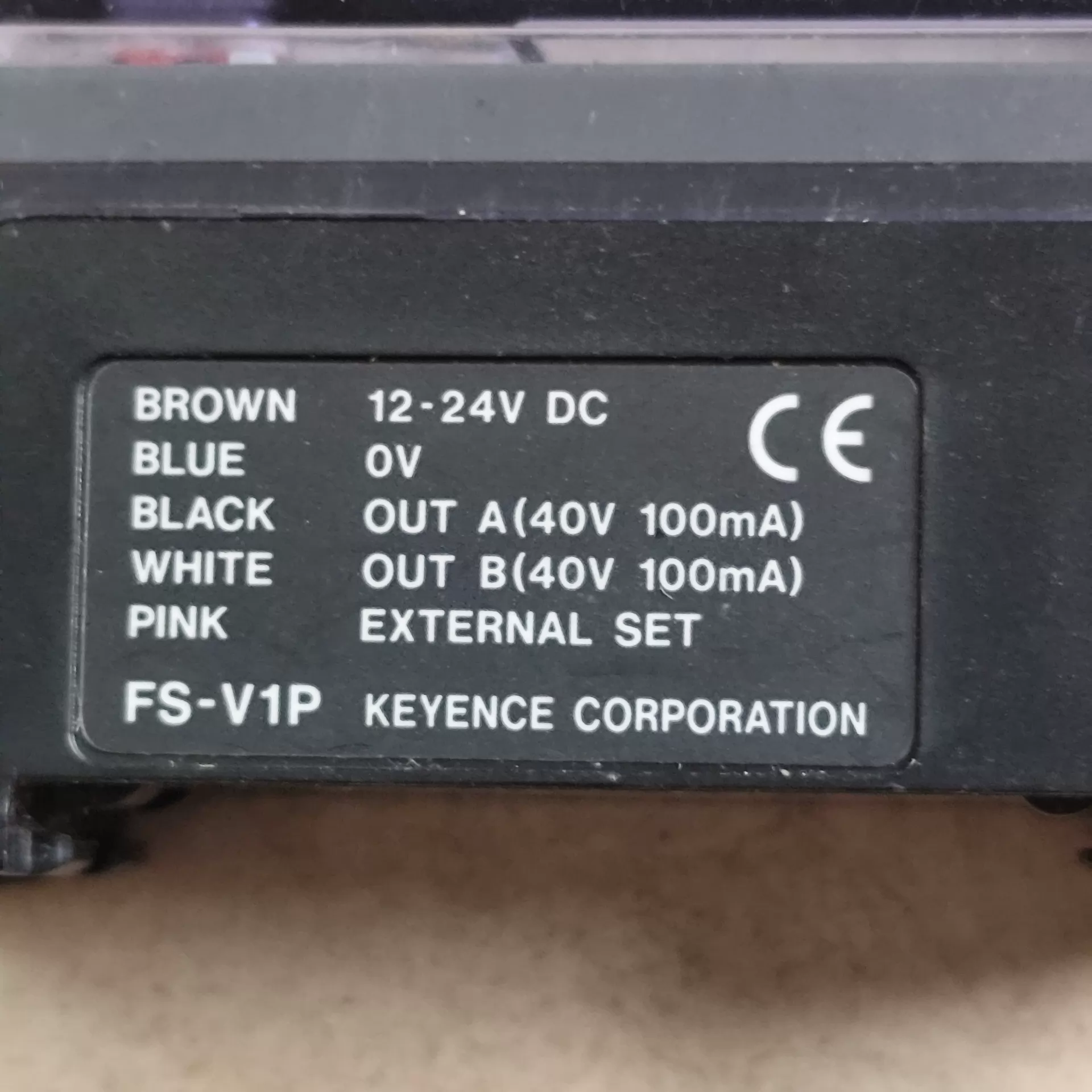

| Control output | PNP open-collector 100 mA max. (24 VDC max.), Residual voltage: 1 V max. The FS-V1P is equipped with two outputs. |
| Current consumption | ≤50 mA |
| Indicator lamp | Display indicator (Two): Red LED Received light display: LCD (Two colour display: Red and green) Calibration indicator: Orange LED |
| Light source | Red LED |
| Mutual interference suppression | 4 |
| Operation mode | LIGHT-ON/DARK-ON (switch-selectable) |
| Output | PNP |
| Protection circuit | Reversed polarity protection, Overcurrent protection, Surge absorber |
| Shock resistance | 500 m/s²; 3 times each in X, Y, Z directions |
| Timer function | ON-delay: 40 ms/OFF-delay: 40 ms/Timer OFF (switch-selectable) |
| Type | Main unit |
| Unit expansion | Up to 16 expansion units can be connected (a total of 17 units) |
