Beckhoff BK9050 - 中古
説明

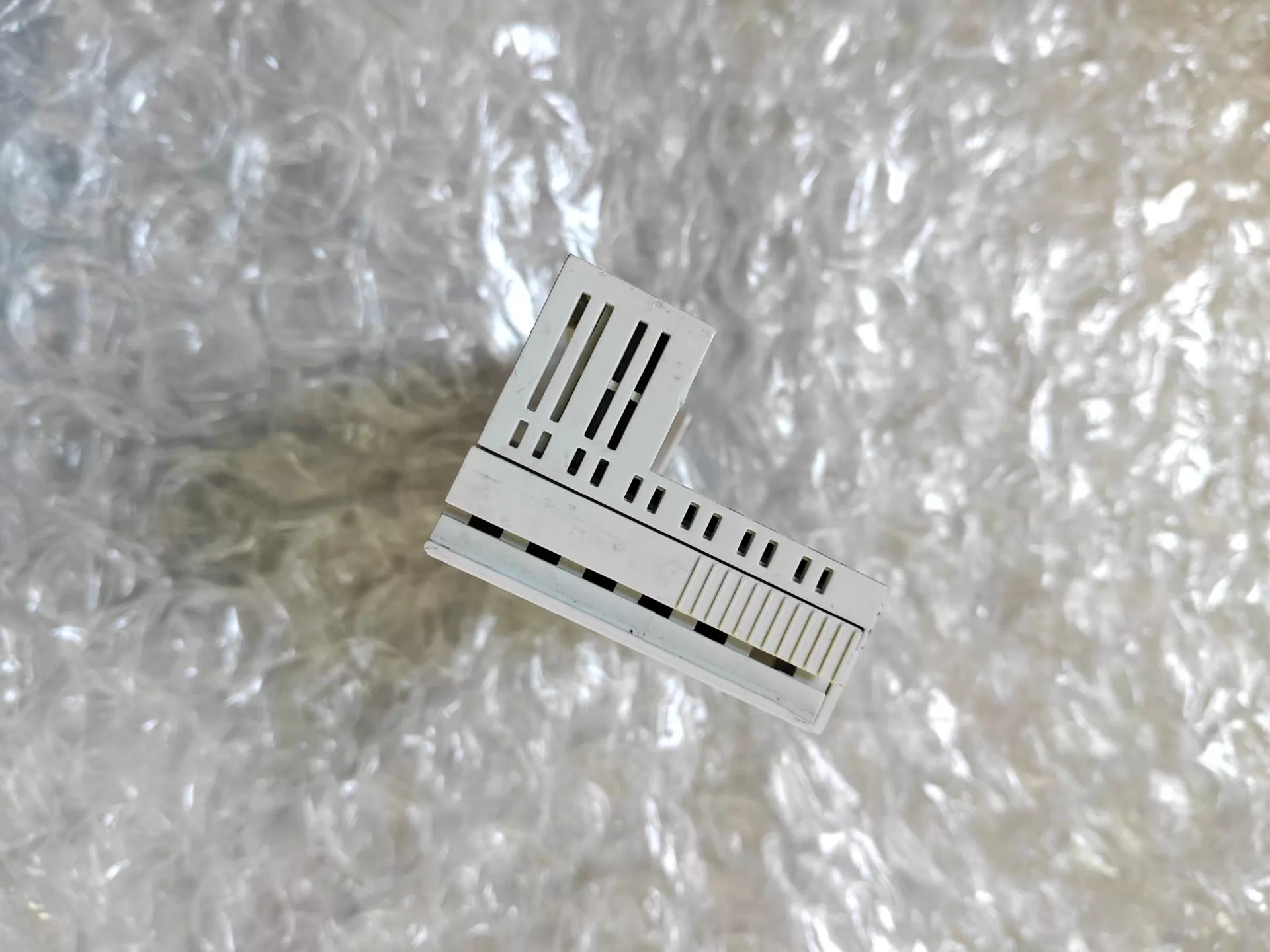

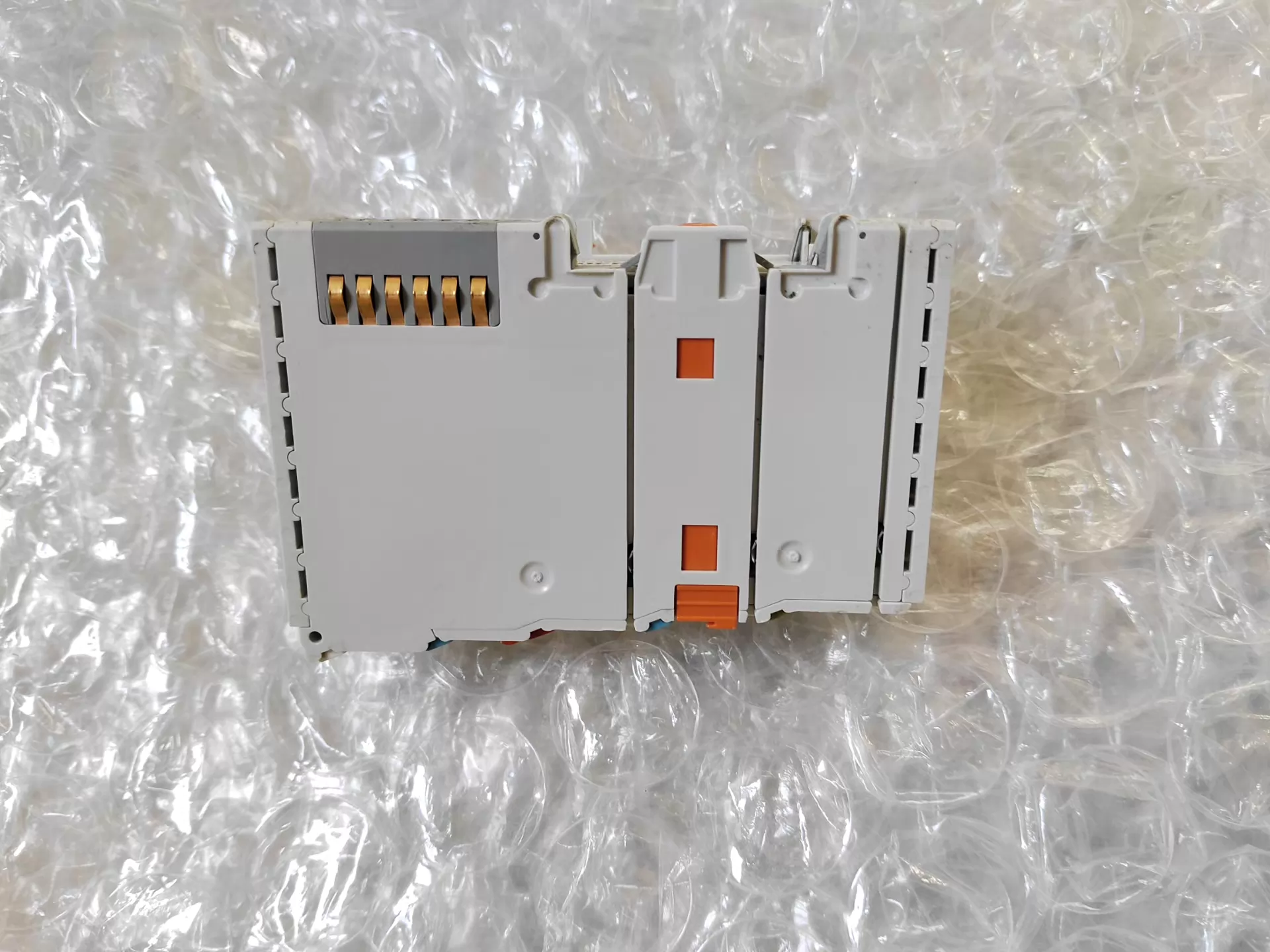

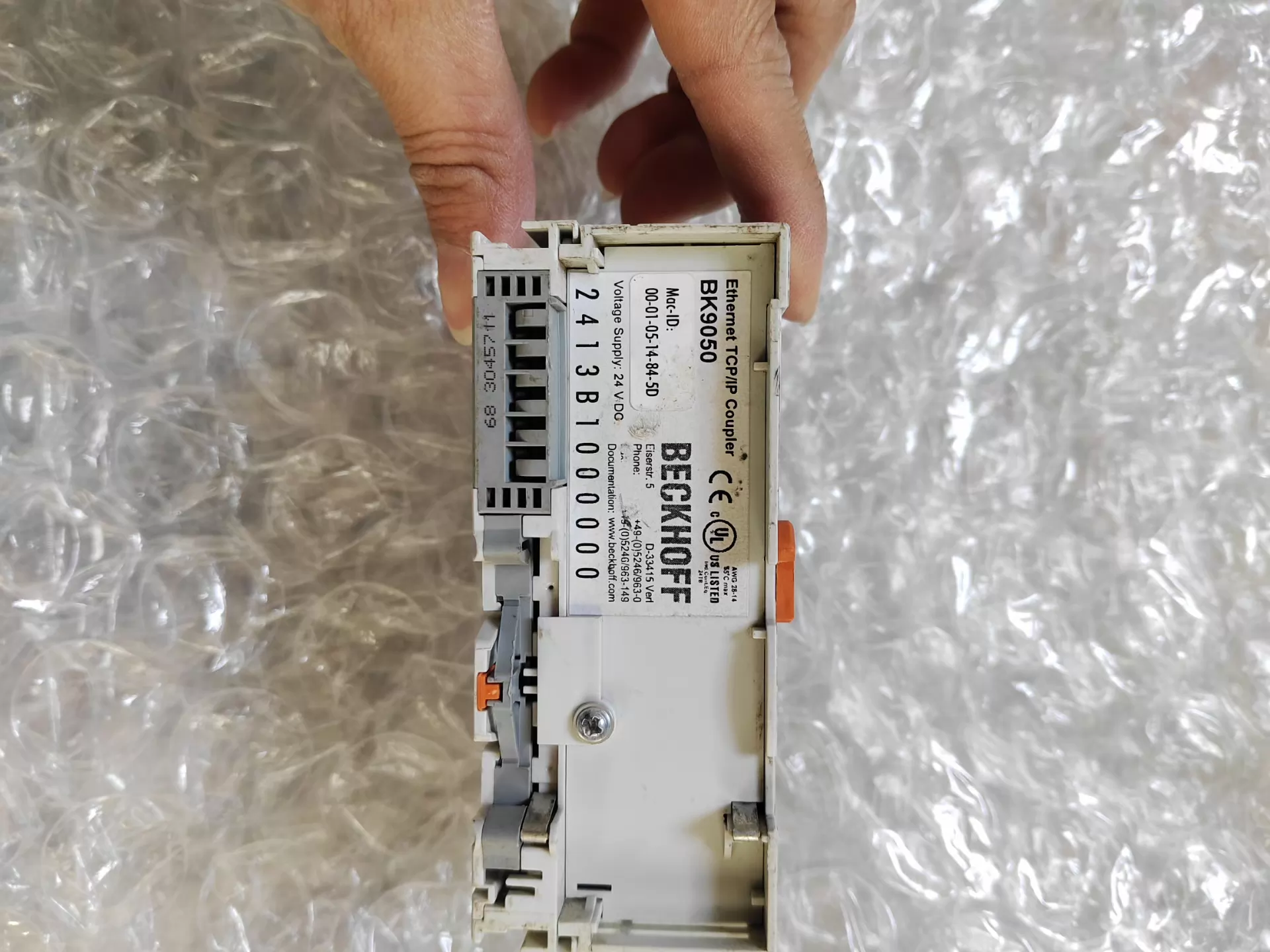

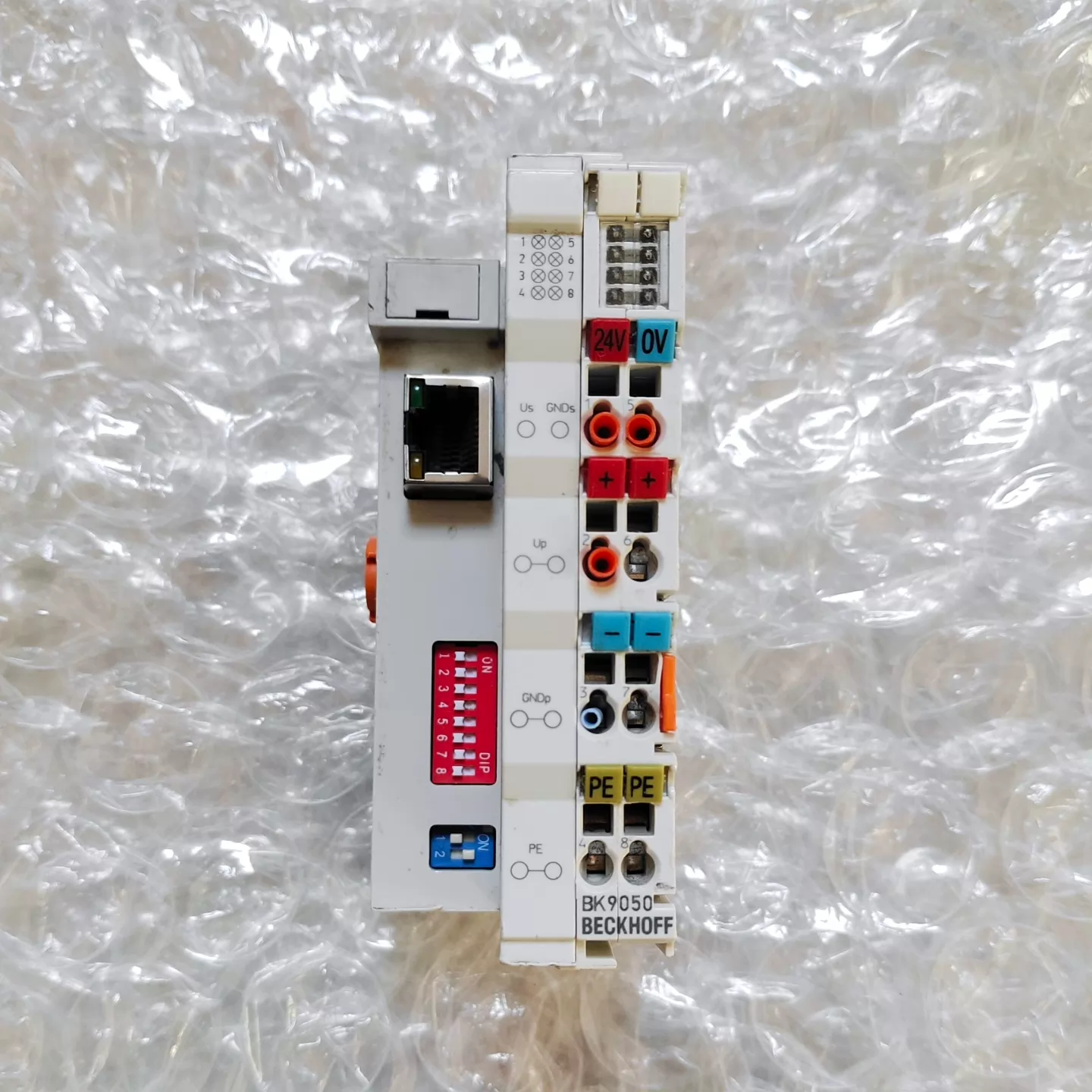

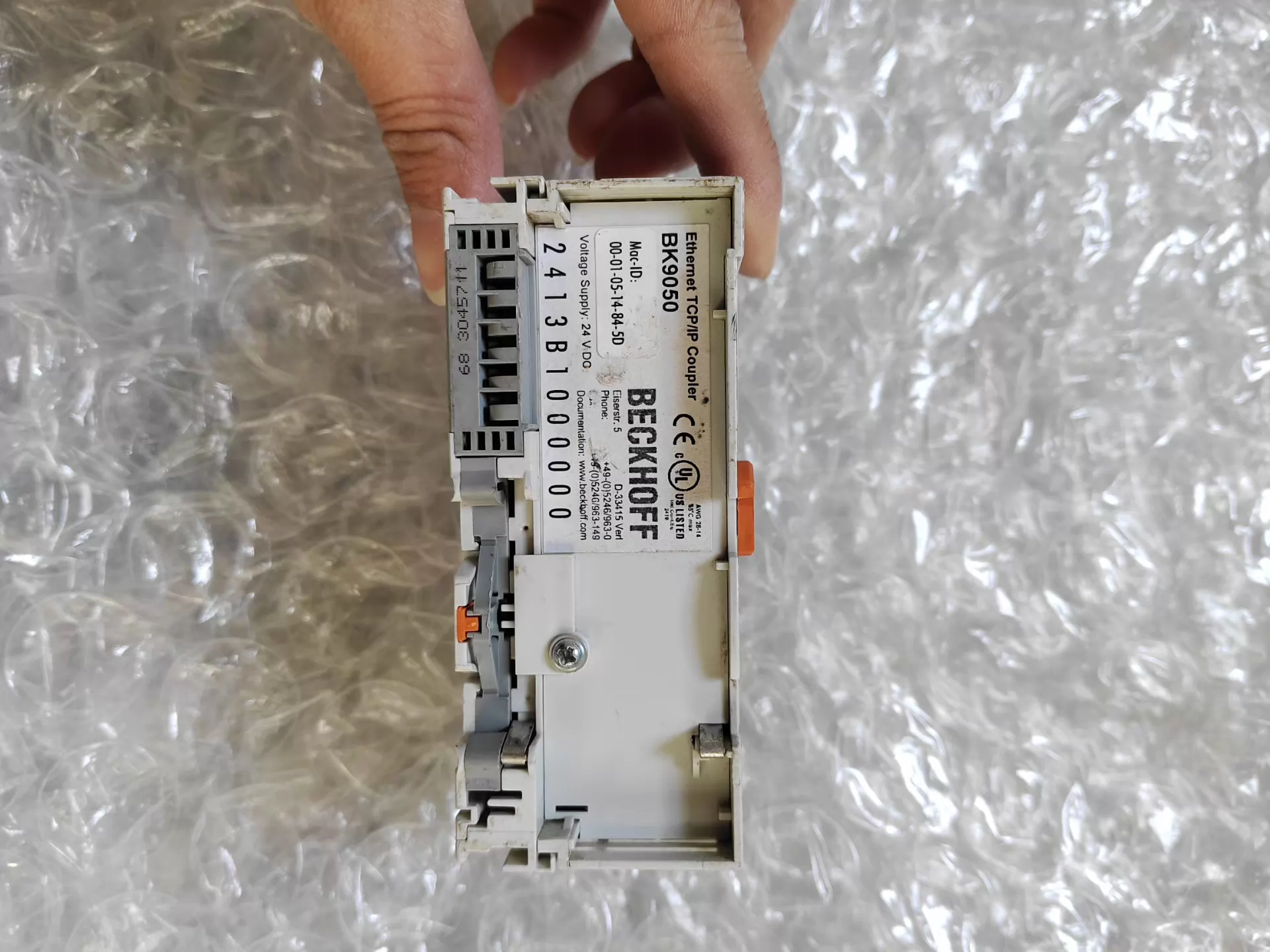

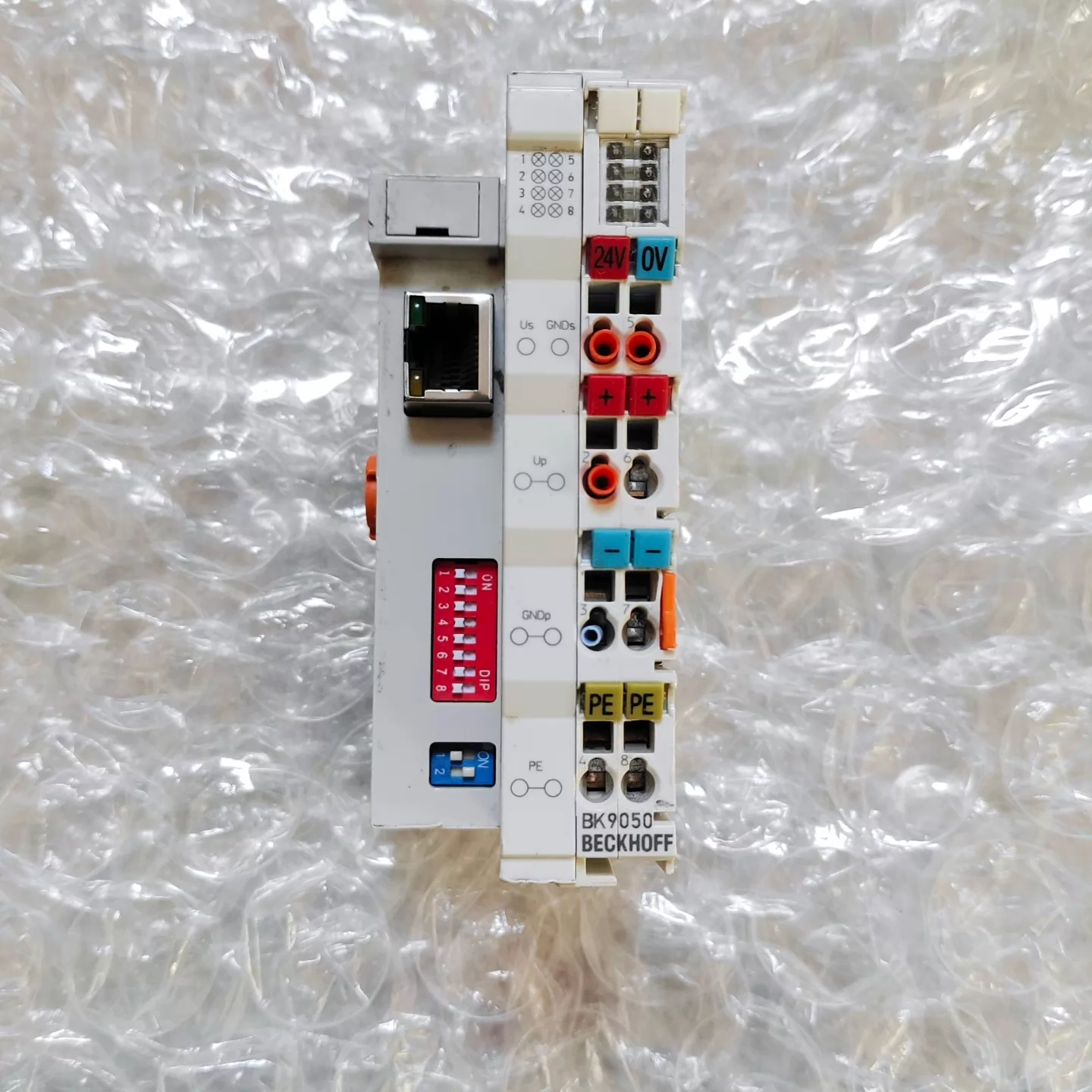

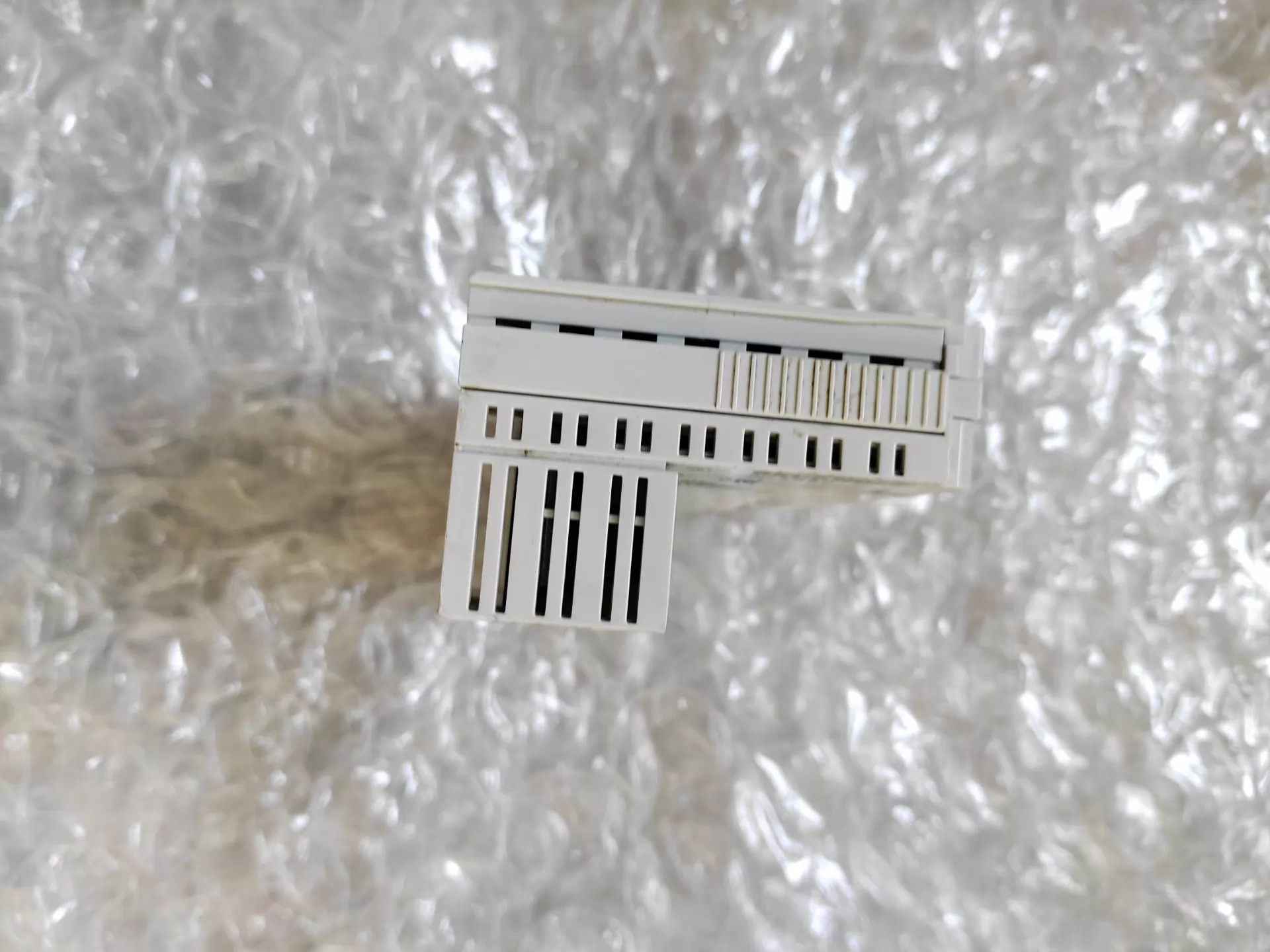

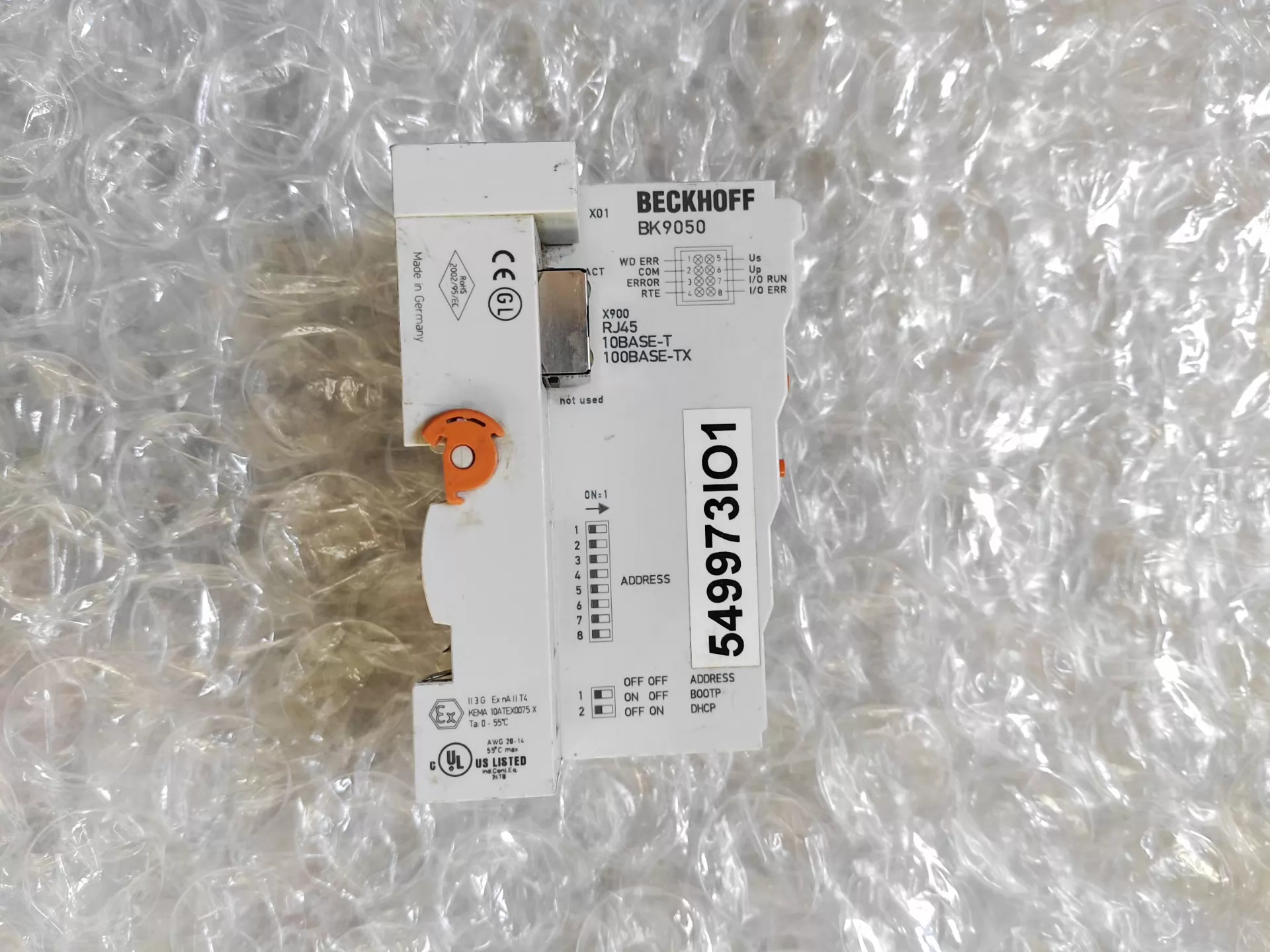

中古のBeckhoff BK9050モジュールで、軽微な使用感があります。24 V DC (-15%/+20%)で動作し、IP20保護等級を備えています。
仕様
| Brand | Beckhoff |
|---|---|
| Model | BK9050 |
| Power supply | 24 V DC (-15%/+20%) |
| Input current | 70 mA + (total K-bus current)/4, 4.500 mA max. |
| Power contact current load | maximum 10 A |
| Power contact voltage | maximum 24 V DC |
| Starting current | approx. 2.5 x continuous current |
| Weight | ca. 100 g |
| max ambient temperature | 55°C |
| Vibration/shock resistance | conforms to EN 60068-2-6 / EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2 / EN 61000-6-4 |
| Approvals/markings | CE, UKCA, cULus, EAC, GL, ATEX [ } 28 ] |
| Awg | 28-14 |
| Bus connection | 1 x RJ 45 |
| Data transfer rate | 10/100 Mbaud |
| Dielectric strength | 500 V (power contact/supply voltage/Ethernet/fieldbus) |
| Digital peripheral signals | 1020 inputs/outputs |
| Distance between modules | 100 m |
| Installation position | variable |
| K-bus power supply | up to 1750 mA |
| Mac-ID | 00-01-05-14-84-5D |
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Number of I/O modules | only limited by the IP address space |
| Number of I/O points | depending on controller |
| Permissible ambient temperature range during operation | 0°C ... +55°C |
| Permissible ambient temperature range during storage | -25°C ... +85°C |
| Permissible relative humidity | 95%, no condensation |
| Protection Type | IP20 |
| Recommended fuse | ≤ 10 A |
| Topology | star wiring |
| Transmission medium | 4 x 2 twisted pair copper cable; category 3 (10 Mbaud), category 5 (100 Mbaud) |
| Voltage Supply | 24 V DC |
ドキュメント
Documentation Bus Coupler for Ethernet
