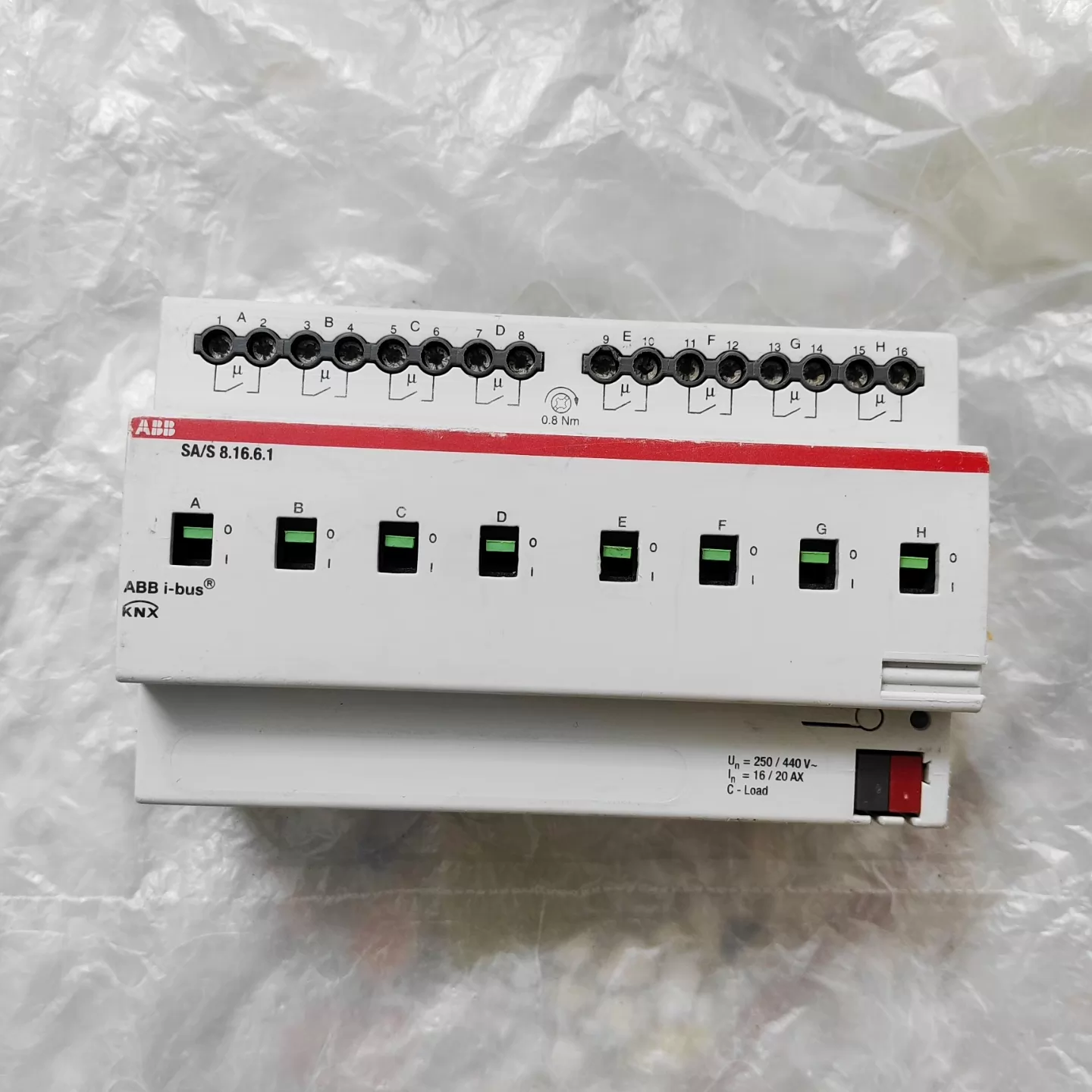

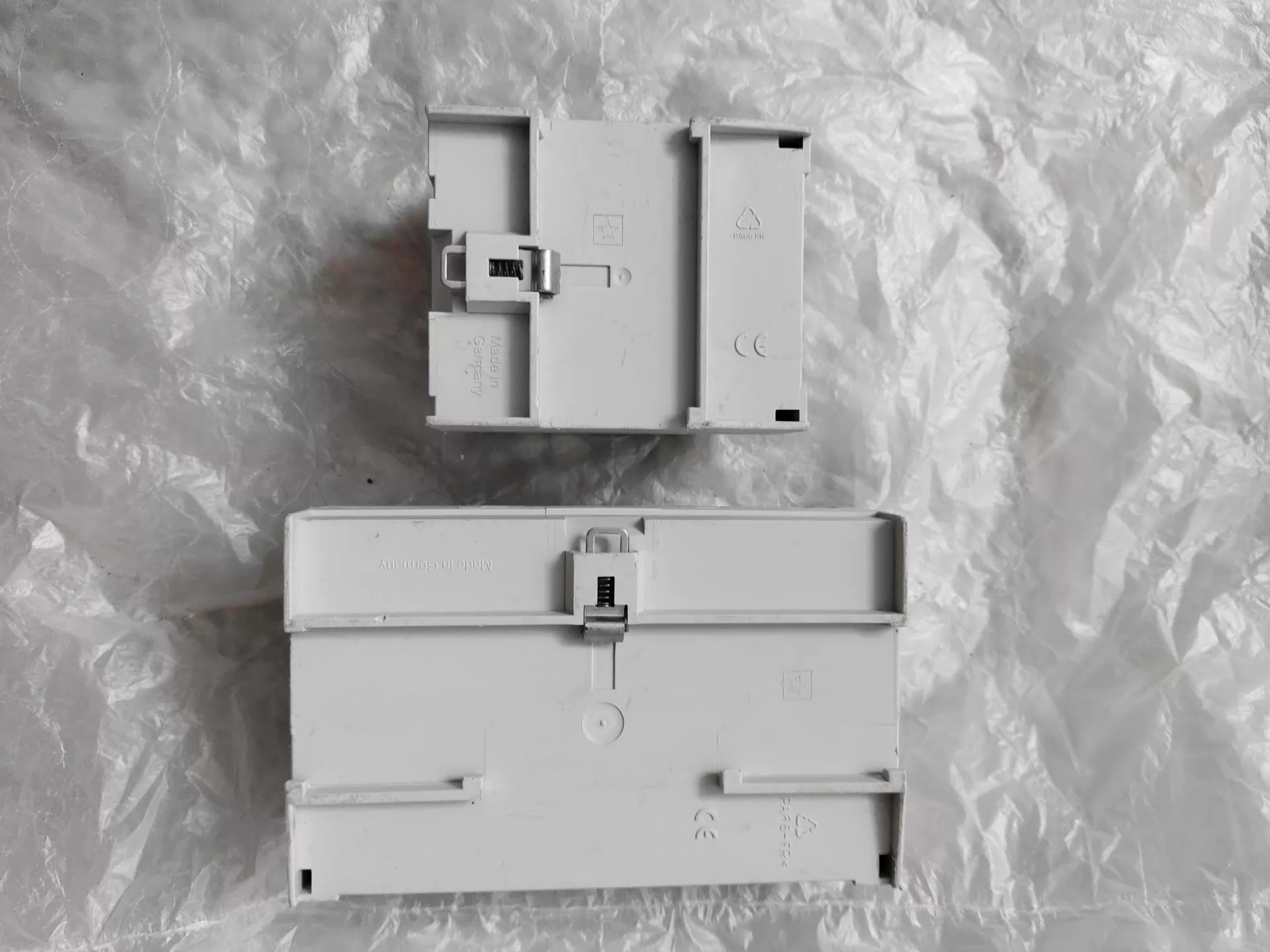

ABB SA/S 8.16.6.1 KNX スマートホームモジュール - 中古
説明
8チャンネルと電流検出を備えたABB SA/S 8.16.6.1 KNXスマートホームモジュールの中古品。
仕様
| Brand | ABB |
|---|---|
| Model | SA/S 8.16.6.1 |
| Rated current | 16/20 AX - C-Load (50/60 Hz) |
| Load current detection range | 0.02 A – 20 A AC; +/- 2 % of the current value plus +/- 20 mA |
| Type of protection | IP 20 |
| Connection KNX | screwless Bus Connector |
| Connection load side | screw terminals with combination head screws, for lines 0.2 to 6 mm2 unifilar |
| Installation | on 35 mm mounting rail, EN 60 715 |
| Operation | 8 actuating levers for displaying the switch position and manual operation |
| Outputs | 8 potential free floating contacts |
| Switching capacity according to EN 60669 | 16/20 AX, max. capacitive load 200 μF |
| Switching capacity according to EN 60947-4-1 | 16/20 A/AC 1; 16 A/AC 3 (on 230 / 400 V AC) |
| Tightening Torque | 0.8 Nm |
| Un | 250/440 V~ |
| Width | 8 modules at 18 mm |
