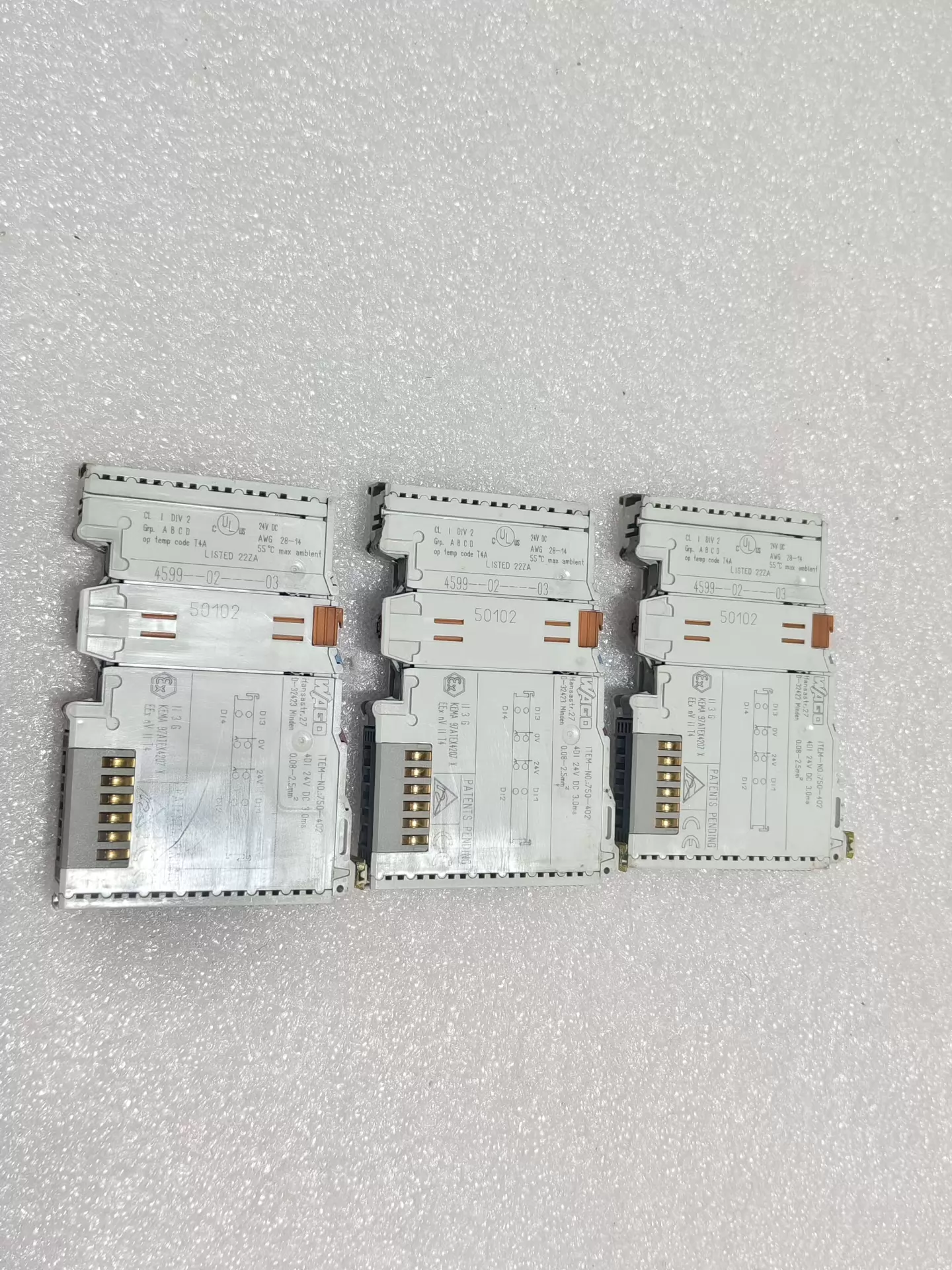

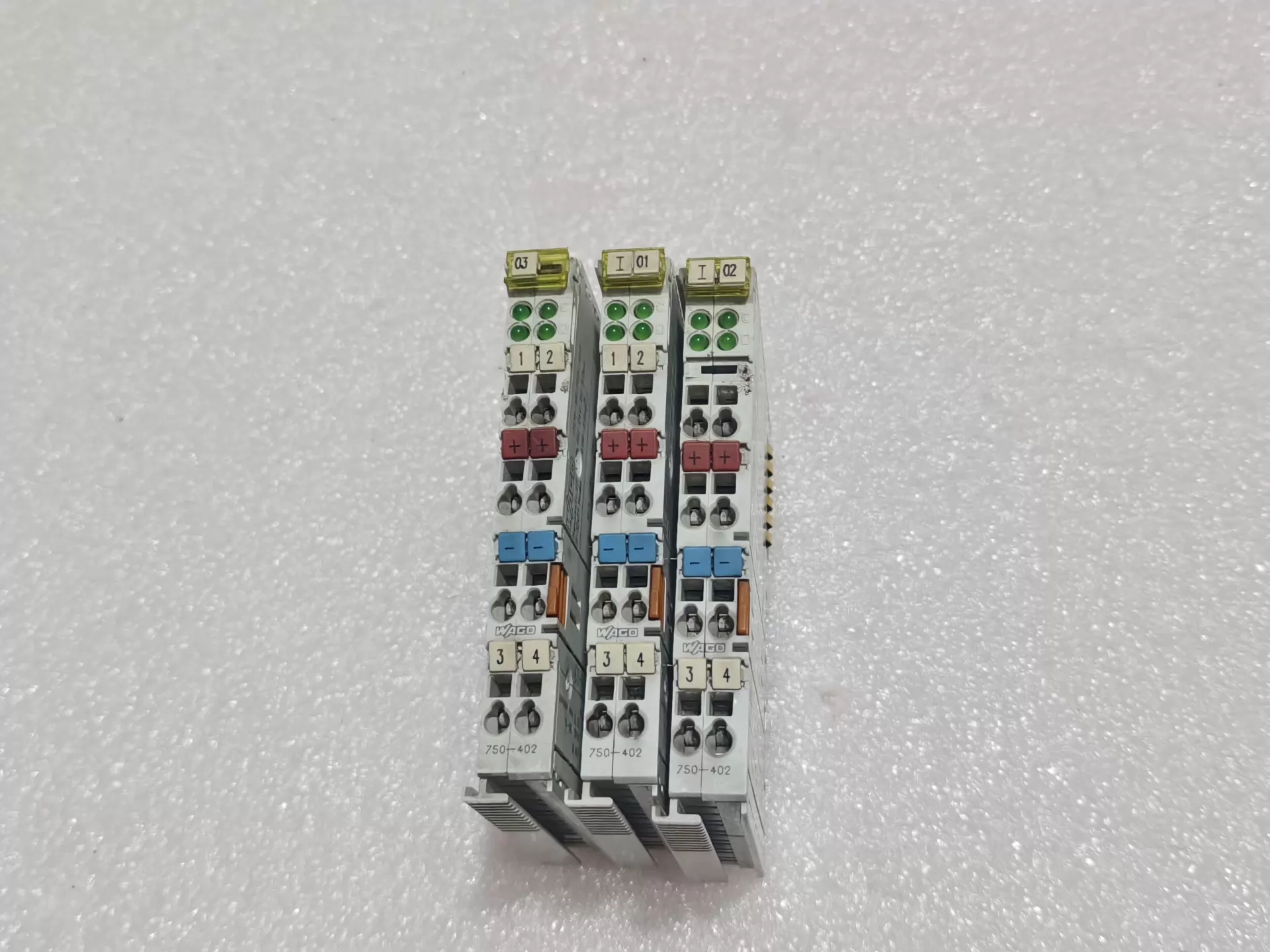

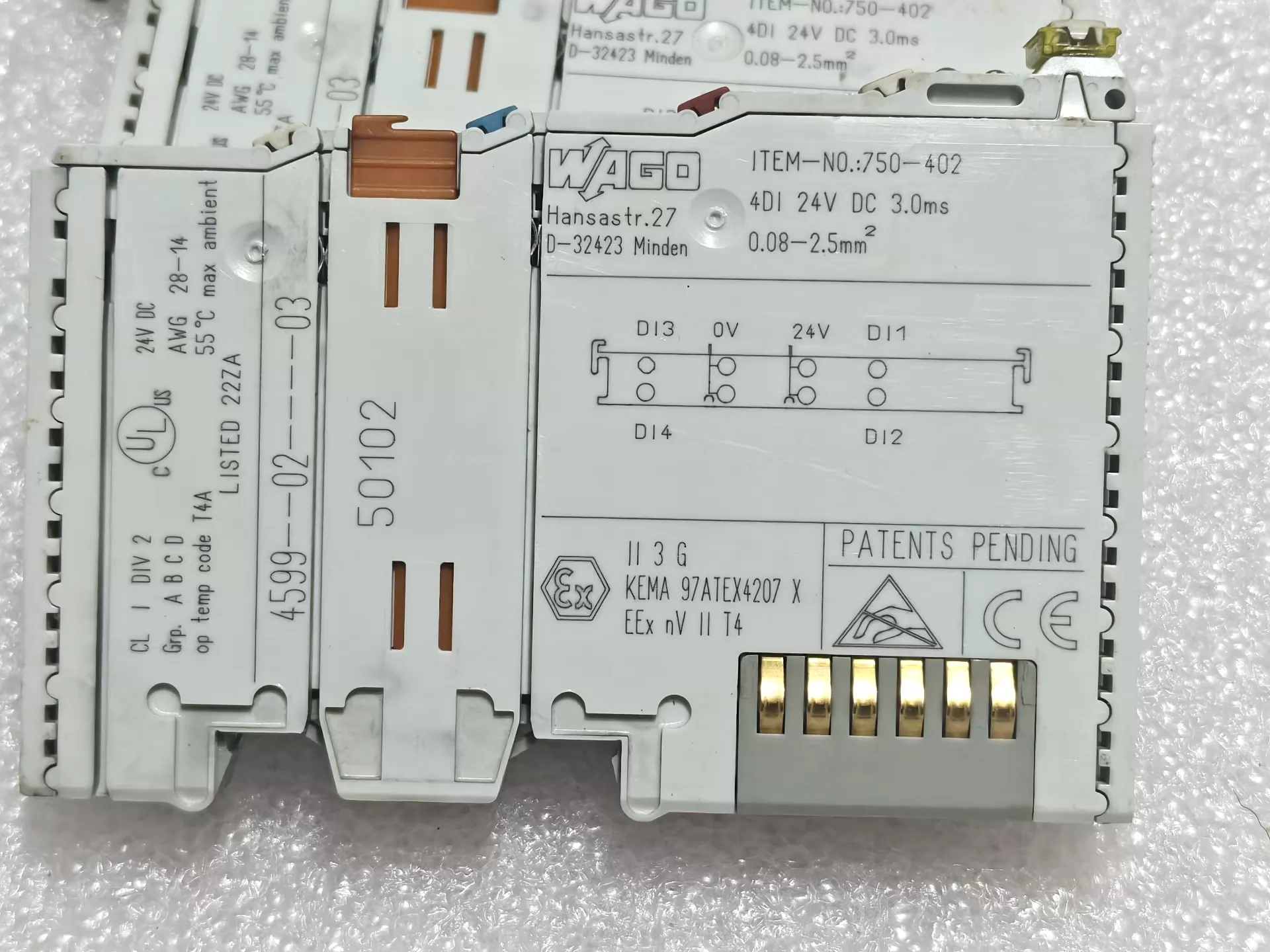

Module d'entrée numérique WAGO 750-402
Description
Module d'entrée numérique WAGO 750-402 avec 4 canaux, entrée 24 V DC et temps de réponse de 3,0 ms. Protection IP20.
Specifications
| Brand | WAGO |
|---|---|
| Order Number | 750-402 |
| Connection type | Input |
| Input voltage | 24 V DC |
| AWG range | 28-14 |
| Signal type (voltage) | 24 VDC |
| Weight | 45.5 g |
| Vibration resistance | 4g per IEC 60068-2-6 |
| CAS-No. | 1303-86-2; 1317-36-8; 7439-92-1 |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| REACH Candidate List Substance | Diboron trioxide; Lead; Lead monoxide |
| Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| ATEX certificate | KEMA 97ATEX4207 X |
| Color | light gray |
| Conductor cross-section | 0.08-2.5mm² |
| Conformity marking | CE |
| Connectable conductor materials | Copper |
| Connection technology | 8 x CAGE CLAMP® (inputs) |
| Current carrying capacity (power jumper contacts) | 10 A |
| Current consumption (system supply) | 7.5 mA |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
| Digital input channels | 4DI |
| Eccn | NO US CLASSIFICATION |
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 10.0 | EC001599 |
| ETIM 9.0 | EC001599 |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fire load | 1.156 MJ |
| Height | 100 mm / 3.937 inches |
| Housing material | Polycarbonate; polyamide 6.6 |
| Indicators | LED (A-D) green: Status DI 1 … DI 4 |
| Input characteristic | high-side switching |
| Input current per channel for signal (1) typ. | 4.5 mA |
| Input data width (internal) max. | 4 Bit |
| Input filter | 3 ms |
| Isolation | 500 V system/field |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Mounting type | DIN-35 rail |
| Number of digital inputs | 4 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Operation temperature code | T4 A |
| Permissible H2S contaminant concentration at a relative humidity < 75 % | 10 ppm |
| Permissible SO2 contaminant concentration at a relative humidity < 75 % | 25 ppm |
| Pluggable connector | fixed |
| Pollution degree | 2 per IEC 61131-2 |
| Protection type | IP20 |
| PU (SPU) | 1 pcs |
| Relative humidity (without condensation) | 95 % |
| RoHS Compliance Status | Compliant,With Exemption |
| SCIP notification number (Austria) | 53525c4f-c3a5-41b3-8728-08d7a8a9f9ec |
| SCIP notification number (Belgium) | a874ec47-8bc9-41c7-a4cd-d891cda84bf1 |
| SCIP notification number (Bulgaria) | 9e0ae448-d016-414f-86b6-b37d8ec8530f |
| SCIP notification number (Czech Republic) | 4bd23cc8-e0c7-44a4-b597-57b663830d07 |
| SCIP notification number (Denmark) | 93b83246-b7dd-40fb-a29c-c3f3305b0b33 |
| SCIP notification number (Finland) | 12b8051c-7254-4dbd-b4db-4df88c21ac45 |
| SCIP notification number (France) | 98ca113c-c679-460e-b867-7c90387f14c5 |
| SCIP notification number (Germany) | dea9f58e-6264-4be0-a5fc-227d5b7b5d42 |
| SCIP notification number (Hungary) | 4f878ff1-06fc-4ab7-8518-598a59689f44 |
| SCIP notification number (Italy) | 1188a4cd-a1cb-429d-ab3c-70169e37dde3 |
| SCIP notification number (Netherlands) | 8e380a8e-4beb-449e-b658-6cb396c7efc9 |
| SCIP notification number (Poland) | 299f07ad-a9f2-499b-8050-d7c9ba19eb48 |
| SCIP notification number (Romania) | 705b18ea-3cb3-4835-a475-862b4b8447b2 |
| SCIP notification number (Sweden) | f5ec5bfd-9131-4992-95bf-133447b884fd |
| Sensor connection | 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other sensors. |
| Sensor supply | 24 VDC |
| Shock resistance | 15g per IEC 60068-2-27 |
| Signal type | Digital |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Supply voltage (system) | 5 VDC; via data contacts |
| Total number of channels (module) | 4 |
| UL listing | LISTED 22ZA |
| Unspsc | 32,151,705 |
| Voltage range for signal (0) | −3 … +5 VDC |
| Voltage range for signal (1) | 15 … 30 VDC |
| Width | 12 mm / 0.472 inches |
