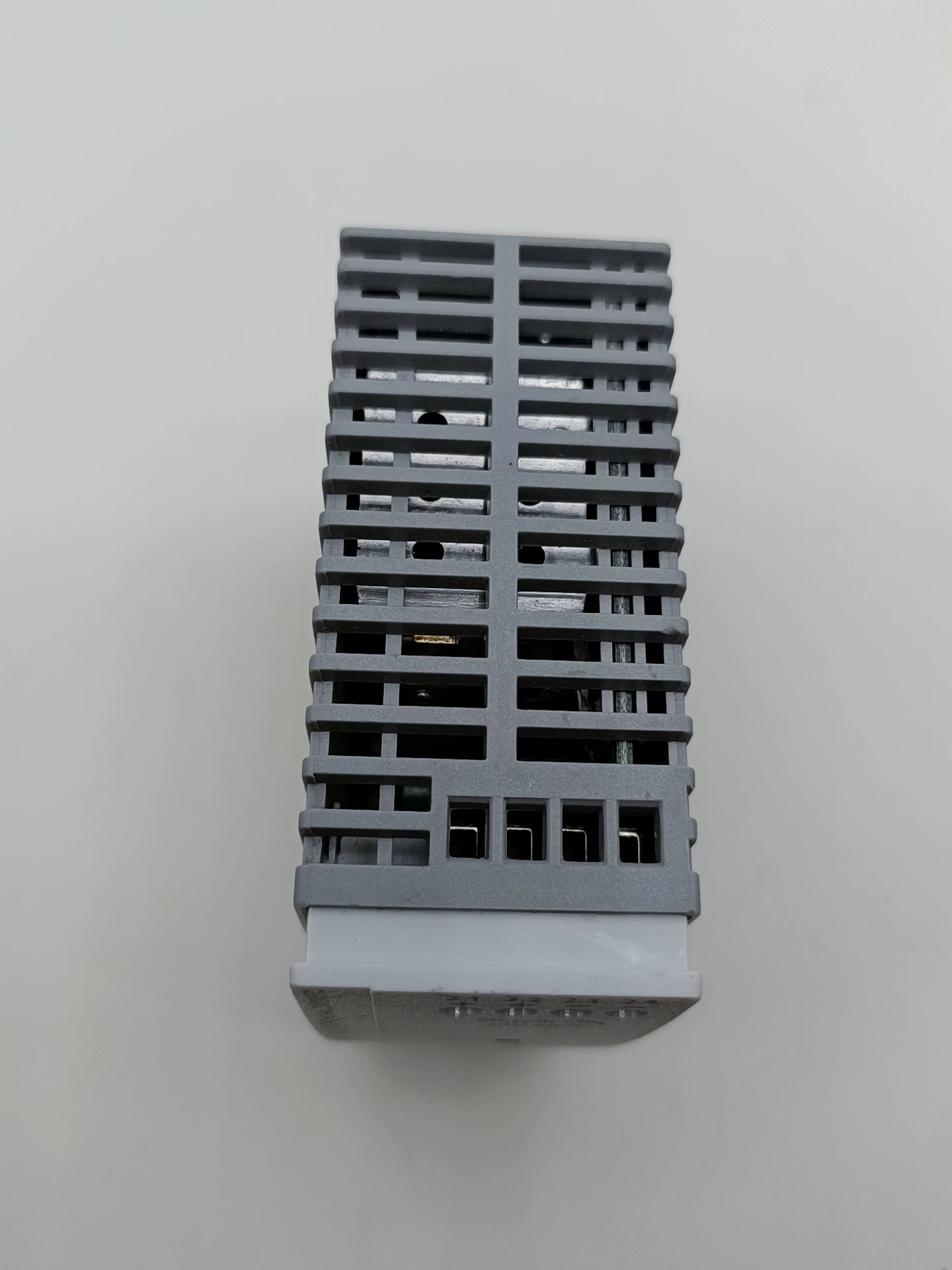

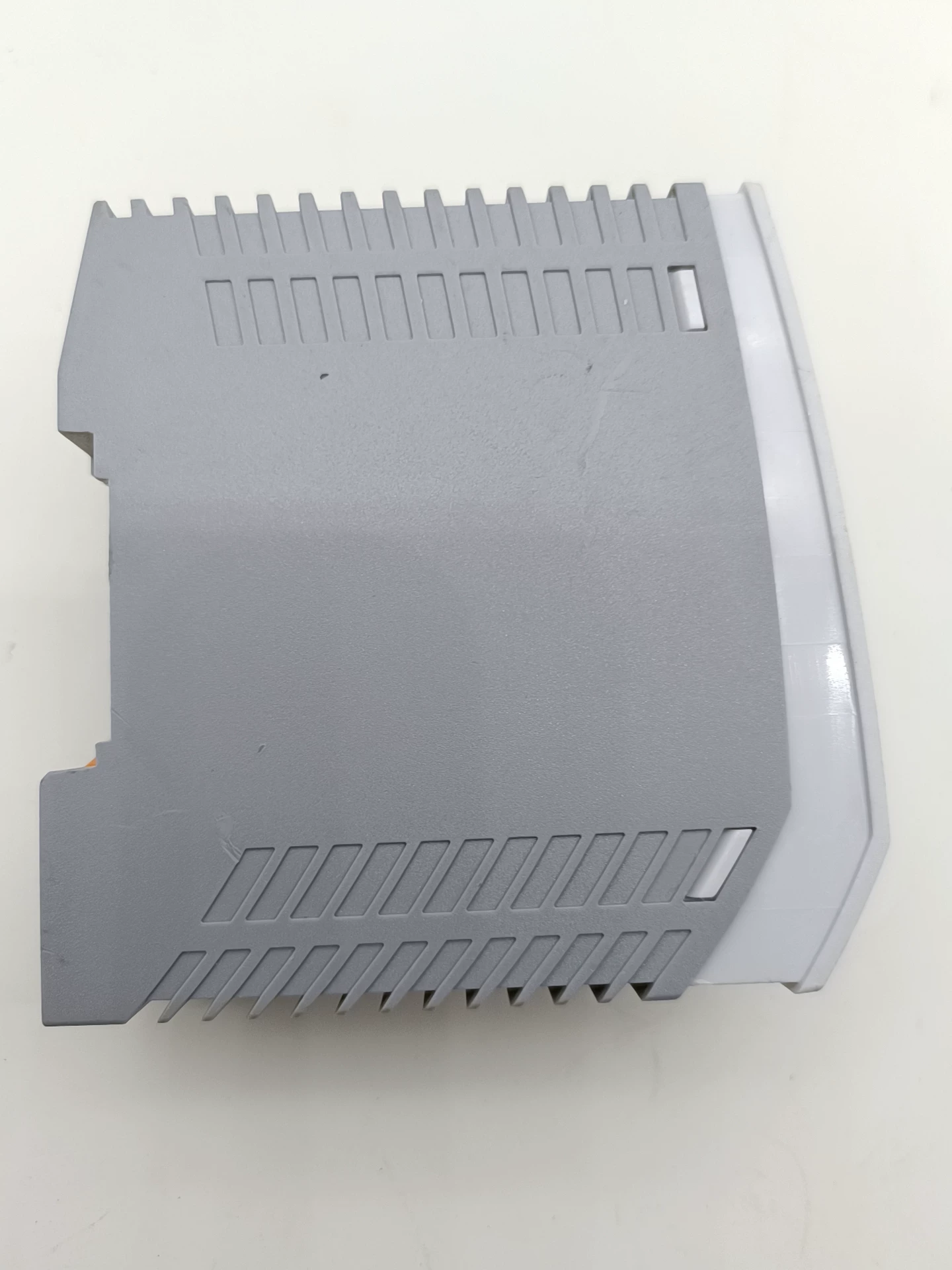

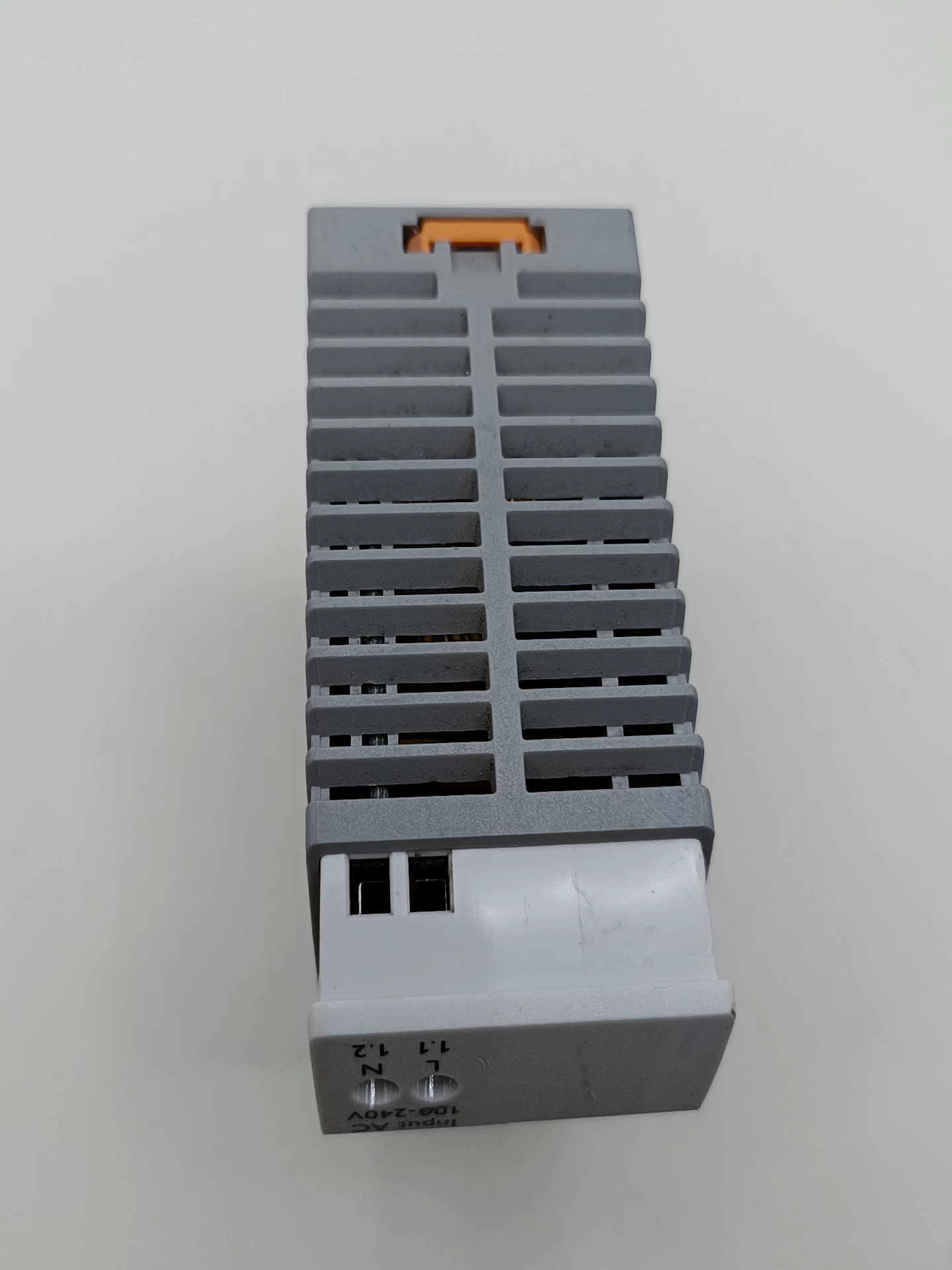

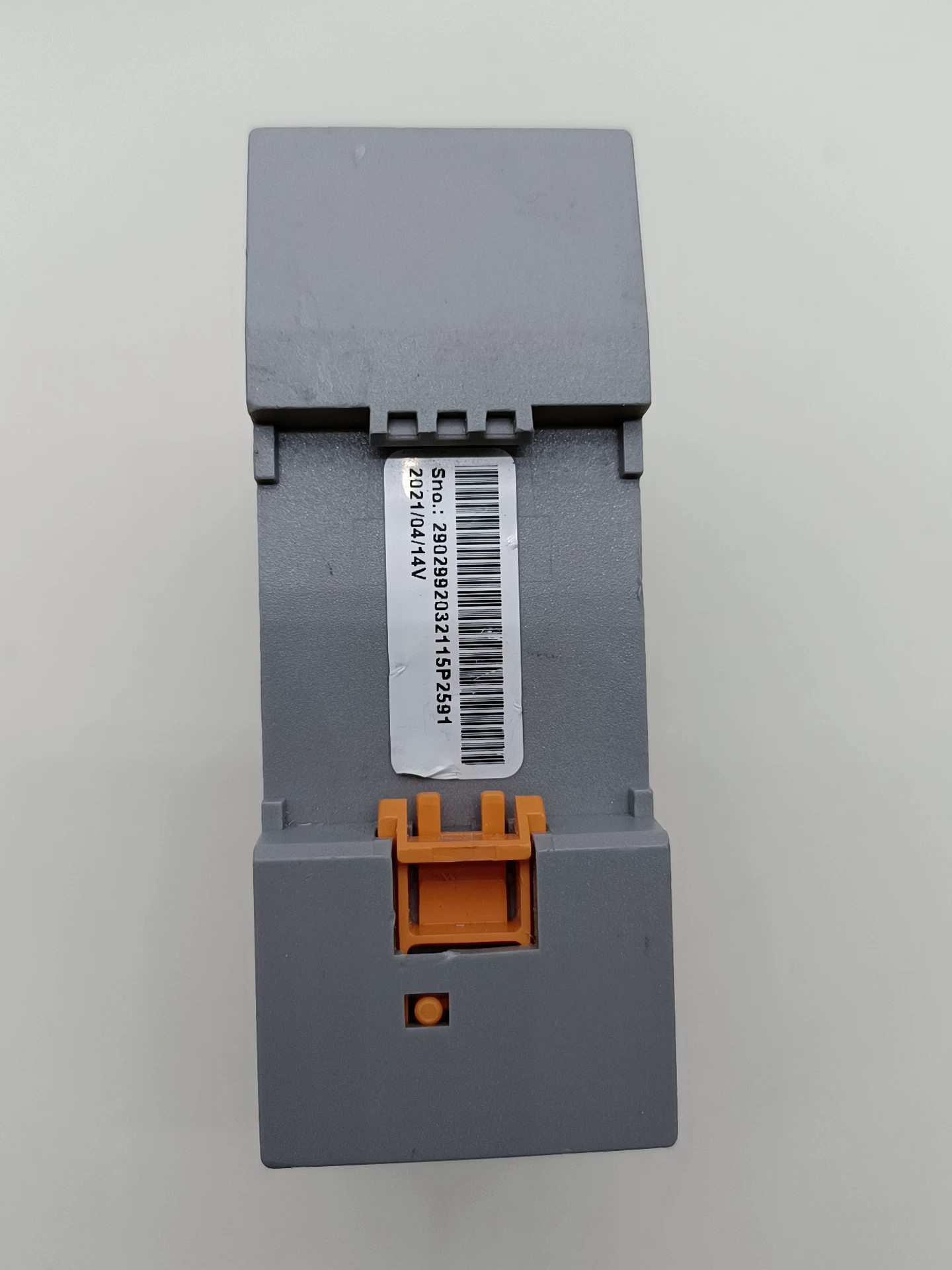

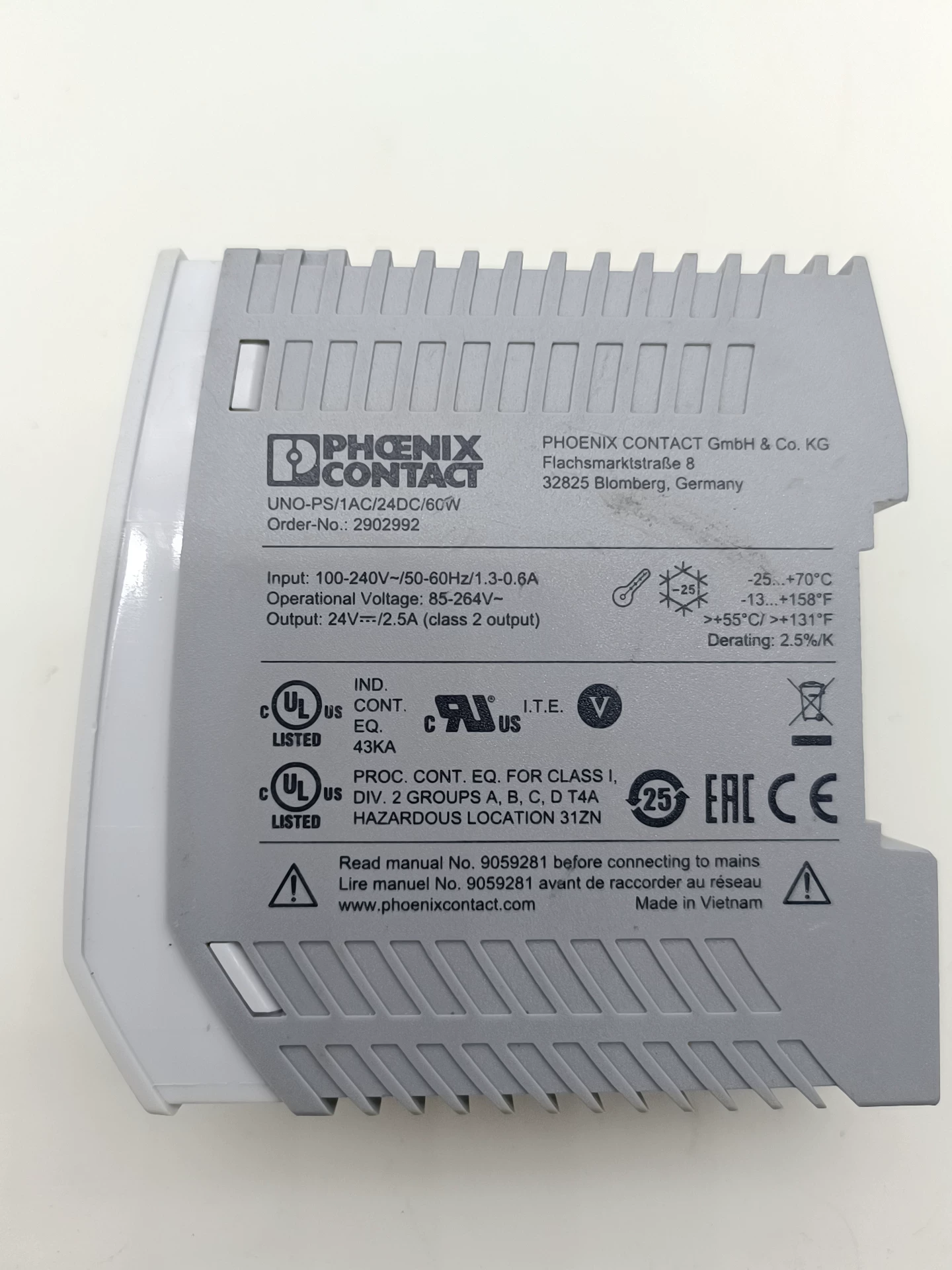

Phoenix Contact UNO-PS/1AC/24DC/60W 2902992 alimentation - D'occasion
Description
Alimentation Phoenix Contact UNO-PS/1AC/24DC/60W d'occasion, numéro de pièce 2902992. Prend en charge une entrée de 100-240 V CA.
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model | UNO-PS/1AC/24DC/60W |
| Order Number | 2902992 |
| HS Code | 850440 |
| Origin | Vietnam |
| Voltage | 10 V (Test Level 3) |
| Frequency | 50 Hz |
| Input Voltage | 100-240 V |
| Inrush current | < 30 A (typ.) |
| Nominal output voltage | 24 V DC |
| Operational Voltage | 85-264 V~ |
| Power factor | 0.49 |
| Power loss nominal load max. | < 7 W |
| Standard – Safety extra-low voltage | IEC 62368-1 (SELV) und EN 60204-1 (PELV) |
| Voltage type of supply voltage | AC |
| Response time | < 2 ms |
| AC frequency range | 50 Hz ... 60 Hz |
| Frequency range | 80 MHz ... 1 GHz |
| Input voltage range | 85 V AC ... 264 V AC |
| Nominal input voltage range | 100 V AC ... 240 V AC |
| Degree of protection | IP20 |
| Recommended breaker for input protection | 6 A ... 16 A (Characteristics B, C, D, K) |
| Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6) |
| Vibration (operation) | 15 Hz ... 150 Hz, 2.3g, 90 min. |
| EMC requirements for noise emission | EN 61000-6-3 |
| EMC requirements for noise emission | EN 61000-6-4 |
| EMC requirements for noise immunity | EN 61000-6-1 |
| EMC requirements for noise immunity | EN 61000-6-2 |
| REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
| Additional text | Class 3 |
| Ambient temperature (operation) | -25 °C ... 70 °C (> 55 °C Derating: 2.5 %/K) |
| Ambient temperature (start-up type tested) | -40 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Approval - requirement of the semiconductor industry with regard to mains voltage dips | EN 61000-4-11 |
| Climatic class | 3K22 (in accordance with EN 60721-3-3) |
| CO2e kg | 3.445 kg CO2e |
| Comments | Criterion B |
| Comments | Criterion A |
| Conductor cross-section AWG max. | 14 |
| Conductor cross-section AWG min. | 24 |
| Conductor cross-section flexible max. | 2.5 mm² |
| Conductor cross-section flexible min. | 0.2 mm² |
| Conductor cross-section, rigid max. | 2.5 mm² |
| Conductor cross-section, rigid min. | 0.2 mm² |
| Connection in parallel | yes, for redundancy and increased capacity |
| Connection in series | yes |
| Connection method | Screw connection |
| Contact discharge | 6 kV (Test Level 3) |
| Control deviation | < 1 % (change in load, static 10 % ... 90 %) |
| Control deviation | < 2 % (Dynamic load change 10 % ... 90 %, 10 Hz) |
| Control deviation | < 0.1 % (change in input voltage ±10 %) |
| Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Csa | CAN/CSA-C22.2 No. 60950-1-07 |
| CSA | CSA-C22.2 No. 107.1-01 |
| CSA | CAN/CSA-C22.2 No. 213 Class I, Division 2, Groups A, B, C, D T4A (Hazardous Location) |
| Current consumption | typ. 1.3 A (100 V AC) |
| Current consumption | typ. 0.6 A (240 V AC) |
| Degree of pollution | 2 |
| Depth | 84 mm |
| Derating | 55 °C ... 70 °C (2.5 %/K) |
| Discharge in air | 8 kV (Test Level 3) |
| ECLASS-13.0 | 27040701 |
| ECLASS-15.0 | 27040701 |
| Efficiency | typ. 88 % (120 V AC) |
| Efficiency | typ. 90 % (230 V AC) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
| Environment friendly use period (EFUP) | EFUP-25 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required. |
| ETIM 10.0 | EC002540 |
| Exemption | 6(c), 7(c)-I |
| Feedback voltage resistance | < 35 V DC |
| Foot latch material | POM (Polyoxymethylene) |
| Frequency range | 1 GHz ... 6 GHz |
| Frequency range | 0.15 MHz ... 80 MHz |
| Frequency range (f N ) | 50 Hz ... 60 Hz ±10 % |
| Fulfills EU RoHS substance requirements | Yes |
| Height | 90 mm |
| Housing material | Plastic |
| Housing material | PC |
| Input | 4 kV (Test Level 4 - asymmetrical) |
| Input | 2 kV (Test Level 3 - symmetrical) |
| Input fuse | 2.5 A (slow-blow, internal) |
| Input voltage range AC | 85 V AC ... 264 V AC |
| Input/Output | asymmetrical |
| Inrush current integral (I 2 t) | < 0.5 A 2 s (typ.) |
| Installation distance right/left | 0 mm / 0 mm |
| Installation distance top/bottom | 30 mm / 30 mm |
| Insulation voltage input/output | 4 kV AC (type test) |
| Insulation voltage input/output | 3 kV AC (routine test) |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| Mains buffering time | > 20 ms (120 V AC) |
| Mains buffering time | > 85 ms (230 V AC) |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Maximum no-load power dissipation | < 0.3 W |
| Minimum order quantity | 1 pc |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Mounting type | DIN rail mounting |
| MTBF (IEC 61709, SN 29500) | > 785000 h (40 °C) |
| Nominal output current (I N ) | 2.5 A (-25 °C ... 55 °C) |
| Nominal power consumption | 135.5 VA |
| Number of periods | 25 periods |
| Number of periods | 10 periods |
| Number of periods | 1 period |
| Number of phases | 1 |
| Output | 2 kV (Test Level 3 - asymmetrical) |
| Output | 1 kV (Test Level 2 - symmetrical) |
| Output characteristic | HICCUP |
| Output power | 60 W |
| output_voltage | 24 V |
| Packing unit | 1 pc |
| Product key | CMPU13 |
| Product type | Power supply |
| Protection against overvoltage at the output (OVP) | ≤ 35 V DC |
| Protection class | II (in closed control cabinet) |
| Protective circuit | Transient surge protection; Varistor |
| Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
| Residual ripple | < 30 mV PP (with nominal values) |
| Rise time | < 0.5 s (U OUT (10 % ... 90 %)) |
| Scip | f49f36da-5b50-4d41-af7b-3196d0a8a25b |
| Screw thread | M3 |
| Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
| Short-circuit-proof | yes |
| SIL in accordance with IEC 61508 | 0 |
| Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 2.5 mm² |
| Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.2 mm² |
| Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 2.5 mm² |
| Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.2 mm² |
| Standard - Electrical safety | IEC 62368-1 (SELV) |
| Standard - Safe isolation | DIN VDE 0100-410 |
| Standard - Safety of transformers | EN 61558-2-16 |
| Standard designation | Requirement of the semiconductor industry with regard to mains voltage dips |
| Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
| Standards/regulations | EN 61000-4-2 |
| Standards/regulations | EN 61000-4-3 |
| Standards/regulations | EN 61000-4-4 |
| Standards/regulations | EN 61000-4-5 |
| Standards/regulations | EN 61000-4-6 |
| Standards/regulations | EN 61000-4-11 |
| Standards/regulations | EN 61000-6-3 |
| Standards/specifications | SEMI F47 - 0706 (180 V AC) |
| Stripping length | 8 mm |
| terminal blocks) | V0 |
| Test field strength | 10 V/m (Test Level 3) |
| Tightening torque max | 0.6 Nm |
| Tightening torque max | 0.8 Nm |
| Tightening torque, min | 0.5 Nm |
| Tightening torque, min | 0.6 Nm |
| Type of housing | Polycarbonate |
| Types of signaling | LED |
| Typical response time | < 1 s |
| UL approvals | UL/C-UL listed UL 508 |
| UL approvals | NEC Class 2 as per UL 1310 |
| UL approvals | UL/C-UL Listed ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4A (Hazardous Location) |
| UL approvals | UL/C-UL Recognized UL 60950-1 |
| UNSPSC 21.0 | 39121000 |
| Voltage | 230 V AC |
| Voltage dip | 70 % |
| Voltage dip | 40 % |
| Voltage dip | 0 % |
| Weight per piece (excluding packing) | 207 g |
| Weight per piece (including packing) | 245 g |
| Width | 35 mm |
| With protective coating | no |
