Moxa NPort 5110 - D'occasion
Description
Serveur de périphériques Moxa NPort 5110 RS-232 d'occasion avec 1 port série.
Specifications
| Brand | Moxa |
|---|---|
| Model | NPort 5110 |
| Port count | 1 |
| Input Voltage | 12 to 48 VDC |
| Input Current | 128.7 mA @ 12 VDC |
| Power Input | 12-48 VDC |
| Power Parameters — Input Current | 128.7 mA @ 12 VDC |
| Power Parameters — Input Voltage | 12 to 48 VDC |
| Power Parameters — No. of Power Inputs | 1 |
| Power Parameters — Source of Input Power | Power input jack |
| Weight | 340 g |
| Operating Temperature | 0 to 55 °C |
| Dimensions (with ears) | 75.2 x 80 x 22 mm |
| Dimensions (without ears) | 52 x 80 x 22 mm |
| Environmental Limits — Operating Temperature | 0 to 55°C (32 to 131°F) |
| Ethernet Interface — Magnetic Isolation Protection | 1.5 kV (built-in) |
| Physical Characteristics — Weight | 340 g (0.75 lb) |
| Baudrate | 110 bps to 230.4 kbps |

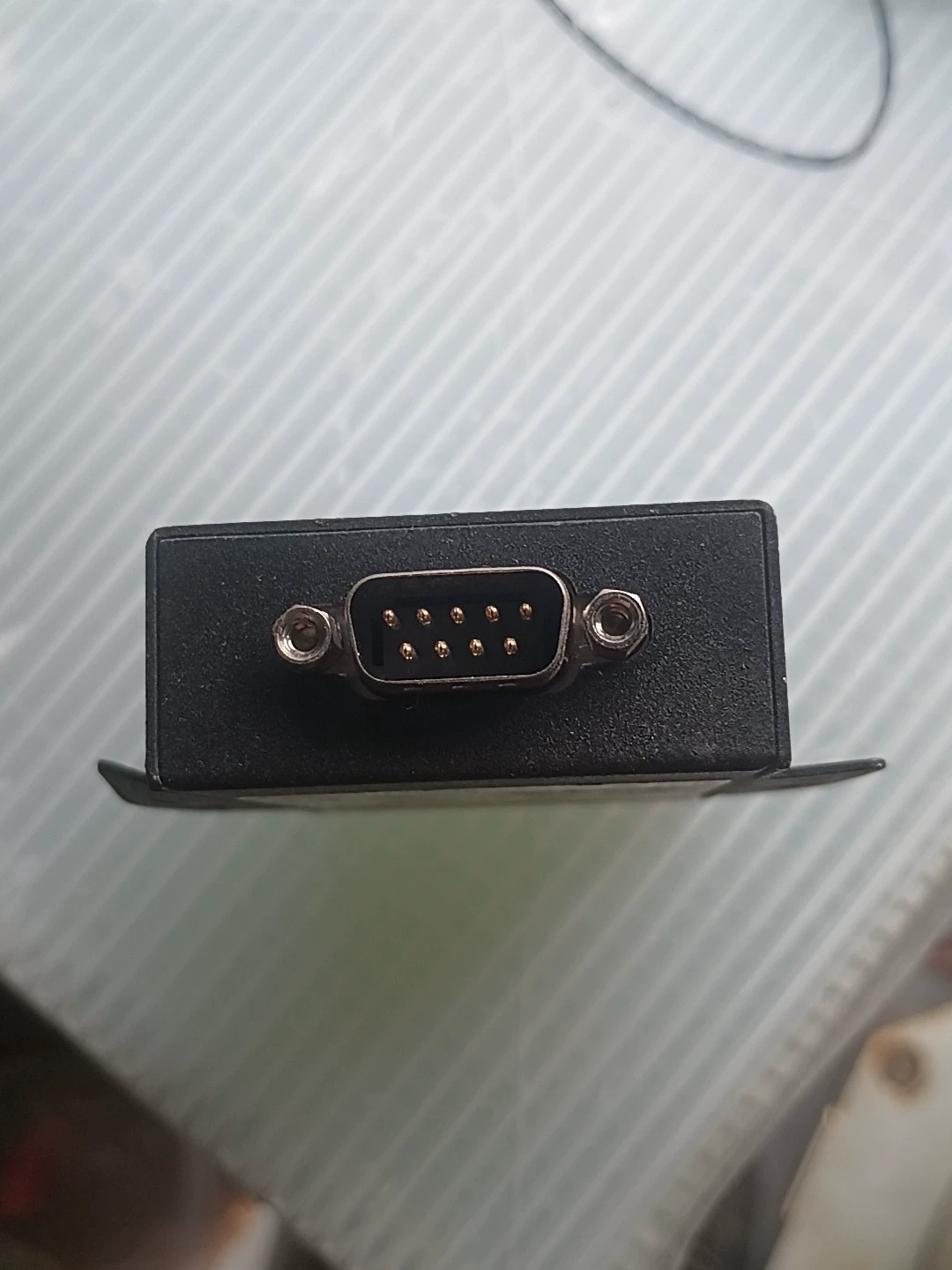

| Connector | DB9 male |
| Data Bits | 5, 6, 7, 8 |

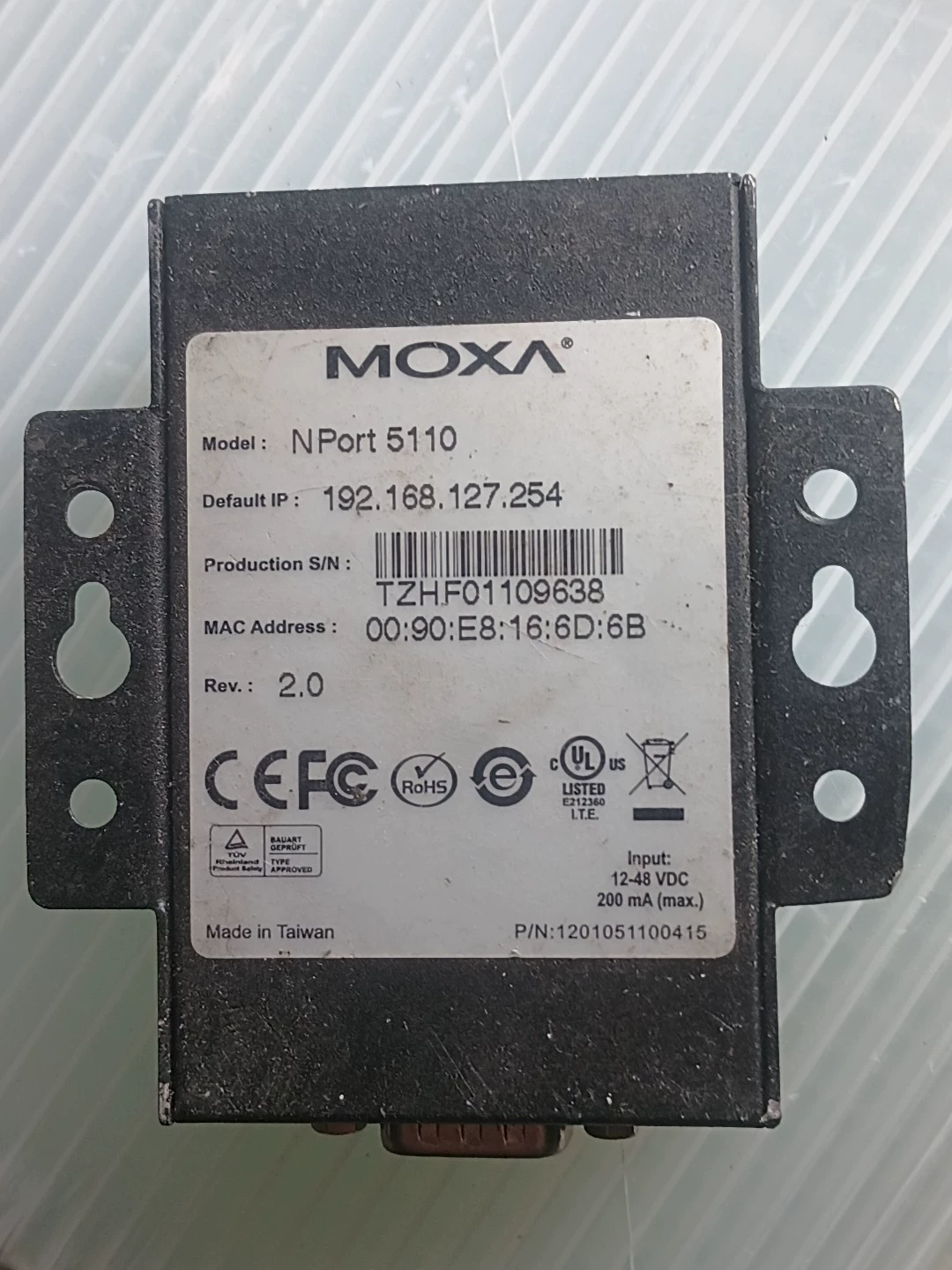

| Default IP | 192.168.127.254 |
| Environmental Limits — Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Environmental Limits — Storage Temperature (package included) | -40 to 75°C (-40 to 167°F) |
| Ethernet Interface — 10/100BaseT(X) Ports (RJ45 connector) | 1 |
| Ethernet Ports | 1 |
| Ethernet Software Features — Android API | Android 3.1.x and later |
| Ethernet Software Features — Arm®-based Platform Support | Windows 11 | Linux kernel 6.x, 5.x, and 4.x | macOS 14, 13, 12, and 11 |
| Ethernet Software Features — Configuration Options | Serial Console | Windows Utility | Telnet Console | Web Console (HTTP) |
| Ethernet Software Features — Fixed TTY Drivers | macOS versions: 14, 13, 12, 11, and 10.1x | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Ethernet Software Features — Linux Real TTY Drivers | Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x |
| Ethernet Software Features — Management | DHCP Client | IPv4 | SMTP | SNMPv1 | Telnet | DNS | HTTP | ARP | BOOTP | UDP | TCP/IP | ICMP |
| Ethernet Software Features — MIB | RFC1213, RFC1317 |
| Ethernet Software Features — Virtual Machine | VMWare ESXi (Windows 11/10) | VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x) | Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x) |
| Ethernet Software Features — Windows Real COM Drivers | Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95 | Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT | Windows Embedded CE 6.0 and 5.0, Windows XP Embedded |
| Flow Control | RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF |
| Housing | Metal |
| Mtbf | 3,126,448 hrs |
| MTBF — Standards | Telcordia (Bellcore) Standard TR/SR |
| MTBF — Time | 3,126,448 hrs |
| Parity | None, Even, Odd, Space, Mark |
| Physical Characteristics — Dimensions (with ears) | 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in) |
| Physical Characteristics — Dimensions (without ears) | 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in) |
| Physical Characteristics — Housing | Metal |
| Physical Characteristics — Installation | Desktop | DIN-rail mounting (with optional kit) | Wall mounting |
| Revision | 2.0 |
| Security Functions — Authentication | Local database (password only) |
| Serial Interface — Baudrate | 110 bps to 230.4 kbps |
| Serial Interface — Connector | DB9 male |
| Serial Interface — Data Bits | 5, 6, 7, 8 |
| Serial Interface — Flow Control | RTS/CTS (RS-232 only) | DTR/DSR (RS-232 only) | XON/XOFF |
| Serial Interface — No. of Ports | 1 |
| Serial Interface — Operation Modes | Disabled | Ethernet Modem | Pair Connection | Real COM | Reverse Telnet | TCP Client | TCP Server | UDP |
| Serial Interface — Parity | None, Even, Odd, Space, Mark |
| Serial Interface — Serial Standards | RS-232 |
| Serial Interface — Stop Bits | 1, 1.5, 2 |
| Serial Ports | 1 |
| Serial Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Serial Signals — RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Serial Standard | RS-232 |
| Standards and Certifications — EMC | EN 55032/35 |
| Standards and Certifications — EMI | CISPR 32, FCC Part 15B Class A |
| Standards and Certifications — EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV | IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m | IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV | IEC 61000-4-5 Surge: Power: 1 kV | IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m | IEC 61000-4-8 PFMF | IEC 61000-4-11 |
| Standards and Certifications — Safety | EN 62368-1 | IEC 62368-1 | UL 60950-1 |
| Stop Bits | 1, 1.5, 2 |
| Warranty Period | 5 years |
| Warranty — Details | See | www.moxa.com/warranty |
| Warranty — Warranty Period | 5 years |
