Commutateur Ethernet industriel Moxa EDS-205 - D'occasion
Demander un devis
Indiquez-nous ce dont vous avez besoin et nous vous recontacterons au sujet de la disponibilite et du prix.
Commencer la demandeDescription

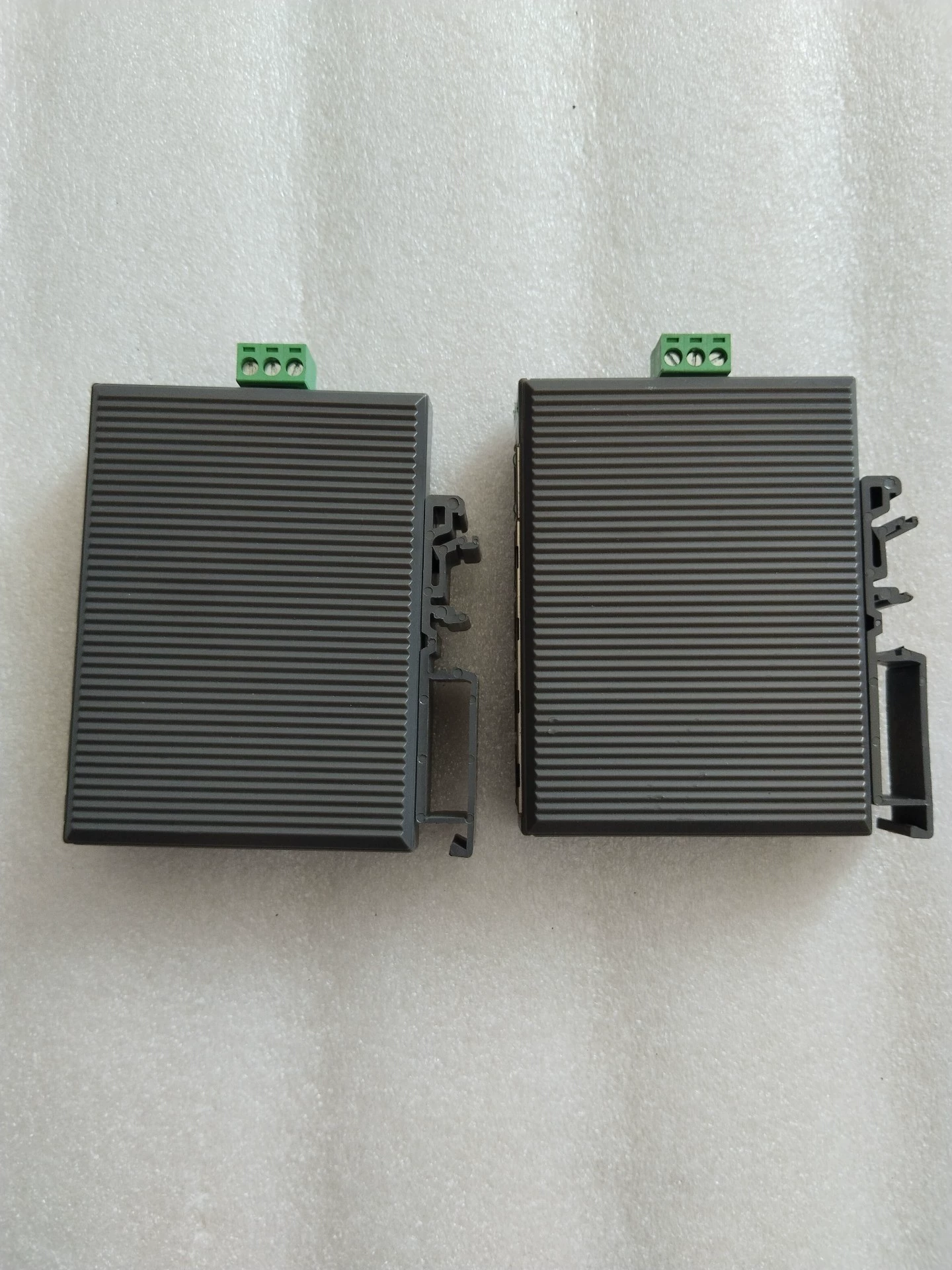

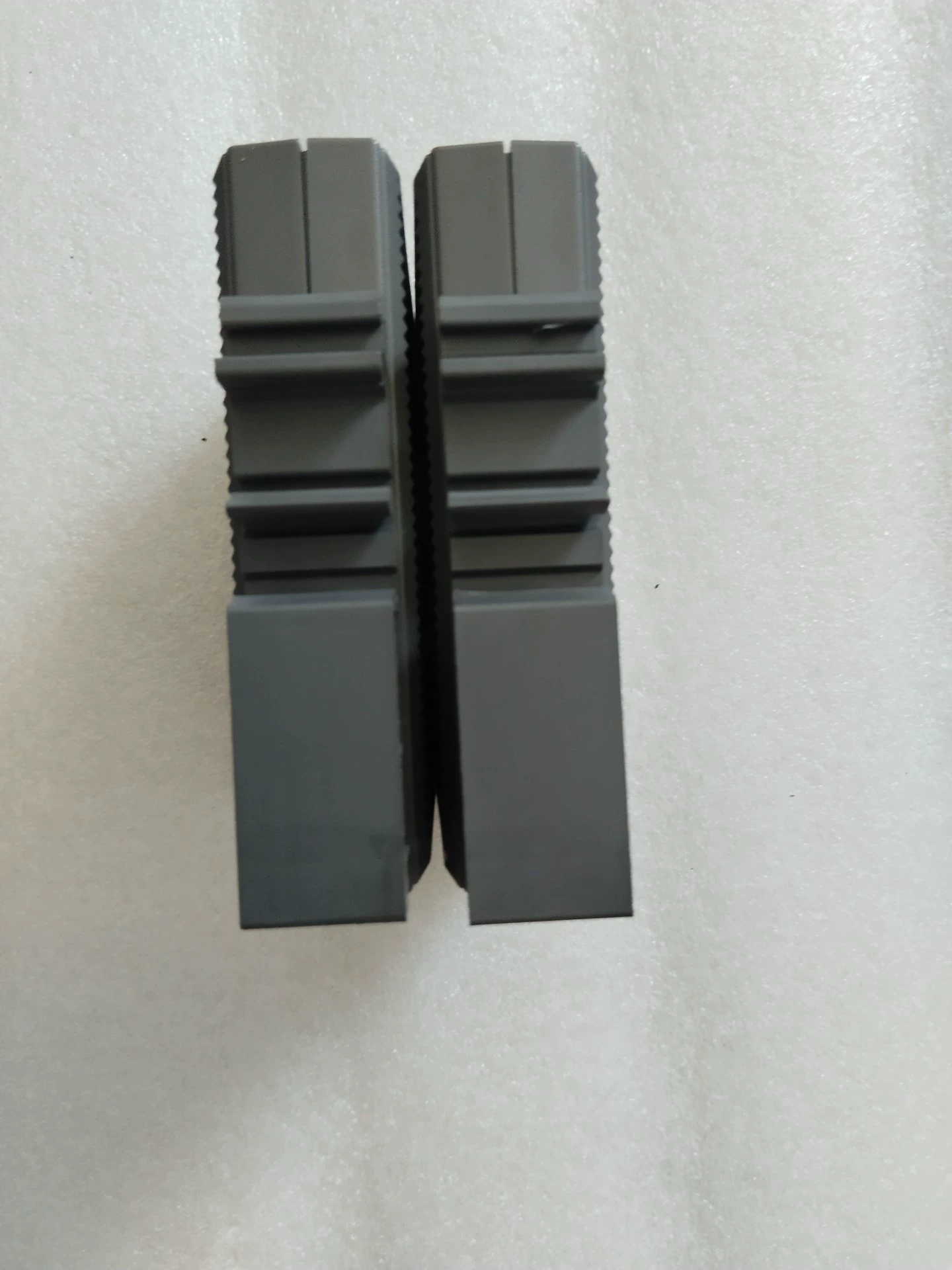

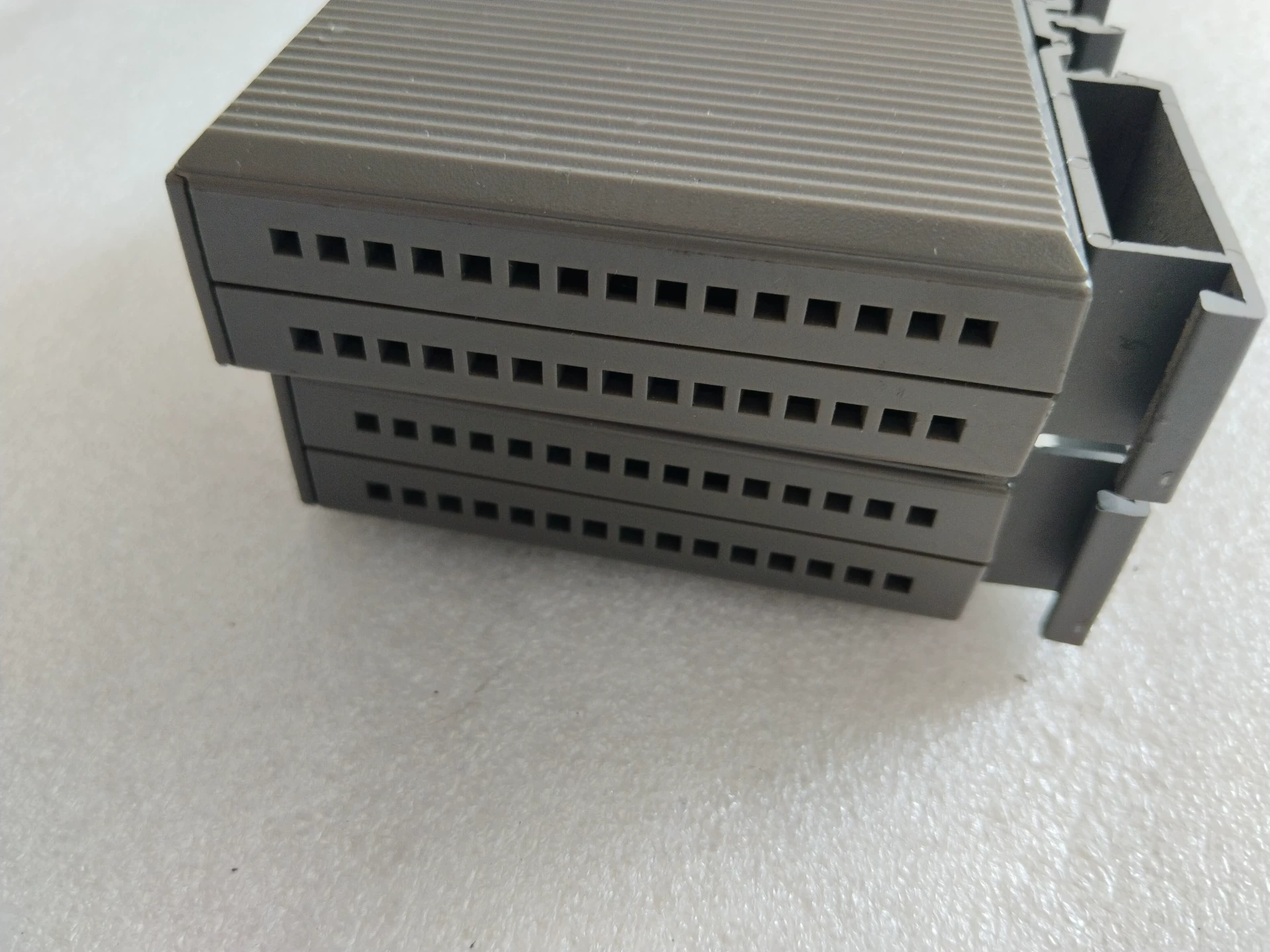

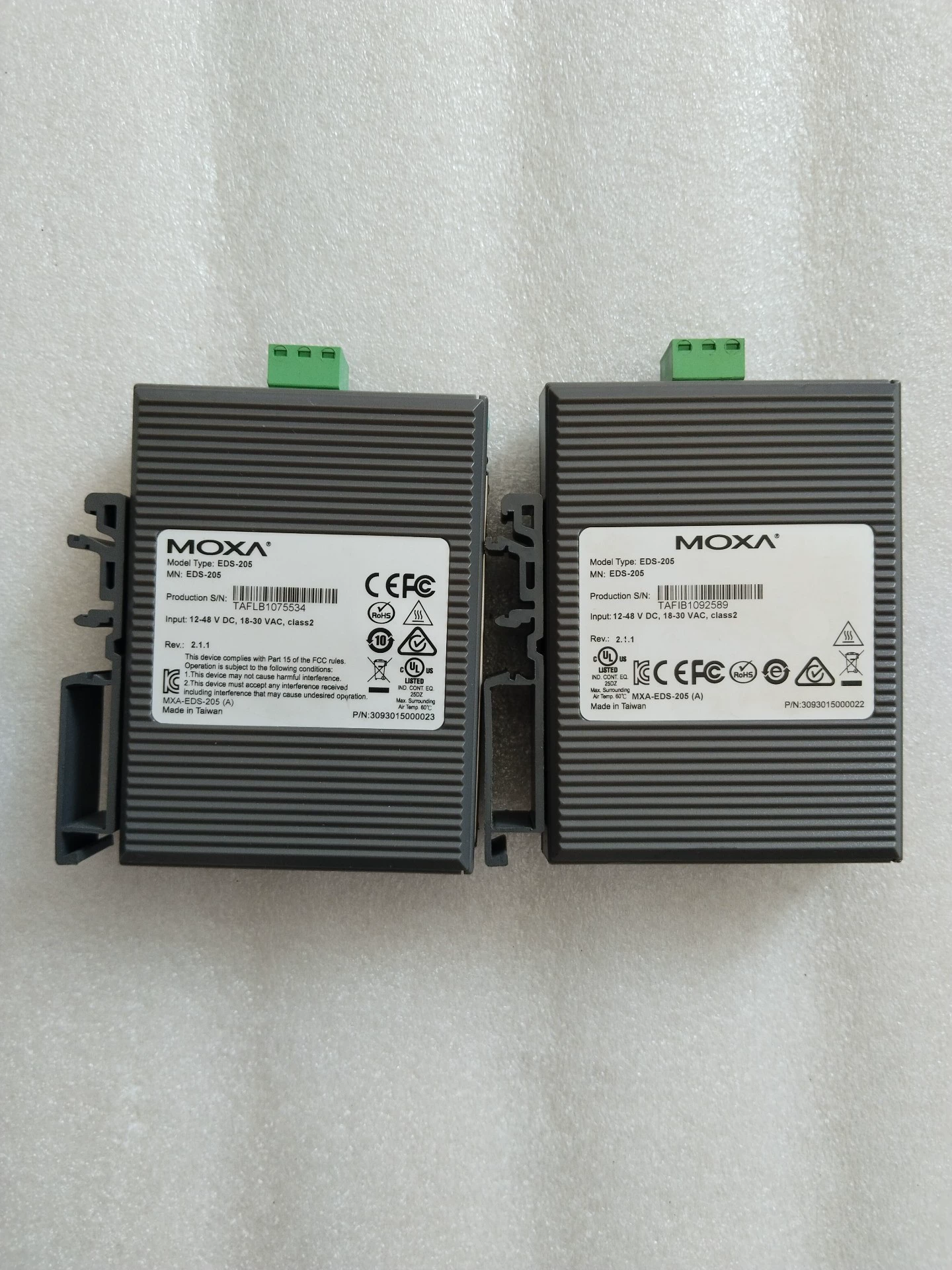

Moxa EDS-205 est un commutateur Ethernet industriel d'occasion avec cinq ports Ethernet 100 Mbps, montage sur rail et entrée d'alimentation 12-48 V DC. Il a été retiré d'un équipement.
Specifications
| Brand | Moxa |
|---|---|
| Model | EDS-205 |
| HS Code | 851762 |
| Origin | Taiwan |
| input | 12-48 V DC, 18-30 VAC, class2 |
| Casing | IP30 protection, plastic housing |
| Weight | 135 g |
| IP Rating | IP30 |
| Standards | IEEE802.3, 802.3u, 802.3x |

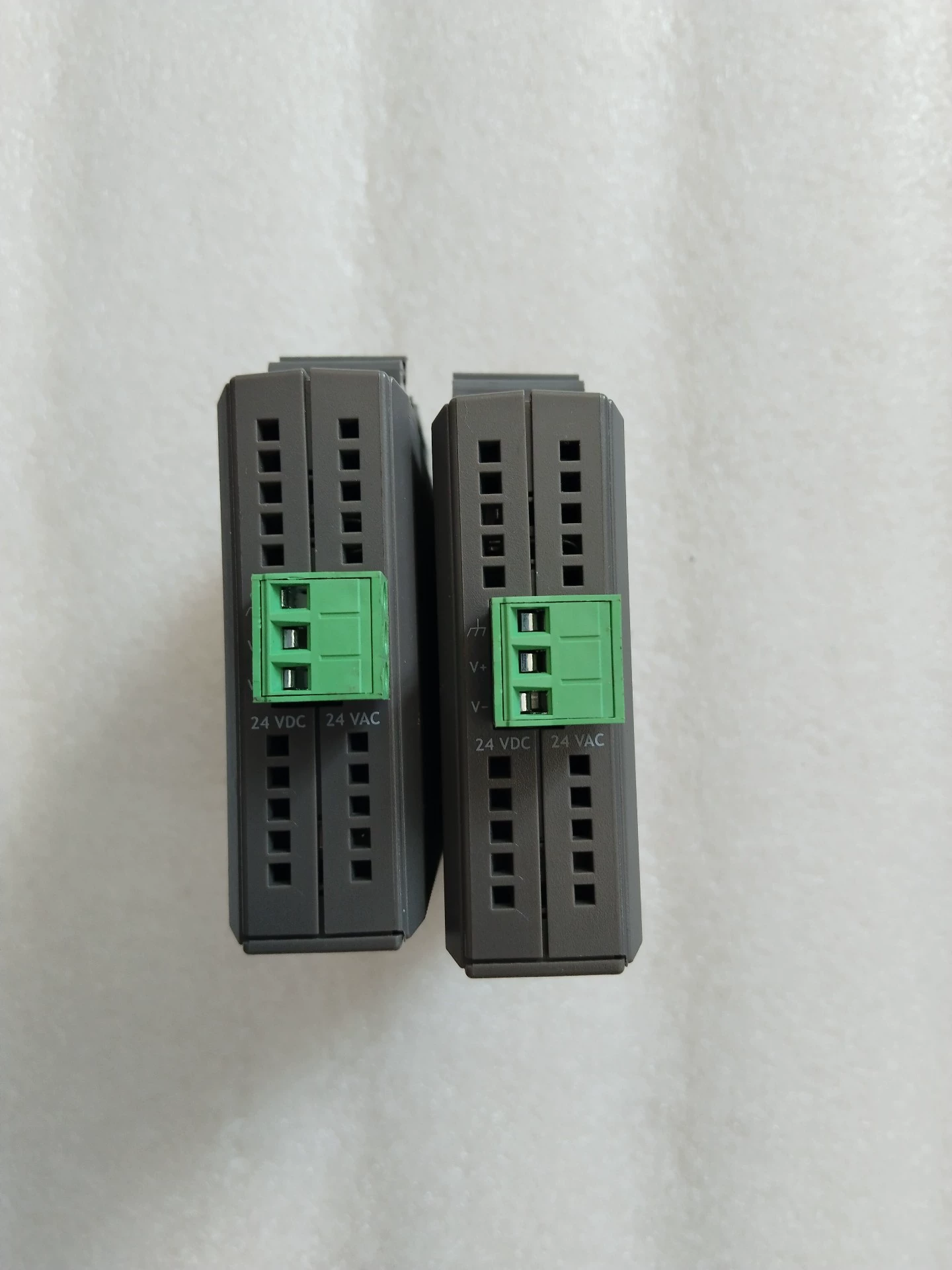

| Connection | Removable 3-contact terminal block |
| Dimensions | 25 x 109 x 88 mm |

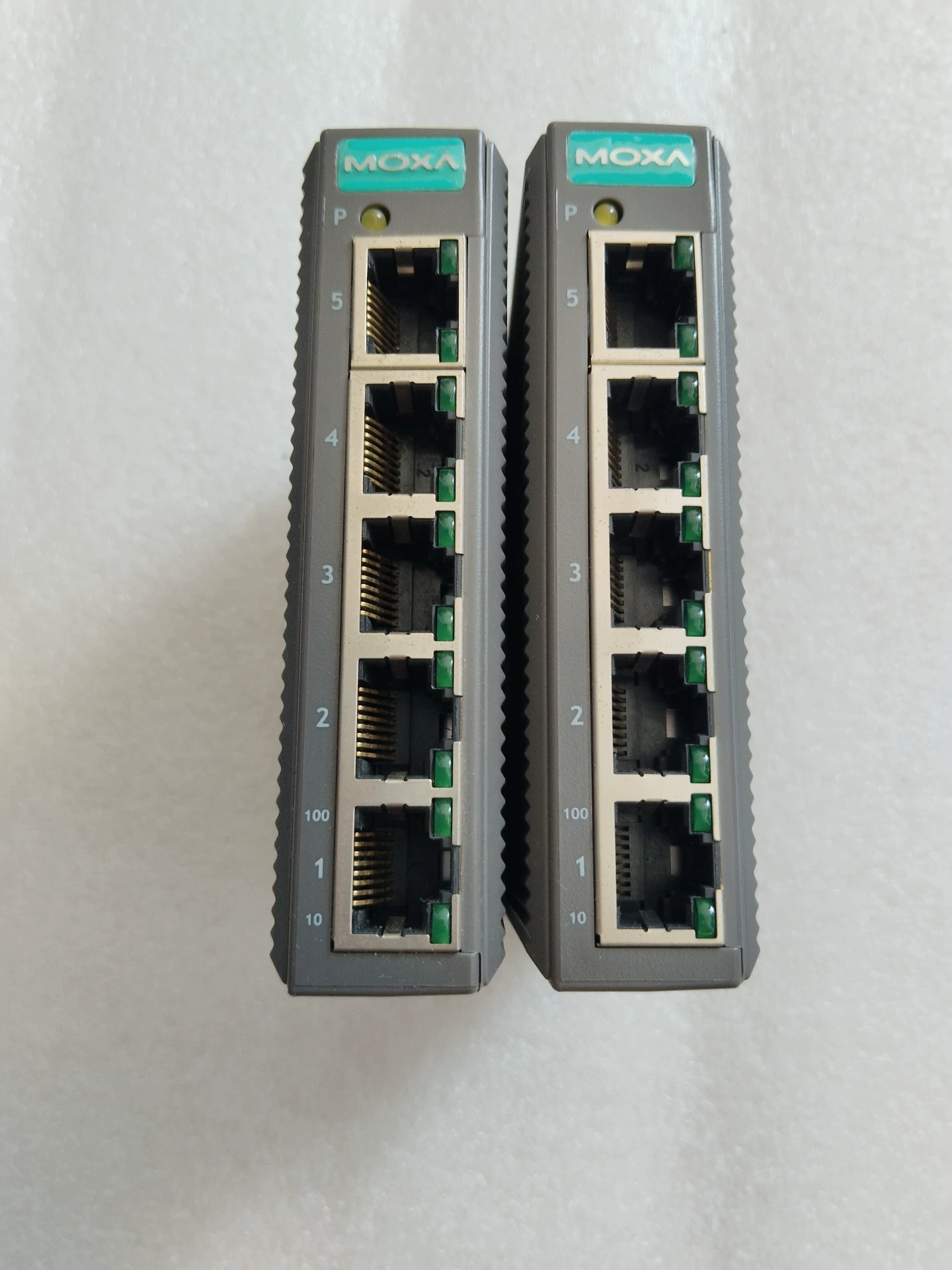

| 10/100BaseT(X) Ports (RJ45 connector) | 5 ports |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| Installation | DIN-rail mounting |
| Input Current | 0.12 A @ 24 V |
| Input Voltage | 12 to 48 VDC |
| Processing Type | Store and Forward, with IEEE802.3x full duplex, non-blocking flow control |
| Housing Material | Plastic |
| Power Consumption | 5 W |
| Address Table Size | 1K unicast addresses |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Temperature | -10 to 60°C |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Overload Current Protection | 1.1 A |
| Reverse Polarity Protection | Present |
Documents
Moxa EDS-205 industrial Ethernet switch - Used Datasheet
