Mitsubishi Electric FX2N-16EX - D'occasion
Description

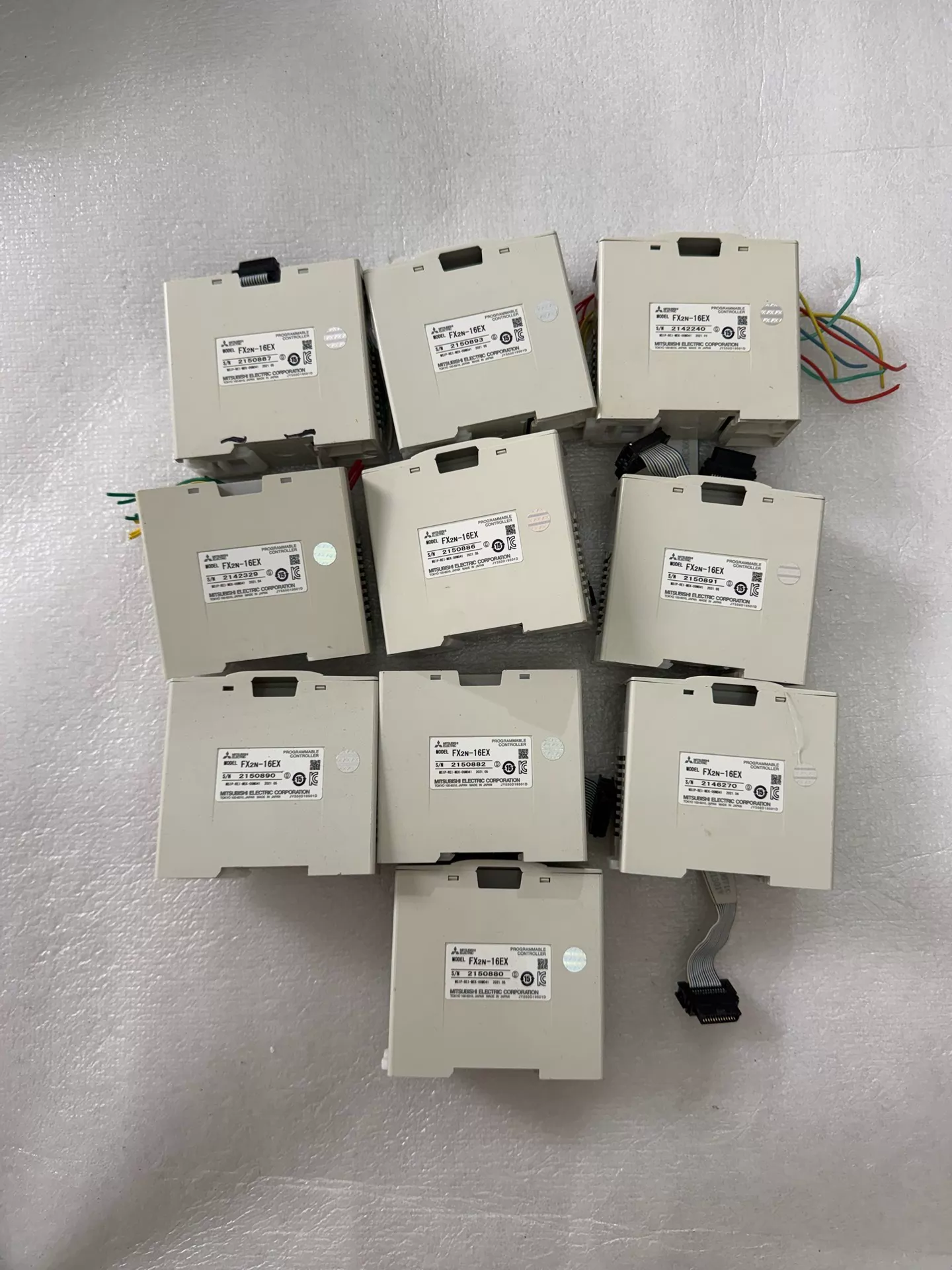

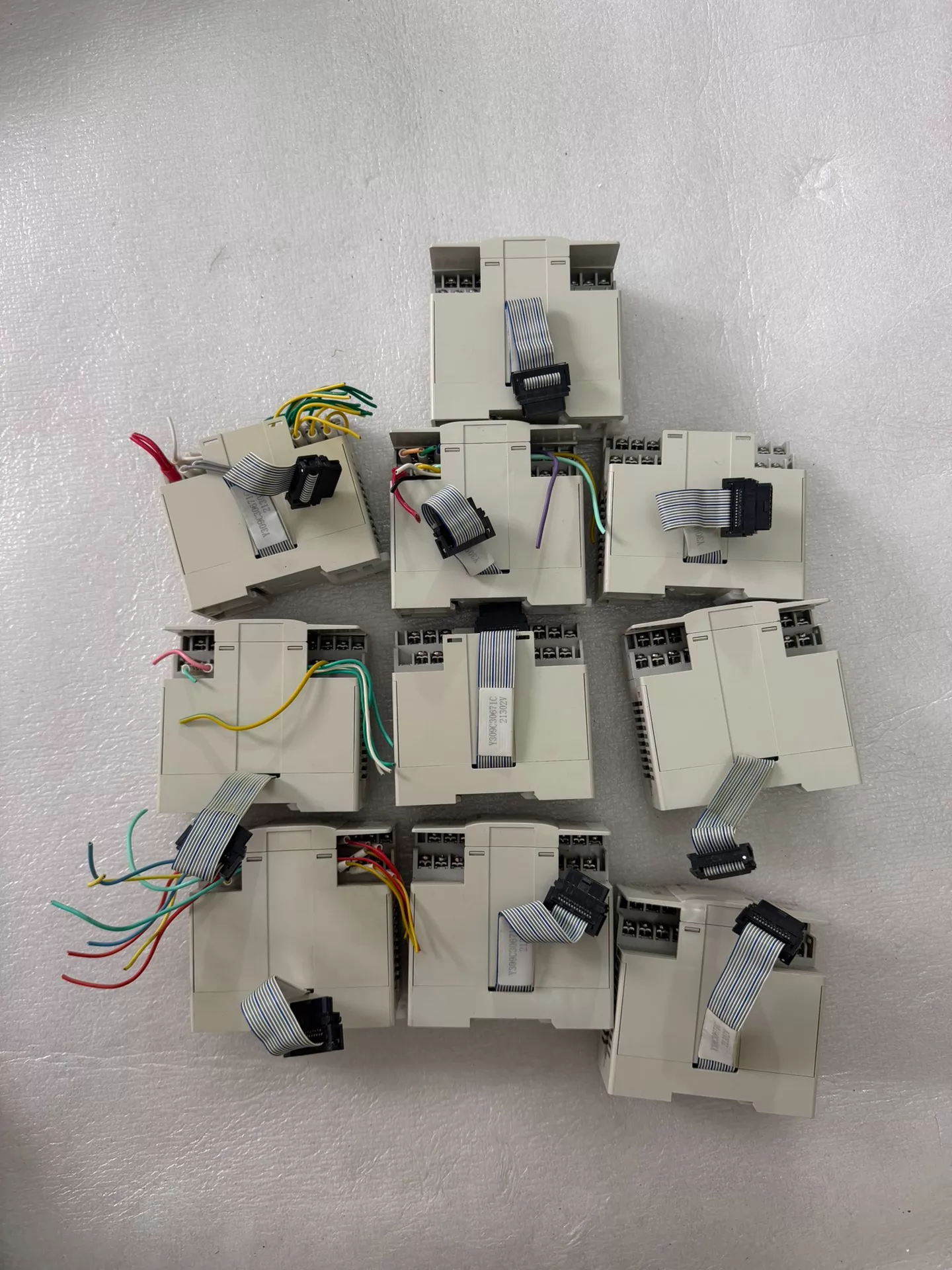

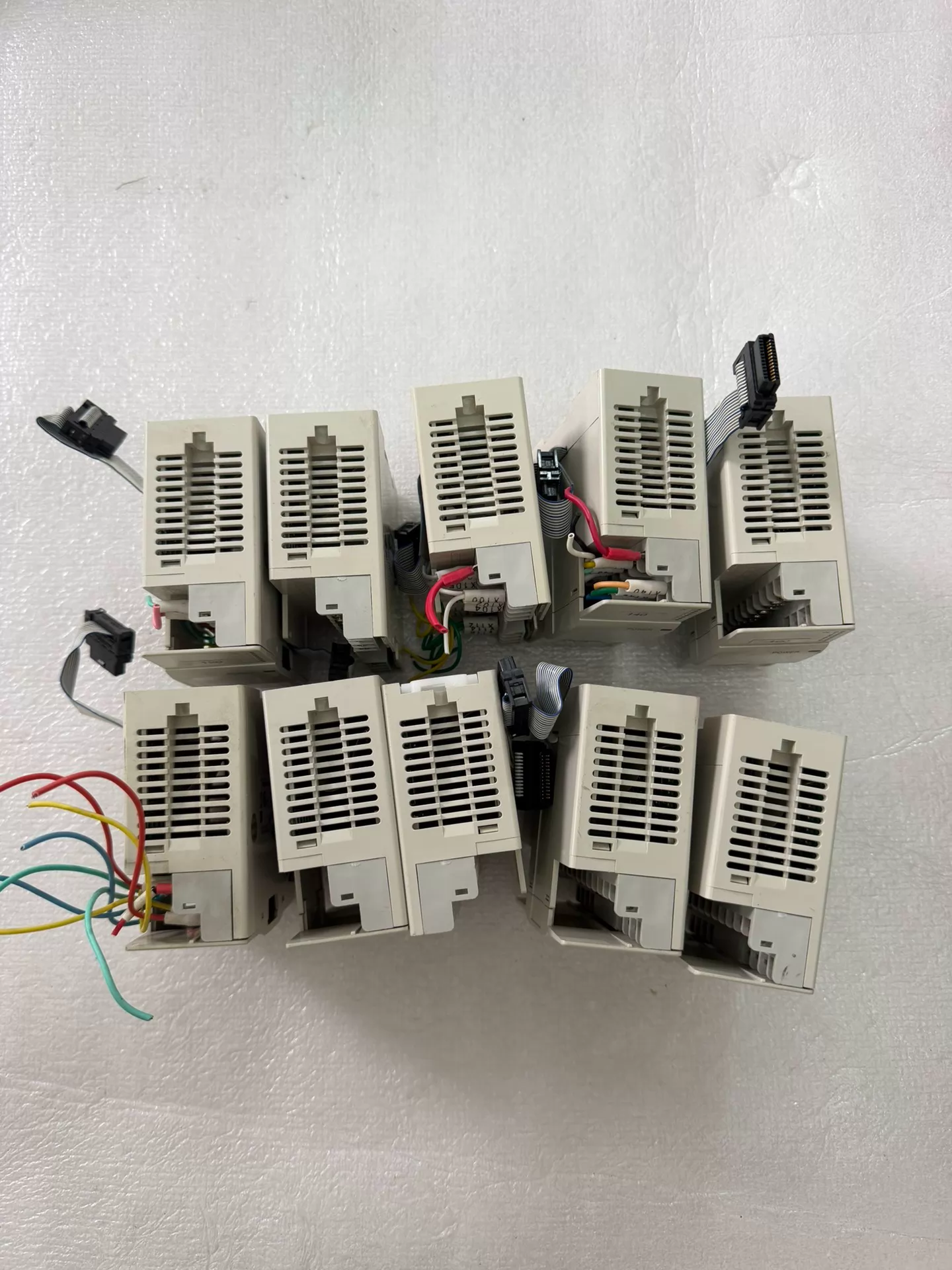

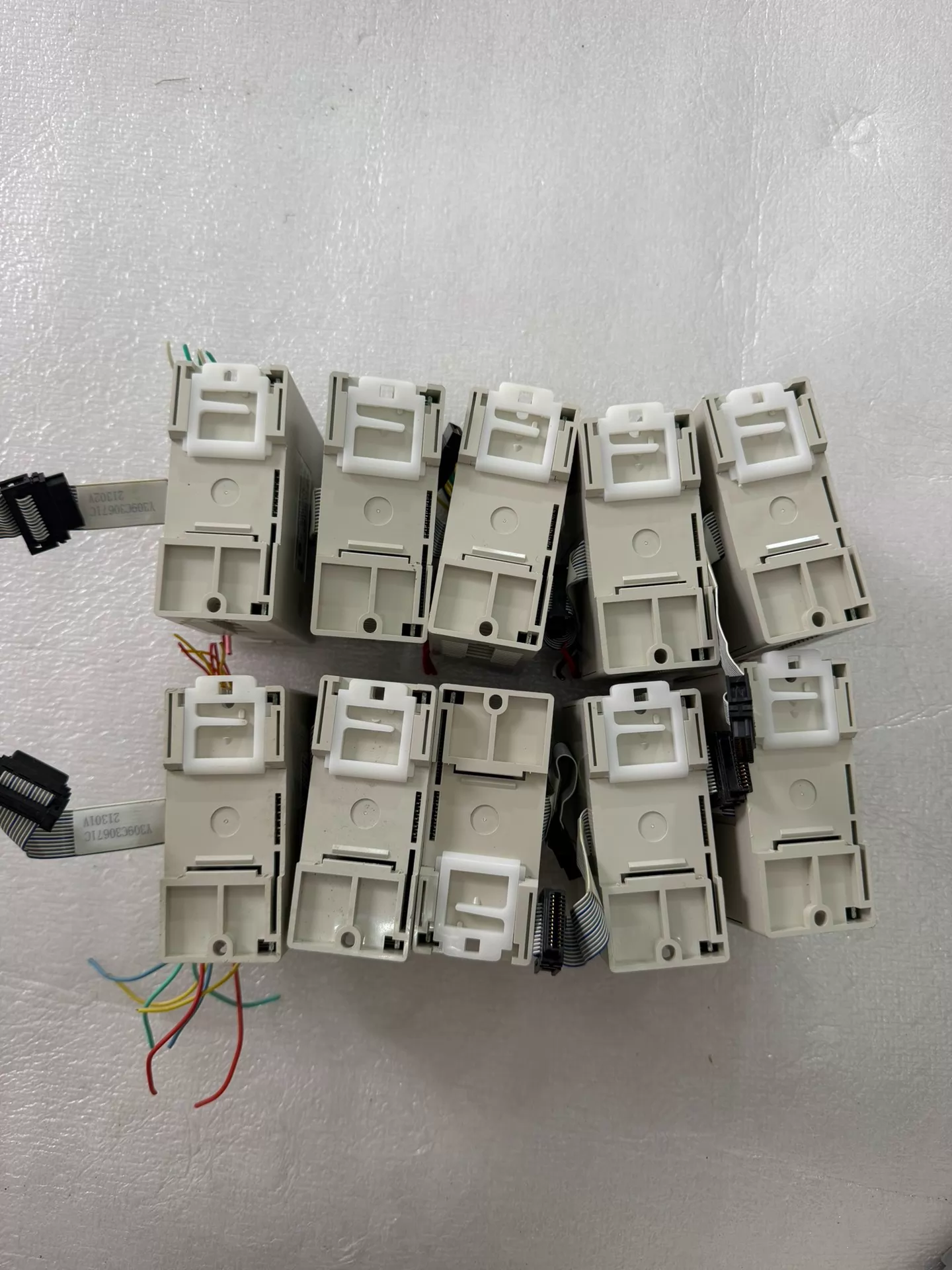

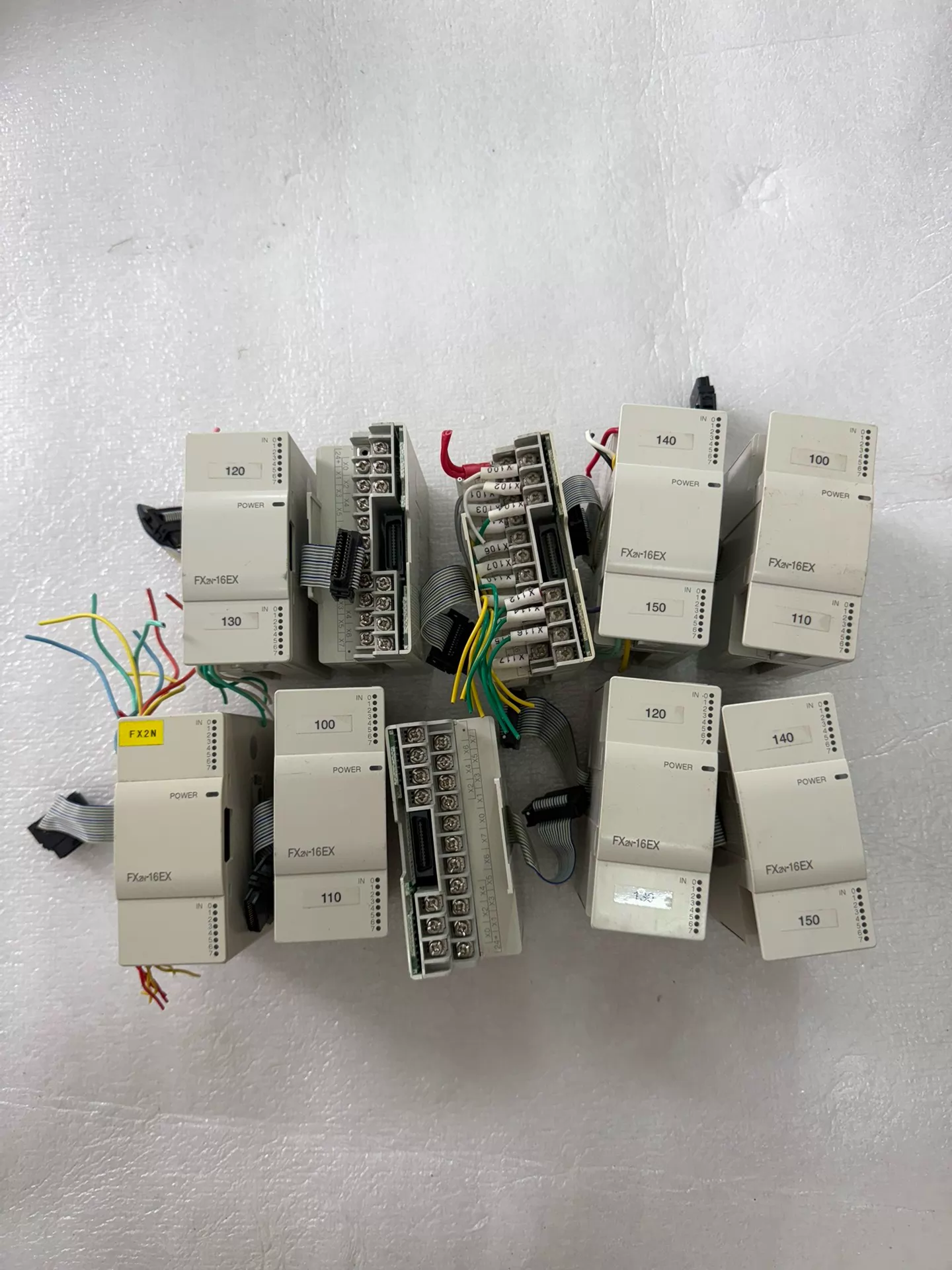

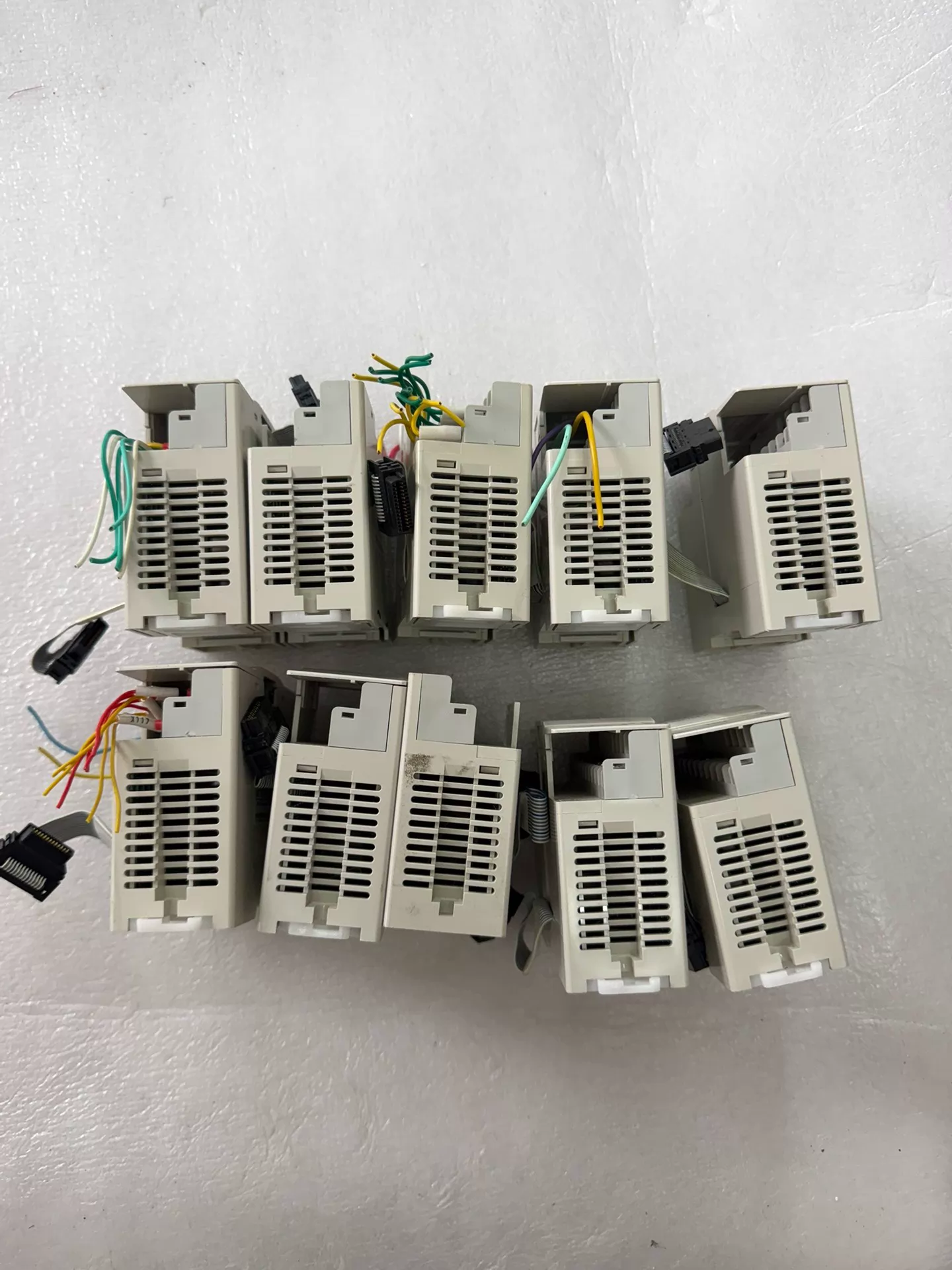

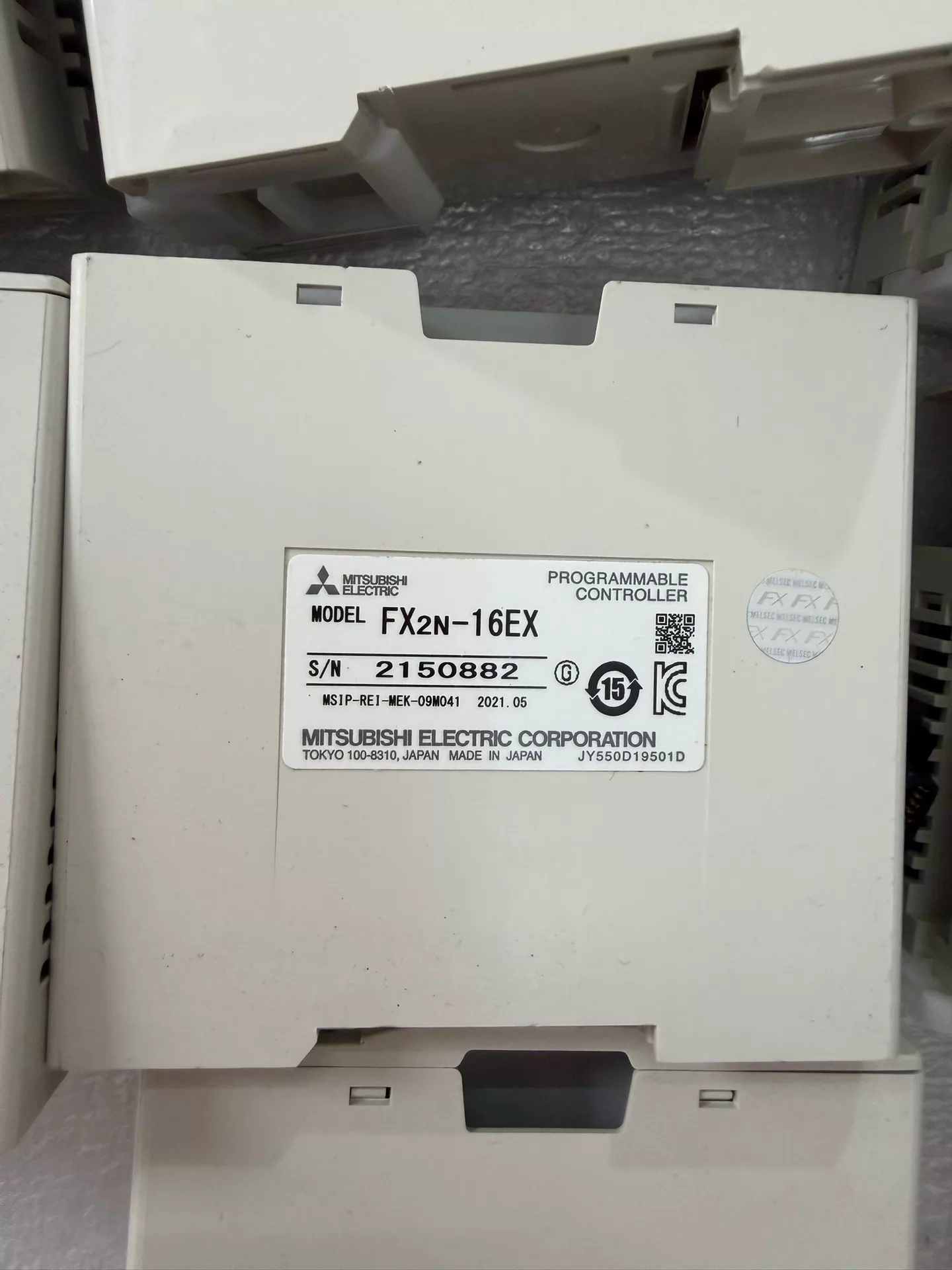

Module d'extension Mitsubishi Electric FX2N-16EX d'occasion, avec 16 points d'entrée et une alimentation 24 V DC. L'unité a été retirée d'un équipement, présente de légères traces d'utilisation et est fournie avec quelques capots et câbles.
Specifications
| Brand | Mitsubishi Electric |
|---|---|
| Model | FX2N-16EX |
| Origin | Japan |
| Dielectric withstand voltage | Between input terminal of extension input block and ground terminal: 500 V AC for 1 min |
| Input signal current | 5 mA/24 V DC |
| Input signal voltage | 24 V DC±10% |
| OFF input sensitivity current | 1.5 mA |
| ON input sensitivity current | 3.5 mA |
| Rated voltage | PLC internal power |
| Ambient temperature | 0 to 55°C when operating and -25 to 75°C when stored |
| Frequency | Half amplitude: 0.075 mm |
| Frequency | Acceleration: 9.8 m/s |
| Frequency | Half amplitude: 0.035mm |
| Frequency | Acceleration: 4.9 m/s |
| Ambient humidity | 5 to 95%RH (no condensation) when operating |
| Indication of input operation | LED on panel lights when input. |
| Input circuit insulation | Photocoupler insulation |
| Input connection type | Vertical terminal block (M3 screws) |
| Input impedance | 4.3 kΩ |
| Input response time | Approx. 10 ms |
| Input signal form | No-voltage contact input NPN/Open collector transistor |
| Input type | Sink |
| Insulation resistance | Between input terminal of extension input block and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester |
| Mass (weight) | 0.3 kg |
| No. of input points | 16 points |
| Noise resistance | By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz |
| Shock resistance | 147 m/s |
| Working altitude | 2000 m |
| Working atmosphere | Free from corrosive or flammable gas and excessive conductive dusts |
