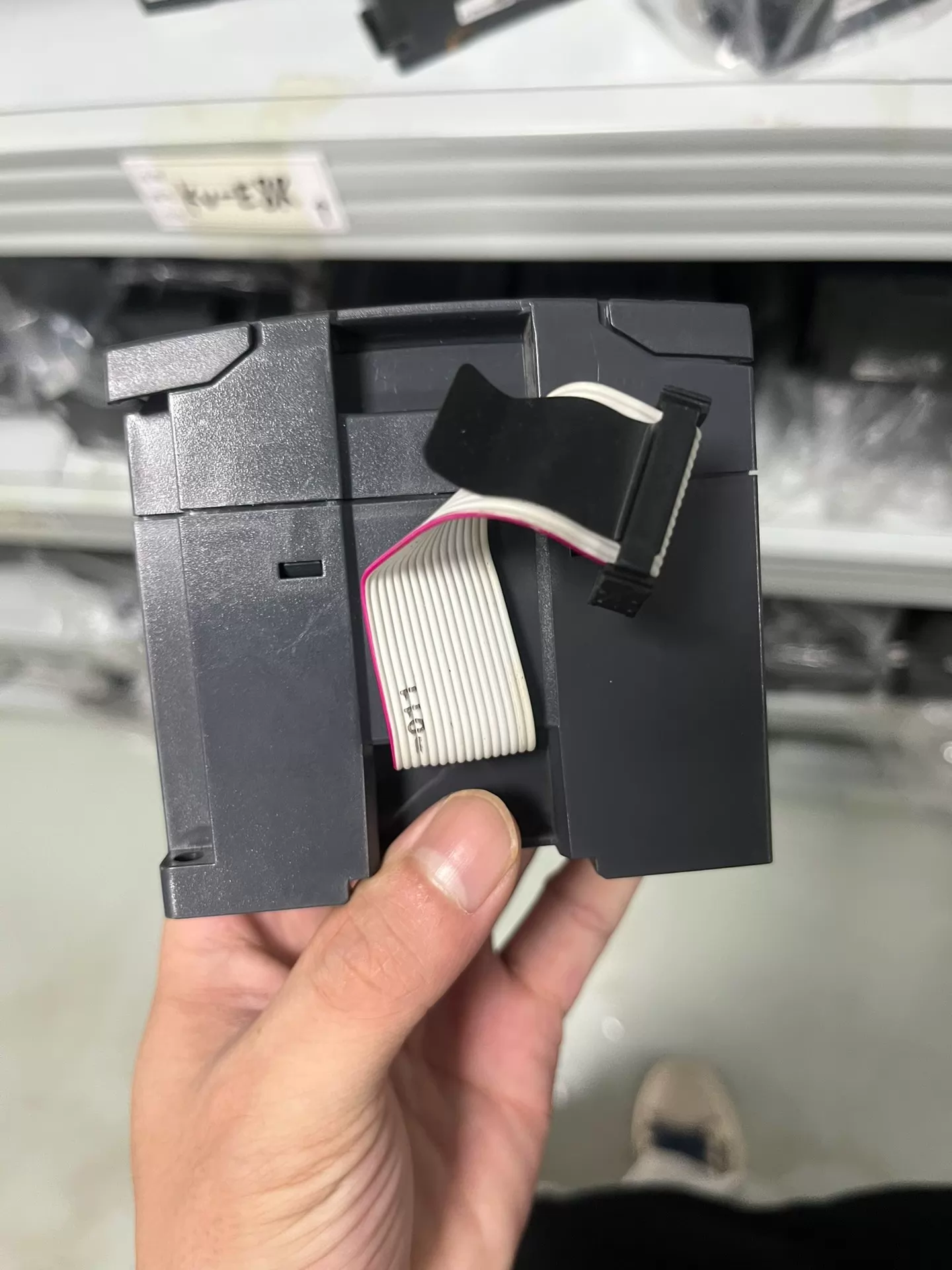

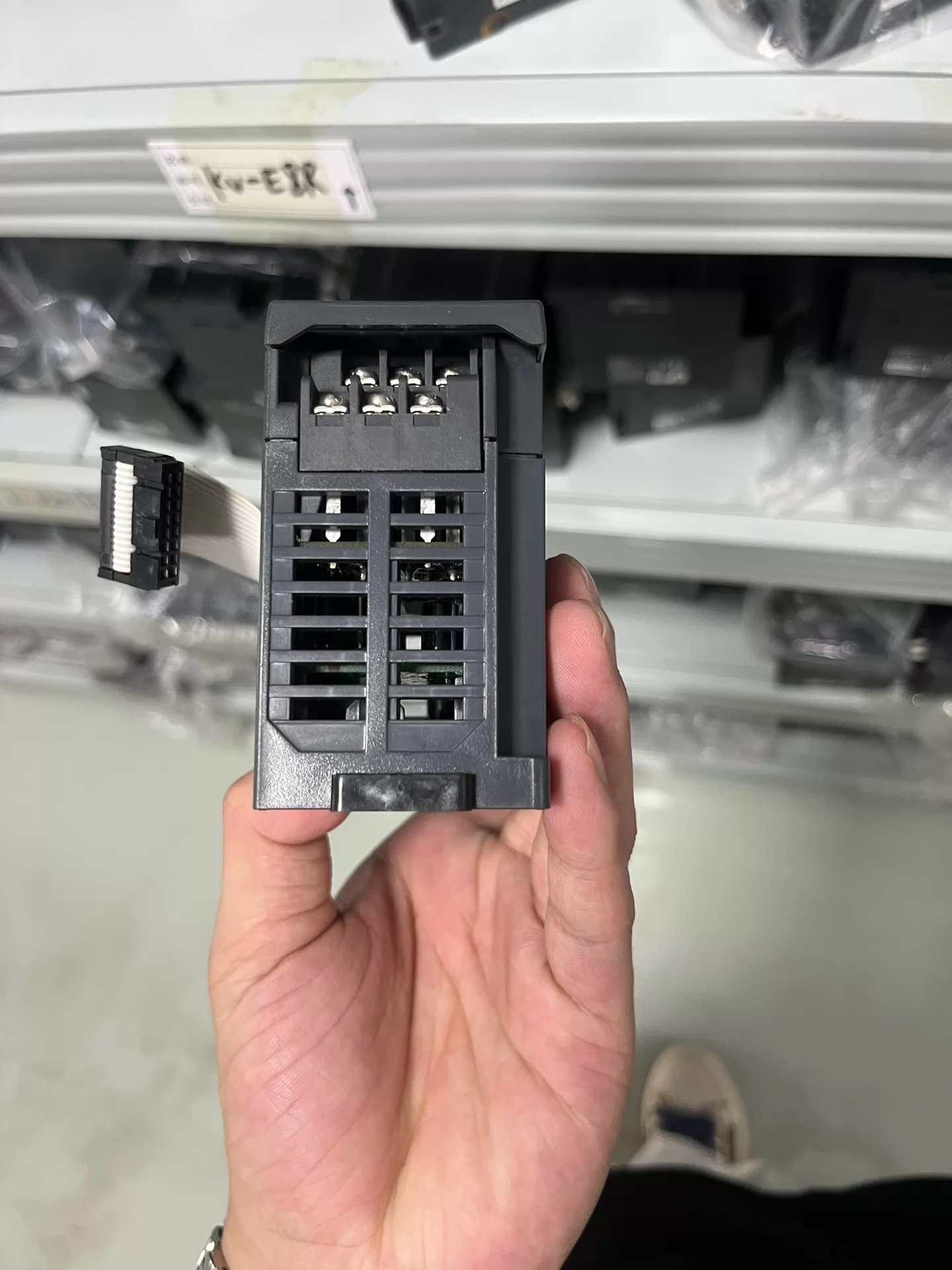

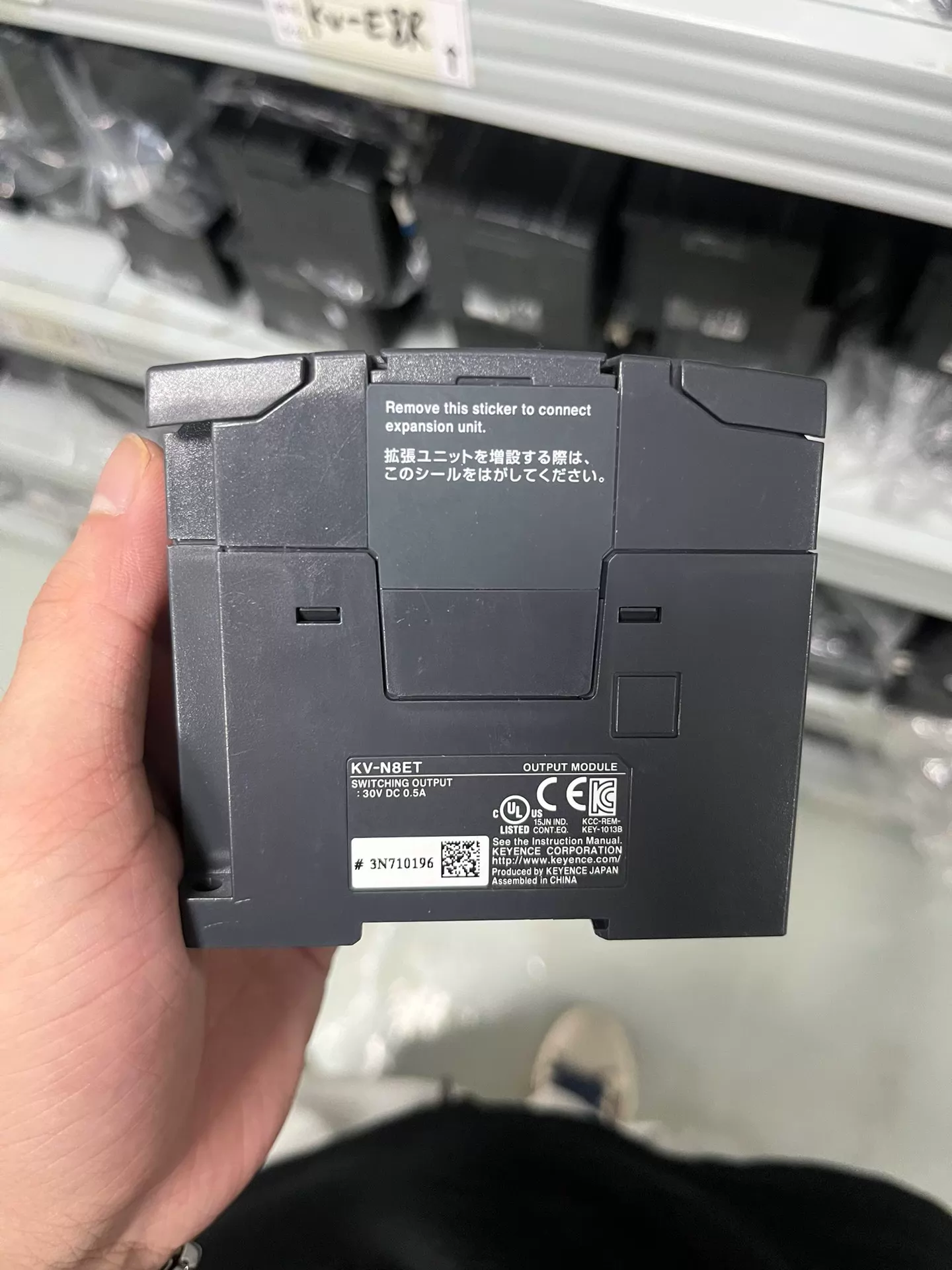

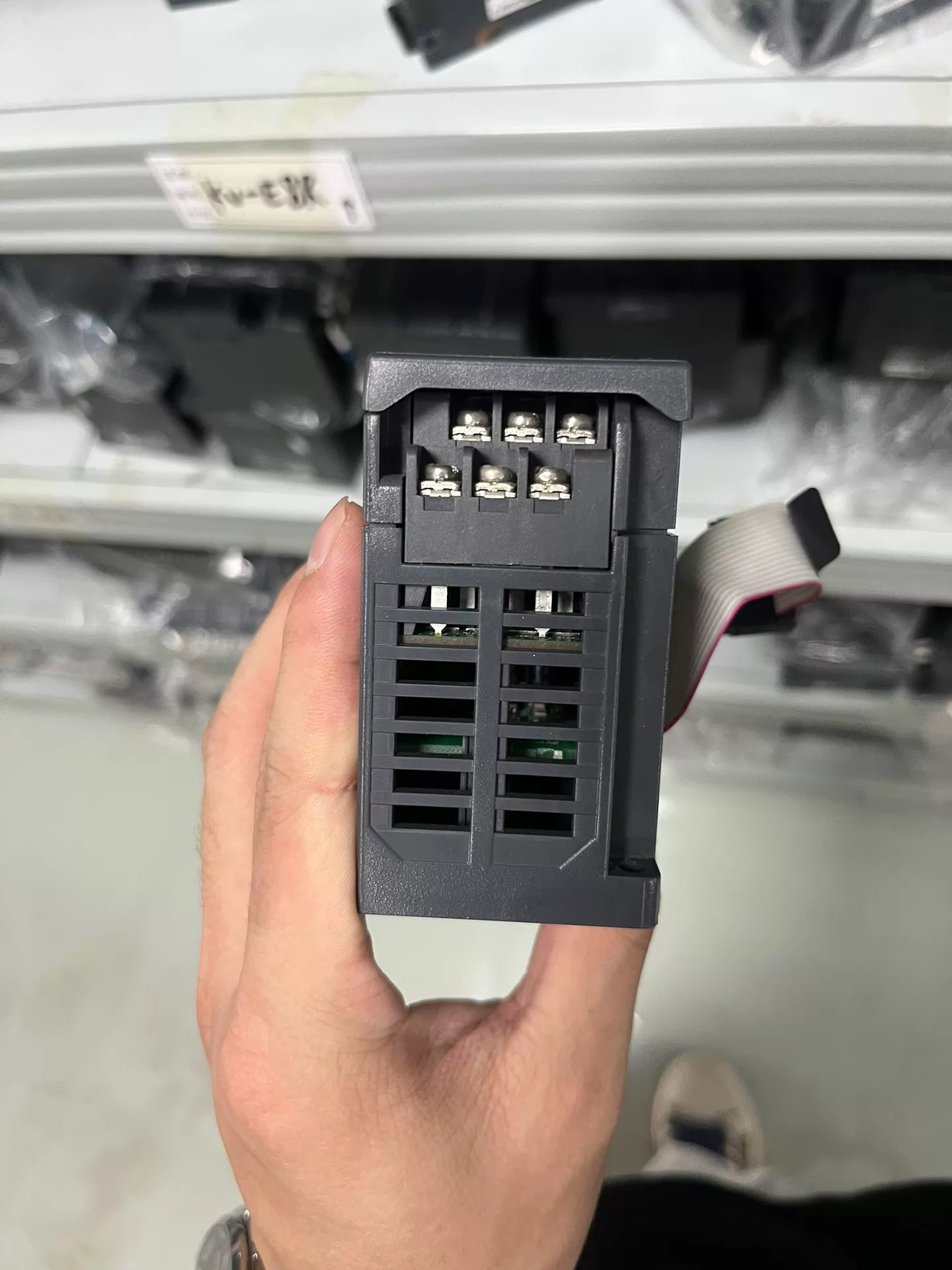

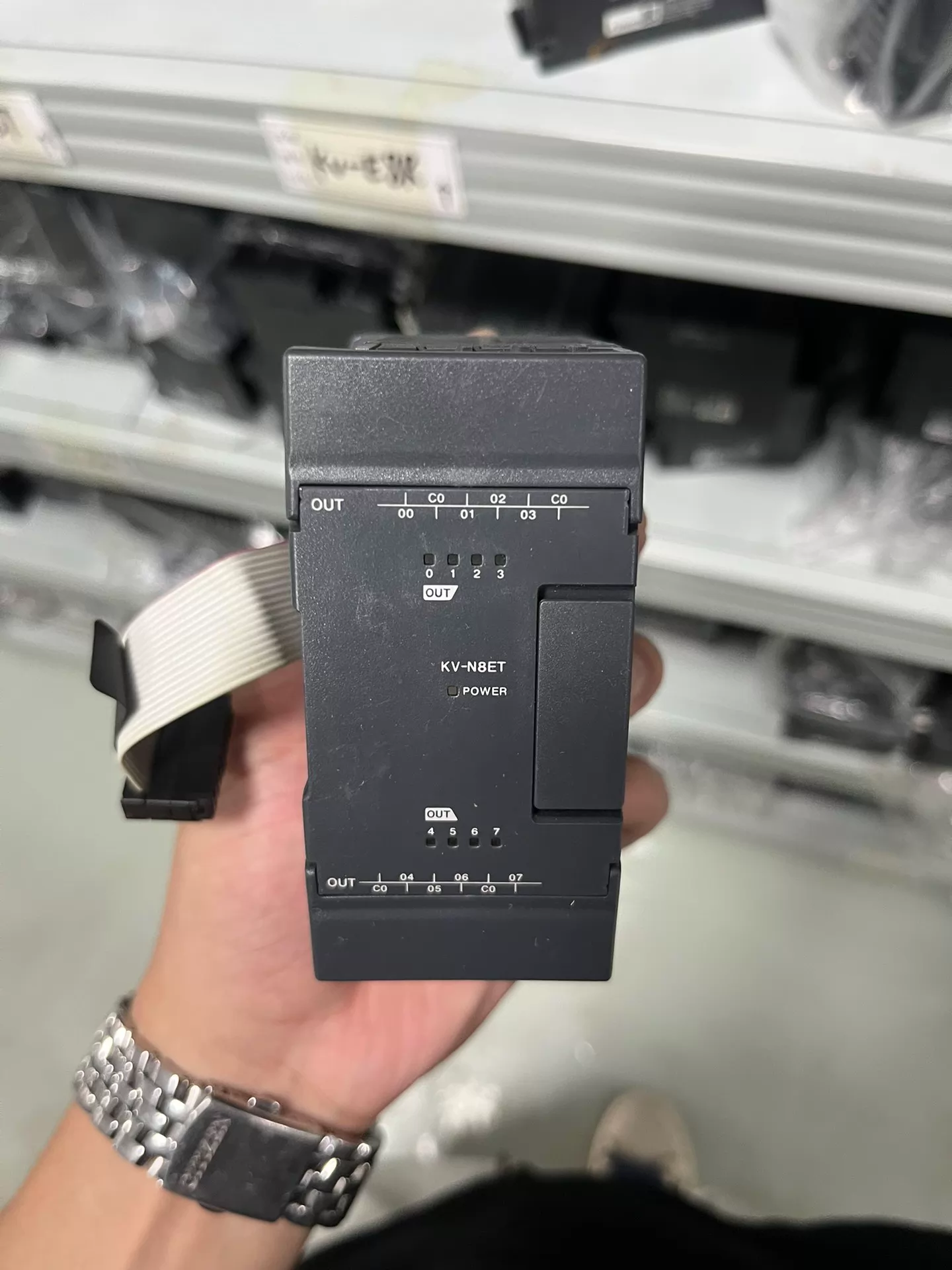

Module de sortie Keyence KV-N8ET - D'occasion
Description
Module de sortie Keyence KV-N8ET d'occasion, déposé d'une machine. Sortie 30 V CC, 0,5 A ; câbles intacts.
Specifications
| Brand | Keyence |
|---|---|
| Model | KV-N8ET |
| Origin | CHINA |
| Weight | Approx. 160 g |
| Common method | 8 points/1 common (4 terminals) *3 |
| External connection method | Terminal block |
| External connectionmethod | MOSFET With overcurrent protection function *1 *2 |
| Internal current consumption | ≤30 mA |
| Leakage current (when output is OFF) | 100 μA or less |
| OFF to ON | 100 μs or less (with a load of 1 mA or more) |
| ON resistance | − |
| ON to OFF | 200 μs or less (with a load of 1 mA or more) |
| Output Points | 8 points |
| Rated load | 30 VDC, 0.5 A |
| Relay life | − |
| Residual voltage (at ON) | 0.8 VDC or less (with 0.5 A output) 0.6 VDC or less (with 0.3 A output) |
