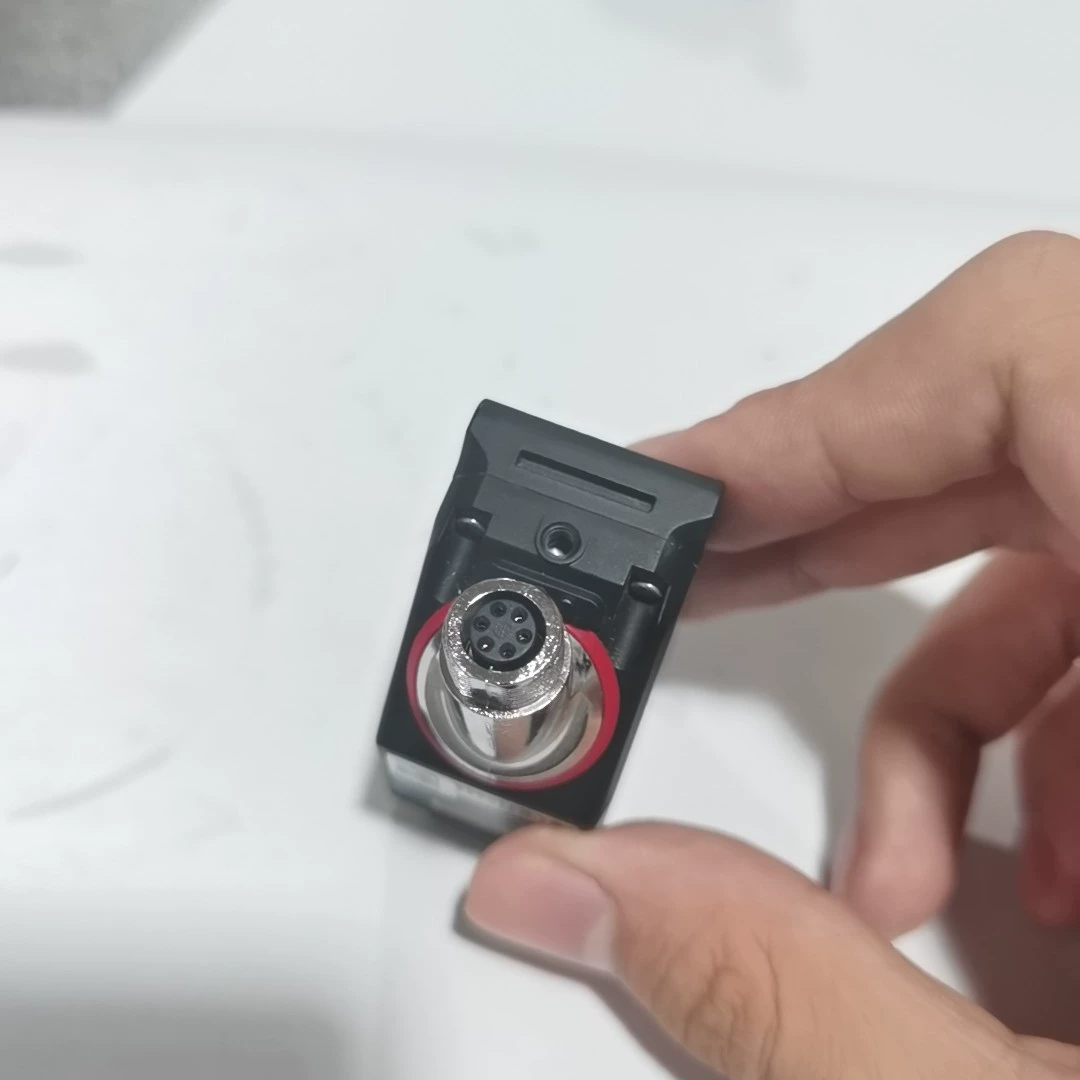

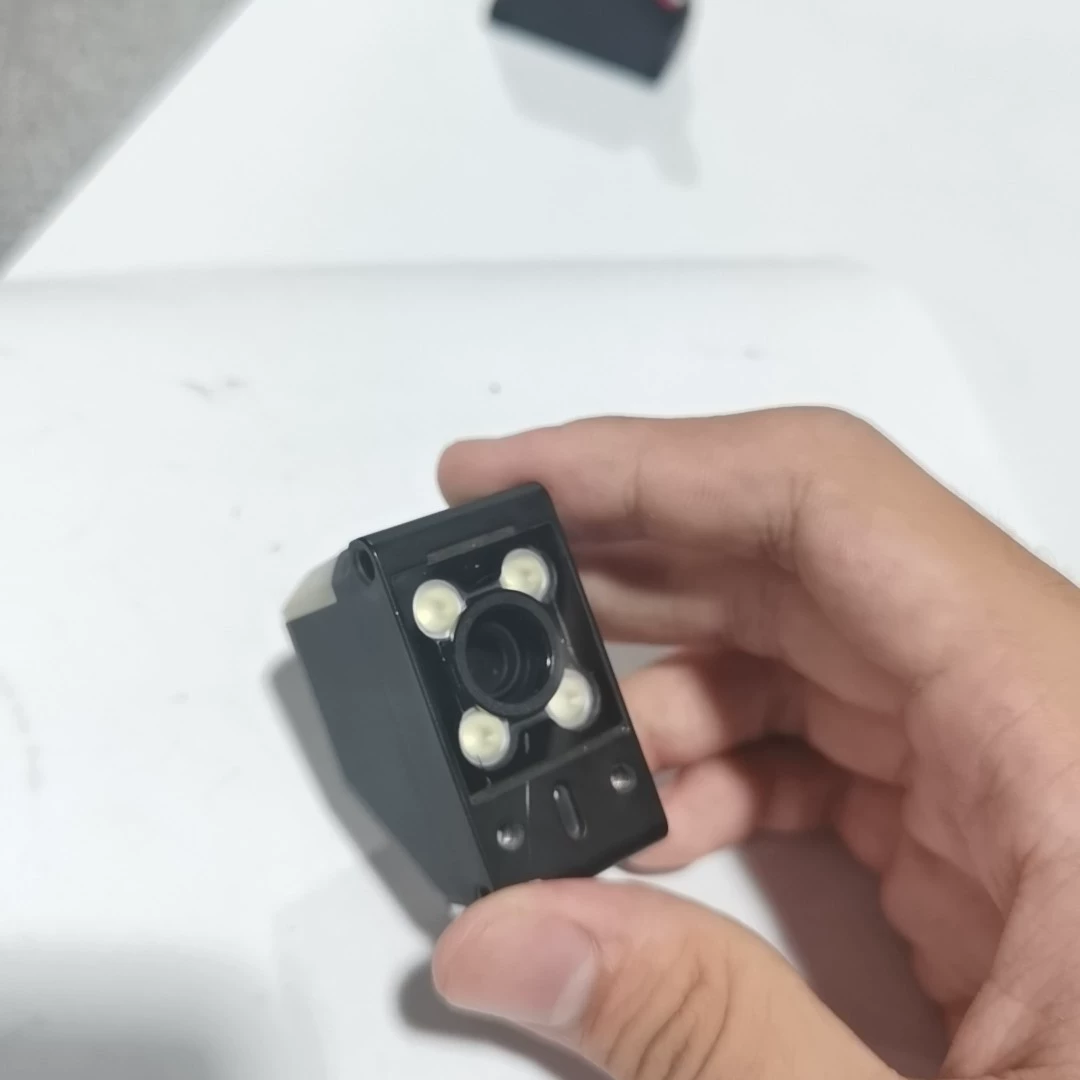

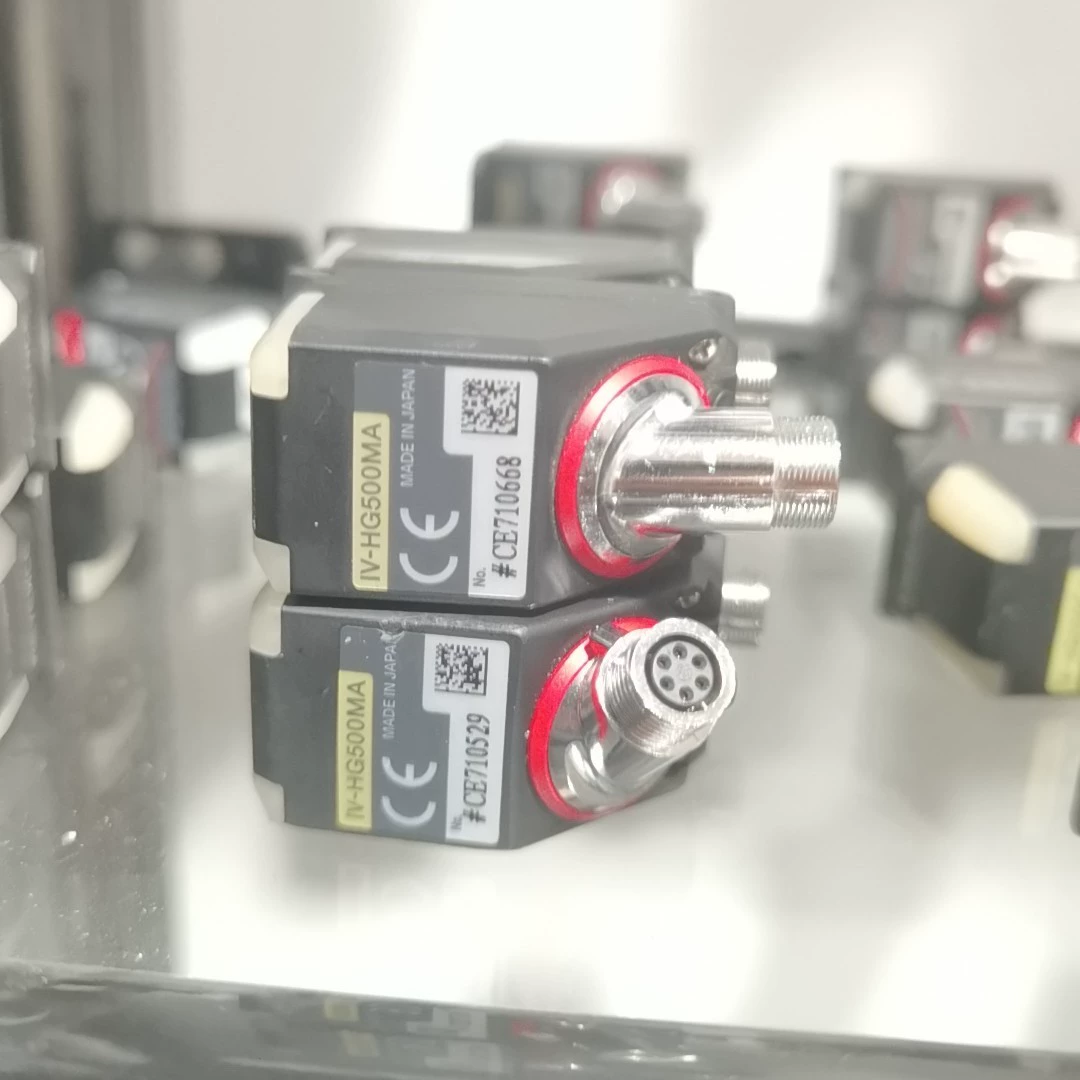

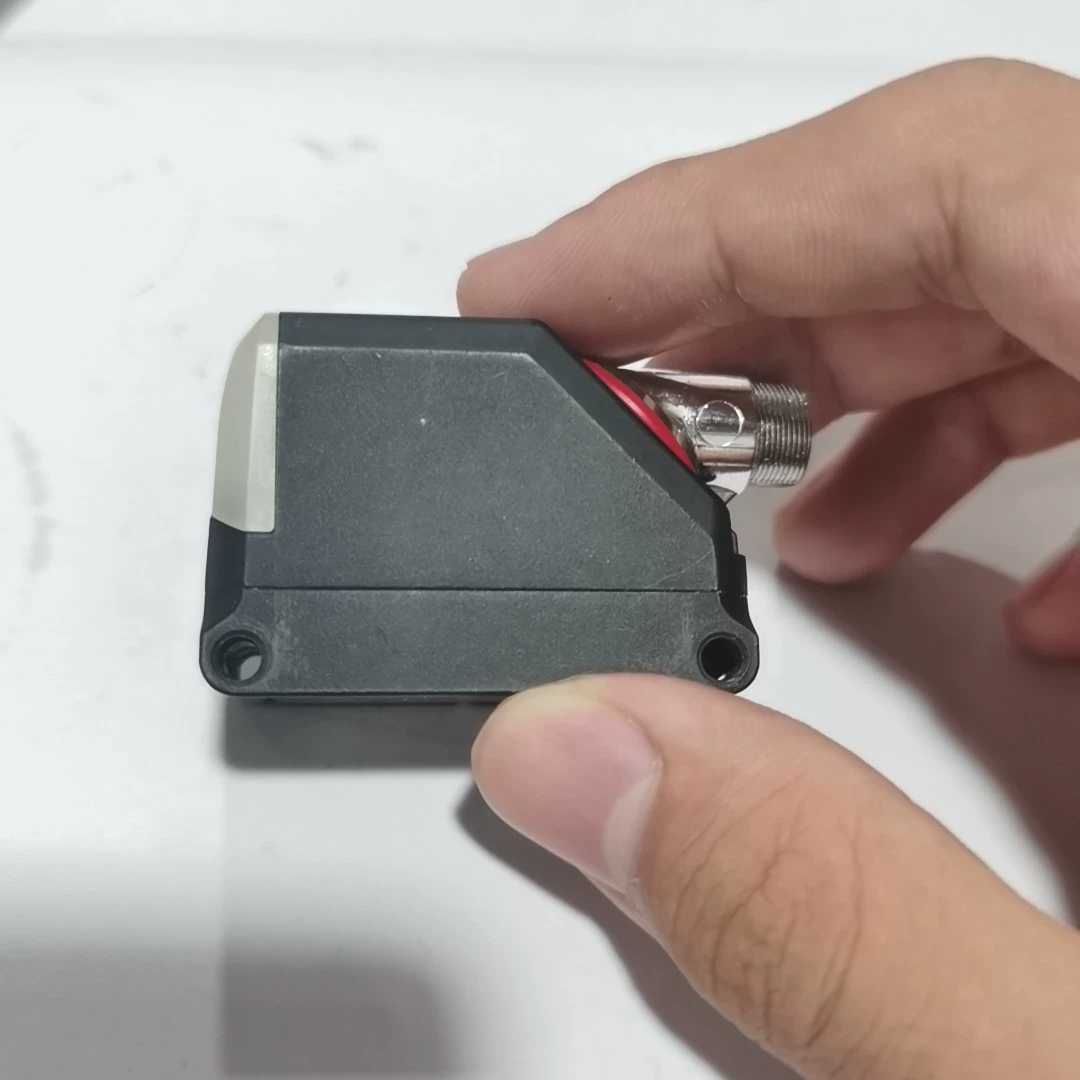

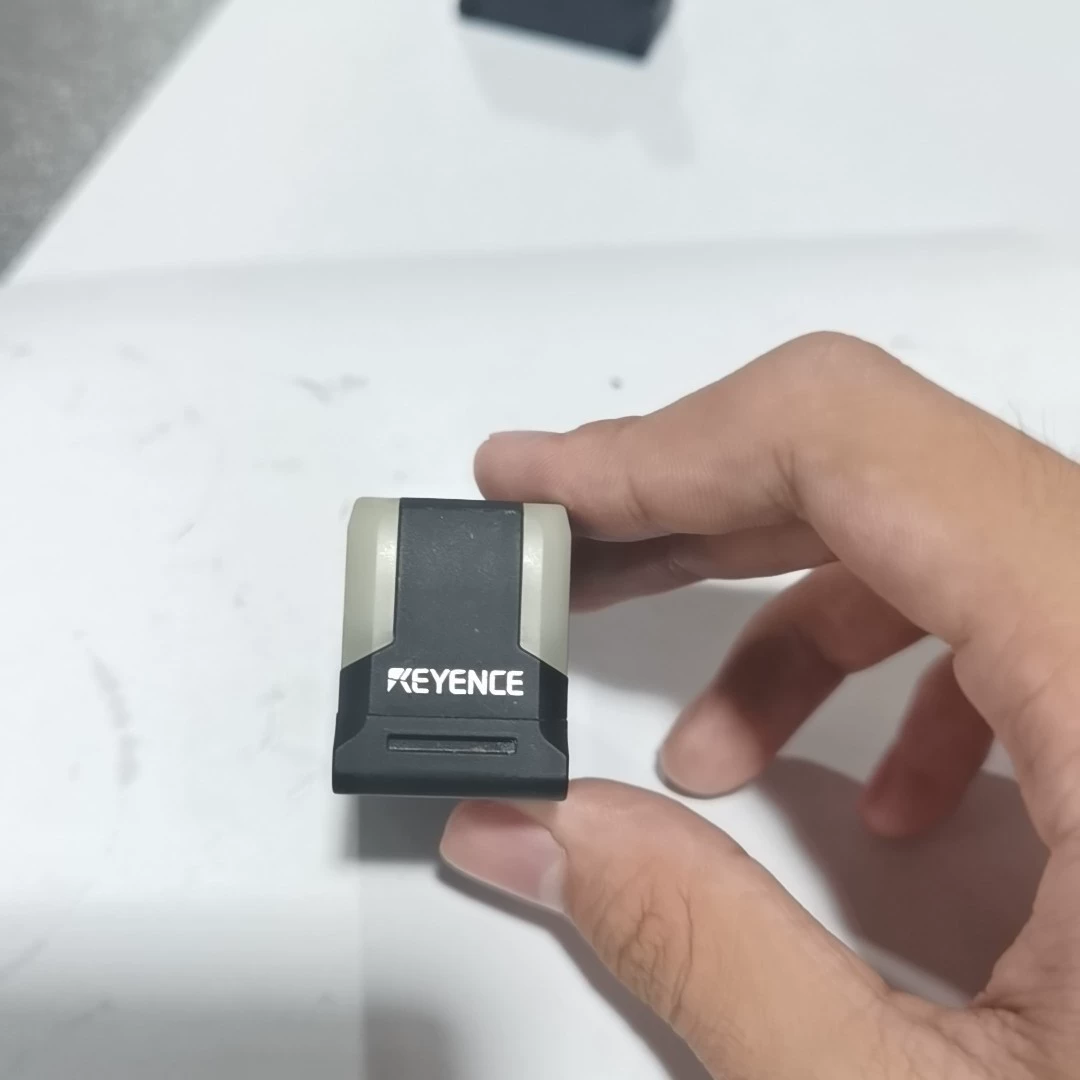

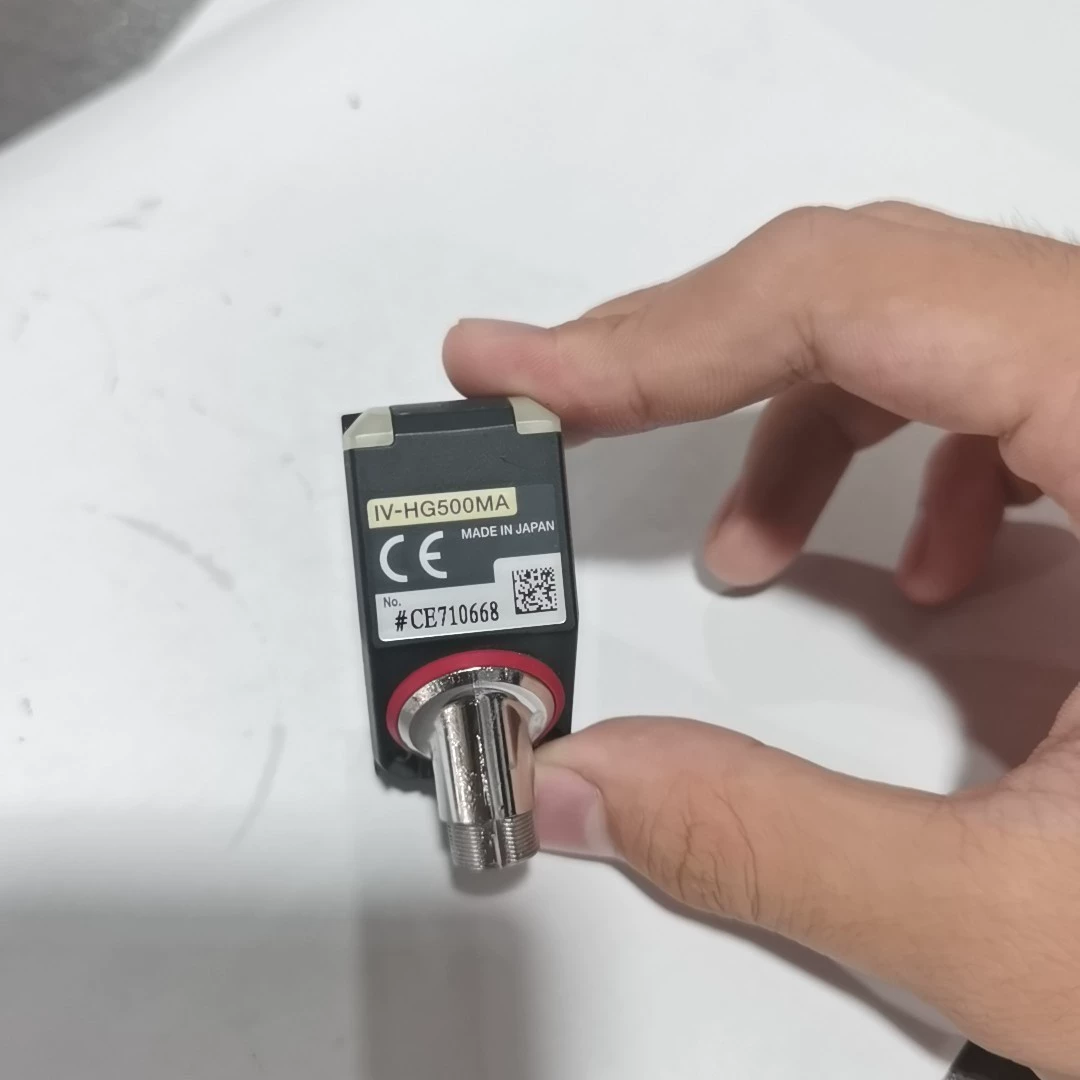

Capteur d'image Keyence IV-HG500MA - D'occasion
Description
Capteur d'image Keyence IV-HG500MA d'occasion, démonté d'un équipement. Origine : Japon.
Specifications
| Brand | Keyence |
|---|---|
| Model | IV-HG500MA |
| Origin | Japan |
| Weight | Approx. 75 g |
| Ambient temperature | 0 to +50 °C (32 to 122 °F); no freezing |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm (0.06 in); 2 h each in X, Y, Z directions *3 |
| Enclosure rating | IP67 *2 |
| Exposure time | 1/10 to 1/50,000 |
| Focus adjustment | Auto *1 |
| Illumination | White LED |
| Indicators | 2 (the same display details for both indicators) |
| Installed distance | 20 to 500 mm 0.79" to 19.69" |
| Lighting method | Pulse lighting/DC lighting is switchable |
| Material | Main unit case: Zinc die-casting, Front cover: Acrylic (hard coat), Operation indicator cover: TPU |
| Pixel | 752 (H) × 480 (V) |
| Shock resistance | 500 m/s², 3 times in each of 6 directions *3 |
| Type | Standard sensor model |
| Type | 1/3 inch monochrome CMOS |
| View | Installed distance 20 mm 0.79" : 10 (H) × 7.5 (V) mm 0.39" (H) × 0.30" (V) to Installed distance 500 mm 19.69" : 200 (H) × 150 (V) mm 7.87" (H) × 5.91" (V) |
