Módulo WAGO 750-504 - Usado
Descripcion

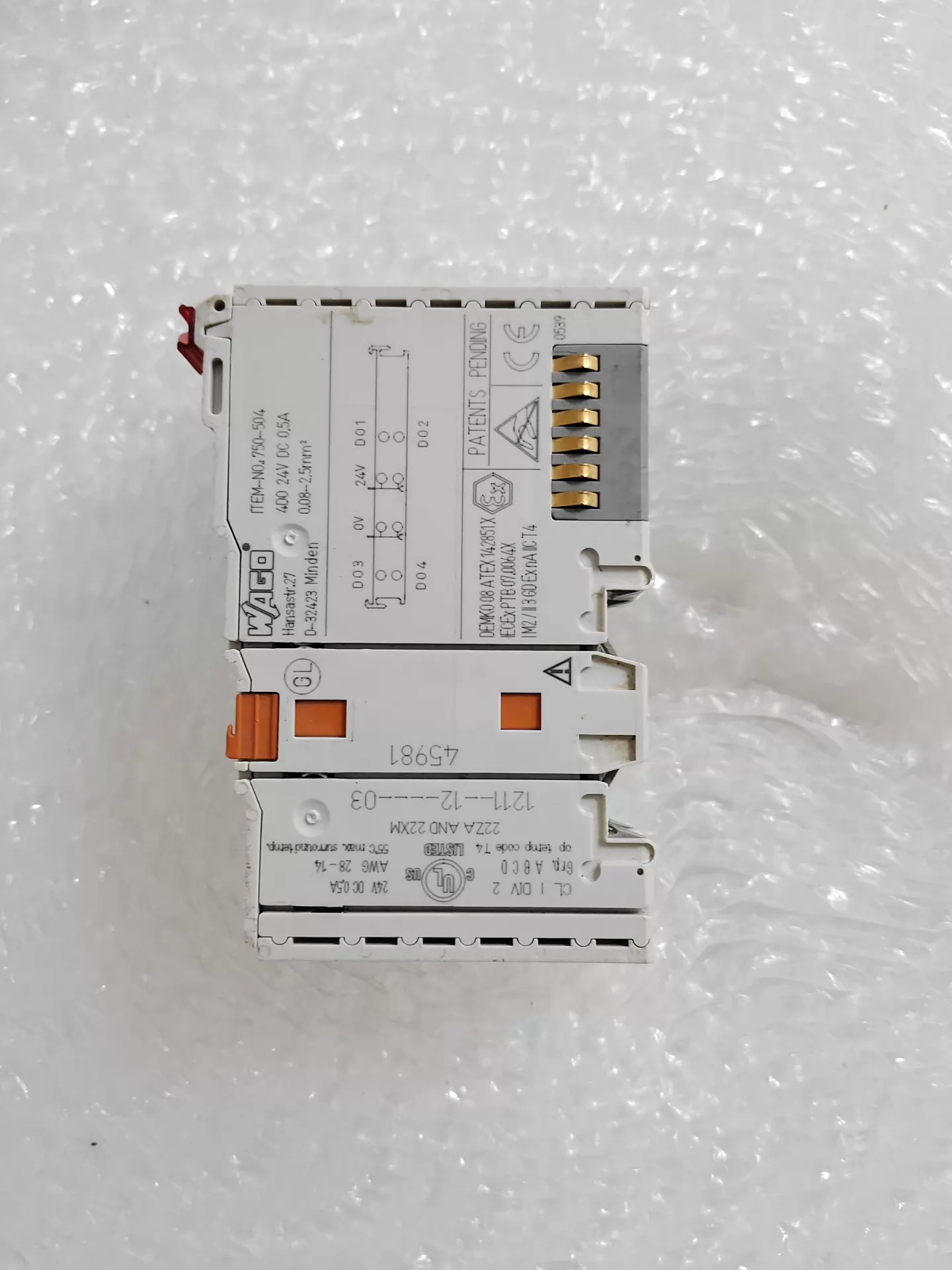

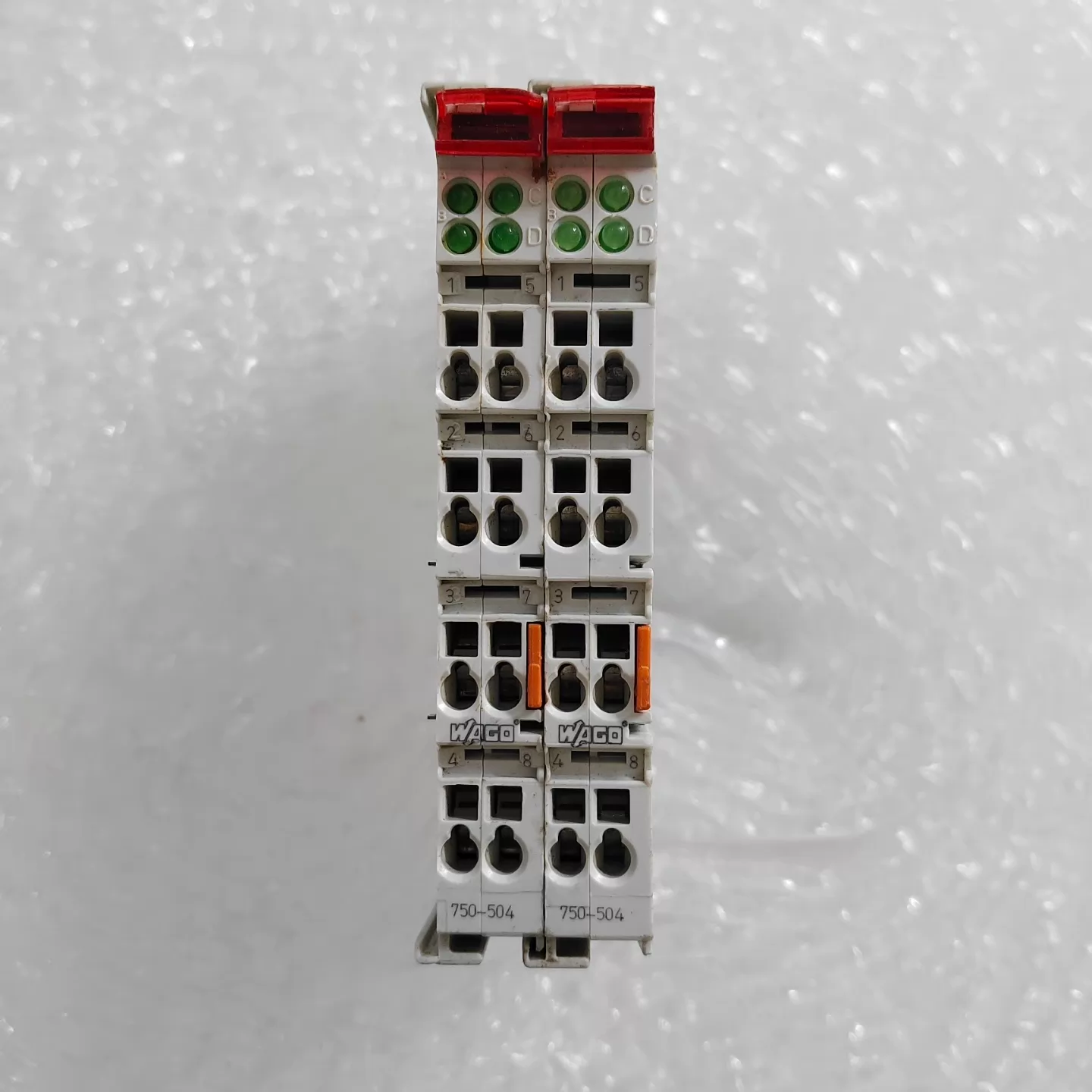

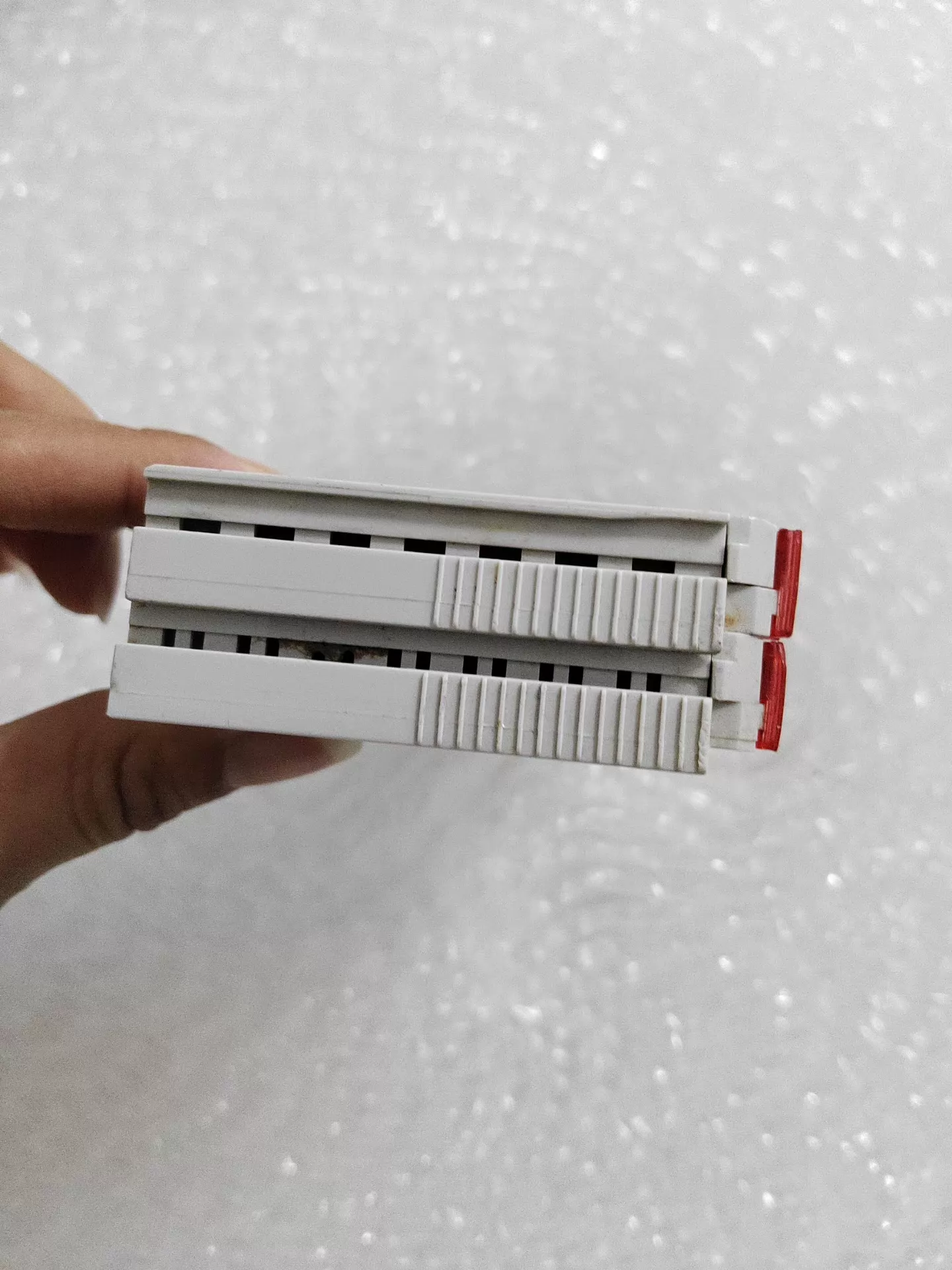

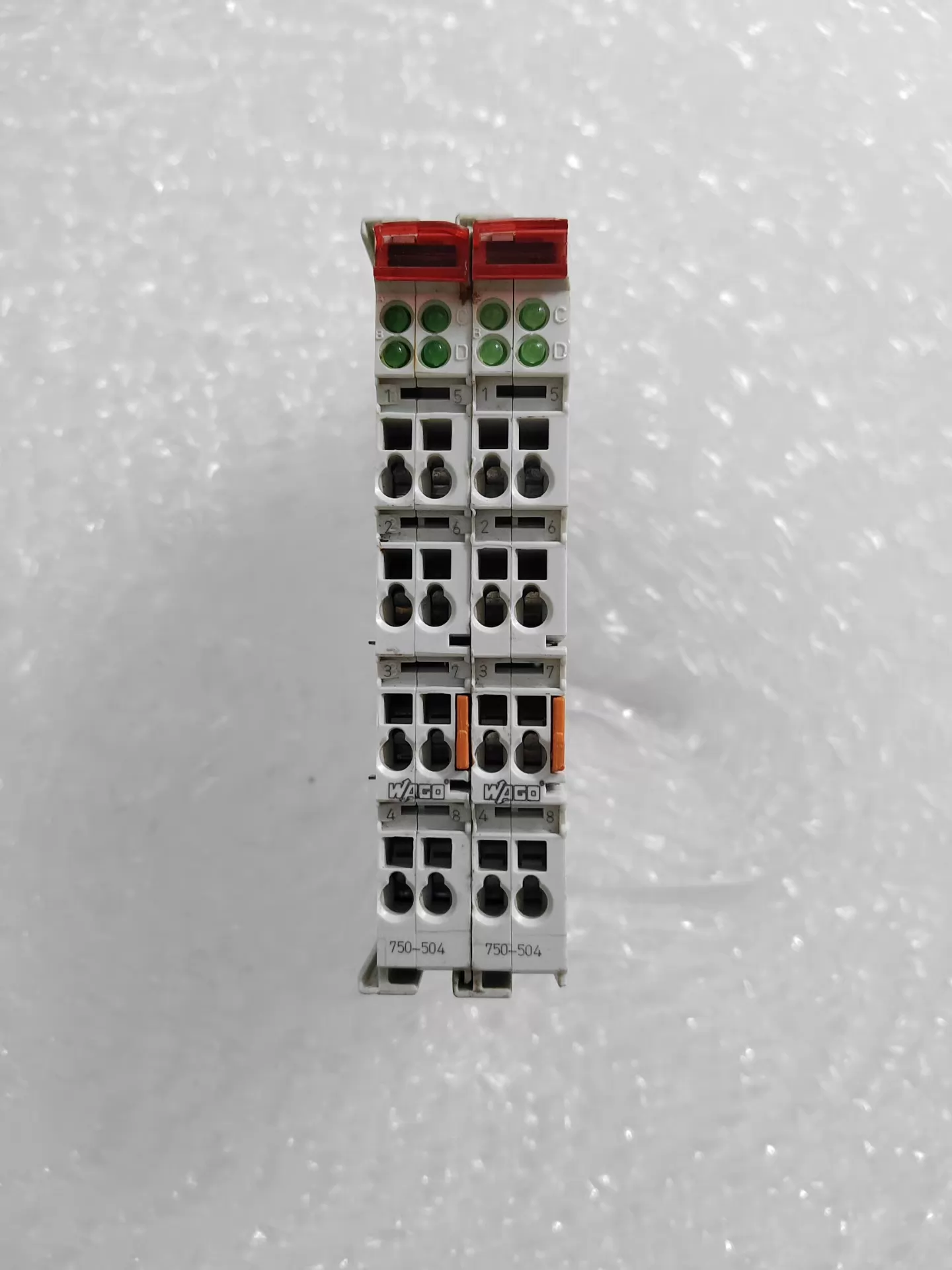

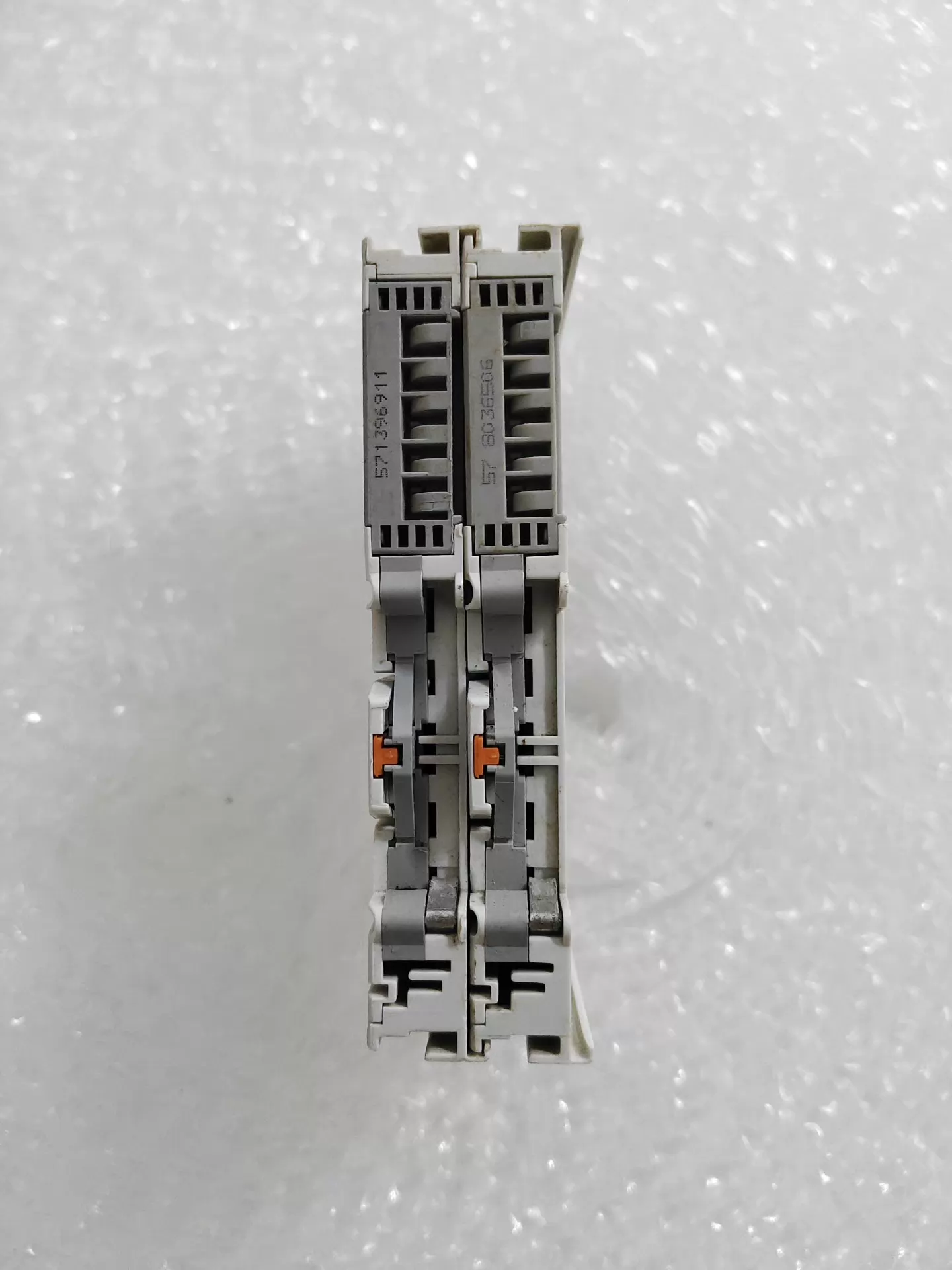

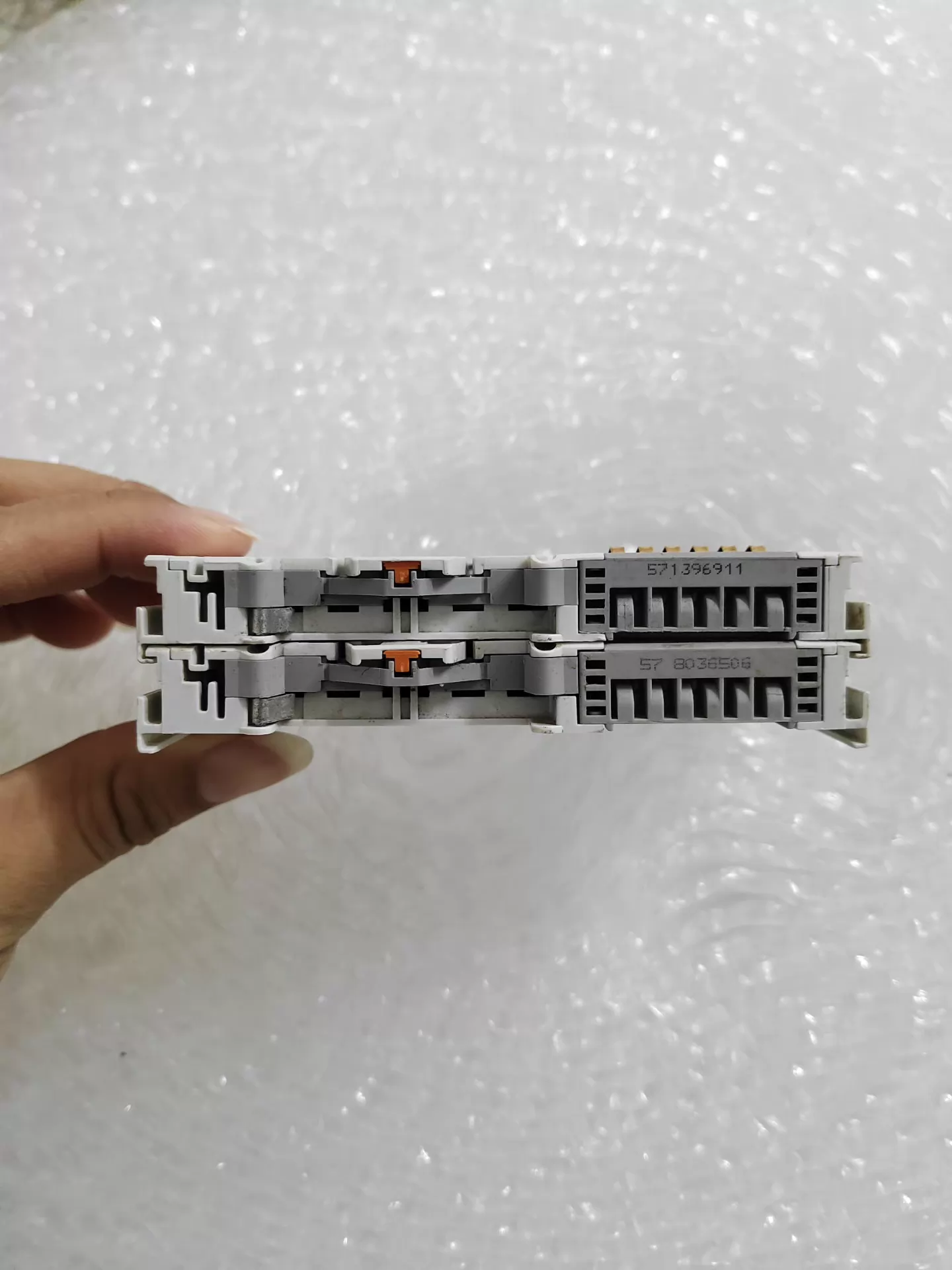

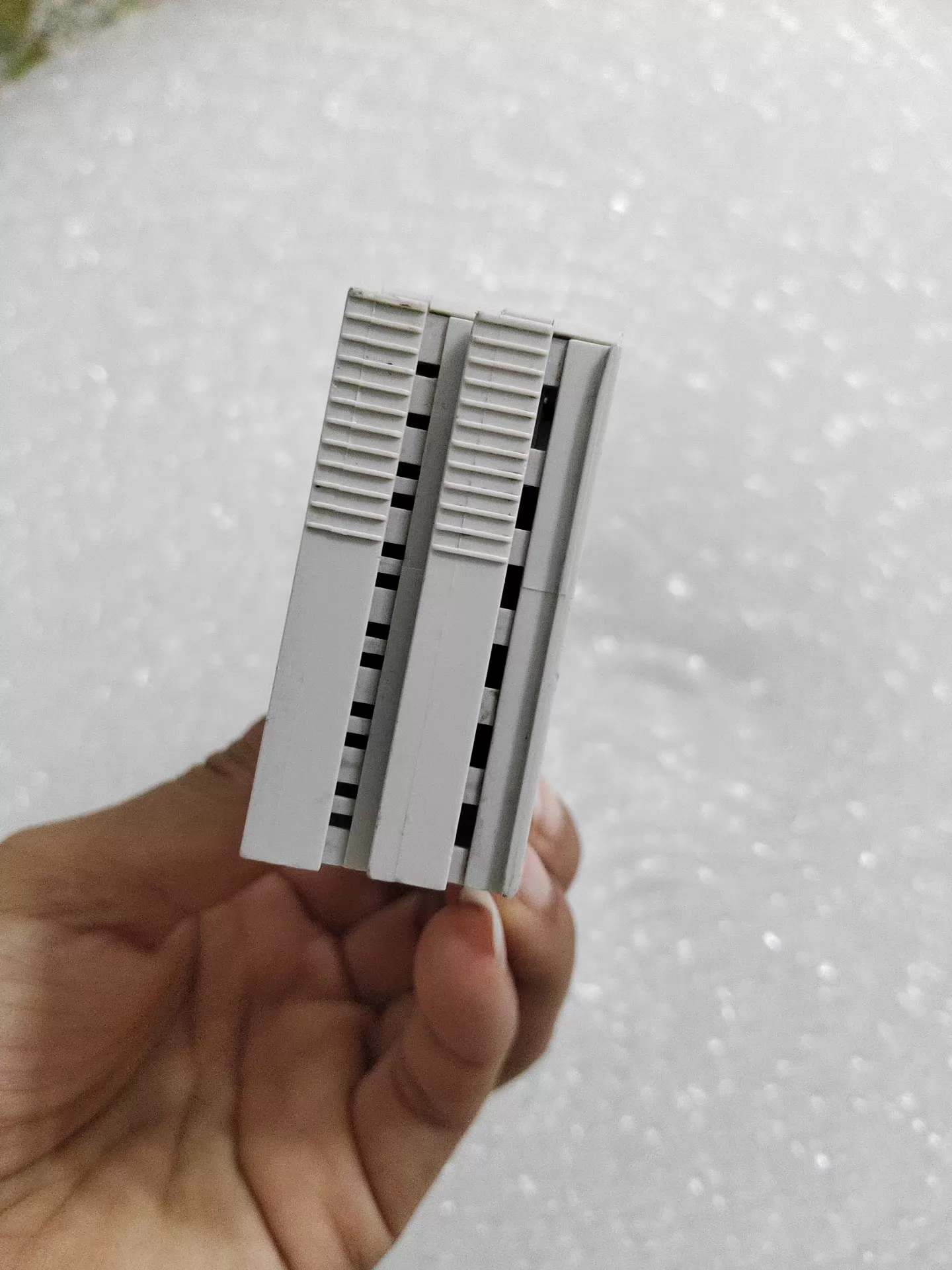

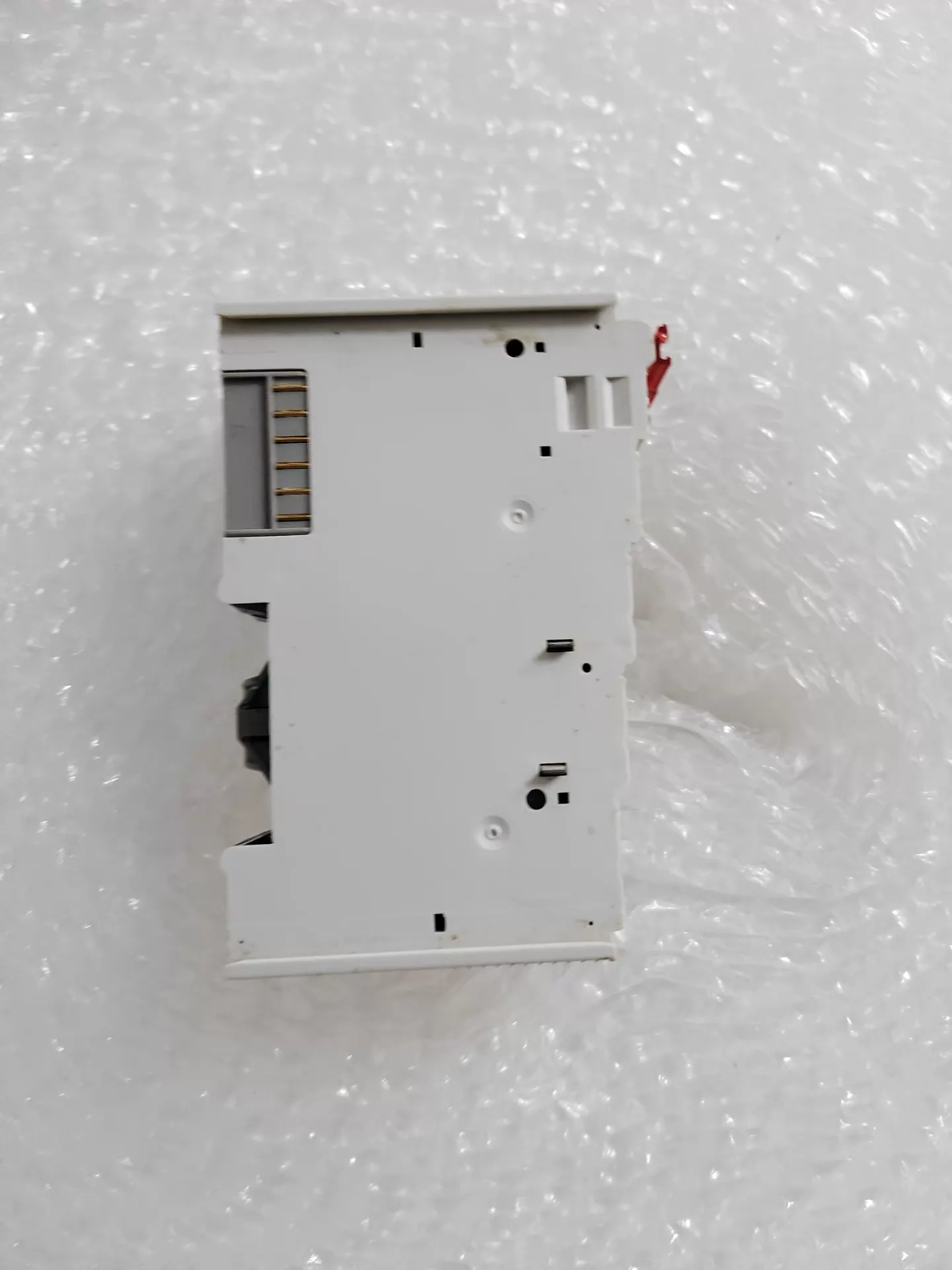

Módulo WAGO 750-504 usado, desmontado de un equipo, con signos de uso.
Especificaciones
| Brand | WAGO |
|---|---|
| MPN | 750-504 |
| Connection type | Output |
| Output current | short-circuit-protected |
| Signal type (voltage) | 24 VDC |
| Weight | 48.5 g |
| Vibration resistance | 4g per IEC 60068-2-6 |
| CAS-No. | 1303-86-2; 1317-36-8; 7439-92-1; 75980-60-8 |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| REACH Candidate List Substance | Diboron trioxide; Lead; Lead monoxide; Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)- |
| Actuator connection | 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other actuators. |
| Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Color | light gray |
| Conformity marking | CE |
| Connectable conductor materials | Copper |
| Connection technology | 8 x CAGE CLAMP® (outputs) |
| Current carrying capacity (power jumper contacts) | 10 A |
| Current consumption (system supply) | 10 mA |
| Current consumption, field supply (module with no external load) | 30 mA |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
| Eccn | NO US CLASSIFICATION |
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 10.0 | EC001599 |
| ETIM 9.0 | EC001599 |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fire load | 1.424 MJ |
| Height | 100 mm / 3.937 inches |
| Housing material | Polycarbonate; polyamide 6.6 |
| Indicators | LED (A-D) green: Status DO 1 … DO 4 |
| Inductive load switch-off energy dissipation (max.) | 0.3 J |
| Isolation | 500 V system/field |
| Load type | Resistive, inductive, lamp load |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Mounting type | DIN-35 rail |
| Number of digital outputs | 4 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Output characteristic | high-side switching |
| Output current per channel | 0.5 A |
| Output data width (internal) max. | 4 Bit |
| Permissible H2S contaminant concentration at a relative humidity < 75 % | 10 ppm |
| Permissible SO2 contaminant concentration at a relative humidity < 75 % | 25 ppm |
| Pluggable connector | fixed |
| Pollution degree | 2 per IEC 61131-2 |
| Protection type | IP20 |
| PU (SPU) | 1 pcs |
| Relative humidity (without condensation) | 95 % |
| RoHS Compliance Status | Compliant,With Exemption |
| SCIP notification number (Austria) | 0ee11308-65d0-4709-ae0a-4ec9dc600432 |
| SCIP notification number (Belgium) | 14e7b44d-4870-4c14-8131-338a06c0b032 |
| SCIP notification number (Bulgaria) | 3939a382-717e-4ee9-9450-76669c429063 |
| SCIP notification number (Czech Republic) | 7e125eed-20e0-4e26-9b50-8ccbe1ae402d |
| SCIP notification number (Denmark) | 4b10ba90-ac09-47a2-b00d-bd890606da04 |
| SCIP notification number (Finland) | ead6c4bc-38bc-416e-90dd-29bb475281df |
| SCIP notification number (France) | f4c86837-ca84-4f4a-9b57-cf7f4de16736 |
| SCIP notification number (Germany) | 824926ea-67ec-4ec2-a75f-d868229e733b |
| SCIP notification number (Hungary) | bfa55237-dbba-4ed3-940f-94941b6c0383 |
| SCIP notification number (Italy) | b04b0fb5-845f-45a0-b680-da0517dc77ac |
| SCIP notification number (Netherlands) | c7c3965c-b7ce-46a9-881c-29623e21d381 |
| SCIP notification number (Poland) | 7cfbaa3a-dddb-4d1f-afda-ec259ebe8729 |
| SCIP notification number (Romania) | eea1ec1b-8015-4fd1-9b82-c1e020ad0864 |
| SCIP notification number (Sweden) | 499c6b17-a92e-49ba-90c6-e31793b9dba5 |
| Shock resistance | 15g per IEC 60068-2-27 |
| Signal type | Digital |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Supply voltage (system) | 5 VDC; via data contacts |
| Switching frequency (max.) | 1 kHz |
| Total number of channels (module) | 4 |
| Unspsc | 32,151,705 |
| Width | 12 mm / 0.472 inches |
