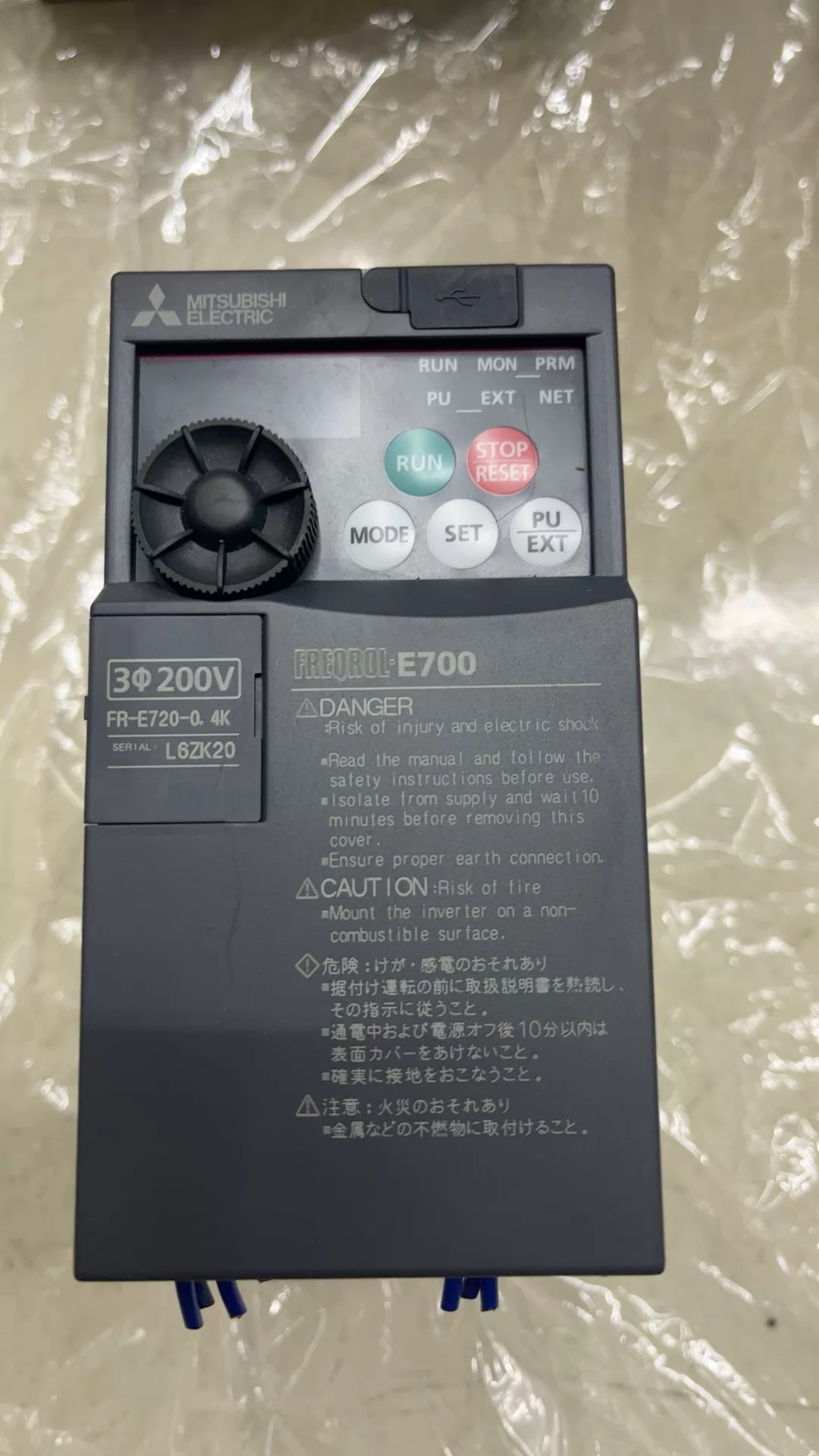

Variador de frecuencia Mitsubishi Electric FR-E720-0.4K - Usado
Descripcion
Variador de frecuencia Mitsubishi Electric FR-E720-0.4K usado.
Especificaciones
| Brand | Mitsubishi Electric |
|---|---|
| Model | FR-E720-0.4K |
| HS Code | 850440 |
| Origin | Japan |
| Rated current | 3 A |
| Output frequency range | 0.2-400 Hz |
| Input Voltage | 200Vac-240Vac (220Vac / 230Vac nom.) |
| Active Nominal Power | 400 W / 0.4 kW |
| Power Rating | 1/2HP |
| Ambient Temperature | -10...+50 °C |
| Degree of protection | IP20 |
| Ambient air temperature for operation | -10...+50 °C |
| Ambient Air Temperature for Operation | -10...+50 °C |
| Apparent Power | 1.2kVA |
| Communication protocols | Modbus RTU; RS-485 |
| Input Power Supply | 3Φ 200 V |
| Output | 3.0 A 3PH AC 200-240Vmax |
| Overload Current Rating | 150% In for 60s / 200% In for 3s |
| Protection Functions | Overcurrent during acceleration; Overcurrent during constant speed; Overcurrent during deceleration; Overvoltage during acceleration; Overvoltage during constant speed; Overvoltage during deceleration; Inverter protection thermal operation; Motor protection thermal operation; Heatsink overheat; Stall prevention stop; Output short circuit; Output phase failure; Parameter error; Internal board fault; CPU fault; Brake transistor alarm; Inrush resistance overheat; Communication error; Not available in initial status (Output side earth (ground) fault overcurrent at start; External thermal relay operation; Option fault; Retry count excess; Brake sequence error 4 to 7); Input phase failure; PU disconnection; Analog input error; USB communication fault |
| Protective Rating | IP20 |
| Rated active power (kW) | 0.4 kW |
| Rated Active Power (kW) | 0.4 kW |
| Rated Apparent Power (S) | 1.2 kVA |
| Rated apparent power (S) | 1.2 kVA |
| Rated power (HP) | 1/2 HP |
| Supply voltage (AC) | 200Vac-240Vac V |
| Supply Voltage AC | 200Vac-240Vac (220Vac / 230Vac nom.) |
