Módulo de salida Keyence KV-NC16ETE - Usado
Descripcion

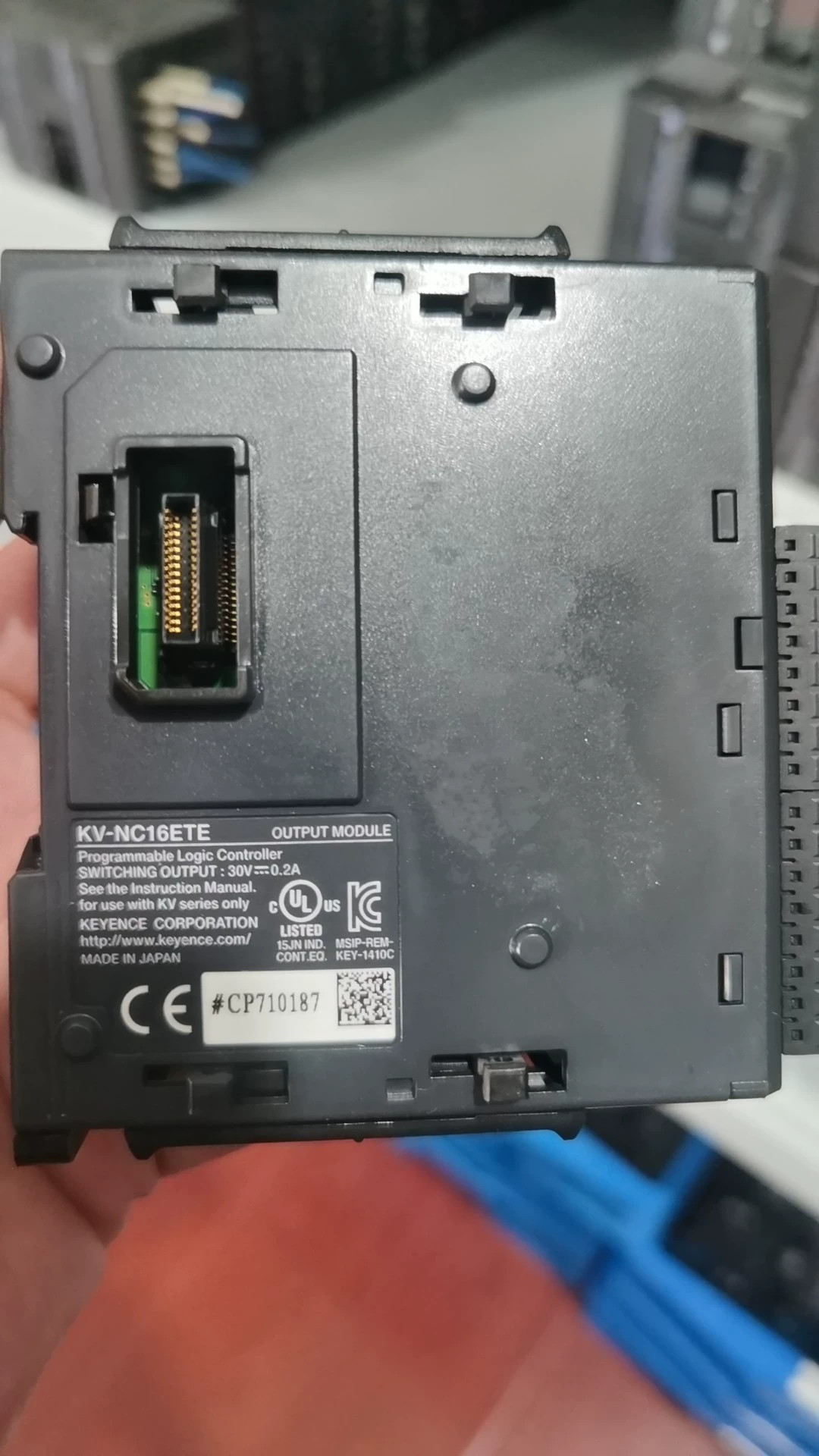

Módulo de salida Keyence KV-NC16ETE usado. Retirado de equipo; placa de características legible.
Especificaciones
| Brand | Keyence |
|---|---|
| Model | KV-NC16ETE |
| Weight | Approx. 120 g |
| Common method | 16 points/1 common (16 terminals) *4 |
| External connection method | European terminal block |
| External connectionmethod | MOSFET output (With overcurrent protection function) *1 *2 |
| Internal current consumption | ≤30 mA |
| Leakage current (when output is OFF) | 100 μA or less |
| OFF to ON | 100 μs or less (with a load of 1 mA or more) |
| ON to OFF | 200 μs or less (with a load of 1 mA or more) |
| Rated load | 30 VDC, 0.2 A *3 |
| Residual voltage (at ON) | 0.6 VDC or less |
