Sensor visual Keyence IV2-G150MA - Usado
Descripcion

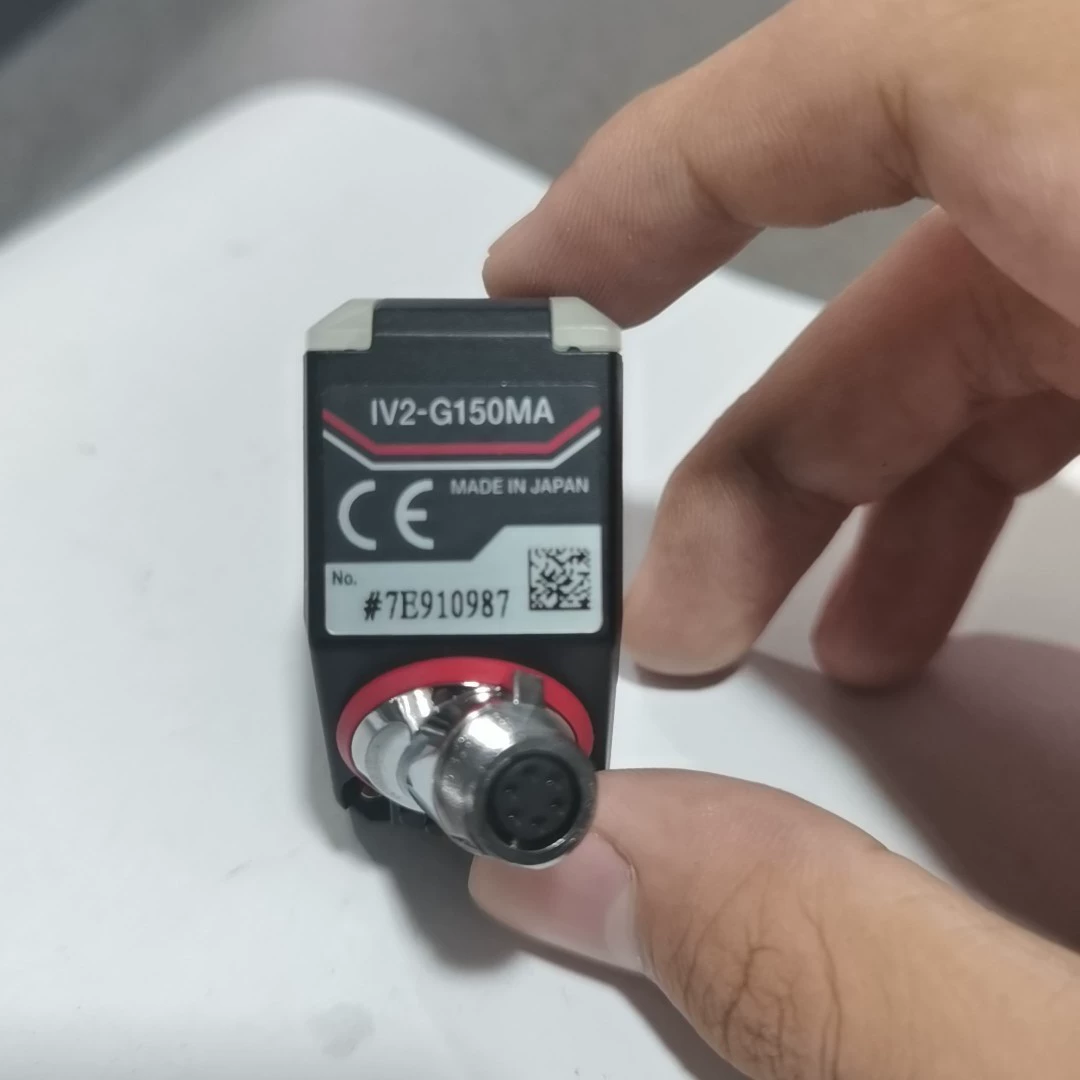

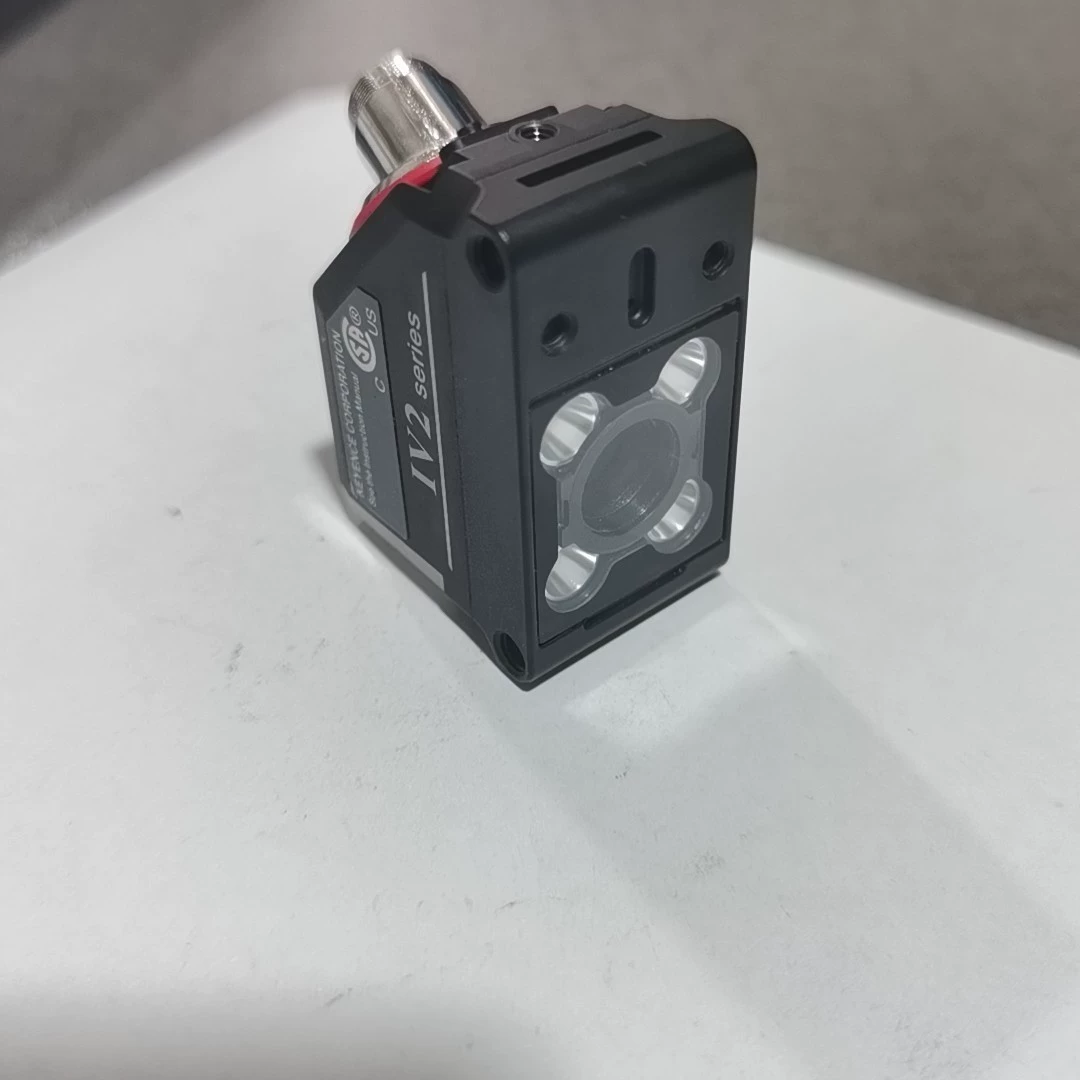

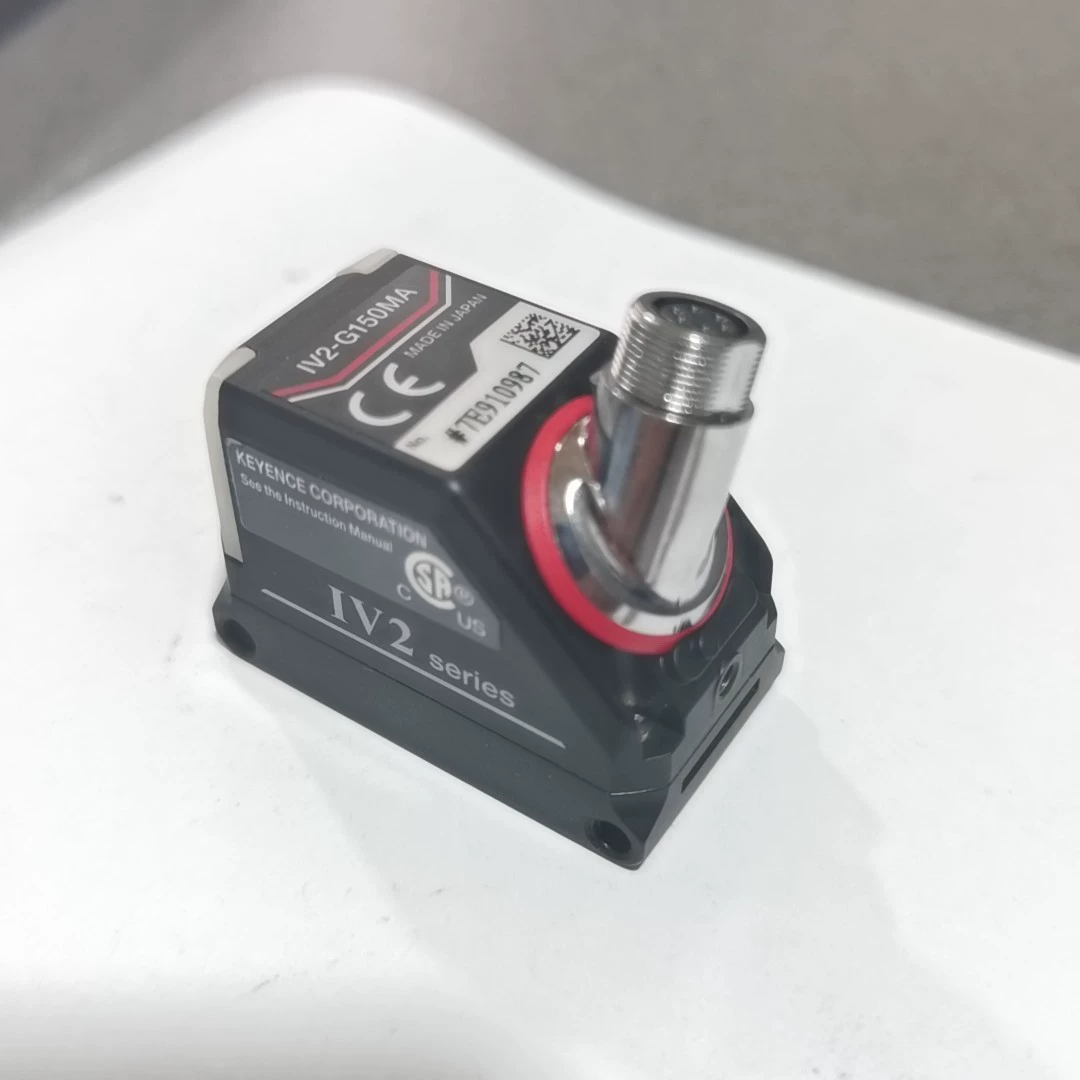

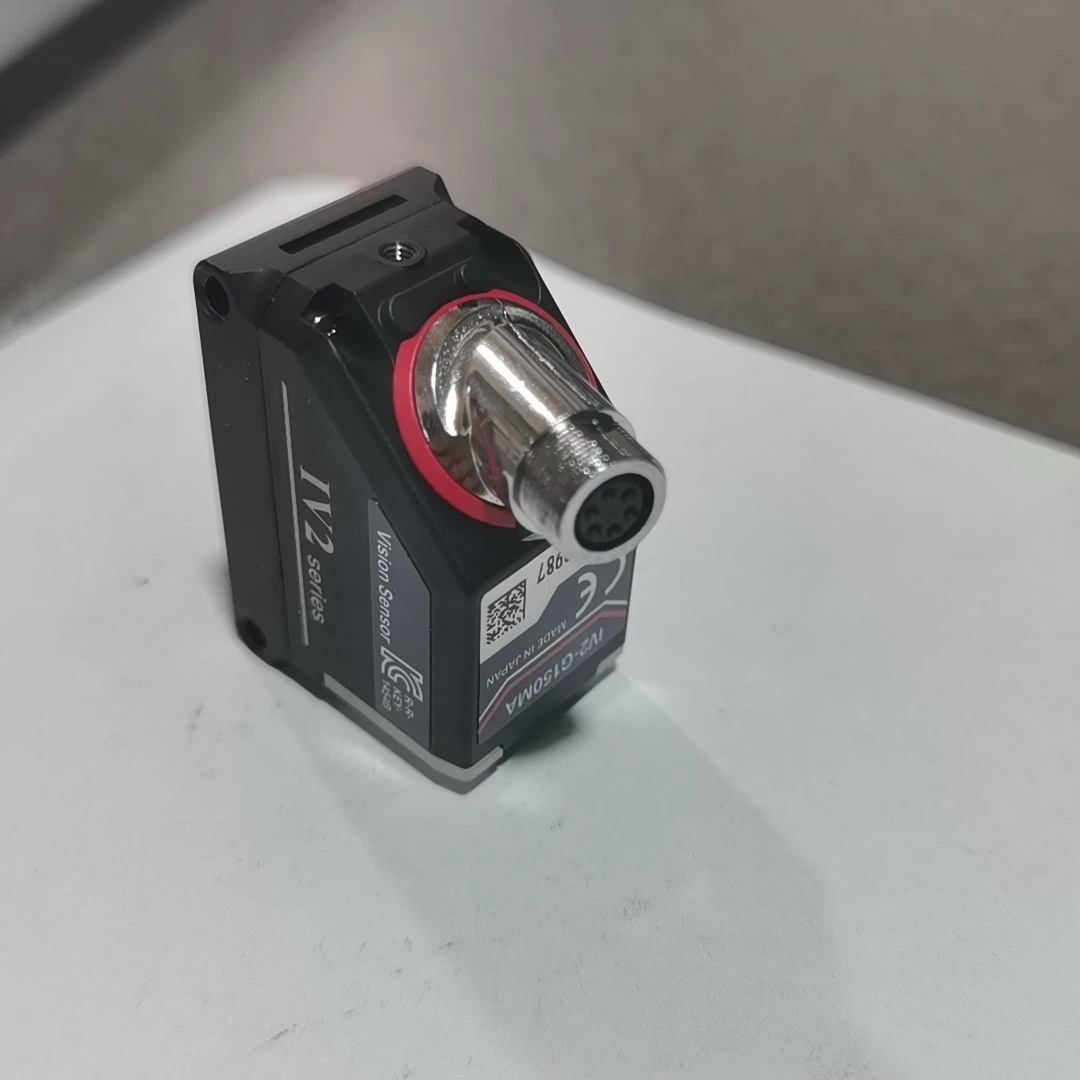

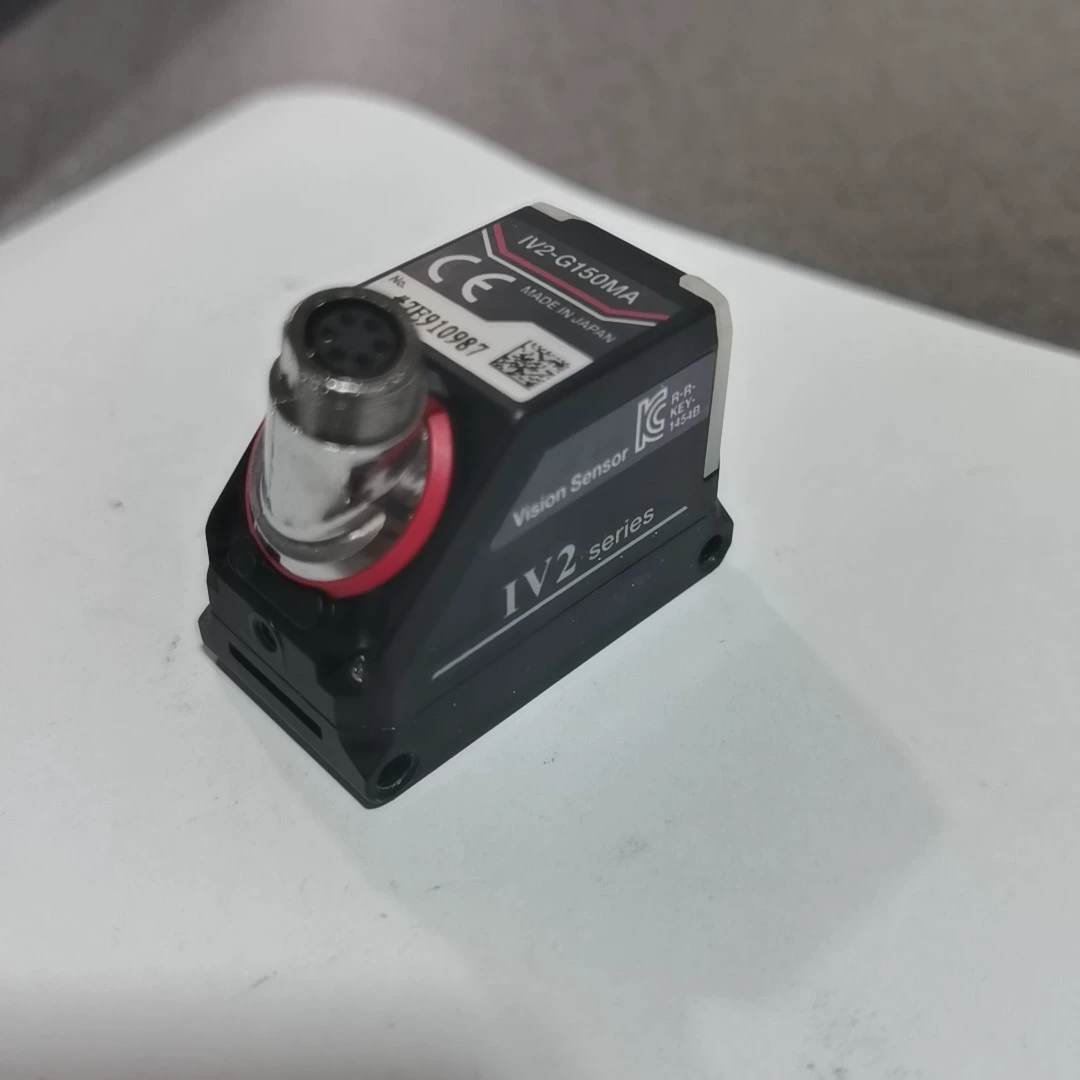

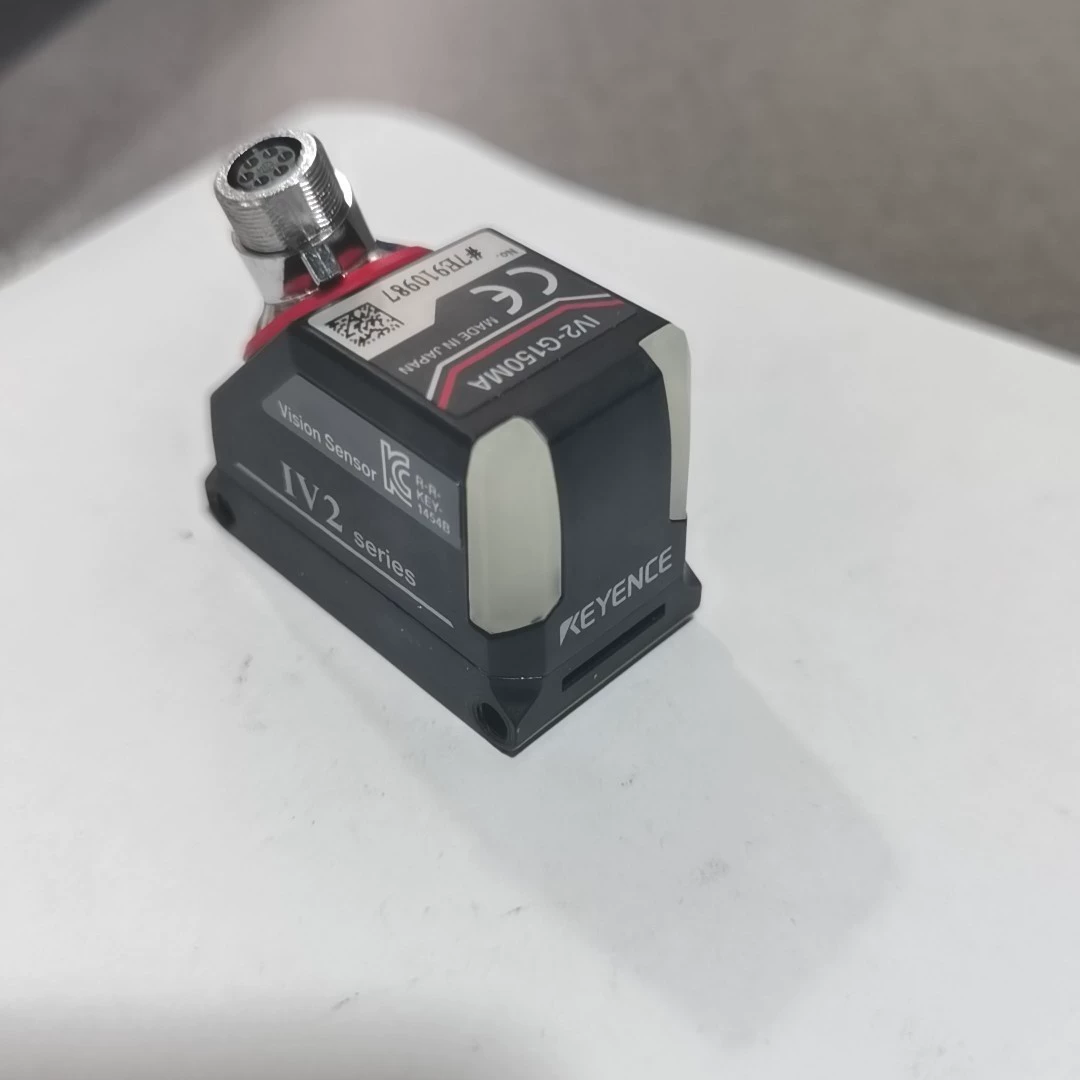

Sensor visual Keyence IV2-G150MA usado, retirado de equipo, incluye su lente. Fabricado en Japón.
Especificaciones
| Brand | Keyence |
|---|---|
| Model | IV2-G150MA |
| Origin | Japan |
| Weight | Approx. 75 g |
| Ambient temperature | 0 to +50°C (32 to 122°F); no freezing |
| Relative humidity | 35 to 85% RH (No condensation) |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm 0.06"; 2 hours in each of the X, Y, and Z directions *3 |
| Enclosure rating | IP67 |
| Enclosure rating | IP67 *2 |
| Exposure time | 1/20 to 1/50000 |
| Field of view | 8 (H) × 6 (V) mm to 32 (H) × 24 (V) mm |
| Focus adjustment | Automatic |
| Illumination | White LED |
| Illumination | White LED |
| Image receiving element | 1/3 inch monochrome CMOS |
| Indicators | 2 (the same display details for both indicators) |
| Lighting method | Switchable between pulse lighting and DC lighting |
| Lighting method | Switchable between pulse lighting and DC lighting |
| Material | Main unit case: Zinc die-casting, Front cover: Acrylic (hard coat), Operation indicator cover: TPU |
| Number of pixels | 752 (H) × 480 (V) |
| Number of pixels | 752 (H) × 480 (V) |
| Reference distance | 40 to 150 mm |
| Shock resistance | 500 m/s² 1640.4'/s 2, 6 times in each of the 3 directions *3 |
| Type | Narrow field of view sensor model |
| Type | 1/3 inch monochrome CMOS |
