Keyence FS-N12P - Usado
Descripcion

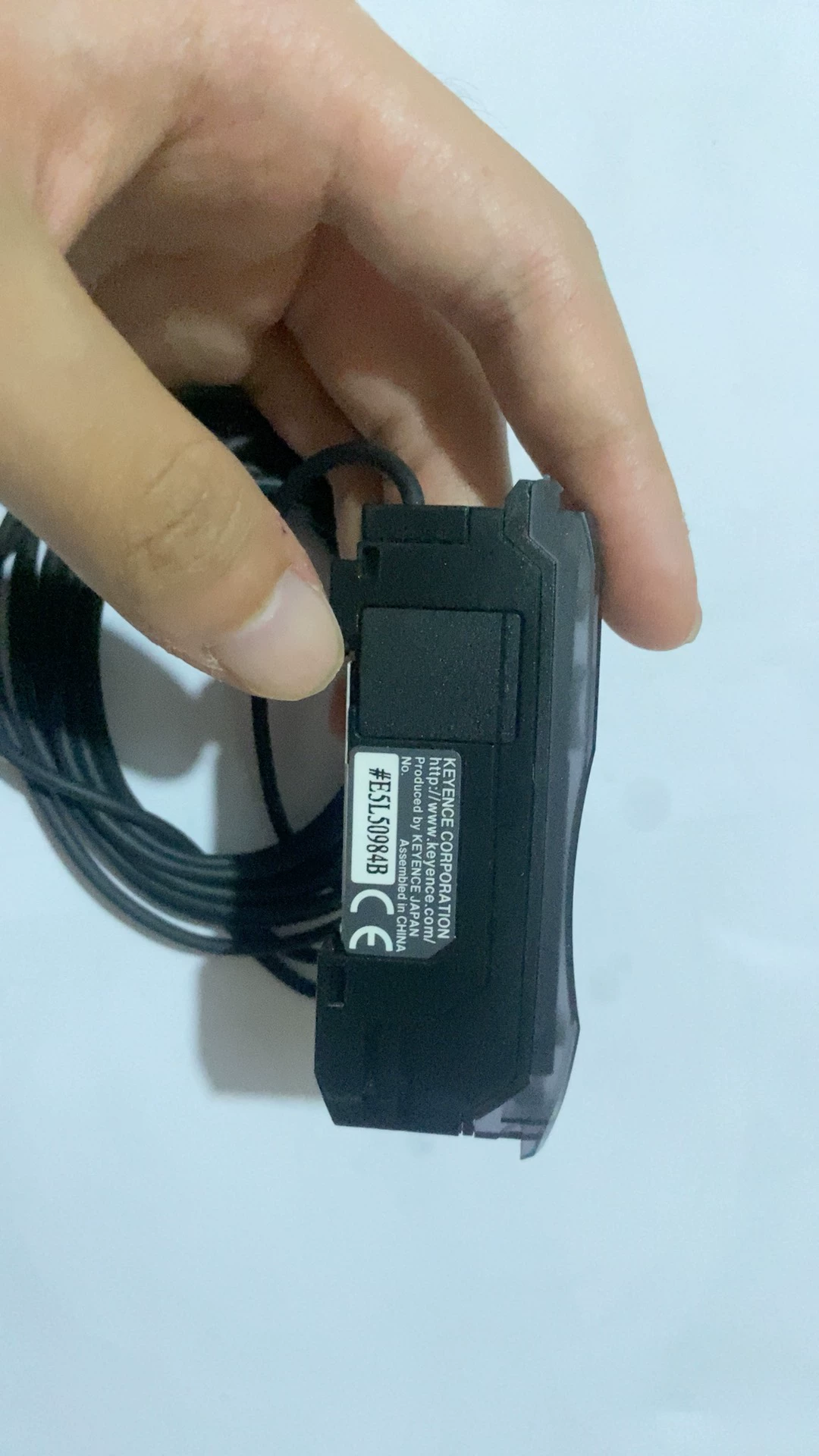

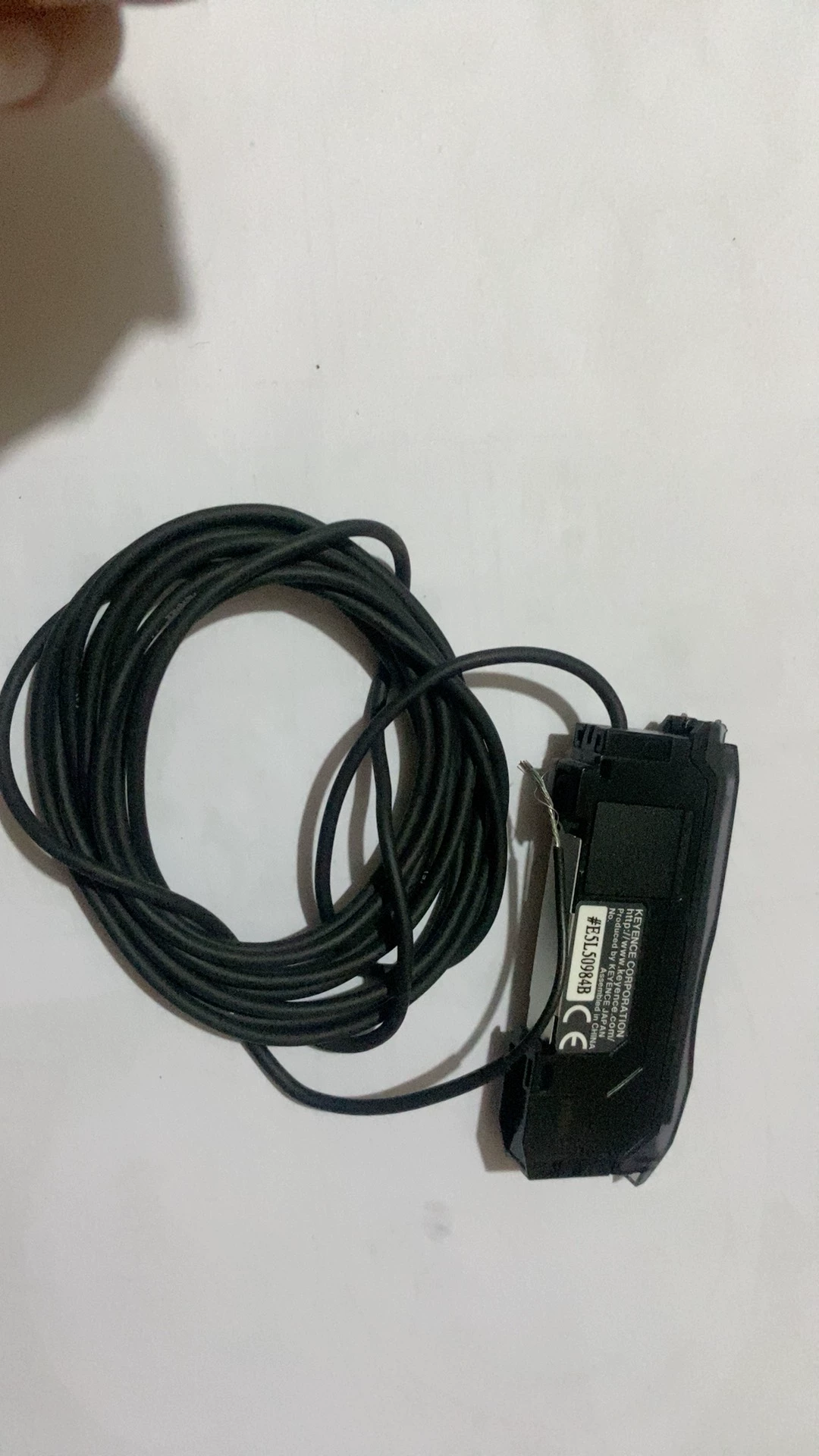

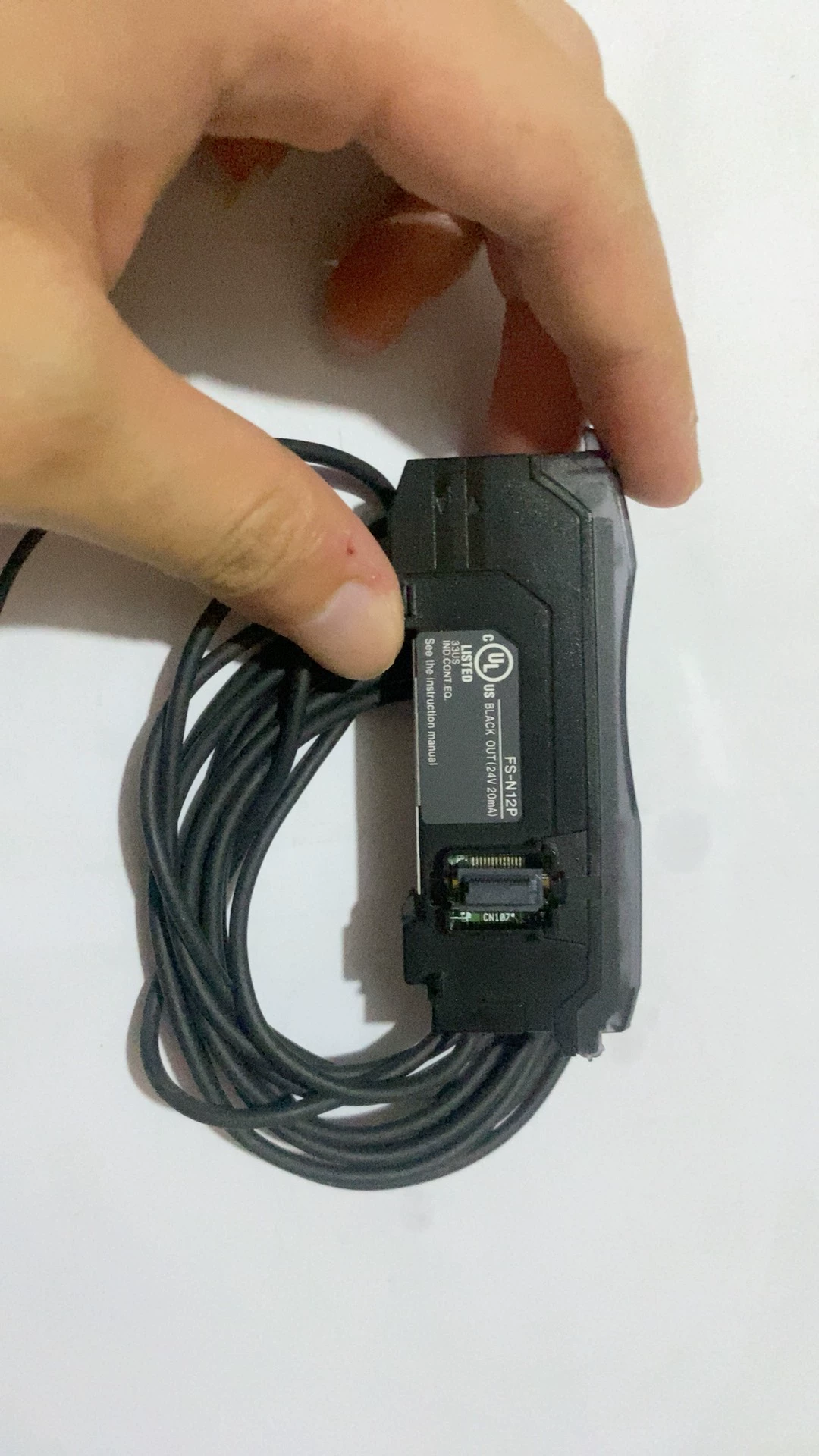

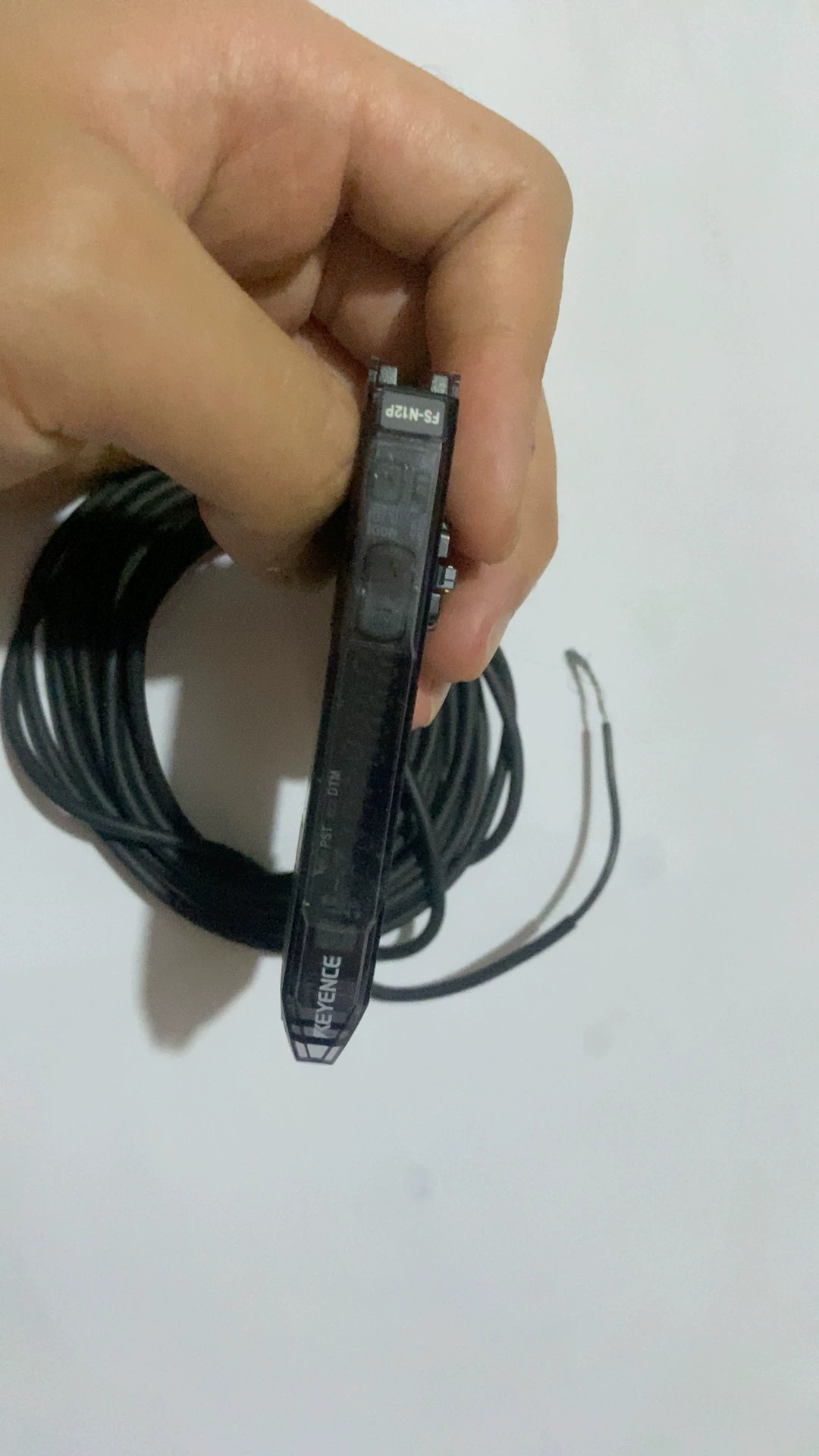

Amplificador de fibra óptica Keyence FS-N12P usado, salida PNP, incluye cable, retirado de un equipo.
Especificaciones
| Brand | Keyence |
|---|---|
| Model | FS-N12P |
| Power voltage | 12 to 24 VDC ±10 %, Ripple (P-P) ≤10 % |
| Response time | HIGH SPEED: 50 µs; FINE: 250 µs; TURBO: 500 µs; SUPER: 1 ms; ULTRA: 4 ms; MEGA: 16 ms |
| Power voltage (rating) | 12 to 24 VDC ±10 %, Ripple (P-P) ≤10 % |
| Weight | Approx. 45 g |
| Ambient temperature | -20 to +55 °C (-4 to +131 °F); no freezing |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm (0.06 in); 2 h each in X, Y, Z directions |
| Ambient light | Incandescent lamp: ≤20,000 lux, Sunlight: ≤30,000 lux |
| Apc | ON/OFF switchable (Factory setting: OFF) |
| Cable | Cable |
| Case material | Main and expansion unit housing: Polycarbonate |
| Control output | 1 PNP open collector 24 V; 1 output max: ≤100 mA; 2 output total: ≤100 mA (used stand-alone)/≤20 mA (multiple connections); residual voltage ≤1 V |
| Current Consumption | Normal: ≤950 mW (≤39 mA at 24 V, ≤52 mA at 12 V); Eco on: ≤850 mW (≤35 mA at 24 V, ≤44 mA at 12 V); Eco Full: ≤520 mW (≤21 mA at 24 V, ≤26 mA at 12 V) |
| Current consumption (rating) | Normal: ≤950 mW (≤39 mA at 24 V, ≤52 mA at 12 V); Eco on: ≤850 mW (≤35 mA at 24 V, ≤44 mA at 12 V); Eco Full: ≤520 mW (≤21 mA at 24 V, ≤26 mA at 12 V) |
| Light source LED | Red, 4-element LED |
| Main unit/expansion unit | Expansion unit |
| Number of interference prevention units | HIGH SPEED: 0; FINE: 4; TURBO/SUPER/ULTRA/MEGA: 8 |
| Output | PNP |
| Output Type | PNP |
| Shock resistance | 500 m/s^2, 3 times in each of the X, Y, and Z directions |
| Type | Standard 1 output |
