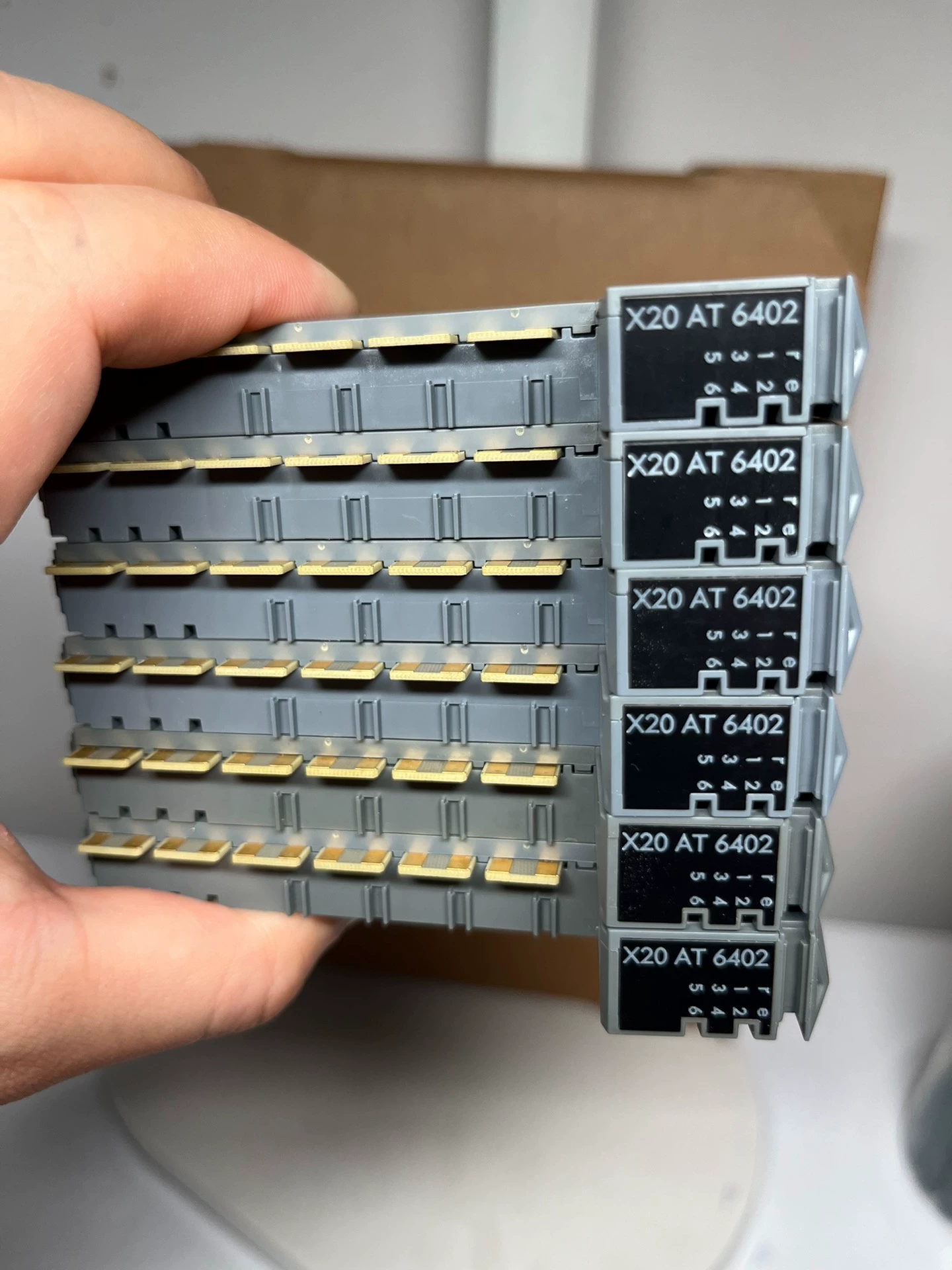

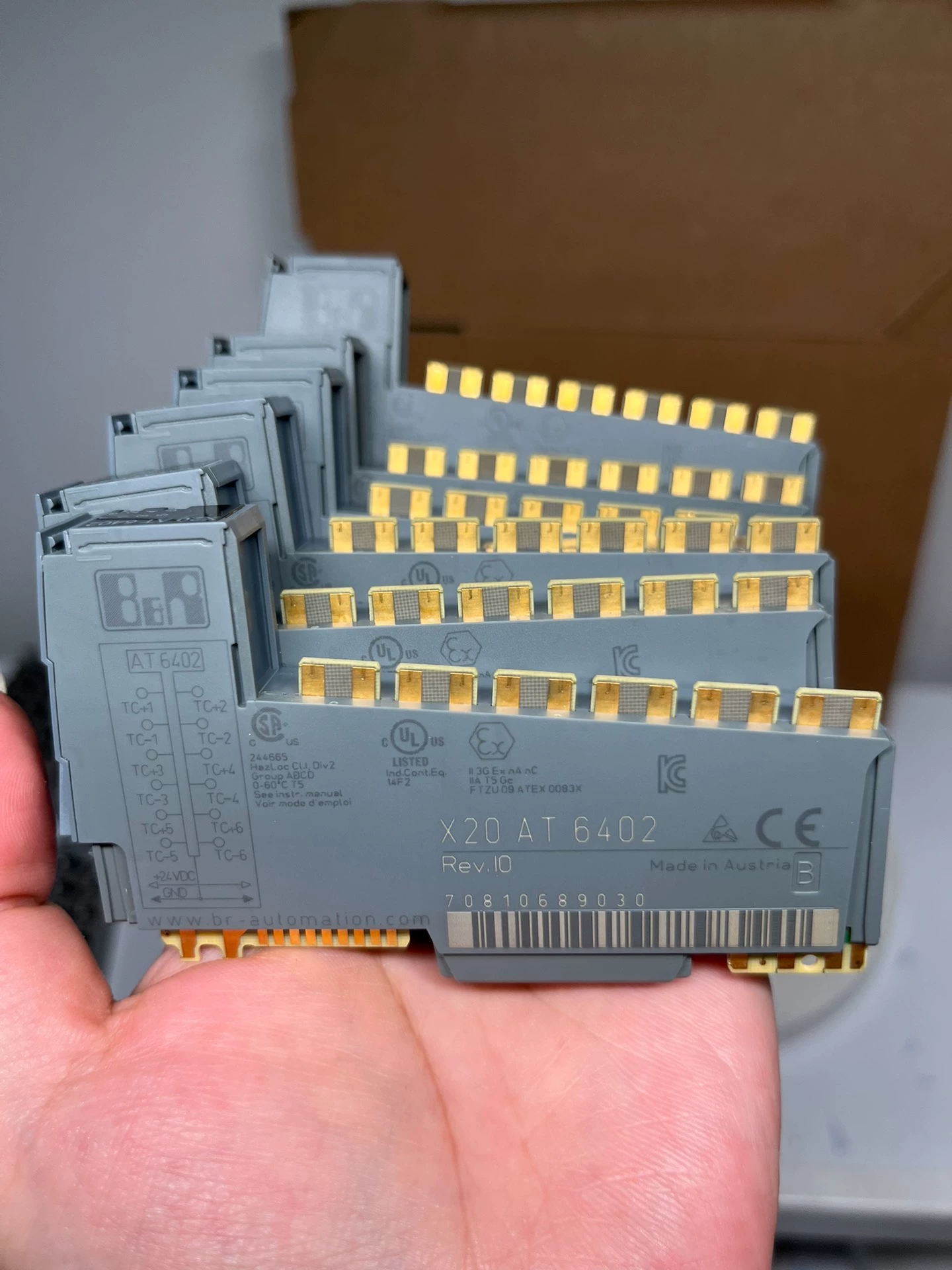

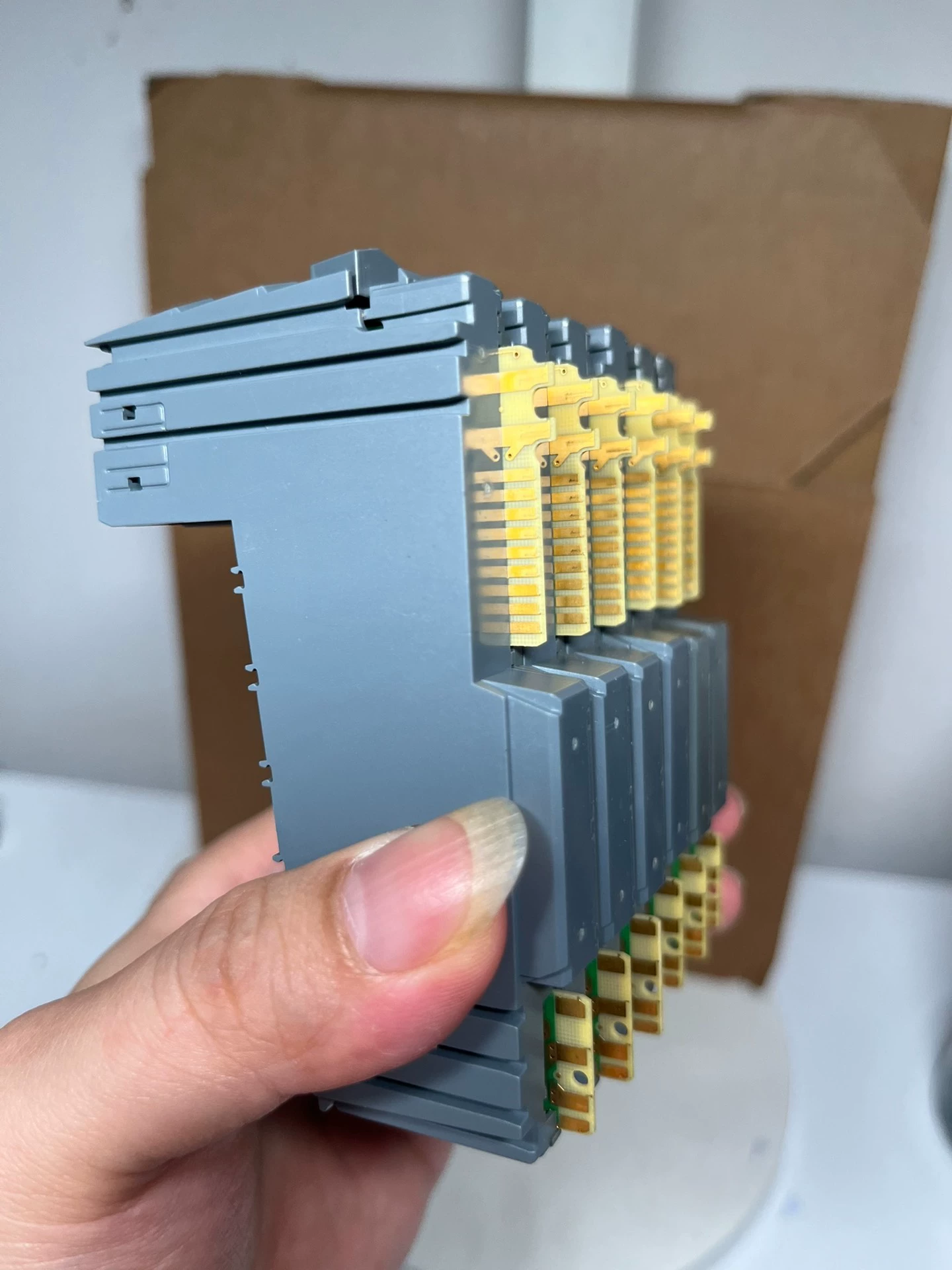

B&R X20 AT 6402 - Usado
Descripcion
Módulo industrial B&R X20 AT 6402 usado, alimentación: 24 VDC.
Especificaciones
| Brand | B&R |
|---|---|
| MPN | X20 AT 6402 |
| Origin | Austria |
| Power supply | 24 VDC |
| Common-mode range | ±15 V |
| Sensor temperature | 1 LSB = 0.1°C or 0.01°C |
| Terminal temperature | 1 LSB = 0.1°C |
| Terminal temperature | -25.0 to 85.0°C or -25.00 to 85.00°C |
| Terminal temperature | -25 to 85°C |
| ABS | Yes |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| B&R ID code | 0x1BA9 |
| Between channel and bus | 500 V eff |
| Bus | 0.01 W |
| BV | EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck |
| CCS | Yes |
| CE | Yes |
| Common-mode rejection | >70 dB |
| Conversion procedure | Sigma-delta |
| Conversion time | 80.4 ms with 50 Hz filter |
| CRA (Cyber Resilience Act) | In preparation |
| DC | >70 dB |
| Digital converter resolution | 16-bit |
| Electrical isolation | Channel isolated from bus Channel not isolated from channel |
| Filter time | Configurable between 1 ms and 66.7 ms |
| Gain | ±0.06% |
| General fault | 0x8000 |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| Horizontal | Yes |
| Horizontal mounting orientation | 0 to 55°C |
| Input | Thermocouple |
| Input filter | First-order low-pass filter / cutoff frequency 500 Hz |
| Inputs | Yes, using LED status indicator and software |
| Installation elevation above sea level | Reduction of ambient temperature by 0.5°C per 100 m |
| Installation elevation above sea level | No limitation |
| Installation elevation above sea level | IP20 |
| Internal I/O | 0.91 W |
| KC | Yes |
| KR | Yes |
| Linearization method | Internal |
| LR | ENV1 |
| Max. gain drift | ±0.01%/°C |
| Max. offset drift | ±0.0029%/°C |
| Module run/error | Yes, using LED status indicator and software |
| N channels | (n + 1) x 40.2 ms with 50 Hz filter |
| Nonlinearity | ±0.001% |
| Normalization | -270.0 to 1300.0°C or -270.00 to 1300.00°C |
| Offset | ±0.05% |
| Open circuit | 0x7FFF |
| Open inputs | 0x7FFF |
| Operation | 5 to 95%, non-condensing |
| Output format | INT |
| Permissible input signal | Max. ±5 V |
| Pitch | 12.5 +0.2 mm |
| Range overshoot | 0x7FFF |
| Range undershoot | 0x8001 |
| Raw value | ±65.534 mV |
| Raw value output with respect to gain | 1 LSB = 1 µV or 2 µV |
| Sensor standard | EN 60584 |
| Status indicators | I/O function per channel, operating state, module status |
| Storage | -40 to 85°C |
| Storage | 5 to 95%, non-condensing |
| Terminal temperature compensation | Internal |
| Transport | -40 to 85°C |
| Transport | 5 to 95%, non-condensing |
| Type B | ±0.13% |
| Type B | 0 to 1820.0°C or 0 to 1820.00°C |
| Type B | ±0.0114%/°C |
| Type B | 0 to 1820°C |
| Type J | ±0.04% |
| Type J | -210.0 to 1200.0°C or -210.00 to 1200.00°C |
| Type J | ±0.0019%/°C |
| Type J | -210 to 1200°C |
| Type K | ±0.05% |
| Type K | -270.0 to 1372.0°C or -270.00 to 1372.00°C |
| Type K | ±0.0024%/°C |
| Type K | -270 to 1372°C |
| Type N | -270 to 1300°C (Rev. ≥D0) |
| Type R | ±0.09% |
| Type R | -50.0 to 1664.0°C or -50.00 to 1664.00°C |
| Type R | ±0.0074%/°C |
| Type R | -50 to 1664°C |
| Type S | ±0.11% |
| Type S | -50.0 to 1768.0°C or -50.00 to 1768.00°C |
| Type S | ±0.0079%/°C |
| Type S | -50 to 1768°C |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| Vertical | Yes |
| Vertical mounting orientation | 0 to 50°C |
| With artificial convection | ±4°C after 10 min |
| With natural convection | ±2°C after 10 min |
