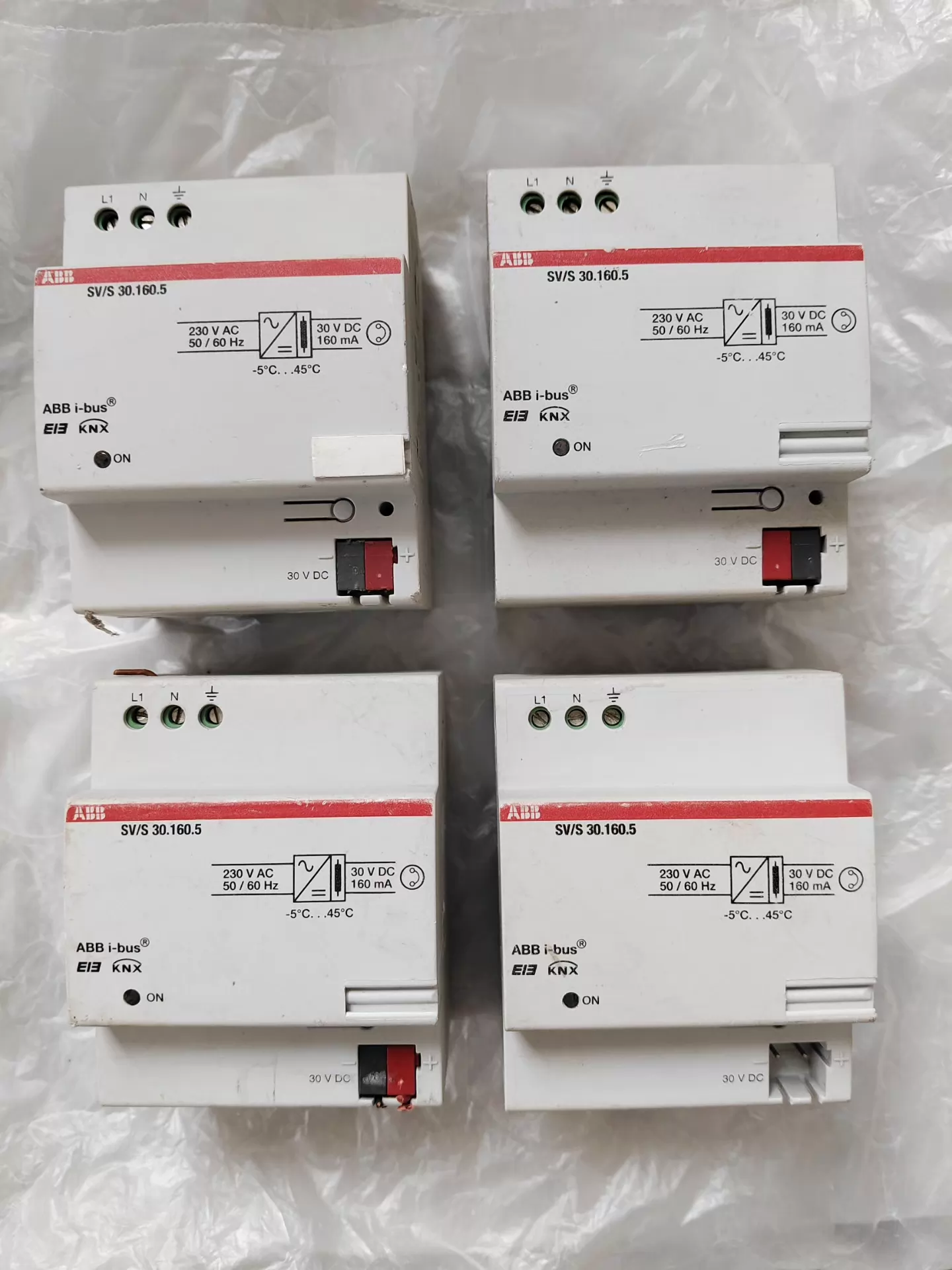

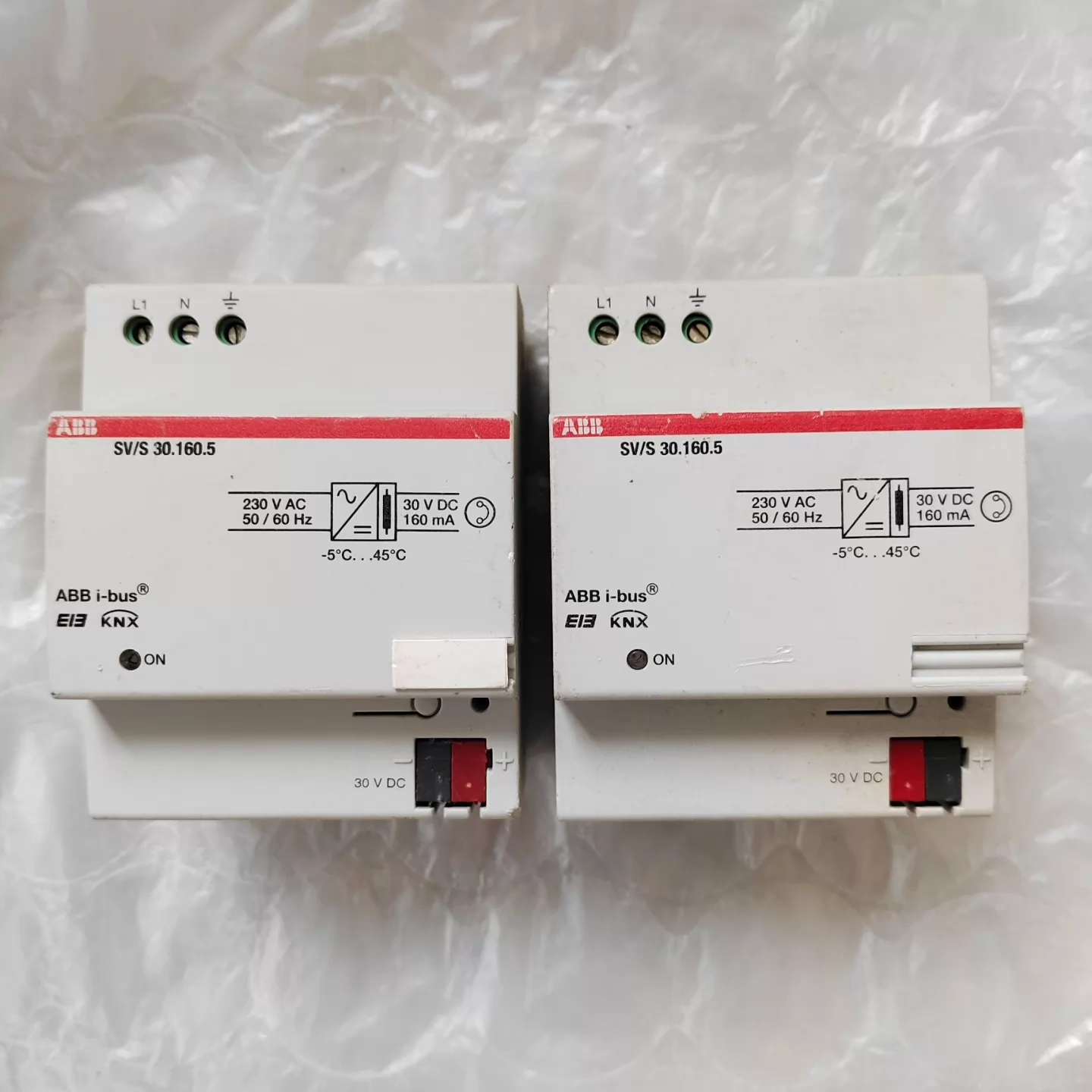

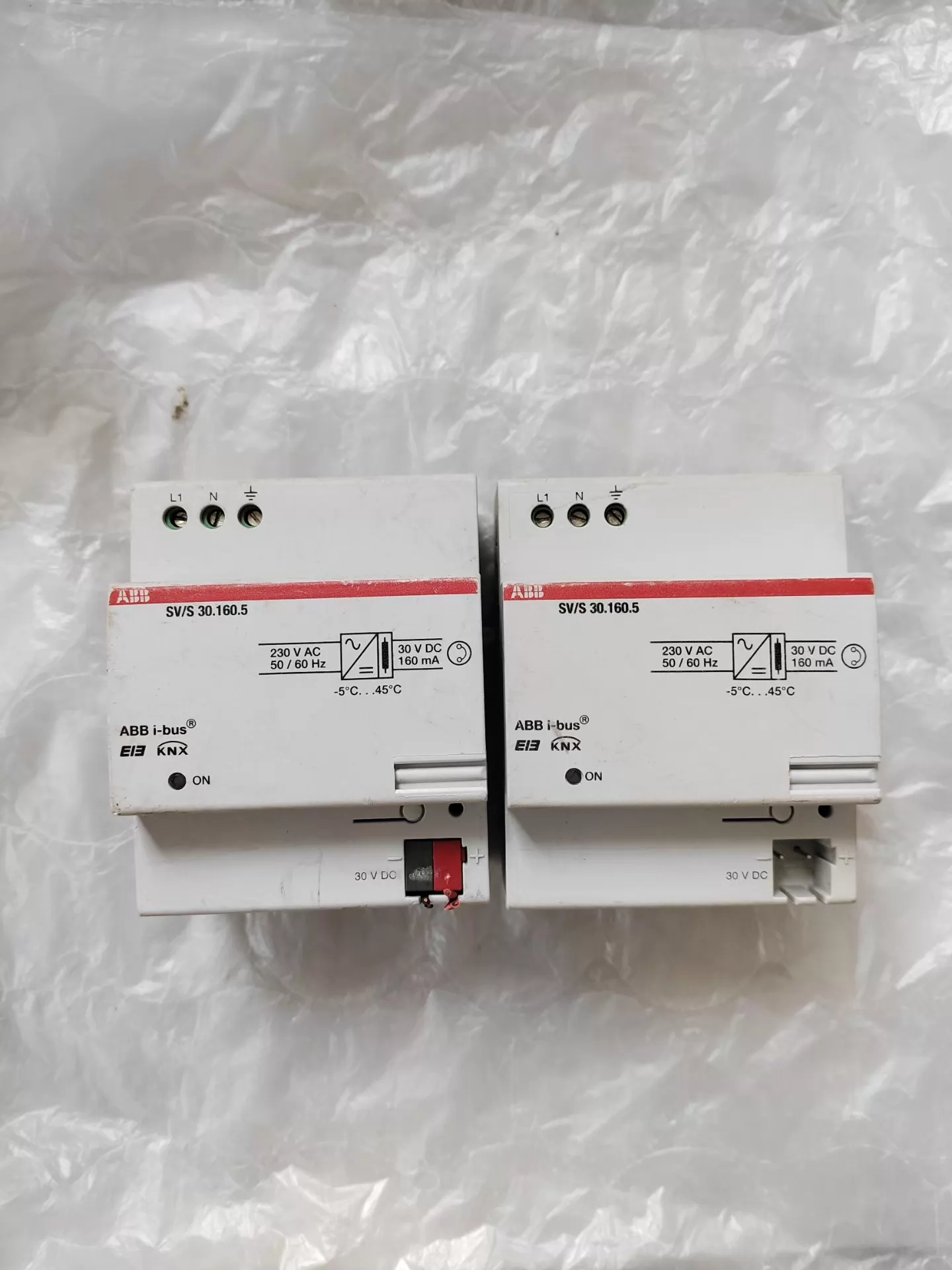

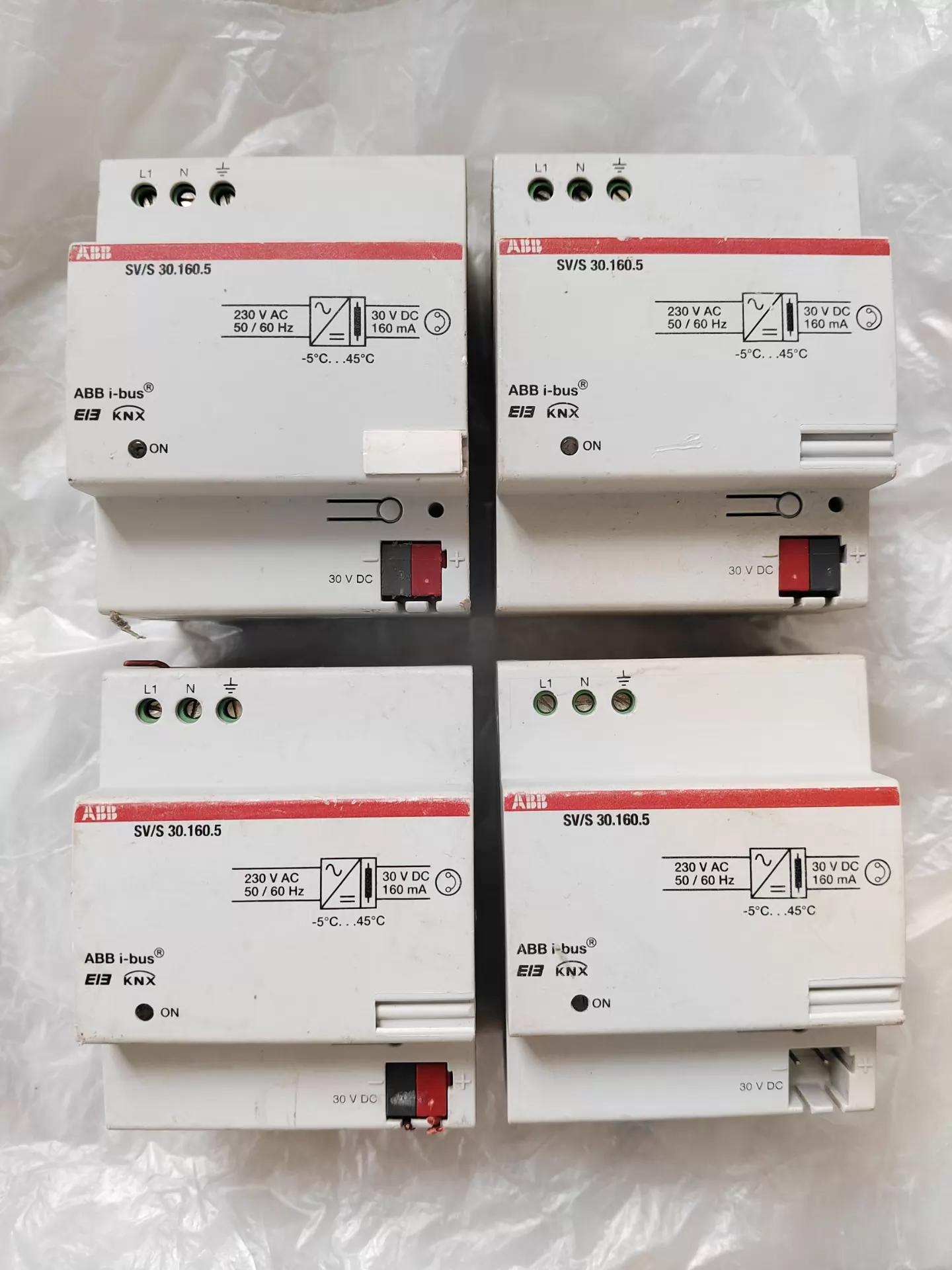

ABB SV/S 30.160.5 módulo de alimentación i-bus - Usado
Descripcion
Módulo de alimentación i-bus ABB SV/S 30.160.5 usado para sistemas de hogar inteligente KNX. Proporciona 160 mA de corriente de salida y acepta entrada de 230 V AC. La unidad muestra leves signos de uso.
Especificaciones
| Brand | ABB |
|---|---|
| Model | SV/S 30.160.5 |
| Power supply | 230 VAC, 50…60 Hz |
| Input Frequency | 50 / 60 Hz |
| Rated voltage | 30 VDC +1/-2 V, SELV |
| Rated current | 160 mA |
| Power consumption | ≤ 8 VA |
| Input Voltage | 230 V AC |
| Output Current | 160 mA |
| Power dissipation | ≤ 3 W |
| Power failure buffering time | ≥ 200 ms |
| Short circuit current | ≤ 450 mA |
| Weight | 0.21 kg |
| Ambient temperature range | -5°C to +45°C |
| Dimensions (H x W x D) | 90 x 72 x 64.5 mm |
| Connection cross section (fine strand wire) | 0.2 - 2.5 mm² |
| Connection cross section (solid wire) | 0.2 - 4.0 mm² |
| Installation depth | 68 mm |
| Protection rating | IP 20 to EN 60 529 |
| Width | 4 mod. of 18 mm each modules |
Documentos
untitled
Ficha tecnica
Abrir
