WAGO 750-430 - Gebraucht
Angebot anfragen
Teilen Sie uns mit, was Sie benoetigen. Wir melden uns mit Informationen zu Verfuegbarkeit und Preisen.
Anfrage startenBeschreibung

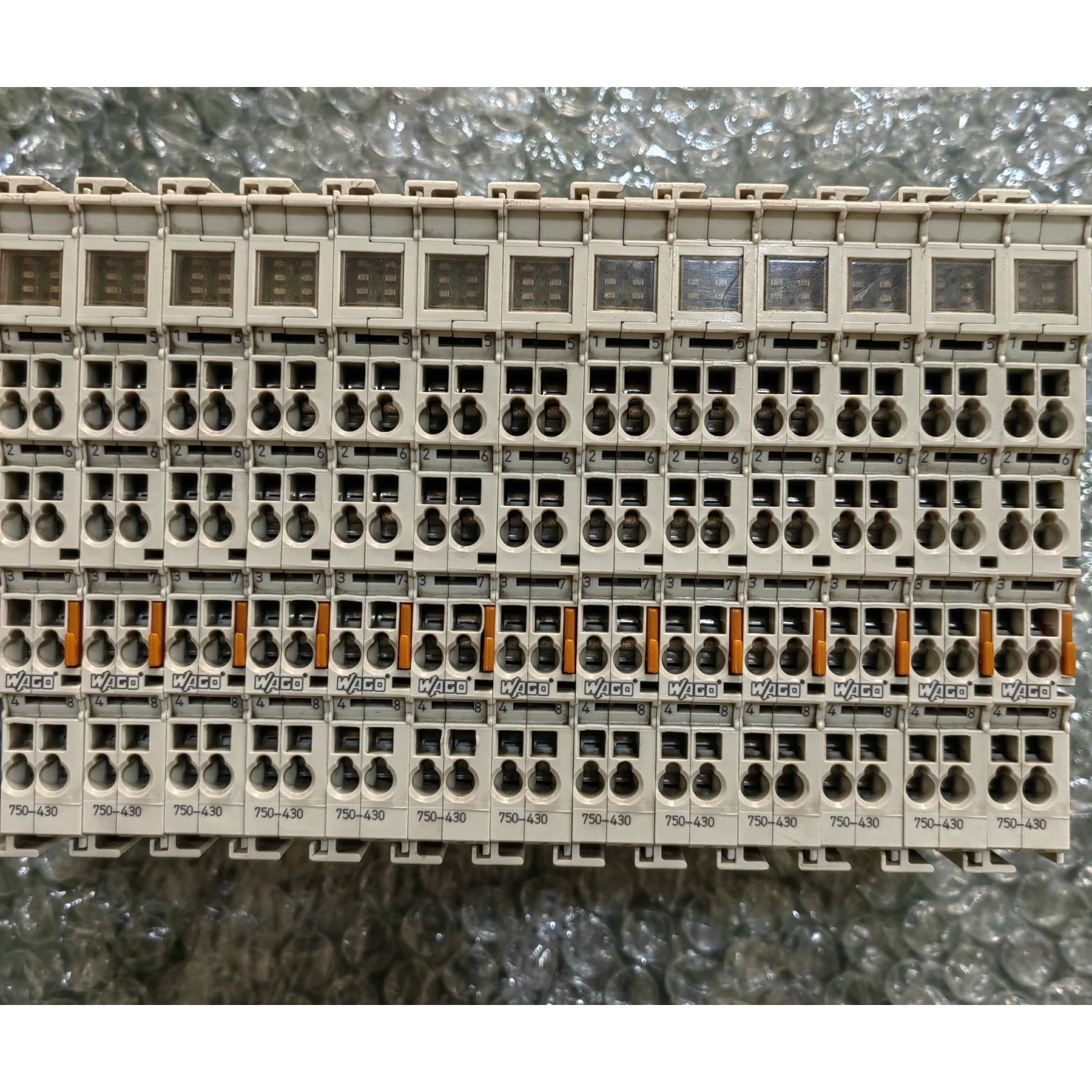

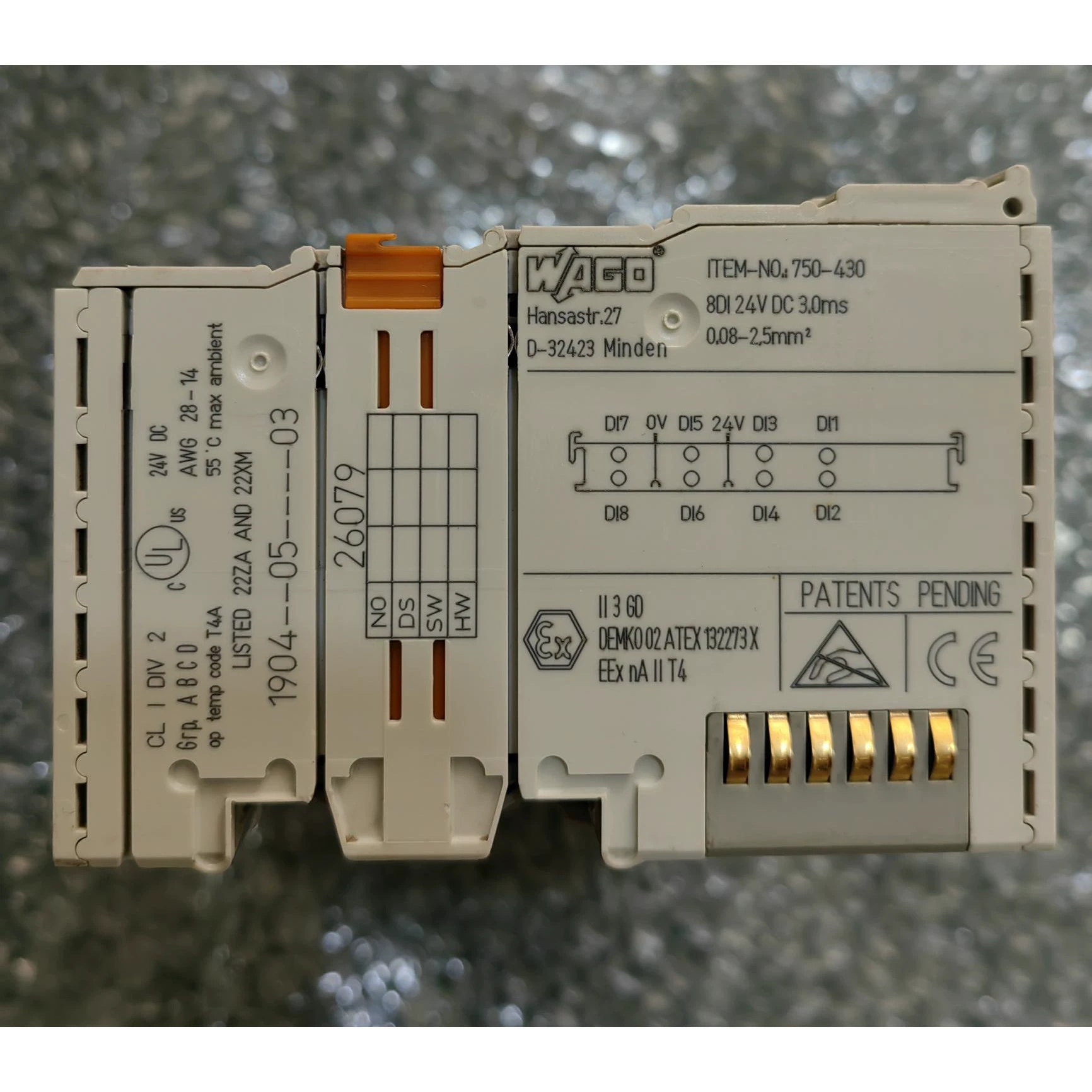

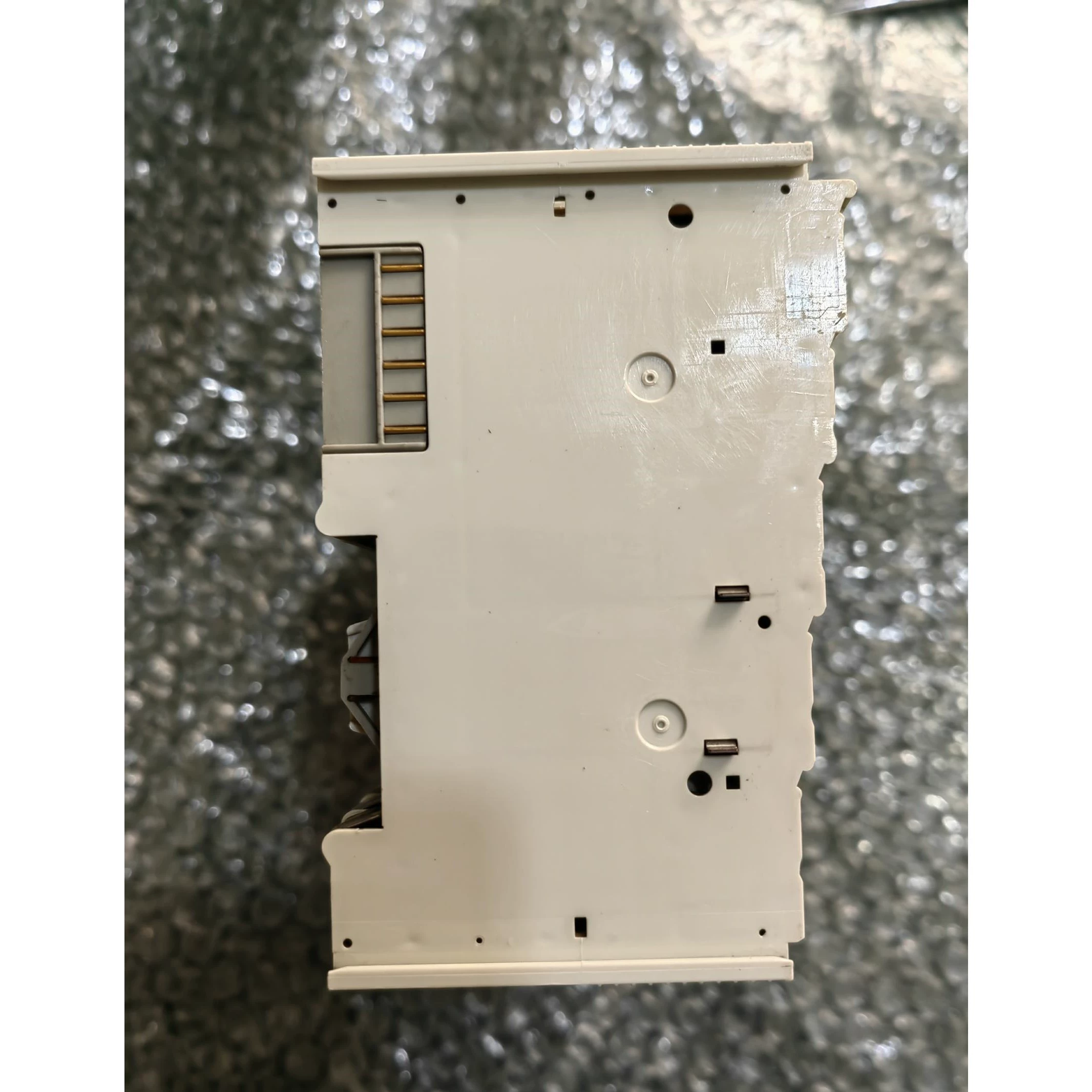

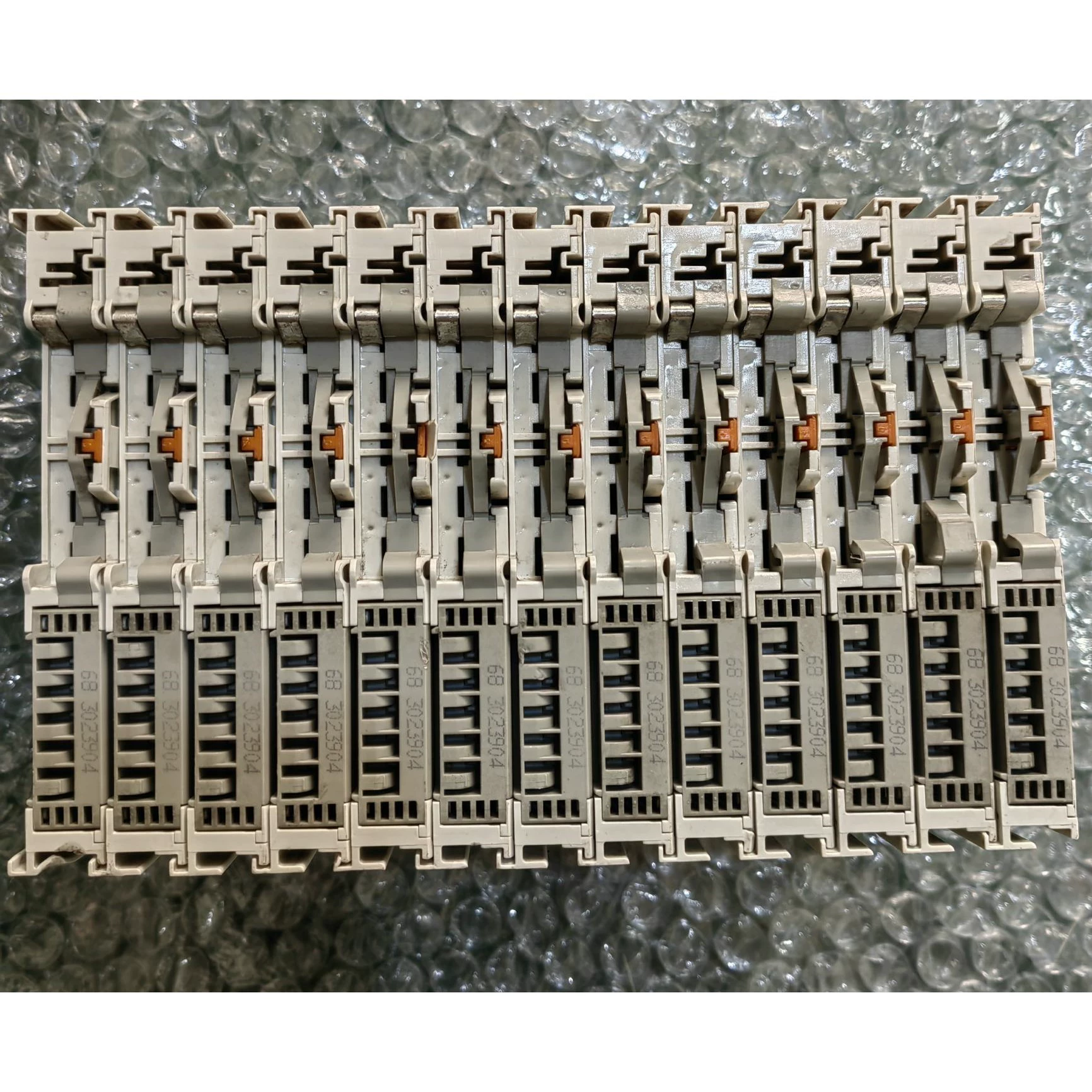

Gebrauchtes WAGO 750-430 Modul.
Spezifikationen
| Brand | WAGO |
|---|---|
| Model | 750-430 |
| Origin | Germany |
| Eccn | NO US CLASSIFICATION |
| Color | light gray |
| Depth | 67.8 mm / 2.669 inches |
| Width | 12 mm / 0.472 inches |
| CAS-No. | 1303-86-2; 1317-36-8; 7439-92-1 |
| Height | 100 mm / 3.937 inches |
| Inputs | 8DI 24V DC 3.0ms |
| PU (SPU) | 1 pcs |
| Unspsc | 32,151,705 |
| Weight | 47 g |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| Fire load | 1.097 MJ |
| Isolation | 500 V system/field |
| eCl@ss 9.0 | 27-24-26-04 |
| Indicators | LED (A-D) green: Status DI 1, DI 3, DI 5, DI 7; LED (E-H) green: Status DI 2, DI 4, DI 6, DI 8 |
| Wire gauge | AWG 28-14 |
| eCl@ss 10.0 | 27-24-26-04 |
| Signal type | Digital |
| Input filter | 3 ms |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Mounting type | DIN-35 rail |
| Supply voltage | 24 V DC |
| Connection type | Input |
| Protection type | IP20 |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| ATEX certificate | DEMK002 ATEX 132273X |
| Housing material | Polycarbonate; polyamide 6.6 |
| Pollution degree | 2 per IEC 61131-2 |
| Shock resistance | 15g per IEC 60068-2-27 |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Sensor connection | 8 x (1-wire) |
| Conformity marking | CE |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Connection capacity | 0.08-2.5mm² |
| Pluggable connector | fixed |
| Signal type (voltage) | 24 VDC |
| Input characteristic | high-side switching |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Ambient temperature | 55 °C max |
| Supply voltage (system) | 5 VDC; via data contacts |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| RoHS Compliance Status | Compliant,With Exemption |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Number of digital inputs | 8 |
| Connection technology | 8 x CAGE CLAMP® (inputs) |
| Operating temperature code | T4 A |
| Voltage range for signal (0) | −3 … +5 VDC |
| Voltage range for signal (1) | 15 … 30 VDC |
| Ambient temperature (storage) | -40 … +85 °C |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| Ambient temperature (operation) | 0 … +55 °C |
| Input data width (internal) max. | 8 Bit |
| REACH Candidate List Substance | Diboron trioxide; Lead; Lead monoxide |
| SCIP notification number (Italy) | 64e6a585-7b76-4924-a05c-aef46547e320 |
| Connectable conductor materials | Copper |
| SCIP notification number (France) | 3d5594d8-7027-40a7-9627-3b7612be3b86 |
| SCIP notification number (Poland) | d4241cd3-4511-4f20-9c87-e399f47b0f4d |
| SCIP notification number (Sweden) | 58683497-9961-47e3-8bdd-95e2e0fb6ada |
| Total number of channels (module) | 8 |
| SCIP notification number (Austria) | 00d5cb10-9577-49ff-9f8c-4737e239998b |
| SCIP notification number (Belgium) | 00c774e8-6079-49e1-aade-246673171b4f |
| SCIP notification number (Denmark) | e82562a7-6aab-4e96-96b2-57918bb6ff18 |
| SCIP notification number (Finland) | 7c9760d0-5d72-4c7d-b58e-f5c123ae6a63 |
| SCIP notification number (Germany) | 7d985e60-c571-4c7b-ba0f-c7e9d97c86c5 |
| SCIP notification number (Hungary) | ac027e0e-3493-4a05-8337-2b44a60acf93 |
| SCIP notification number (Romania) | 42c979a3-cc4a-494a-8732-d697be83ad36 |
| Current consumption (system supply) | 17 mA |
| Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
| SCIP notification number (Bulgaria) | 79a6e9de-ef3a-472b-9185-74221c6a00f6 |
| SCIP notification number (Netherlands) | a28ffd06-b67b-4ae9-a7f2-2bc8a81daa8e |
| Relative humidity (without condensation) | 95 % |
| SCIP notification number (Czech Republic) | 640a6064-7f7e-4223-903a-d2783a1df3f5 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Input current per channel for signal (1) typ. | 2.8 mA |
| Current carrying capacity (power jumper contacts) | 10 A |
| Permissible SO2 contaminant concentration at a relative humidity < 75 % | 25 ppm |
| Permissible H2S contaminant concentration at a relative humidity < 75 % | 10 ppm |
