SICK GSE6-N1111 1052449 Photoelektrischer Sensor - Neu
Beschreibung

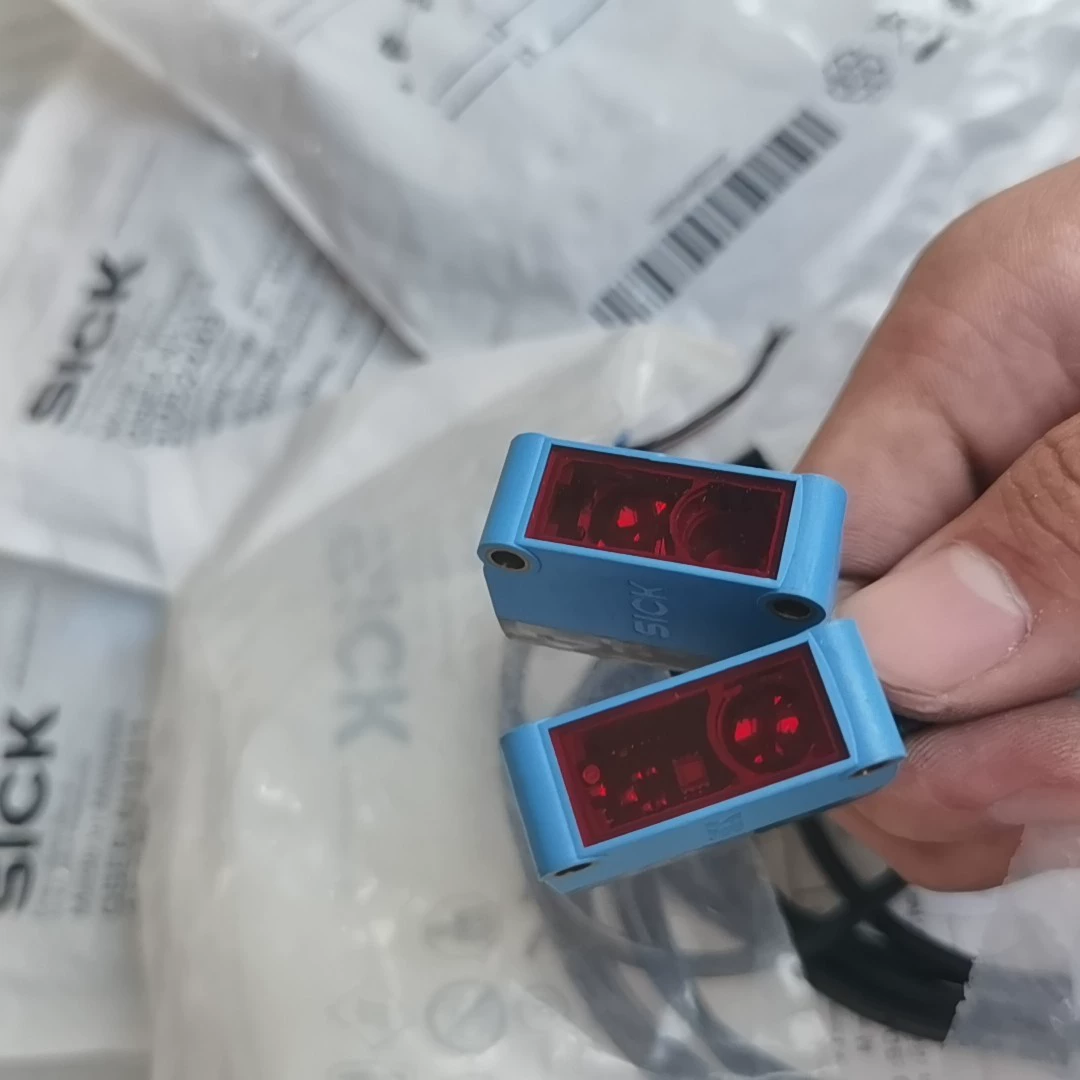

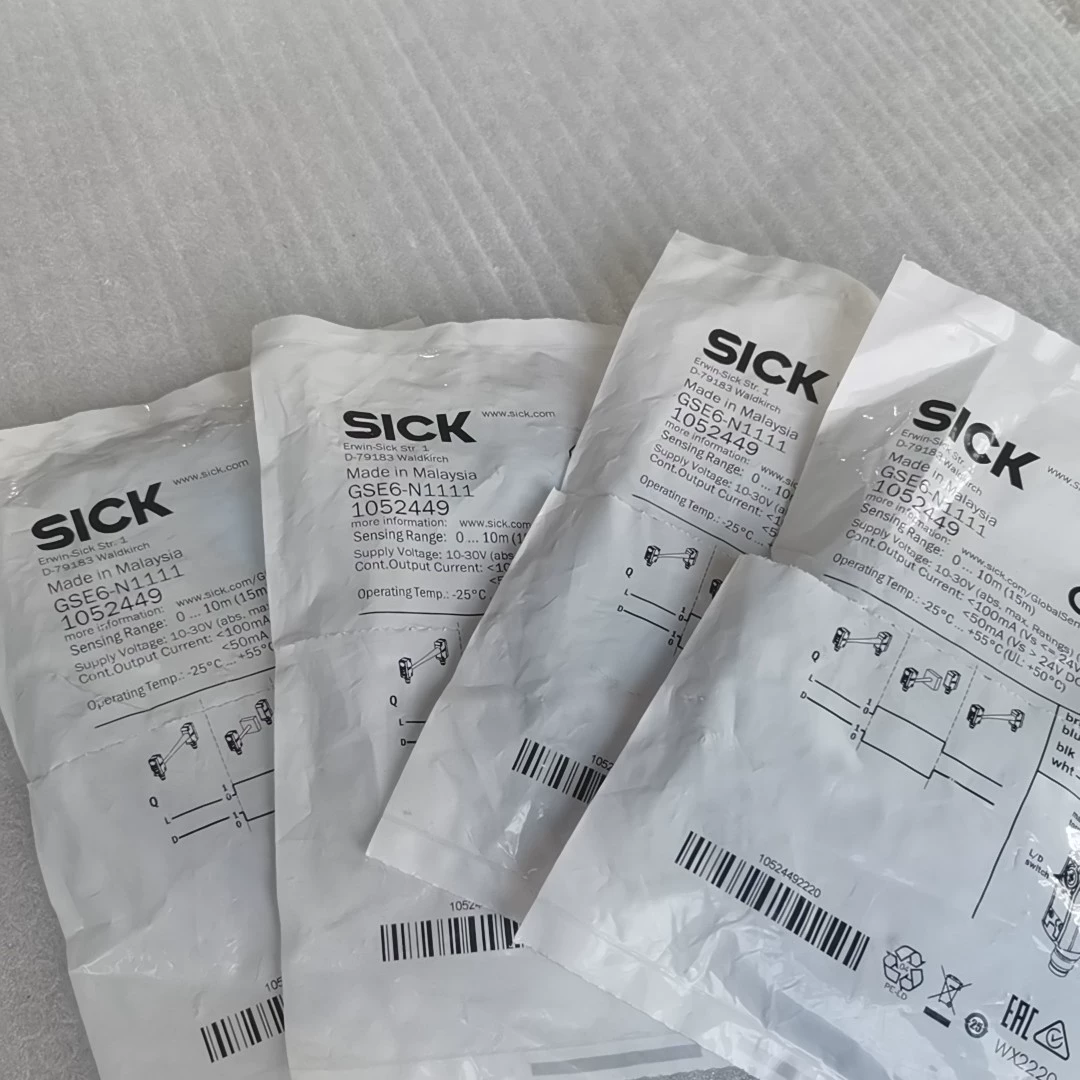

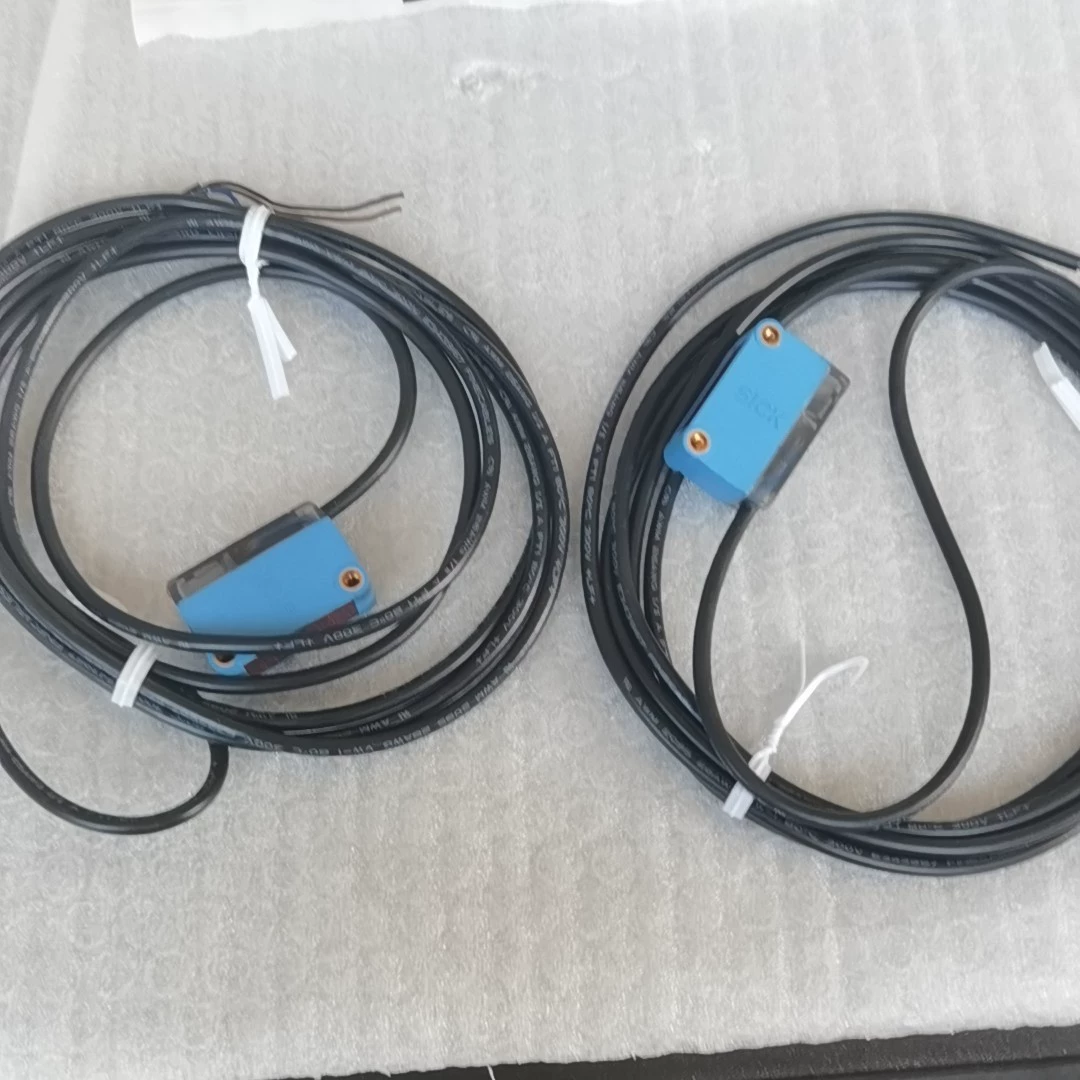

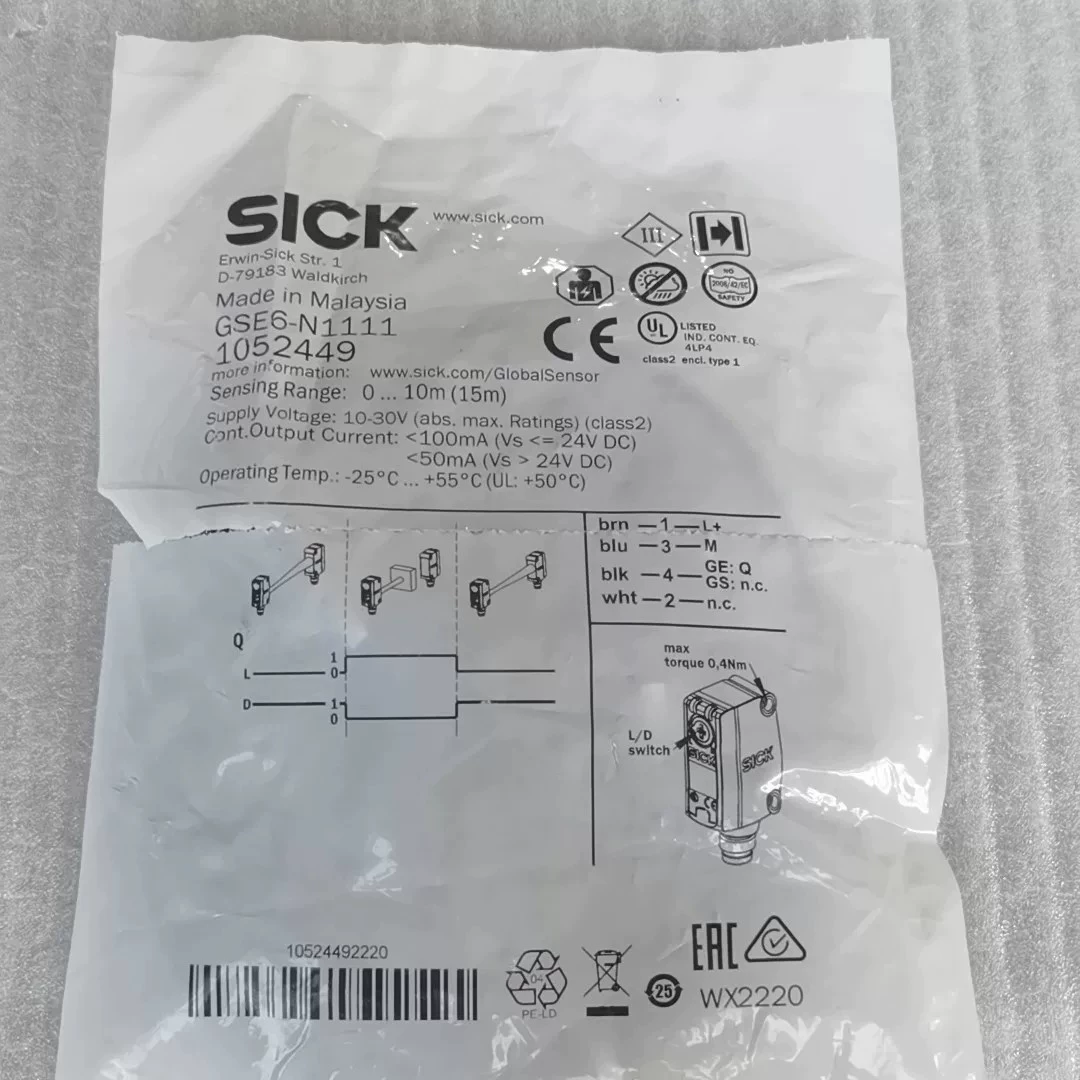

SICK GSE6-N1111 1052449 photoelektrischer Sensor, neu in der Originalverpackung mit vollständiger Verkabelung. Versorgungsspannung: 10-30 V (abs. max. Nennwerte) (Klasse 2).
Spezifikationen
| Brand | SICK |
|---|---|
| Model | GSE6-N1111 |
| MPN | 1052449 |
| Origin | Malaysia |
| Connection type | cable |
| Supply Voltage | 10-30 V (abs. max. Ratings) (class2) |
| Response time | < 500 µs |
| Switching frequency | 1000 Hz |
| Sensing Range | 0 ... 10m (15m) |
| Weight | 170 g |
| operating_temp | -25°C ... +55°C (UL: +50°C) |
| Ambient operation temperature max. | 55 °C |
| Connection type detail | Cable, 3-wire |
| Dimension length | 31.5 mm |
| Dimension width | 12 mm |
| Enclosure rating | IP67 |
| Functional principle | Through-beam photoelectric sensor |
| Housing | rectangular |
| Housing material detail | ABS/PC |
| Light source | LED |
| Max Torque | 0,4Nm |
| Object distance max. | 15000 mm |
| Object distance min. | 0 mm |
| SICK article code | p246951 |
| SICK type | GSE6-N1111 |
| Switching mode | Light/dark switching |
| Switching output | NPN |
| Type of light | visible red light |
