Mitsubishi Electric Q64AD A/D-Wandler-Modul - Gebraucht
Angebot anfragen
Teilen Sie uns mit, was Sie benoetigen. Wir melden uns mit Informationen zu Verfuegbarkeit und Preisen.
Anfrage startenBeschreibung

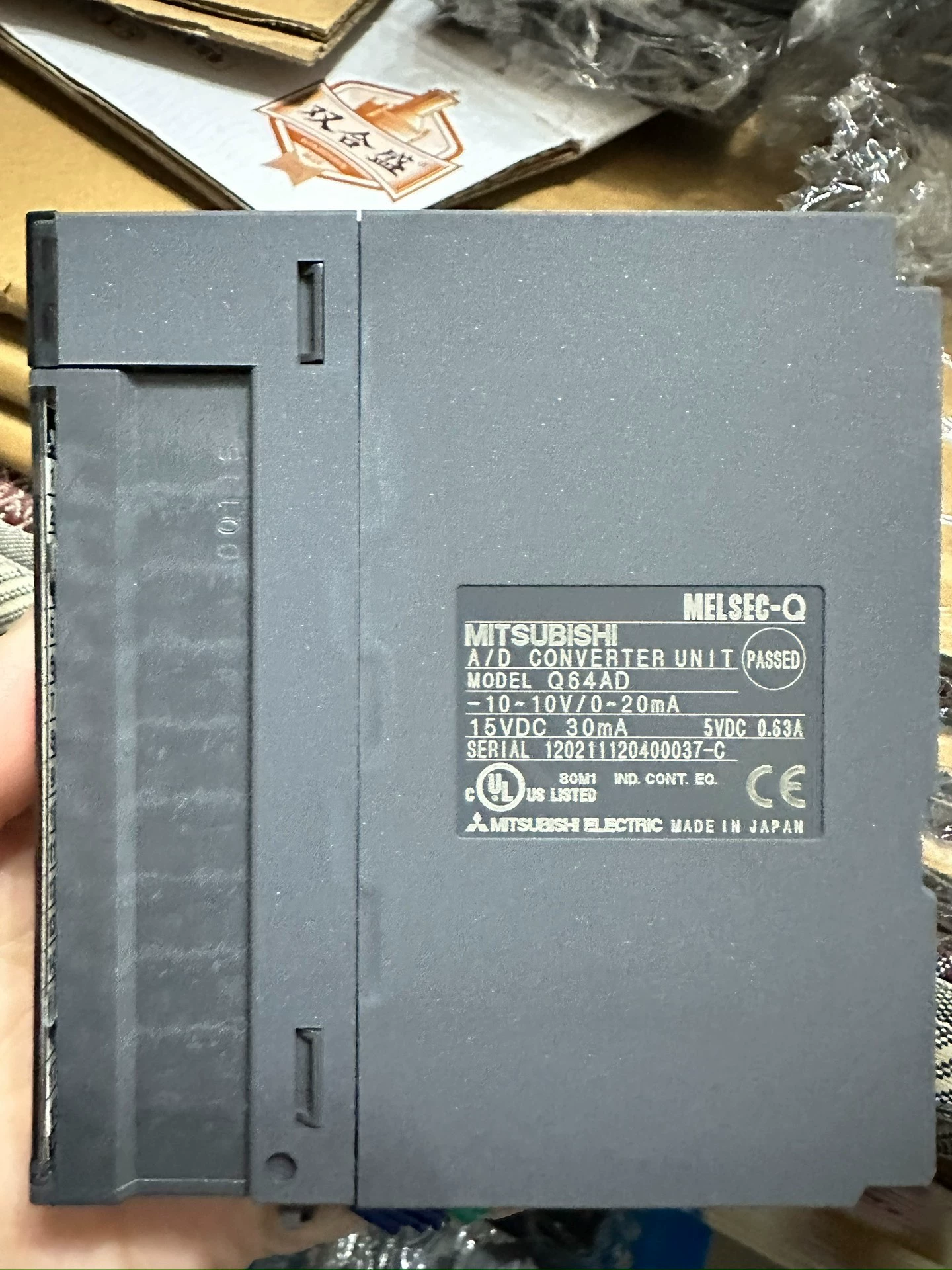

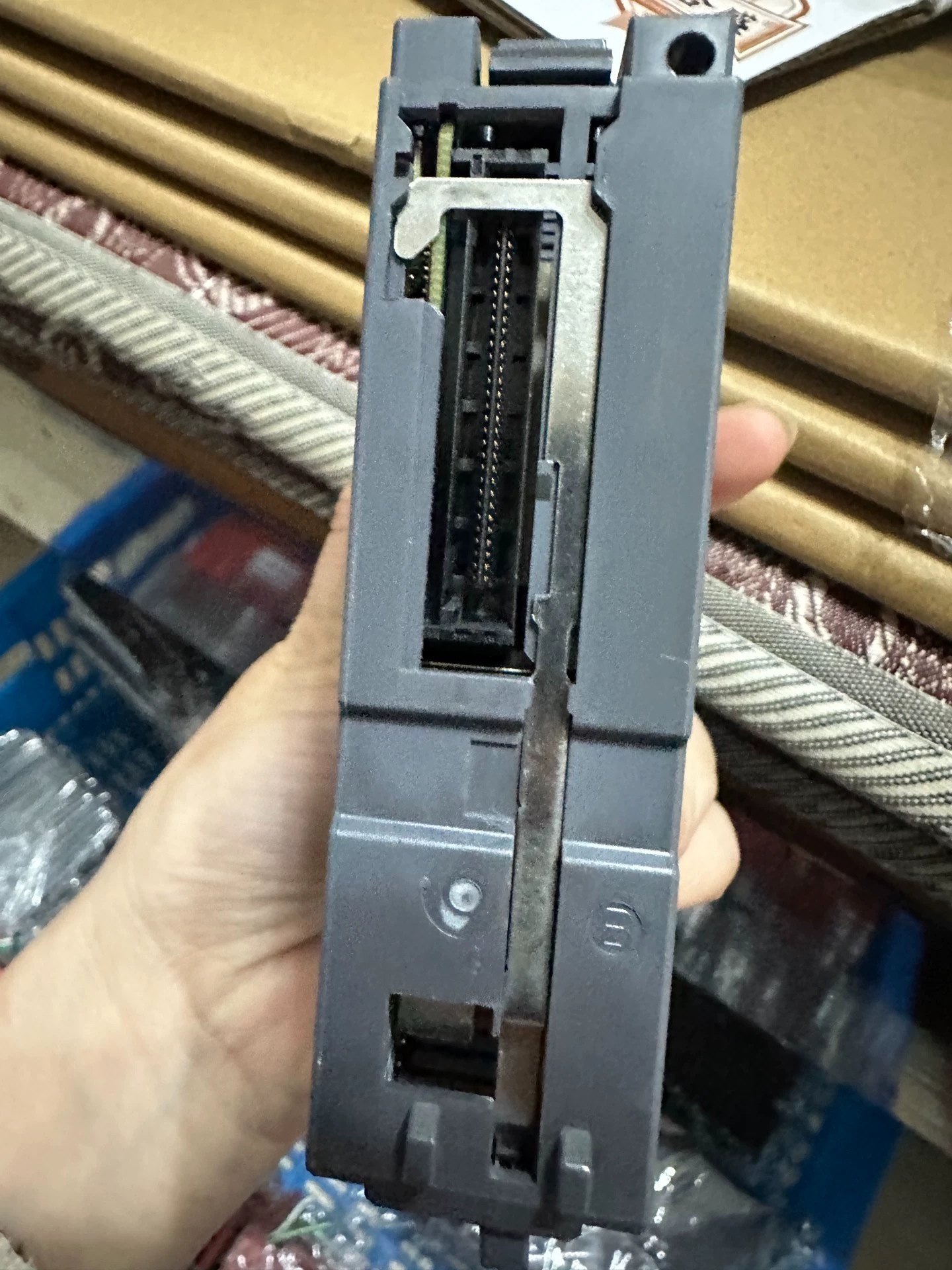

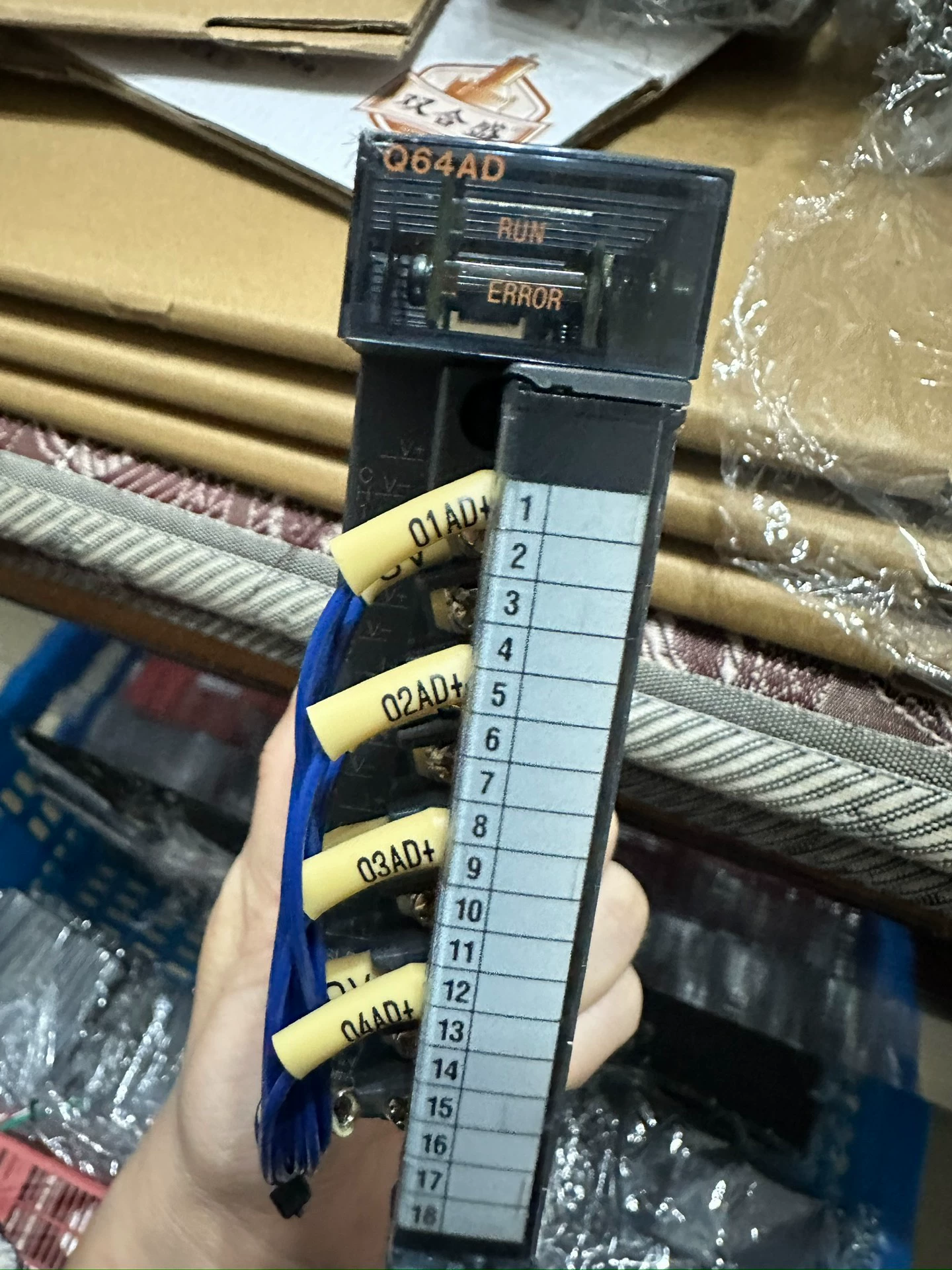

Mitsubishi Electric Q64AD ist ein gebrauchtes A/D-Wandler-Modul der MELSEC-Q-Serie.
Spezifikationen
| Brand | Mitsubishi Electric |
|---|---|
| Model | Q64AD |
| Origin | Japan |
| 0...5 V | Normal resolution mode: 0...4000 (1.25 mV) High resolution mode: 0...12000 (0.416 mV) |
| 1...5 V | Normal resolution mode: 0...4000 (1.0 mV) High resolution mode: 0...12000 (0.333 mV) |
| Depth | 90 mm |
| Width | 27.4 mm |
| Weight | 0.18 kg |
| -10...10 V | Normal resolution mode: -4000...4000 (2.5 mV) High resolution mode: -16000...16000 (0.625 mV) |
| 4...20 mA | Normal resolution mode: 0...4000 (4 µA) High resolution mode: 0...12000 (1.33 µA) |
| Input Range | -10~10 V / 0~20 mA |
| Sales status | On sale |
| Digital output | Normal resolution mode: -4096...+4095 High resolution mode: -12288...+12287, -16384...+16383 |
| Isolation method | Between I/O terminals and programmable controller power supply: Photocoupler Between analog input channels: Non-isolation |
| External interface | 18-point terminal block (M3 screw) |
| A/D conversion speed | 80 µs/channel (When there is temperature drift, the time calculated by adding 160 µs will be used regardless of the number of channels used) |
| Analog input — Voltage | -10...+10 V DC (input resistance 1 MΩ) |
| Conformance standard | UL cUL CE(EMC) CE(RoHS) KC(EMC) LR NK DNV ABS RINA BV |
| Voltage input — 0...10 V | Normal resolution mode: 0–4000 (2.5 mV) High resolution mode: 0–16000 (0.625 mV) |
| Current input — 0...20 mA | Normal resolution mode: 0–4000 (5 µA) High resolution mode: 0–12000 (1.66 µA) |
| Insulation resistance | Between I/O terminals and programmable controller power supply: 500 V DC 20 MΩ or higher |
| External Supply Current | 30 mA |
| External Supply Voltage | 15 VDC |
| Ambient temperature | With temperature drift correction: within ±0.3 % Without temperature drift correction: within ±0.4 % |
| External dimensions — Height | 98 mm |
| Dielectric withstand voltage | Between I/O terminals and programmable controller power supply: 500 V AC for 1 minute |
| Number of analog input points | 4 points (4 channels) |
| Number of occupied I/O points | 16 points (I/O assignment: Intelligent 16 points) |
| Absolute maximum input — Voltage | ±15 V |
| Internal current consumption (5 V DC) | 0.63 A |
| I/O characteristics, resolution — Input range | Digital output value (maximum resolution) |
| Accuracy (accuracy relative to maximum value of the digital output value) — Ambient temperature: 25±5 ﾟC | Within ±0.1 % |
