Keyence KV-40DR - Gebraucht
Beschreibung

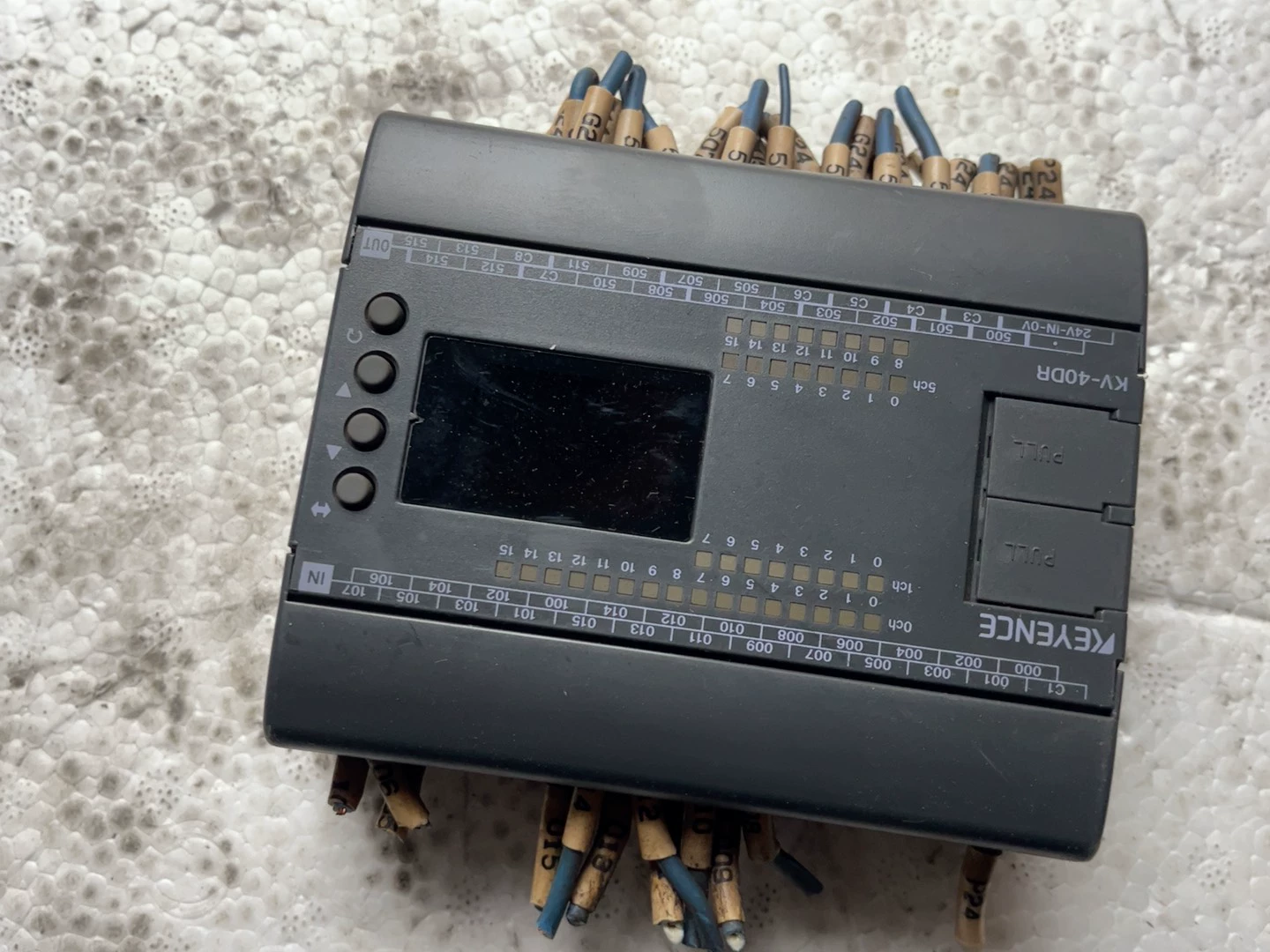

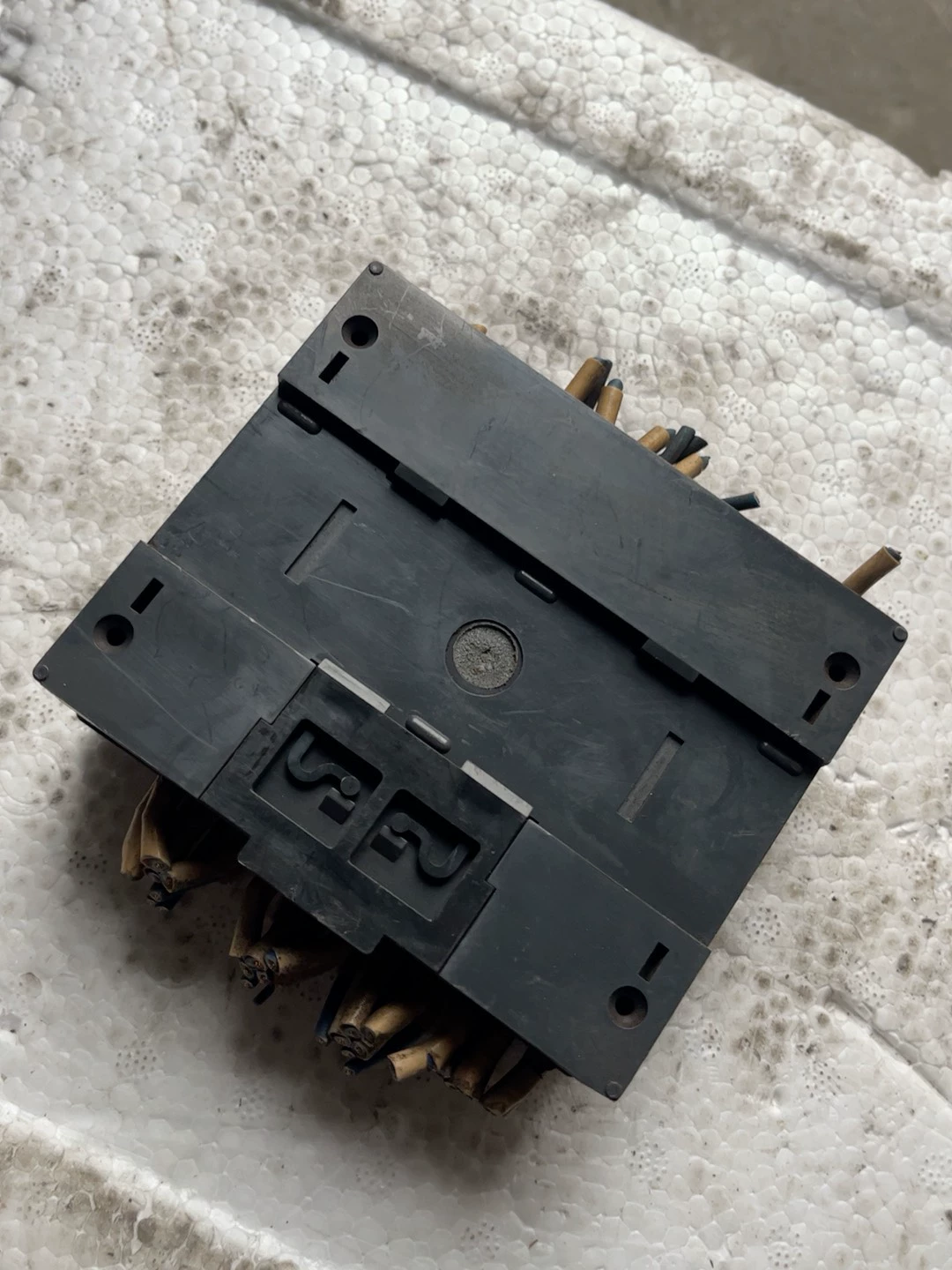

Gebrauchte Keyence KV-40DR, ausgelegt für 24 V DC Eingang.
Spezifikationen
| Brand | Keyence |
|---|---|
| Model | KV-40DR |
| HS Code | 853710 |
| Input Voltage | 24 V |
| Vibration resistance continuous frequency | 10 to 57 Hz / 57 to 150 Hz |
| Input power supply voltage | 24 VDC (+ 10%, -20%) |
| Withstand voltage | 1,500 VAC for 1 minute (between the power supply terminal and the I/O terminals and between all the external terminals and the case) |
| Vibration resistance intermittent frequency | 10 to 57 Hz / 57 to 150 Hz |
| Weight | Approx 330g |
| Operating ambient temperature | 0 to 50°C (no freezing), 0 to 45°C (KZ-P3) |
| Vibration resistance continuous acceleration | 4.9 m/s2 |
| Vibration resistance continuous amplitude | 0.035 mm |
| Vibration resistance intermittent acceleration | 9.8 m/s2 |
| Vibration resistance intermittent amplitude | 0.075 mm |
| Allowable instantaneous outage time | Less than 2 ms |
| Ambient operating atmosphere | Minimal amount of dust and corrosive gas present |
| Ambient temperature for storage | -20 to 70°C (no freezing) |
| Insulation resistance | 50 MΩ or more (tested with a 500 VDC megger, between the power supply terminal and the input terminal and between all the external terminals and the case) |
| Internal current consumption | ≤180 mA |
| Noise immunity | 1,500 Vp-p or more, pulse width: 1 µs, 50 ns (by way of a noise simulator), conforms to EN standards (EN 61000-4-2/-3/-4/-6) |
| Operating ambient humidity | 35 to 85% RH (no condensation) |
| Shock resistance | Conforms to JIS C 0041, 150 m/s m/s2 |
| Type | DC power supply type base unit |
