Keyence IV2-G500MA - Gebraucht
Beschreibung

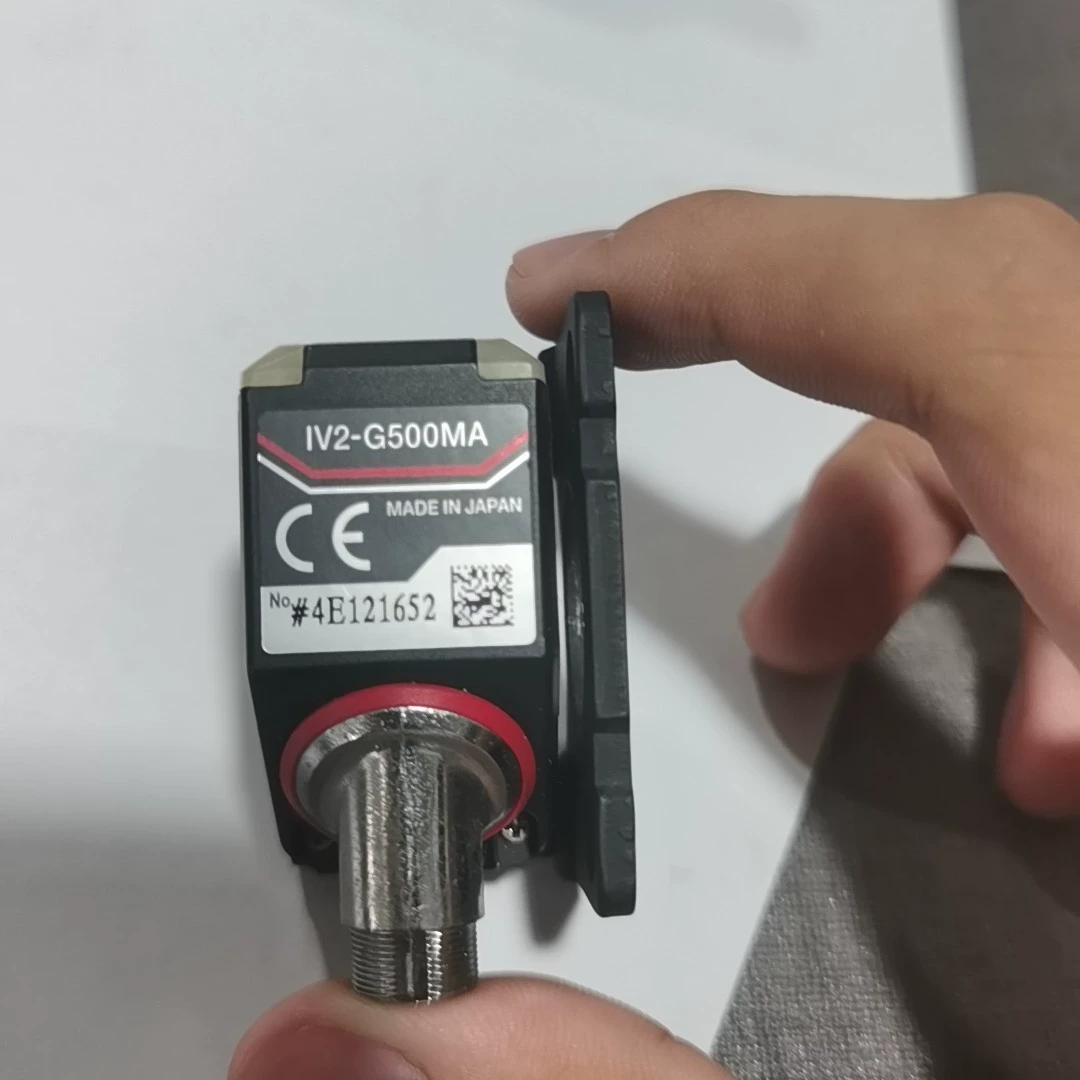

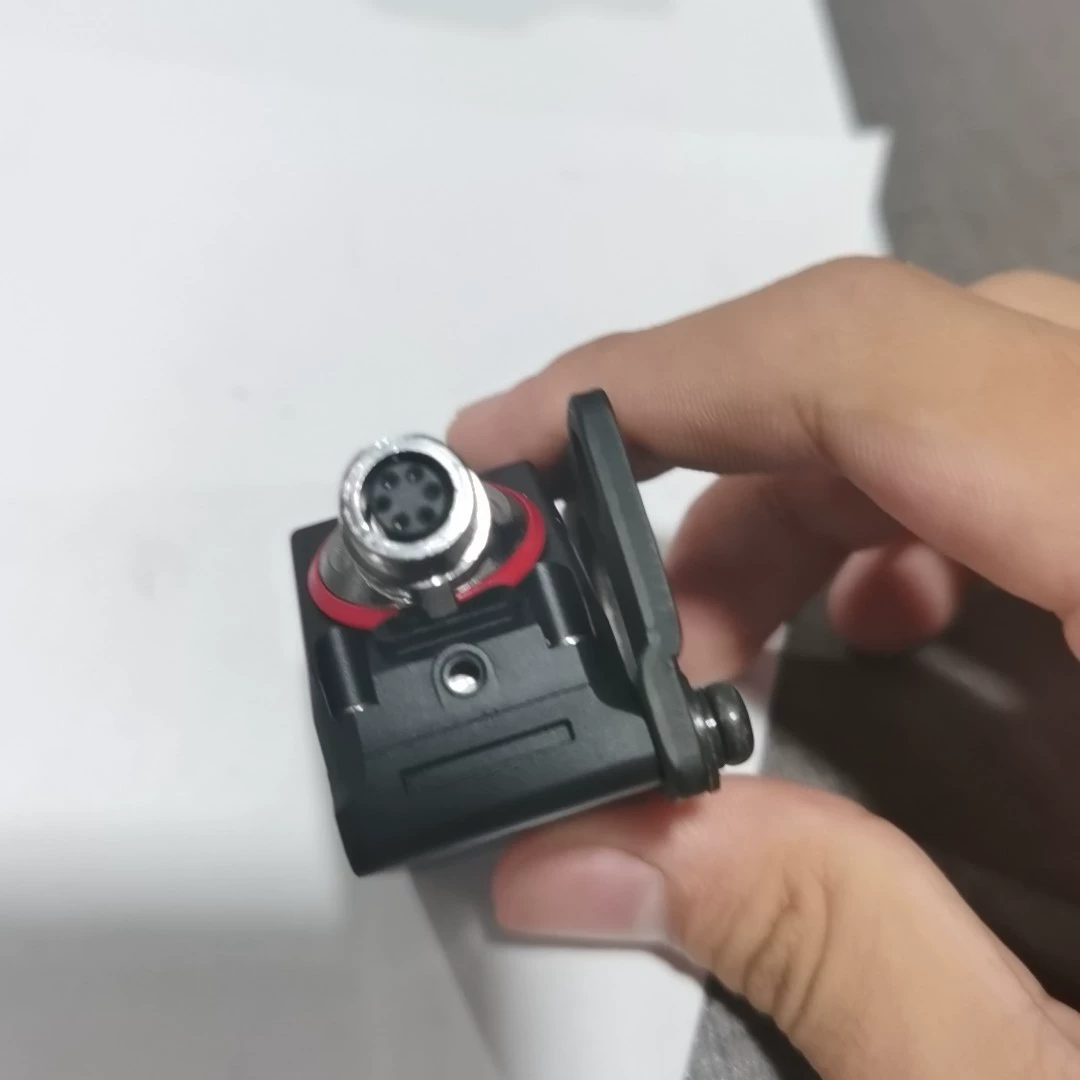

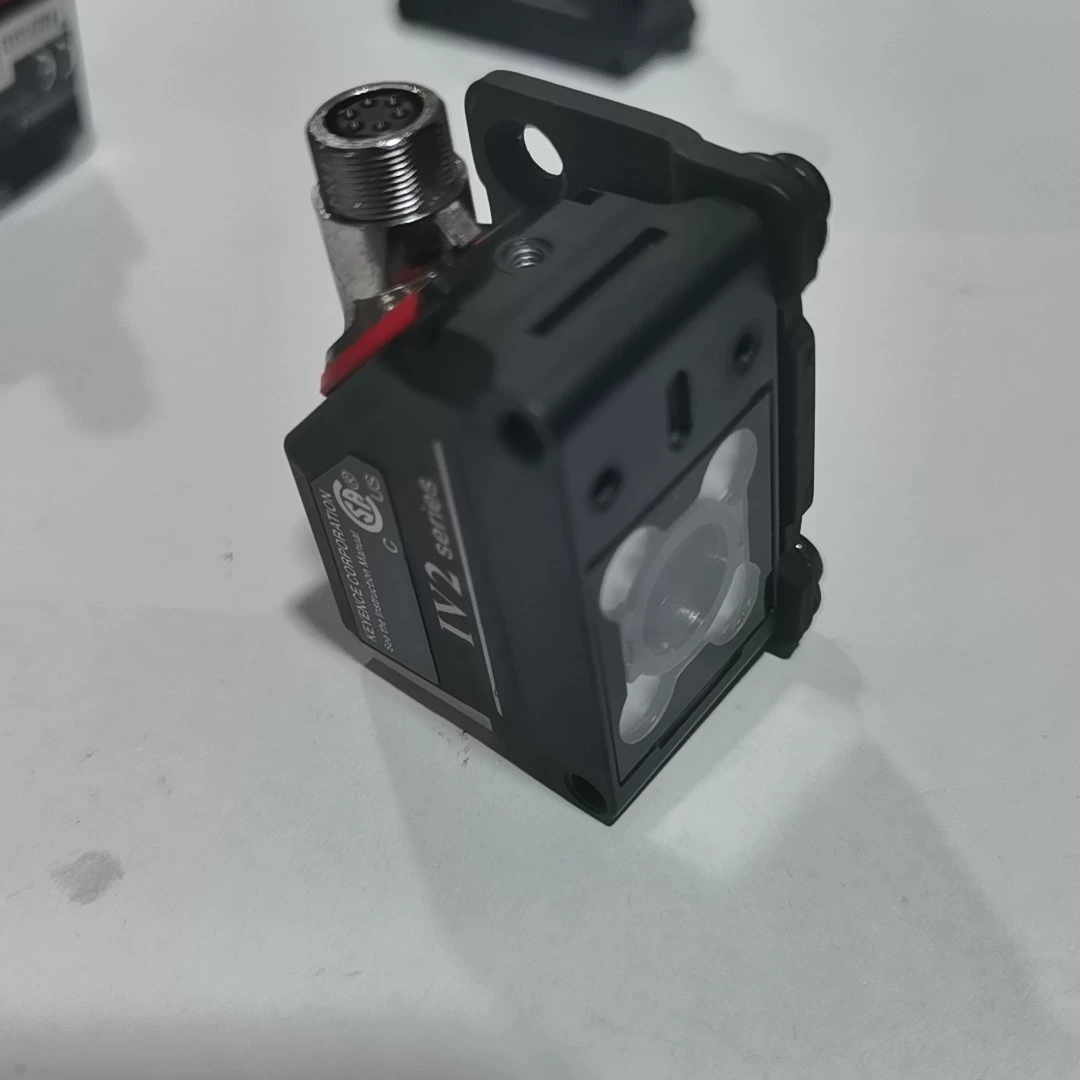

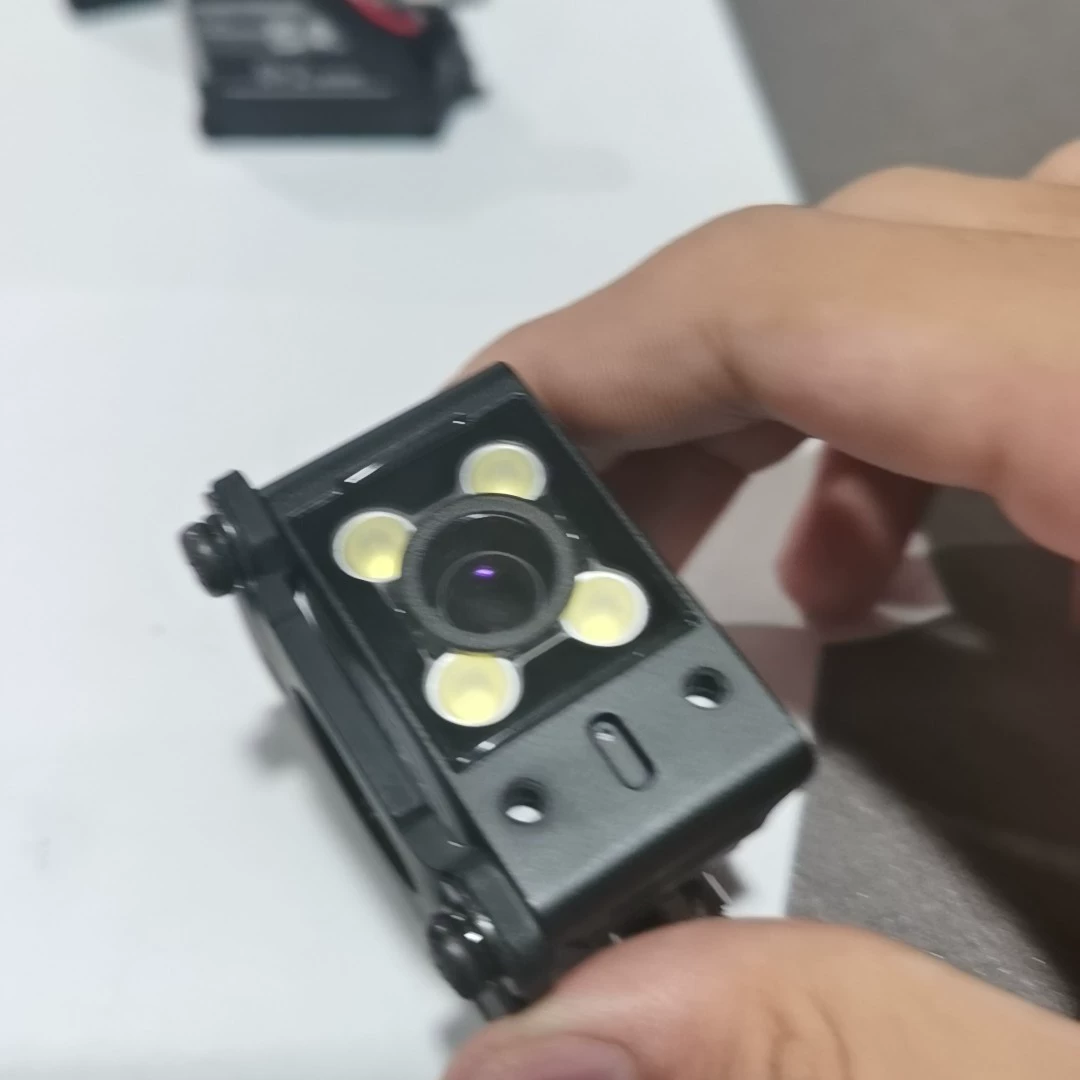

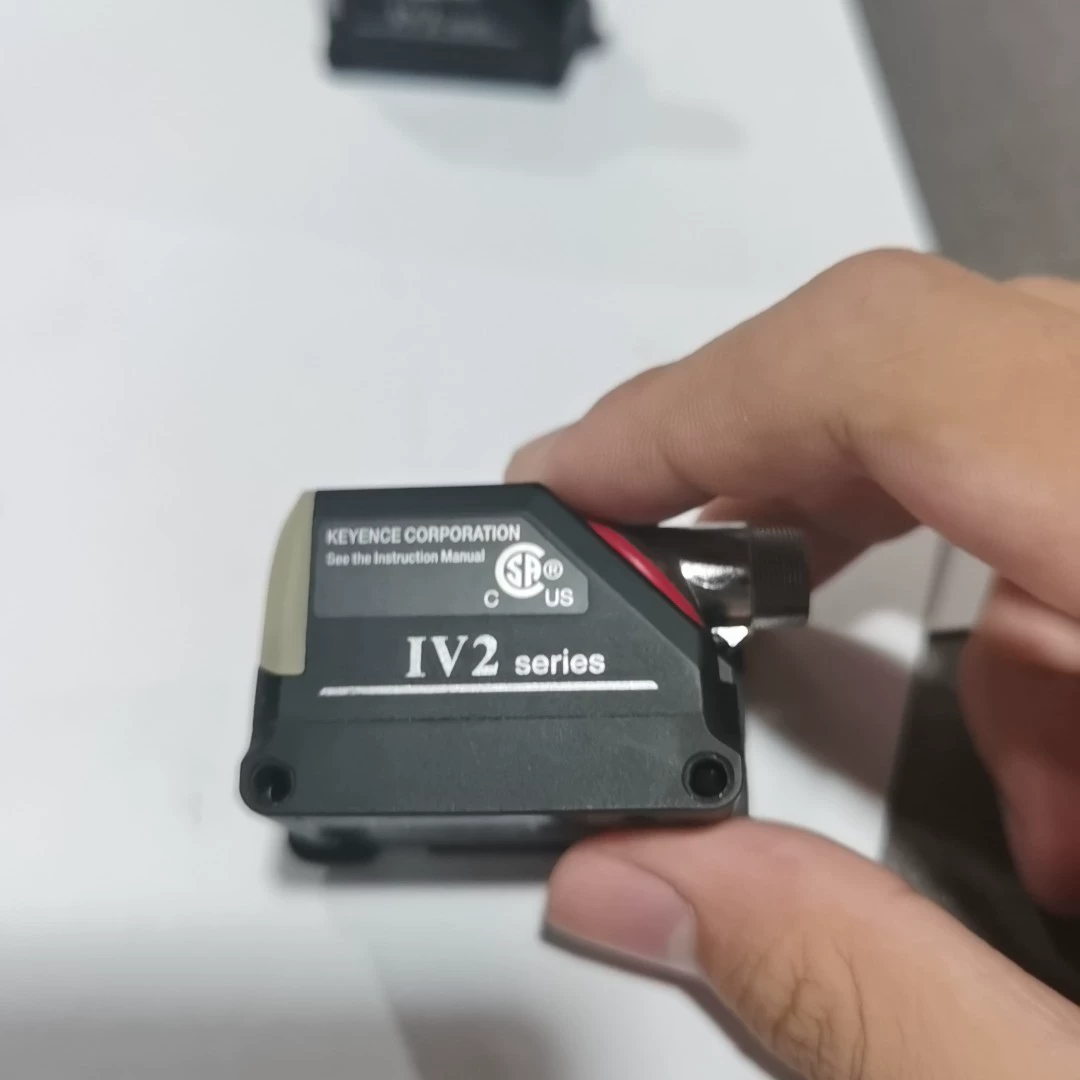

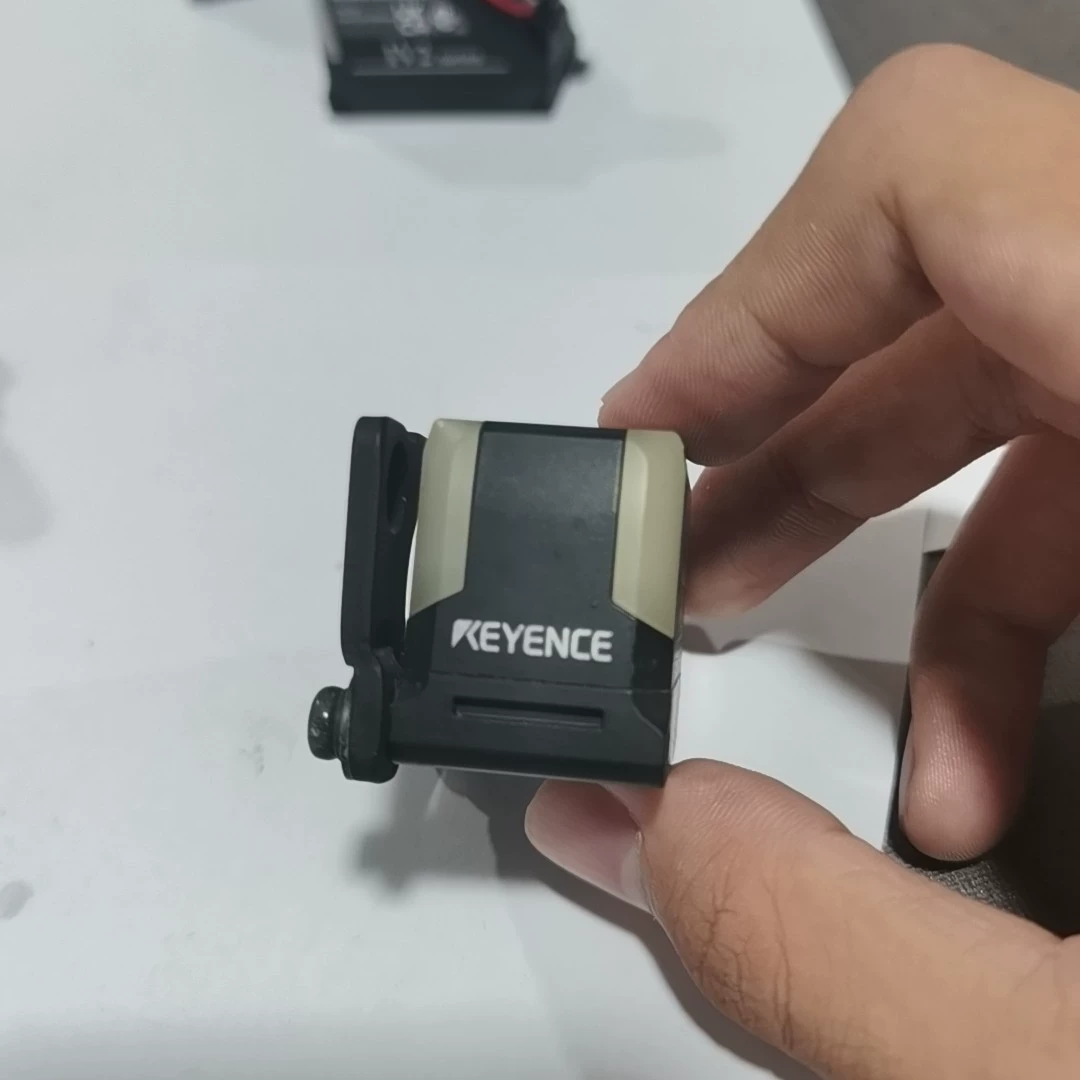

Gebrauchter Vision-Sensor Keyence IV2-G500MA.
Spezifikationen
| Brand | Keyence |
|---|---|
| Model | IV2-G500MA |
| Origin | Japan |
| Weight | Approx. 75 g |
| Ambient temperature | 0 to +50°C (32 to 122°F); no freezing |
| Relative humidity | 35 to 85% RH (No condensation) |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm 0.06"; 2 hours in each of the X, Y, and Z directions *3 |
| Enclosure rating | IP67 *2 |
| Exposure time | 1/20 to 1/50000 |
| Field of view | Installation distance of 20 mm 0.79" : 10 (H) × 7.5 (V) mm 0.39" (H) × 0.30" (V) to Installation distance of 500 mm 19.69" : 200 (H) × 150 (V) mm 7.87" (H) × 5.91" (V) |
| Focus adjustment | Automatic *1 |
| Illumination | White LED |
| Image receiving element | 1/3 inch monochrome CMOS |
| Indicators | 2 (the same display details for both indicators) |
| Lighting method | Switchable between pulse lighting and DC lighting |
| Material | Main unit case: Zinc die-casting, Front cover: Acrylic (hard coat), Operation indicator cover: TPU |
| Number of pixels | 752 (H) × 480 (V) |
| Number of pixels | 752 (H) × 480 (V) |
| Reference distance | 40 to 150 mm |
| Shock resistance | 500 m/s² 1640.4'/s 2, 6 times in each of the 3 directions *3 |
| Type | Standard model |
| Type | 1/3 inch monochrome CMOS |
