Keyence IB-1000 Lasersensor-Verstärker - Gebraucht
Beschreibung

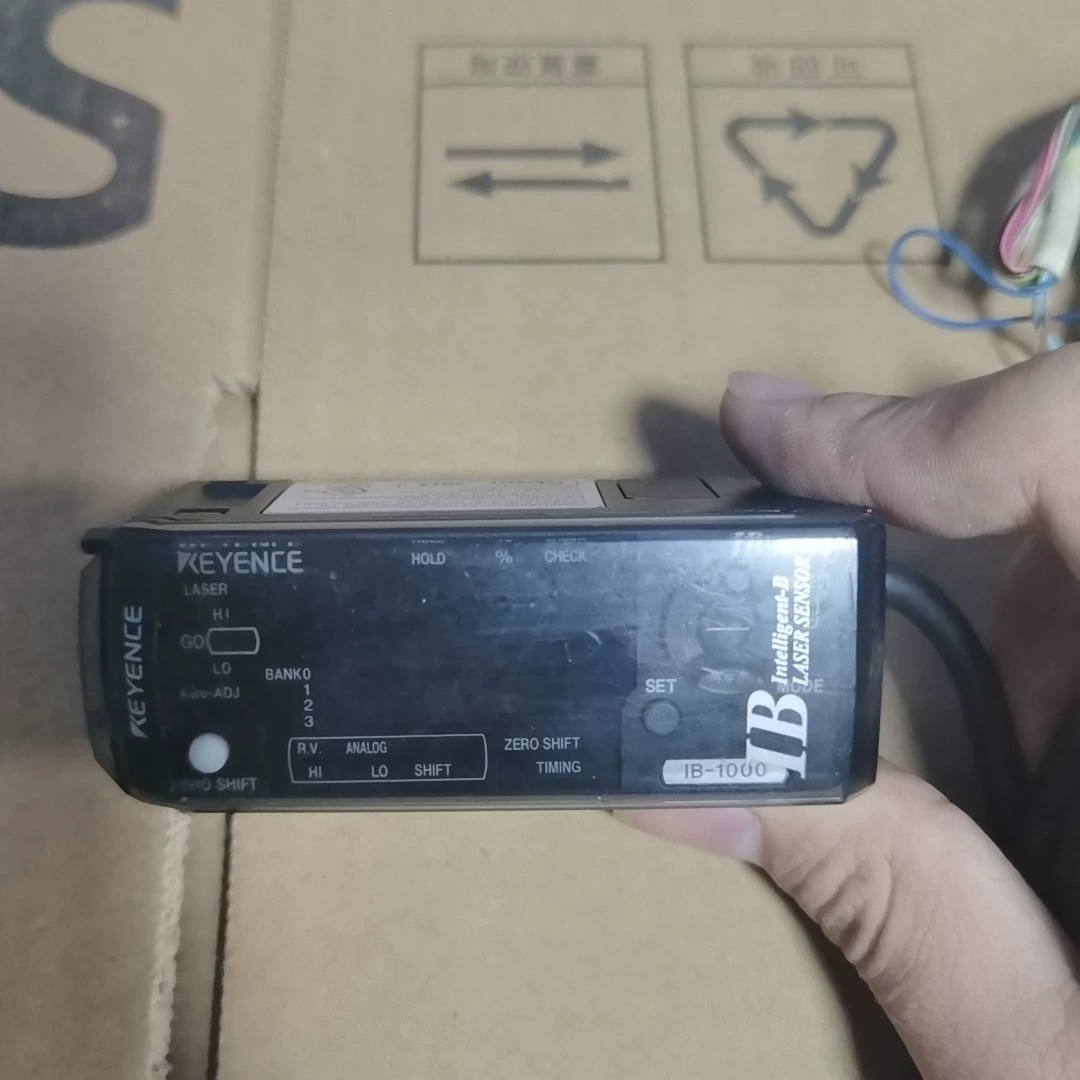

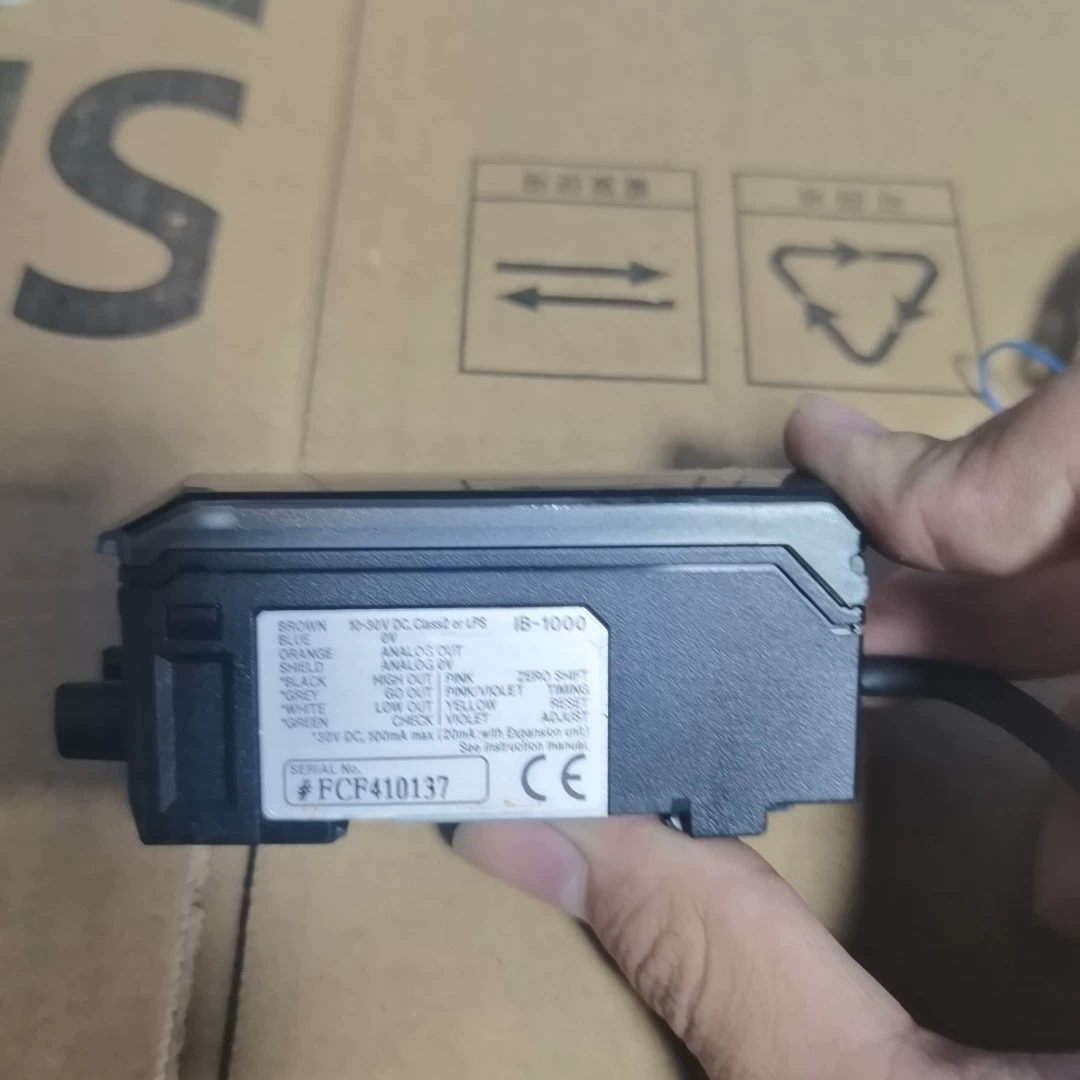

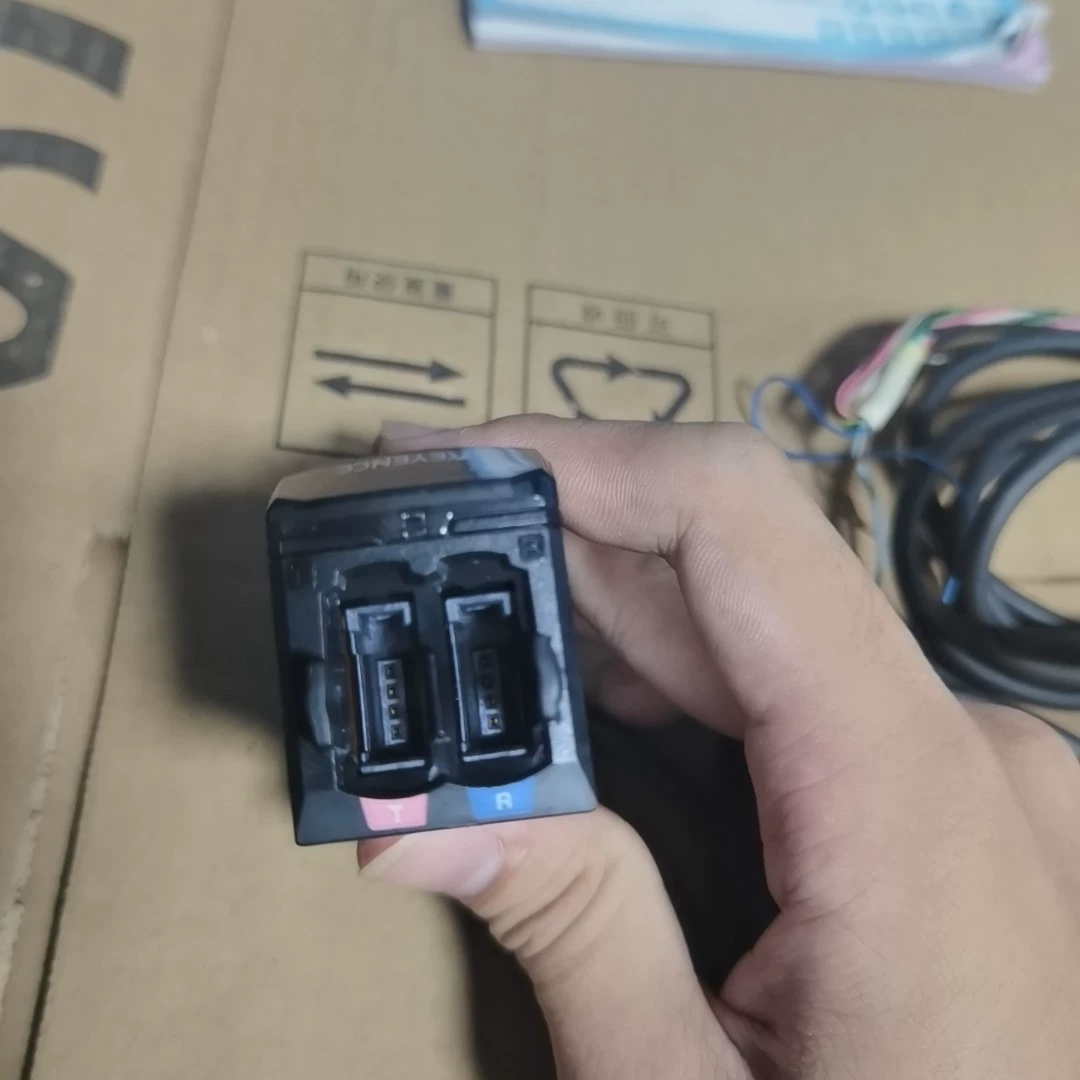

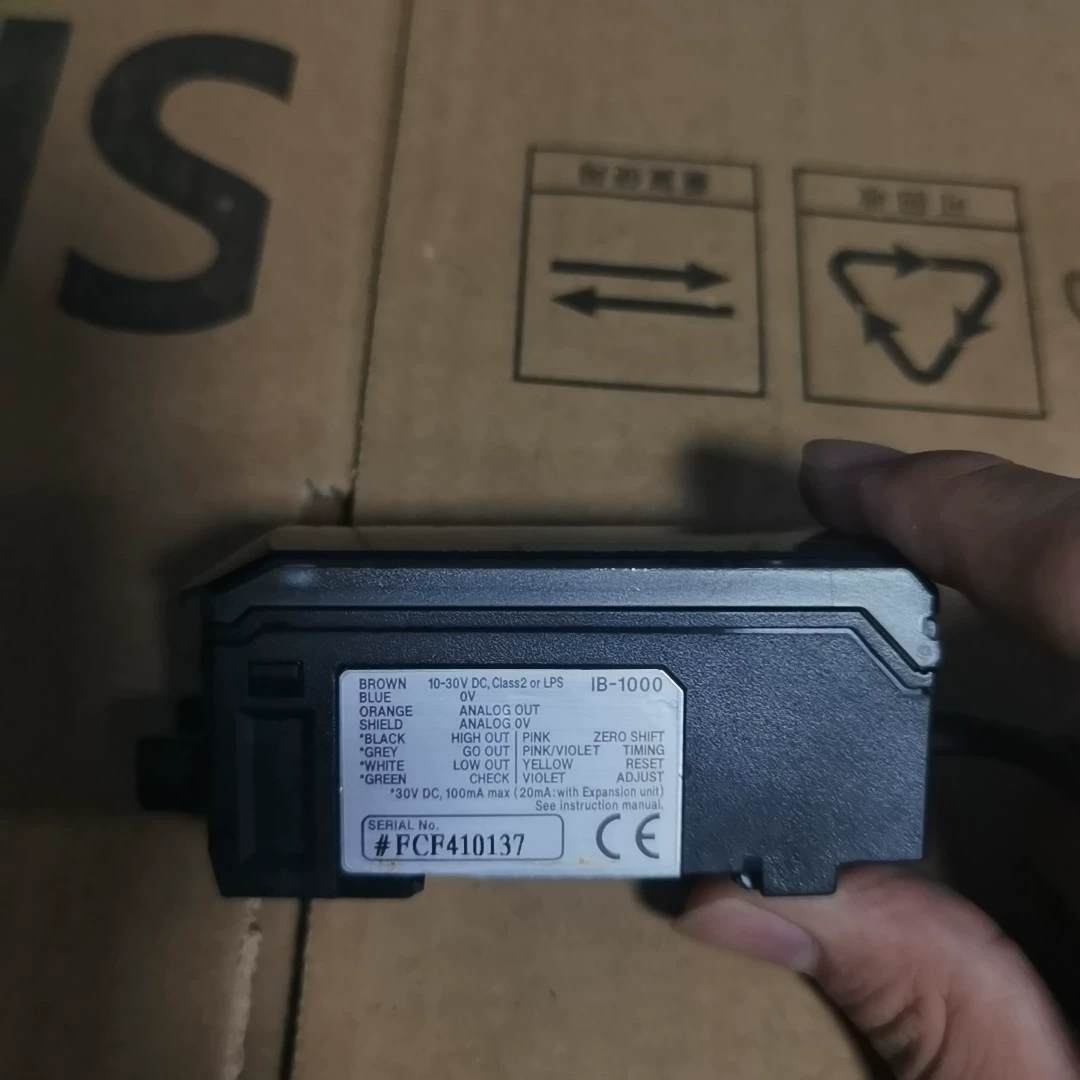

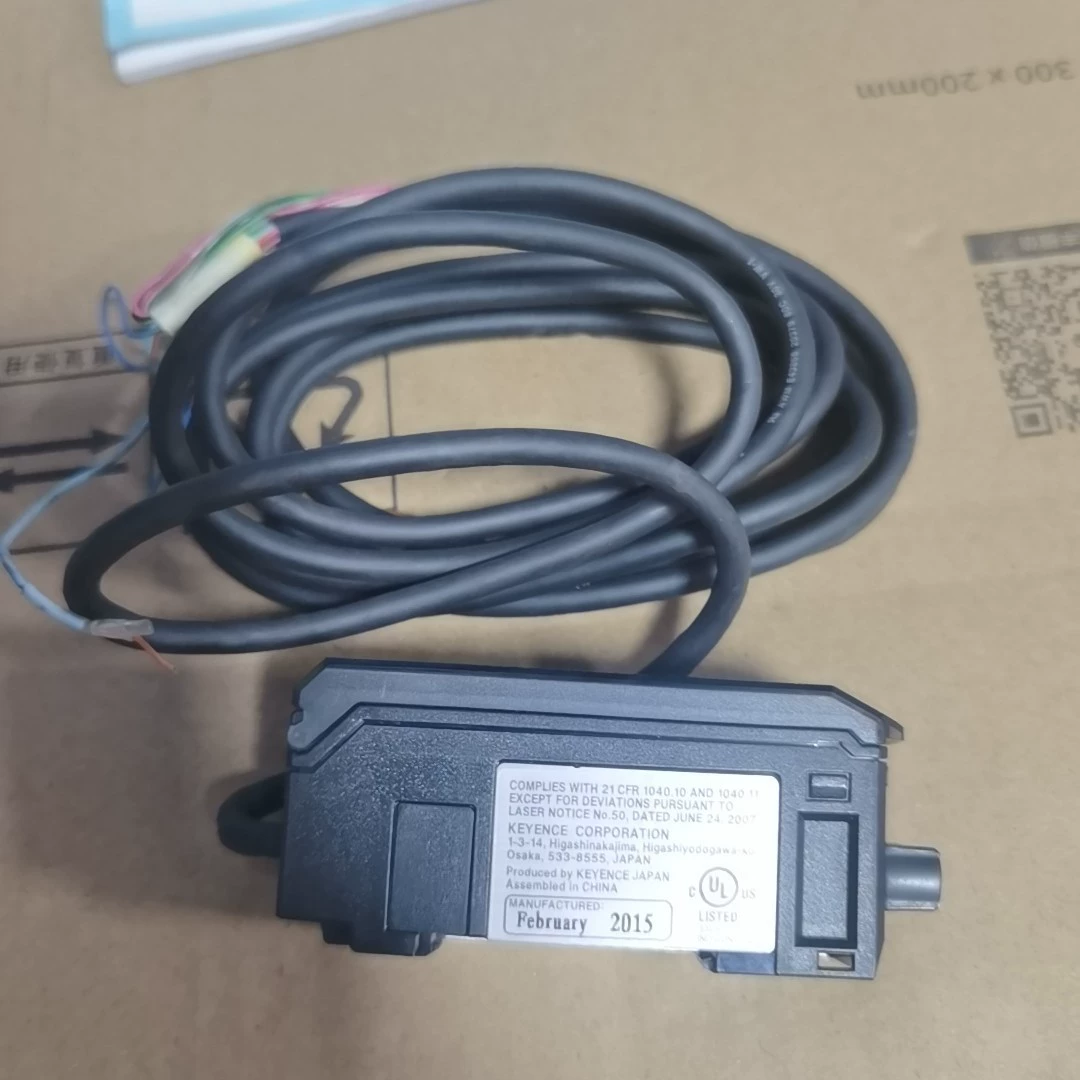

Gebrauchter Keyence IB-1000 Lasersensor-Verstärker.
Spezifikationen
| Brand | Keyence |
|---|---|
| Model | IB-1000 |
| Supply Voltage | 10-30 V DC, Class2 or LPS |
| Display range | –99.999 to 99.999, –99.99 to 99.99 –99.9 to 99.9, –99 to 99 (switchable) |
| Power consumption | ≤2400 mW (at 30 V, 80 mA max.) (including analog current output) |
| Output Current | 30 V DC, 100 mA max (20 mA with Expansion unit) |
| Analog output voltage | ±5 V, 1 to 5 V, 0 to 5 V Output impedance 100 Ω |
| Power voltage | 10 to 30 VDC, including ripple (P-P) 10% Class 2 or LPS |
| Ambient temperature | -10 to +50 °C; no freezing |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz, compound amplitude 1.5 mm, 2 hours each for X, Y, Z axes |
| Analog current output | 4 to 20 mA Maximum load resistance 350 Ω |
| Control Input | Bank switch input, zero shift input Non-voltage input; Zero shift input; Laser emission stop input; Timing input; Reset input; Adjust input |
| Control output | Judgment output (check output) Open collector (NPN/PNP switchable, N.O./N.C. switchable) |
| Digital display method | Dual7-segmentdisplay Upper level: 5 red digits Lower level: 5 green digits |
| Display resolution | 0.01 %, 0.1 %, 1 % (switchable) |
| Head compatibility | Yes |
| Main unit/Expansion unit | Main unit |
| Material | Main unit case/Front panel: polycarbonate, keytop: polyacetal, cable: PVC |
| Operating indicators | Judgment indicator: 2-color (green/red) LED (HI, GO, LO); Bank indicator: Green LED x 4; Laser emission warning indicator: Green LED; Others: Green LED x 8, red LED x 3 |
| Pollution degree | 2 |
| Type | DIN rail mount |
