Keyence FS-N40 Glasfaserverstärker - Gebraucht
Beschreibung

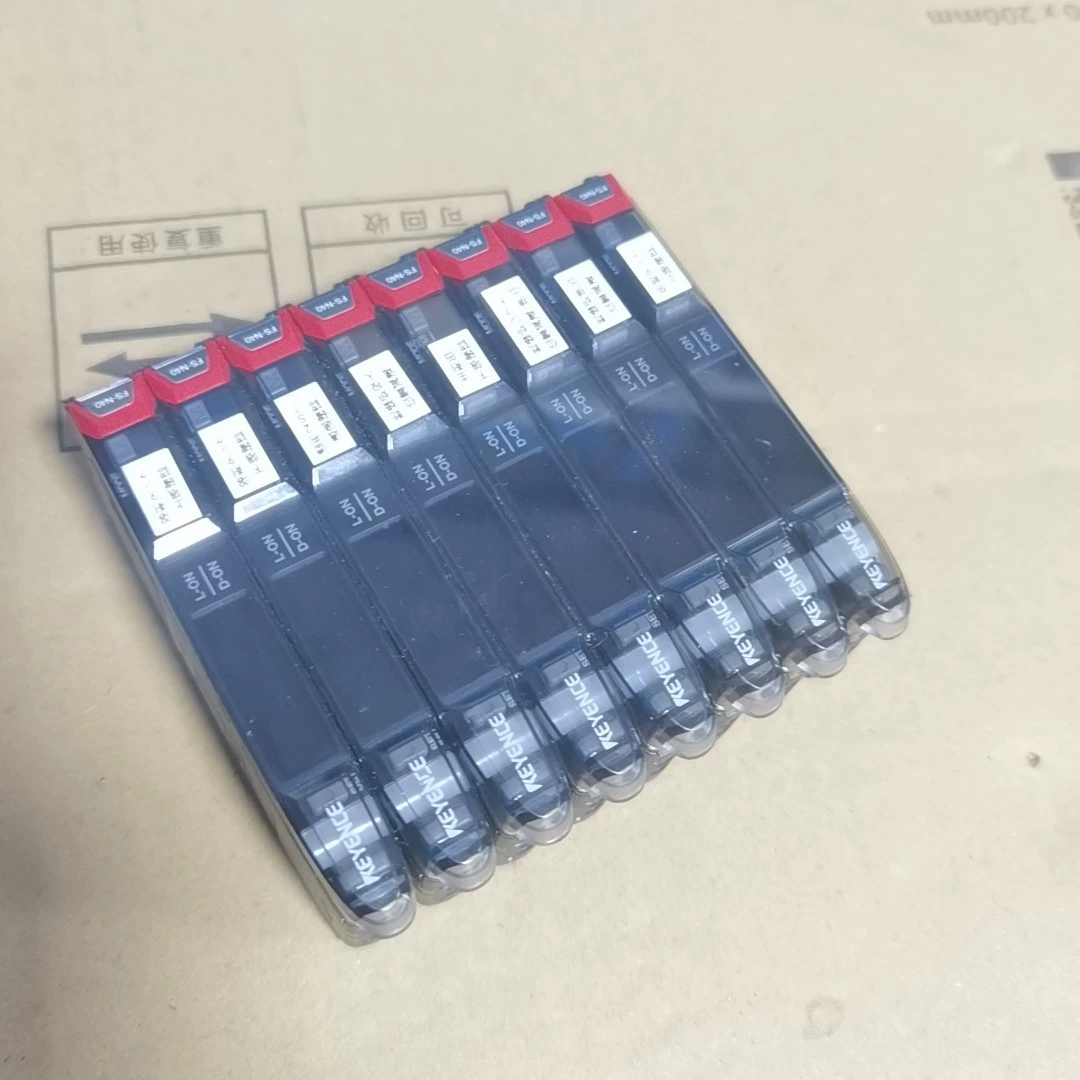

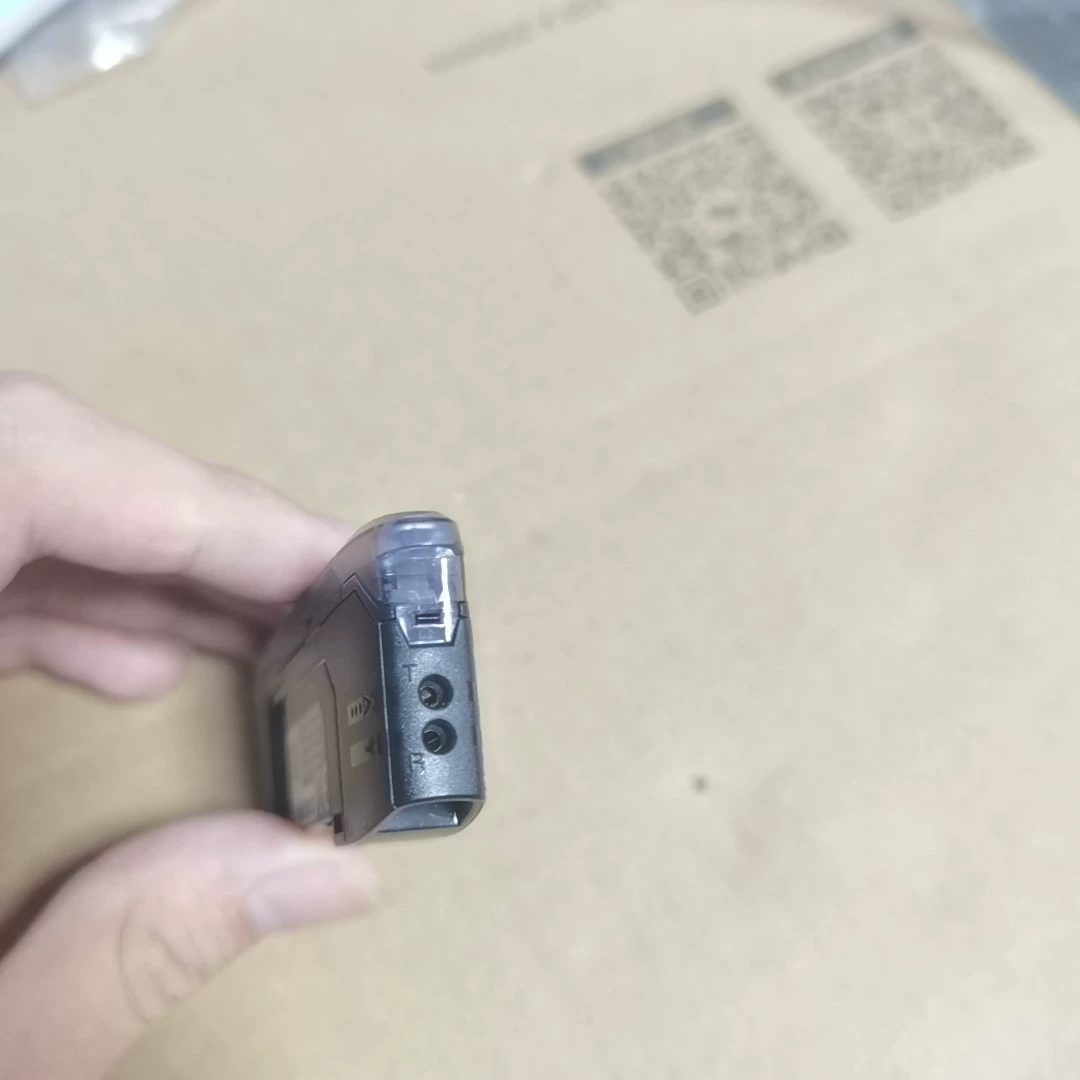

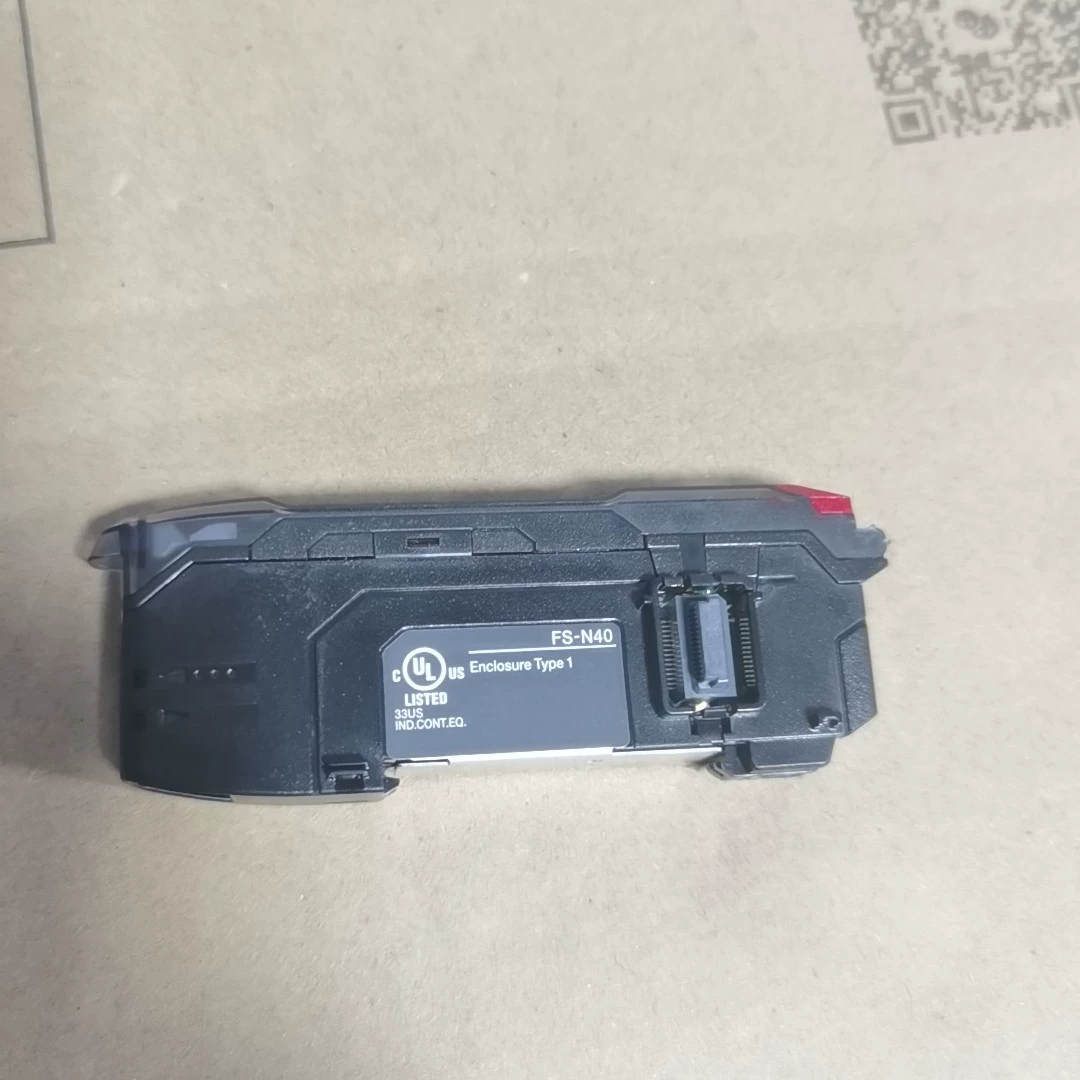

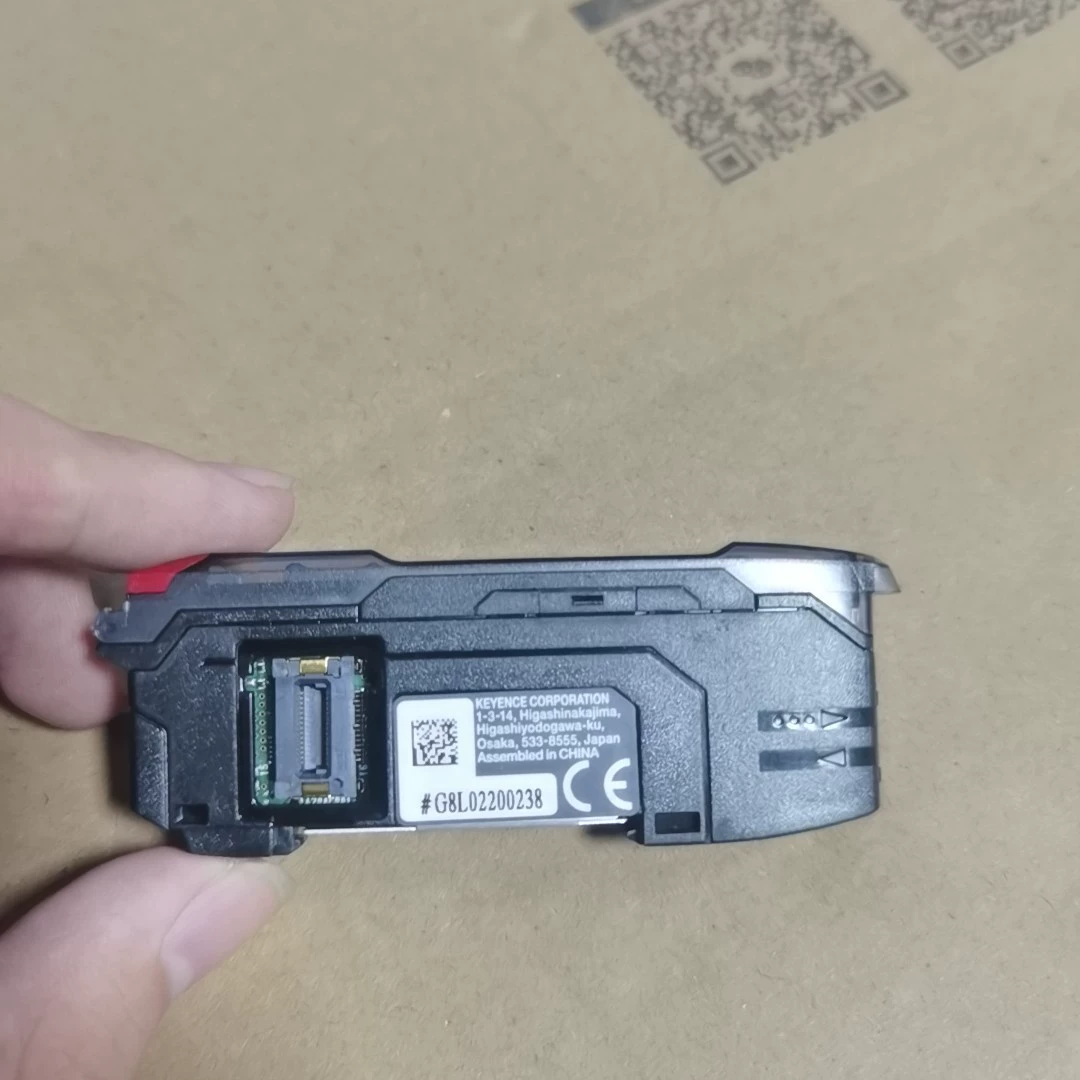

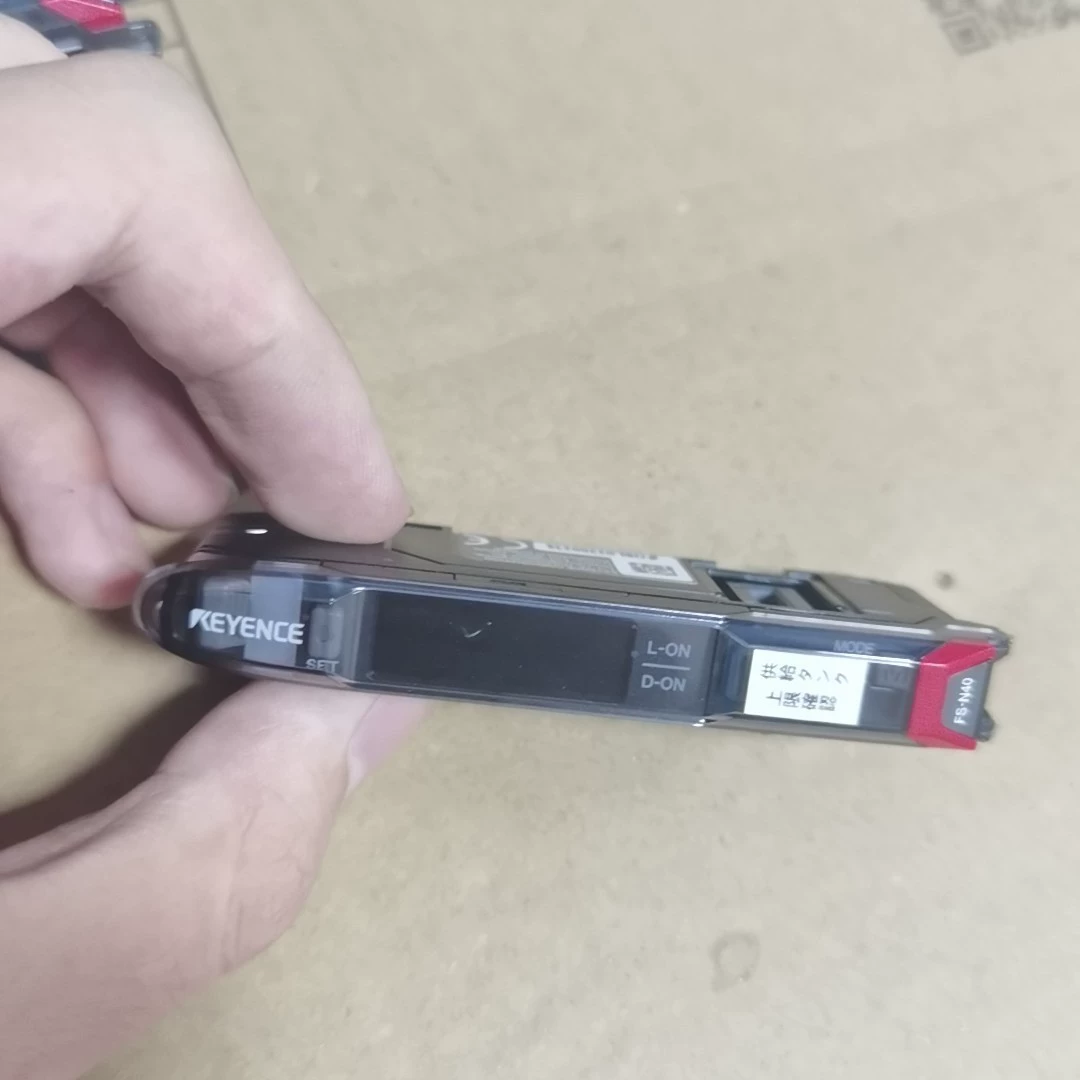

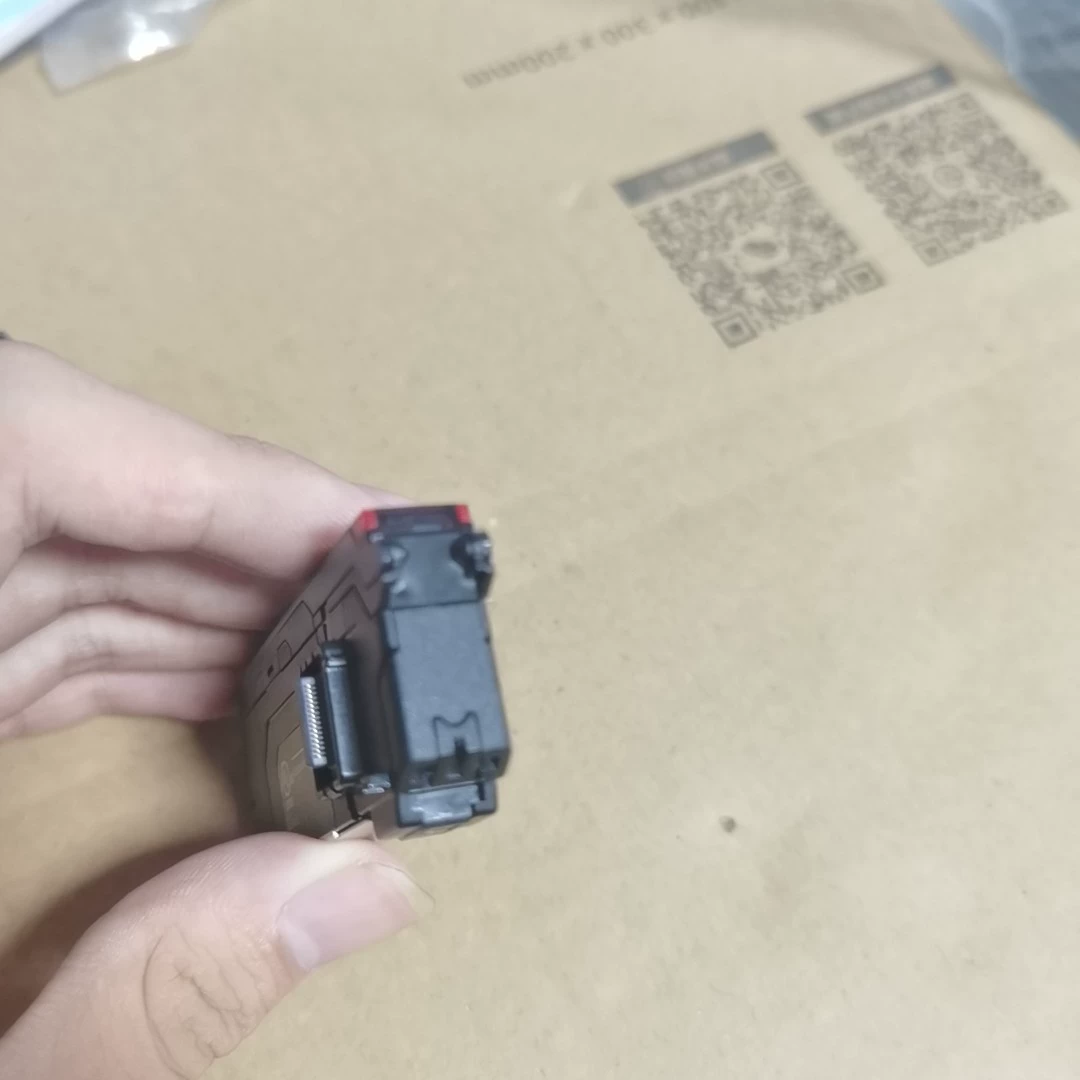

Gebrauchter Keyence FS-N40 Glasfaserverstärker.
Spezifikationen
| Brand | Keyence |
|---|---|
| Model | FS-N40 |
| Power consumption | During normal operation: ≤870 mW (≤34 mA at 24 V/≤62 mA at 12 V) ECO ON: ≤800 mW (≤31 mA at 24 V/≤56 mA at 12 V) ECO FULL: ≤710 mW (≤28 mA at 24 V/≤49 mA at 12 V) |
| Response time | S-HSPD*1: 23 µs; HSPD*2: 50 µs; FINE: 250 µs; TURBO: 500 µs; SUPER: 1 ms; ULTRA: 4 ms; MEGA: 16 ms; TERA: 64 ms |
| Power voltage | 10 to 30 VDC (including 10 % ripple (P-P) or less), class 2 or LPS |
| Weight | Approx. 23 g |
| Ambient temperature | -20 °C to +55 °C; no freezing |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours each for X, Y, and Z axes |
| Ambient light | Incandescent lamp: 20,000 lx or less, sunlight: 30,000 lx or less |
| Case material | Main unit and cover: polycarbonate |
| External input | Input time: 2 ms (ON) /20 ms (OFF) or longer |
| Light source LED | Transmitter side: Red, four-element LED (wavelength: 660 nm) |
| Main unit/expansion unit | Expansion unit |
| Mutual interference prevention | S-HSPD/HSPD: 0 units, FINE: 4 units, TURBO/SUPER/ULTRA/MEGA/TERA: 8 units (The mutual interference prevention values are twice those shown here when Double is set.) |
| Number of control outputs | None |
| Protection circuit | Protection against reverse power connection, output overcurrent, output surge, and reverse output connection |
| Shock resistance | 500 m/s²; 3 times each for X, Y, and Z axes |
| Type | Zero Line Type |
| Unit expansion | Up to 16 units (17 units connected in total including the main unit). However, each dual output type will be treated as two expansion units. |
