Beckhoff EK1501-0010 EtherCAT-Koppler - Gebraucht
Angebot anfragen
Teilen Sie uns mit, was Sie benoetigen. Wir melden uns mit Informationen zu Verfuegbarkeit und Preisen.
Anfrage startenBeschreibung

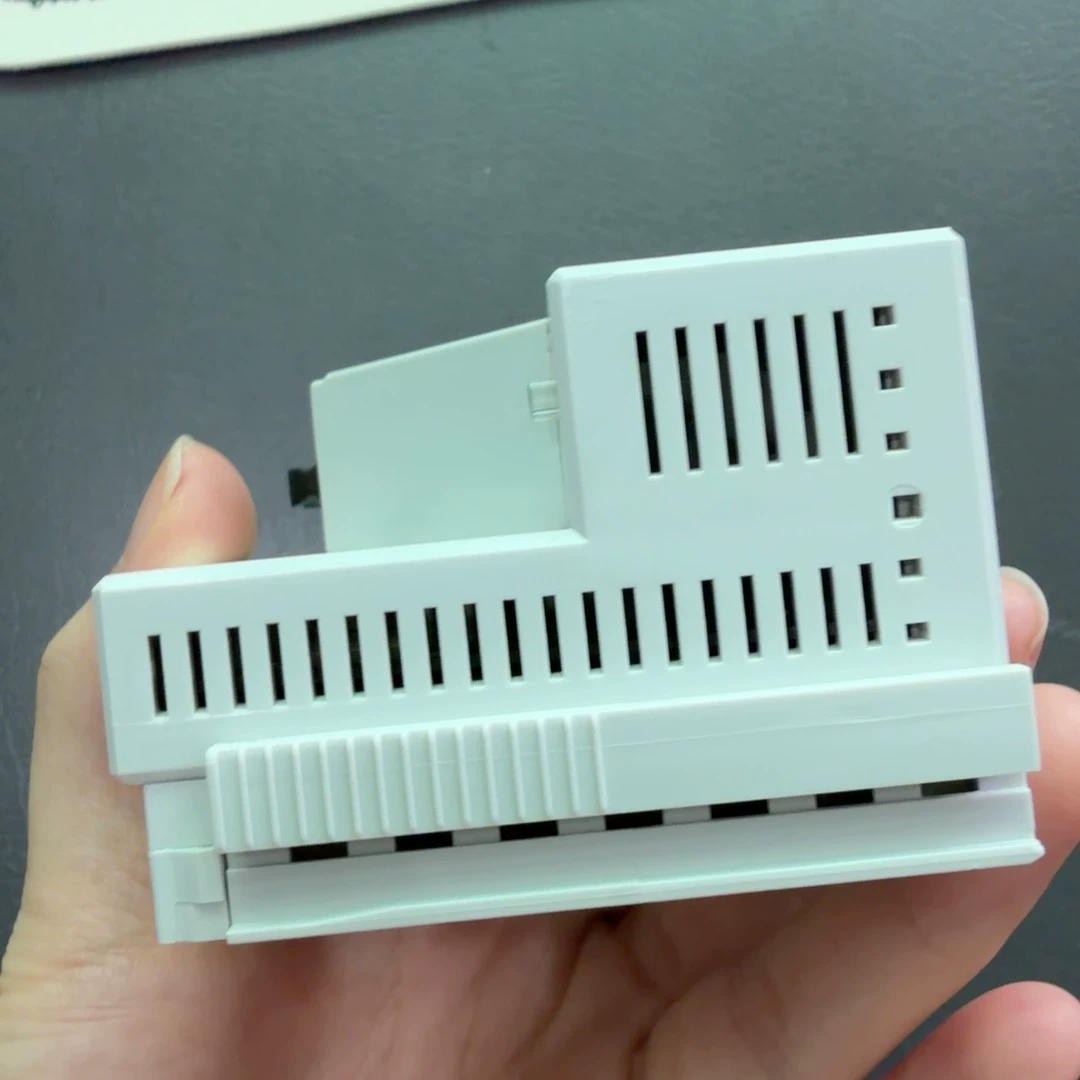

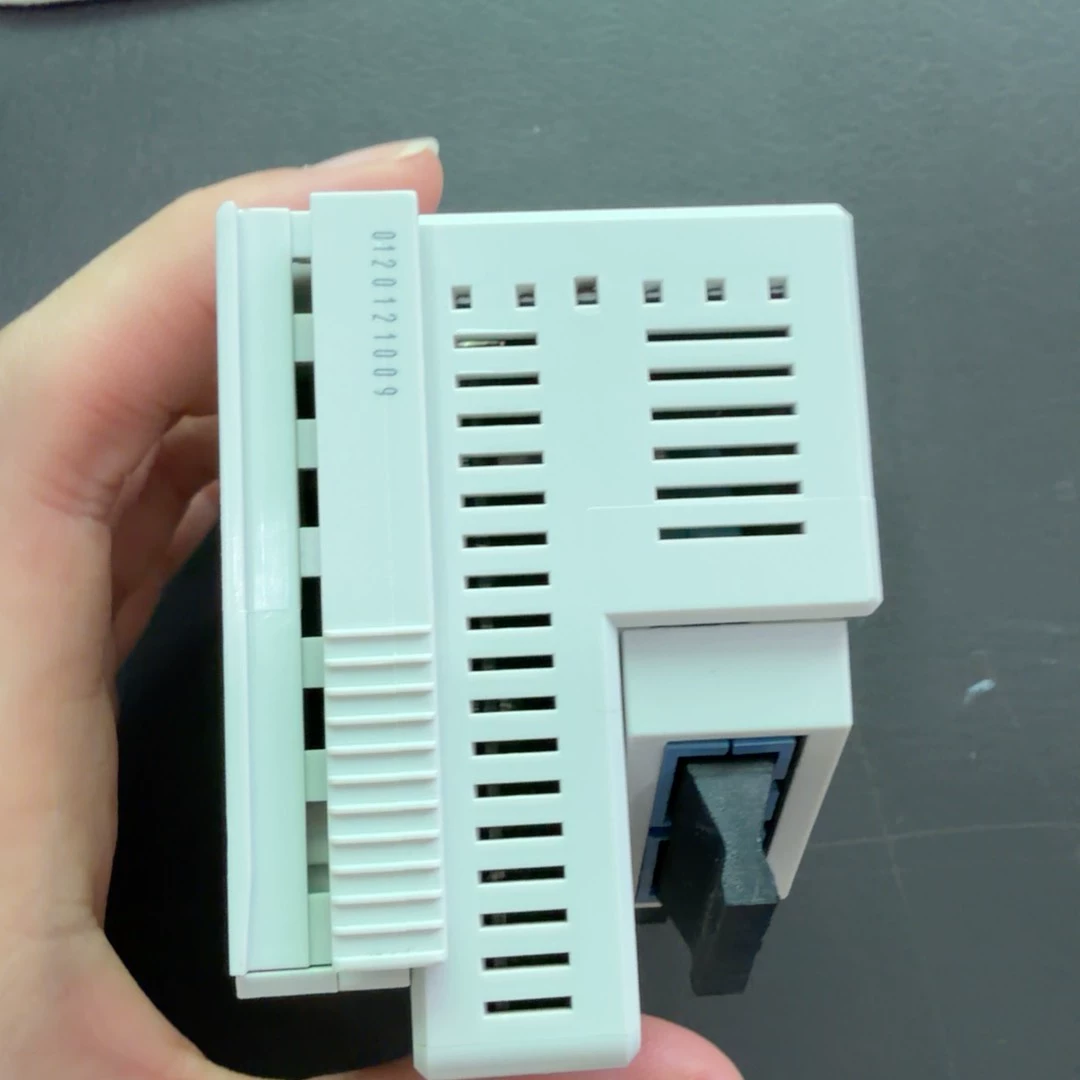

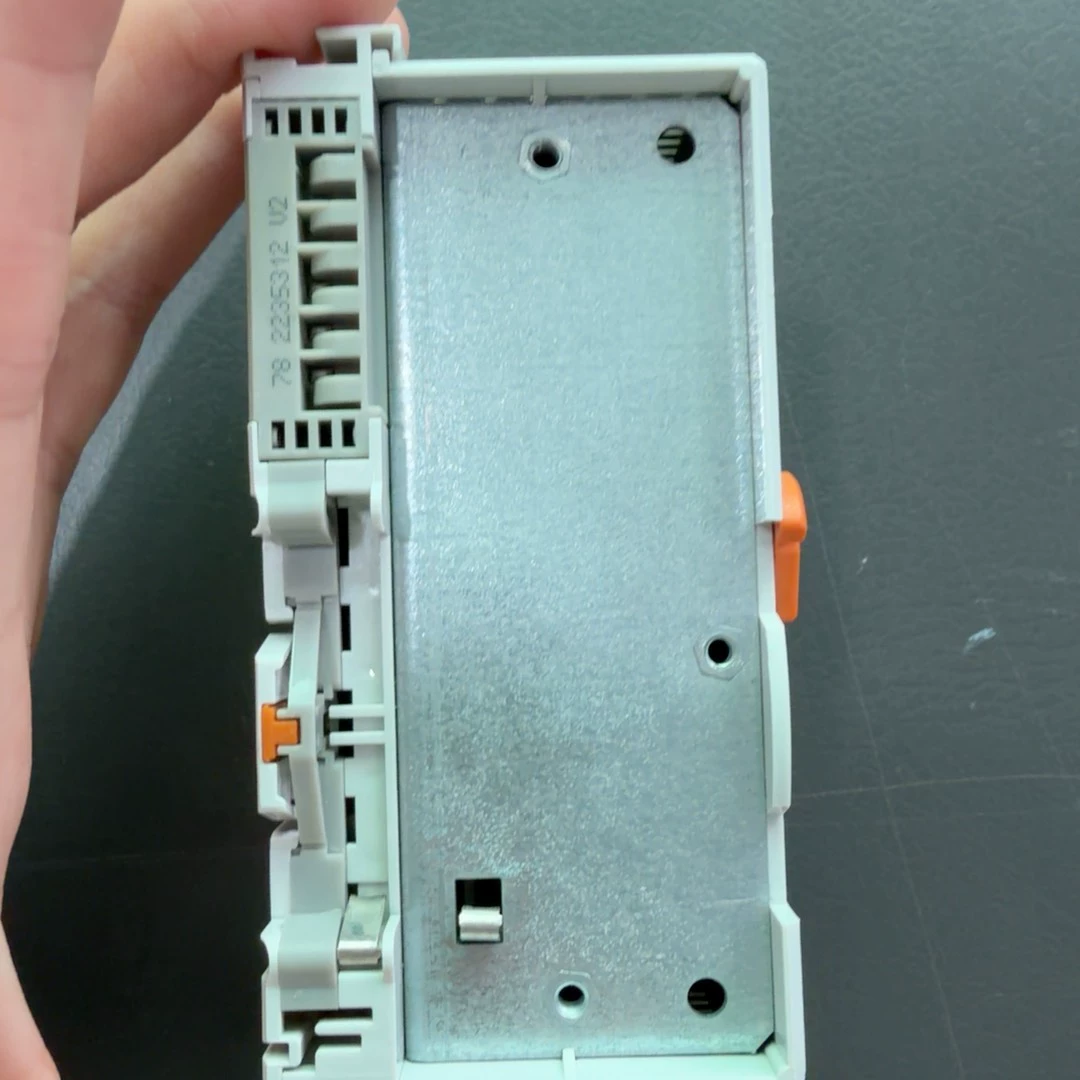

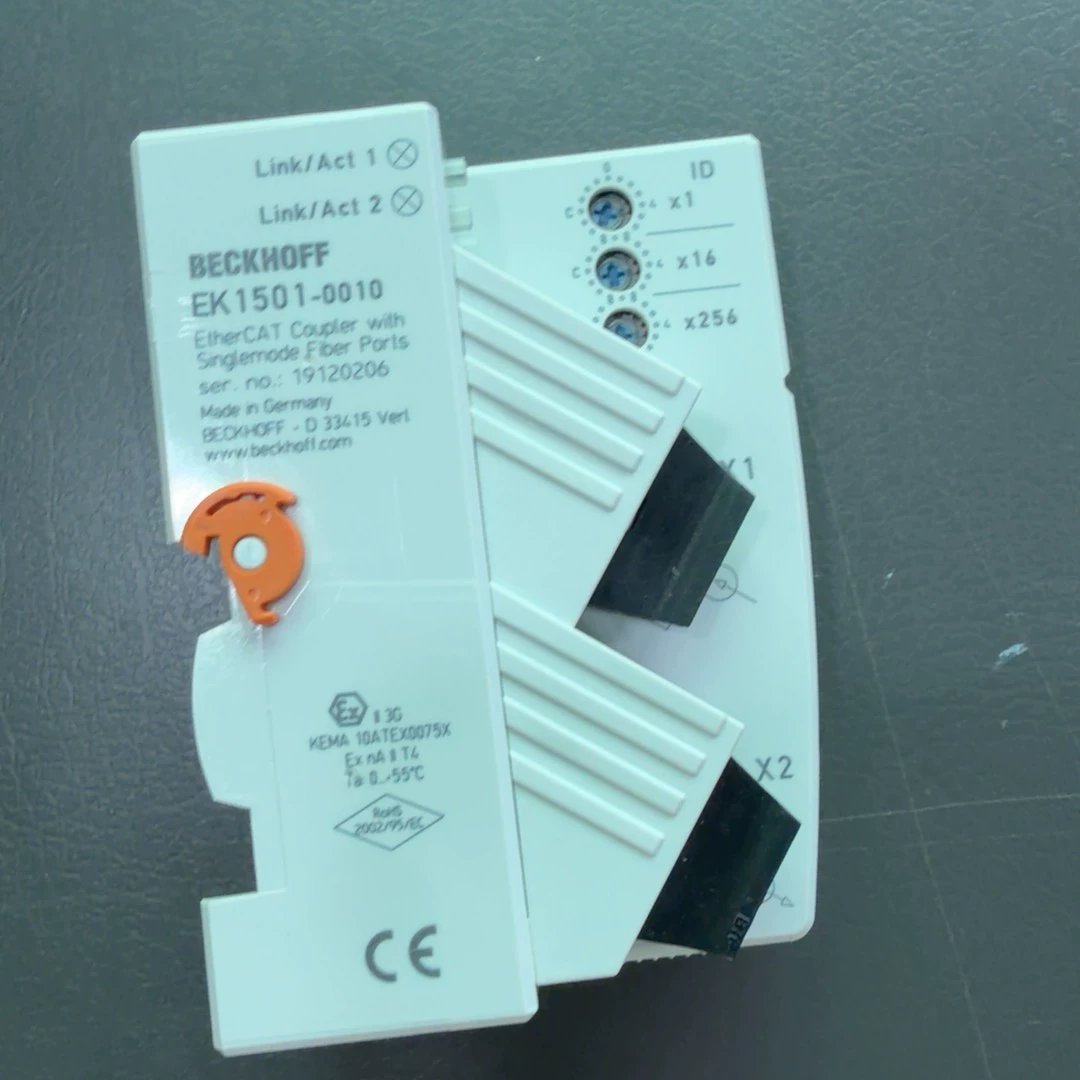

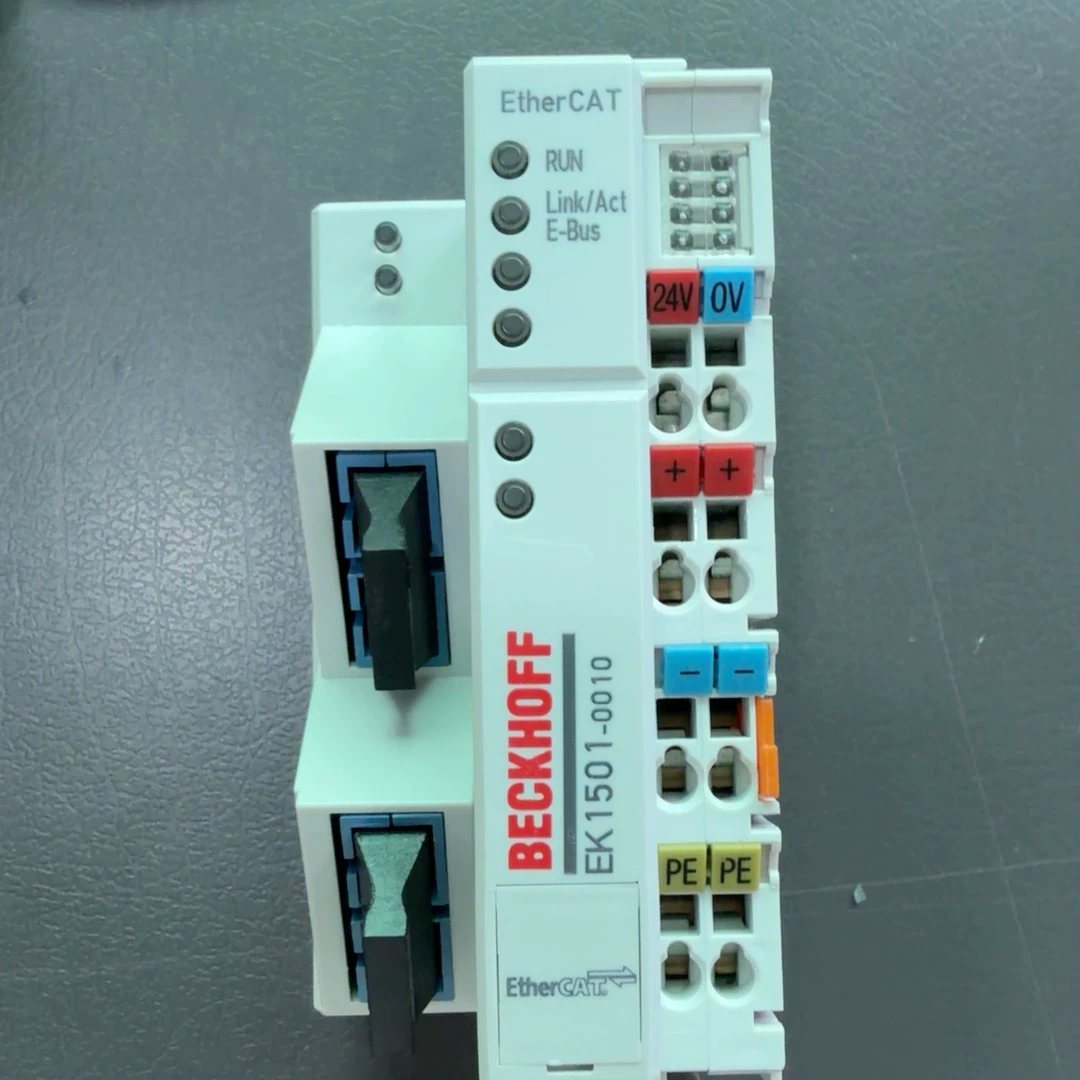

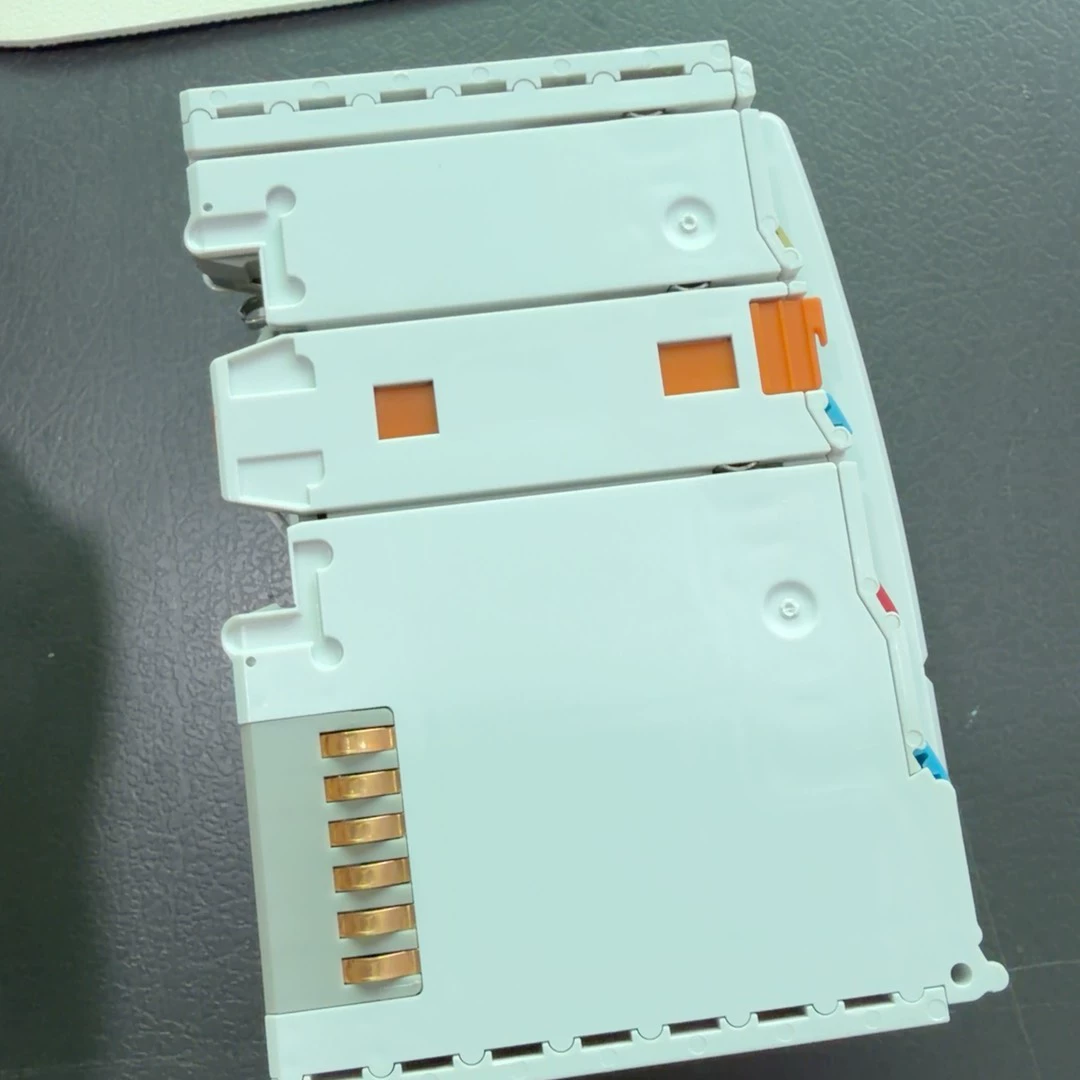

Beckhoff EK1501-0010 EtherCAT-Koppler. Bei diesem gebrauchten Gerät handelt es sich um eine Einheit mit Single-Mode-Glasfaser-Schnittstelle, ID-Schalter und vollständigen Schnittstellen; sauberes Erscheinungsbild, keine offensichtlichen Gebrauchsspuren.
Spezifikationen
| Brand | Beckhoff |
|---|---|
| Model | EK1501-0010 |
| Origin | Germany |
| CAS No. | 7439-92-1 |
| Weight | approx. 190 g |
| Protocol | EtherCAT |
| Ex marking | ATEX: II 3G Ex ec IIC T4 Gc; IECEx: Ex ec IIC T4 Gc; cFMus: Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx ec IIC T4 Gc |
| Power supply | 24 V DC (-15%/+20%) |
| Bus interface | 2 x SC Duplex |
| input voltage | 24 V |
| Power contacts | max. 24 V DC/max. 10 A |
| Propagation delay | approx. 1 µs |
| Relative humidity | 95%, no condensation |
| Transmission rate | 100 Mbit/s |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, cFMus |
| Storage temperature | -40…+85 °C |
| Transmission medium | single-mode glass fiber 9/125 µm (SM) |
| Current supply E-bus | 2000 mA |
| Electrical isolation | 500 V (power contact/supply voltage/Ethernet) |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Operating temperature | -25…+60 °C |
| Distance between stations | max. 20,000 m (100BASE-FX) |
| Number of configurable IDs | 4096 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Current consumption from U P | load |
| Current consumption from U S | 150 mA + (∑ E-bus current/4) |
| Task within EtherCAT system | coupling of EtherCAT Terminals (ELxxxx) to 100BASE-FX EtherCAT networks, with identity verification |
| Number of EtherCAT Terminals | up to 65,534 |
| Protect. rating/installation pos. | IP20/variable |
| Type/number of peripheral signals | max. 4.2 GB addressable I/O points |
