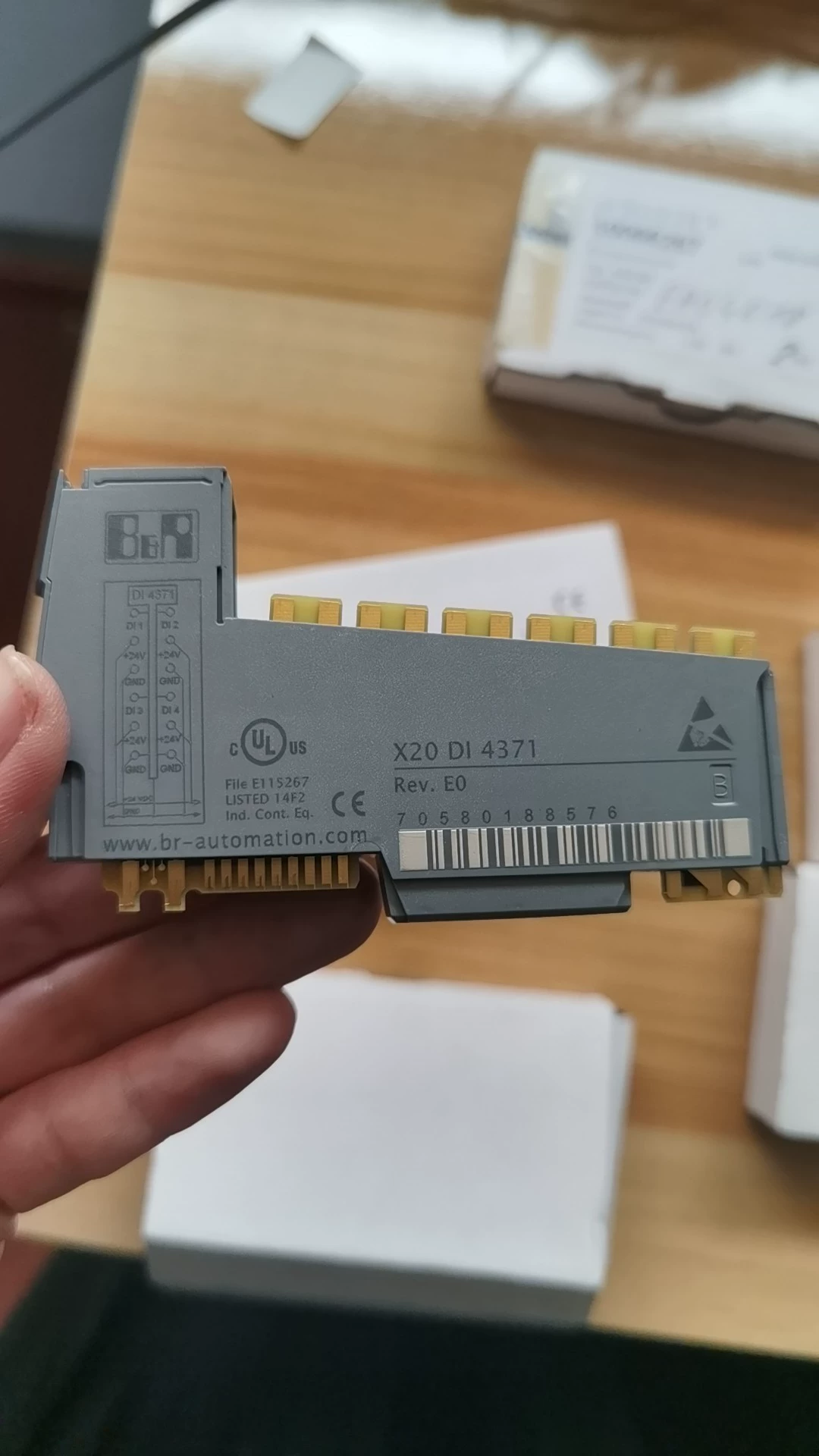

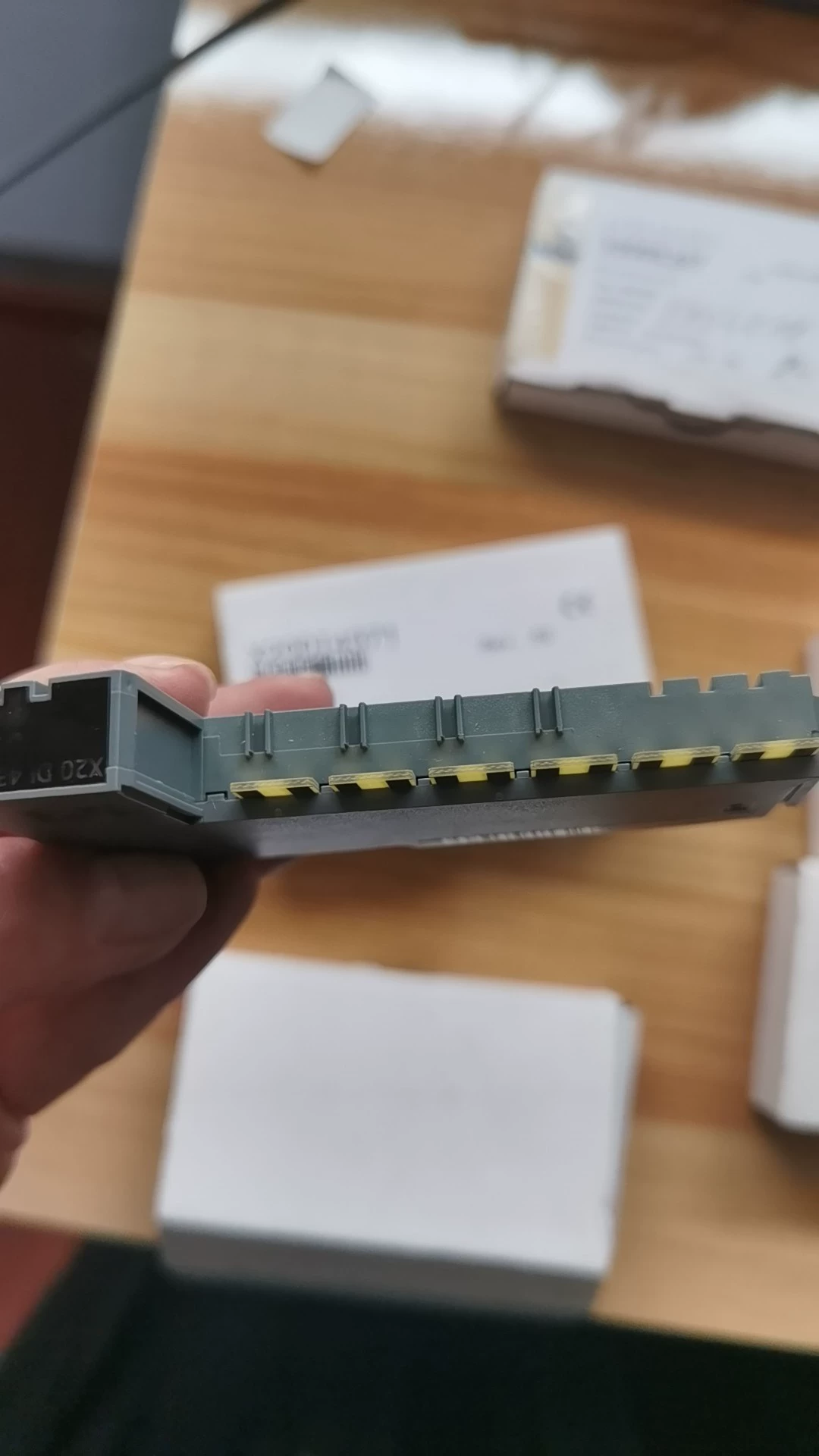

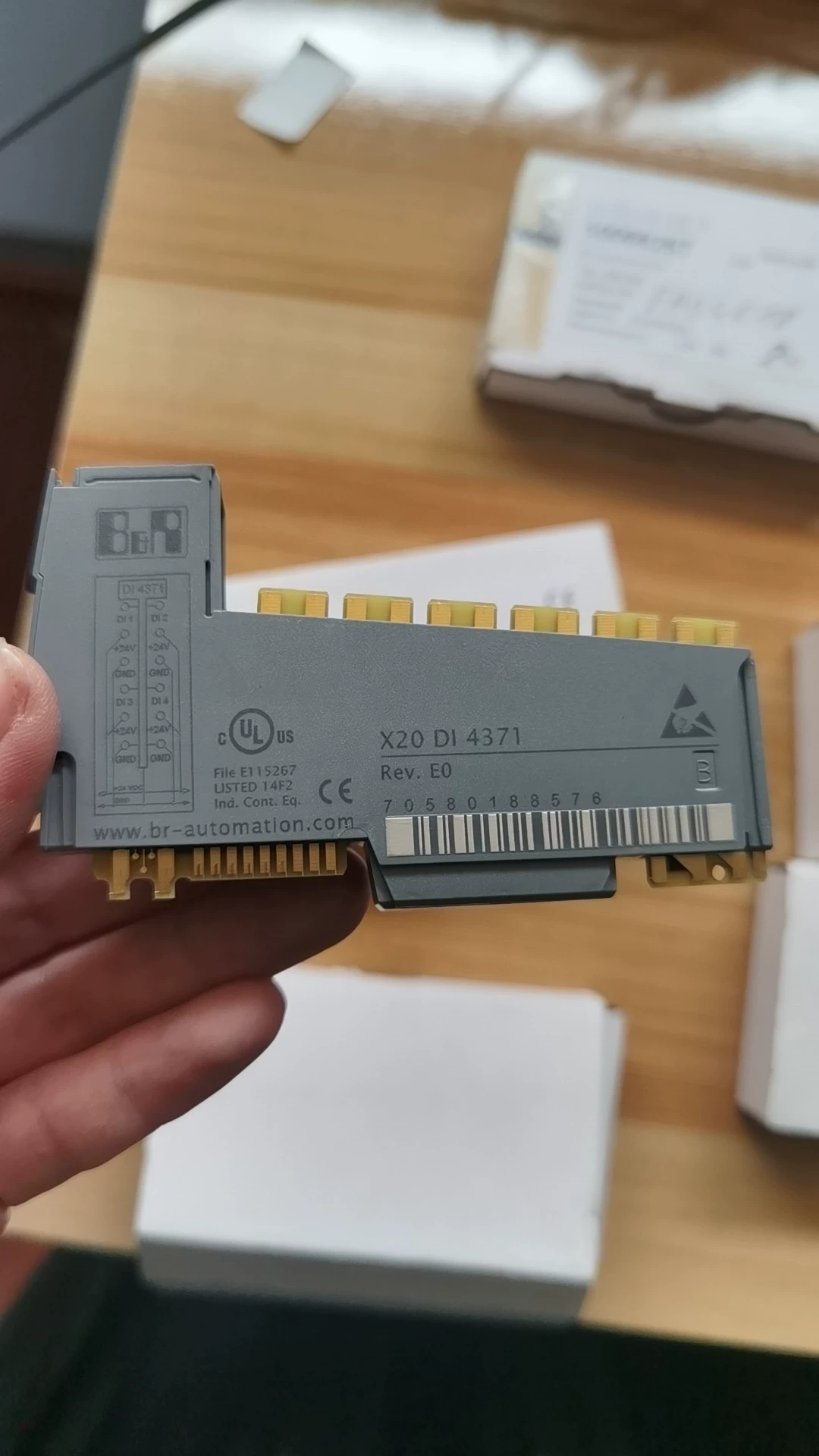

B&R X20DI4371 Eingangsmodul - Neu
Beschreibung

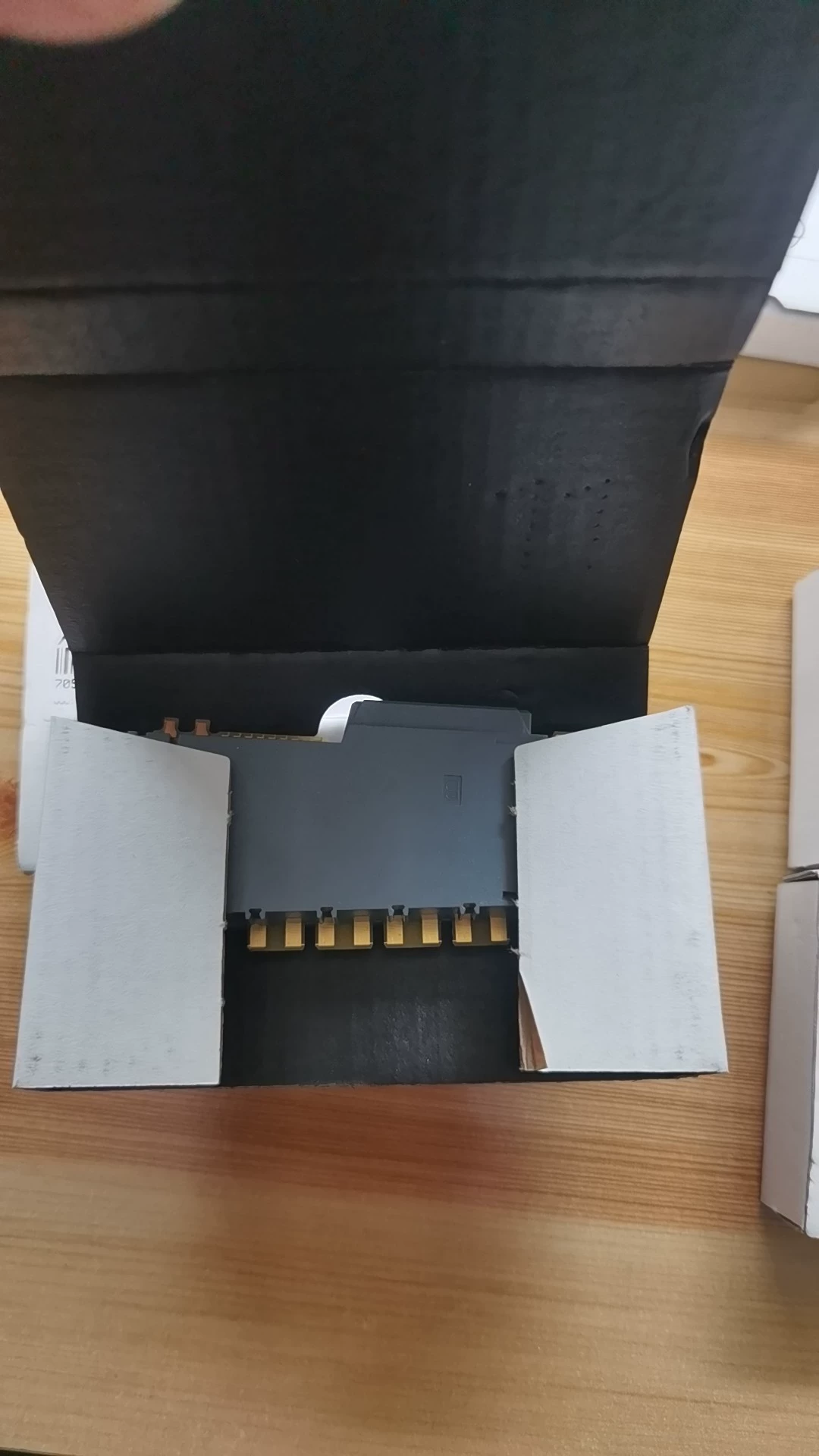

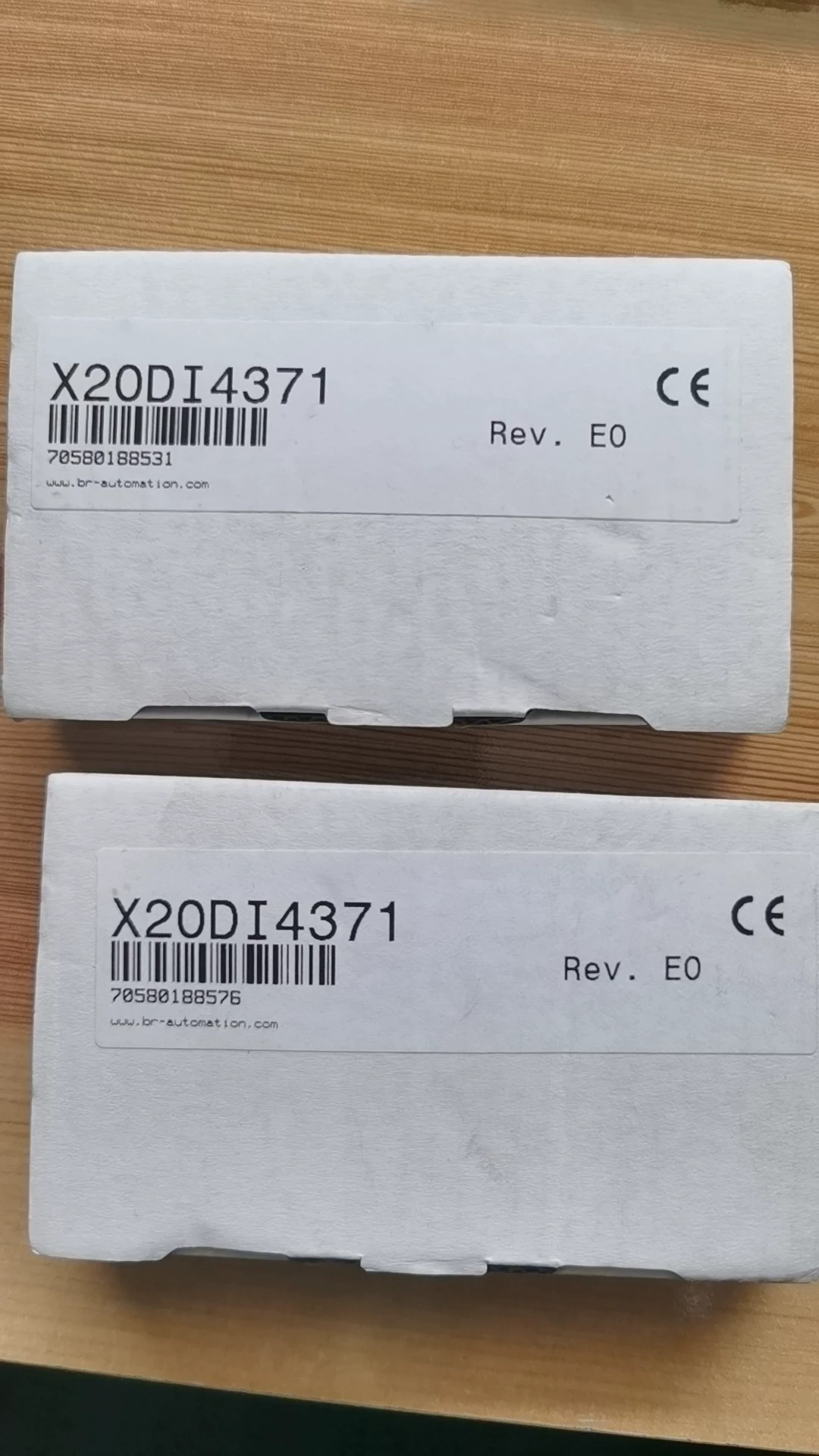

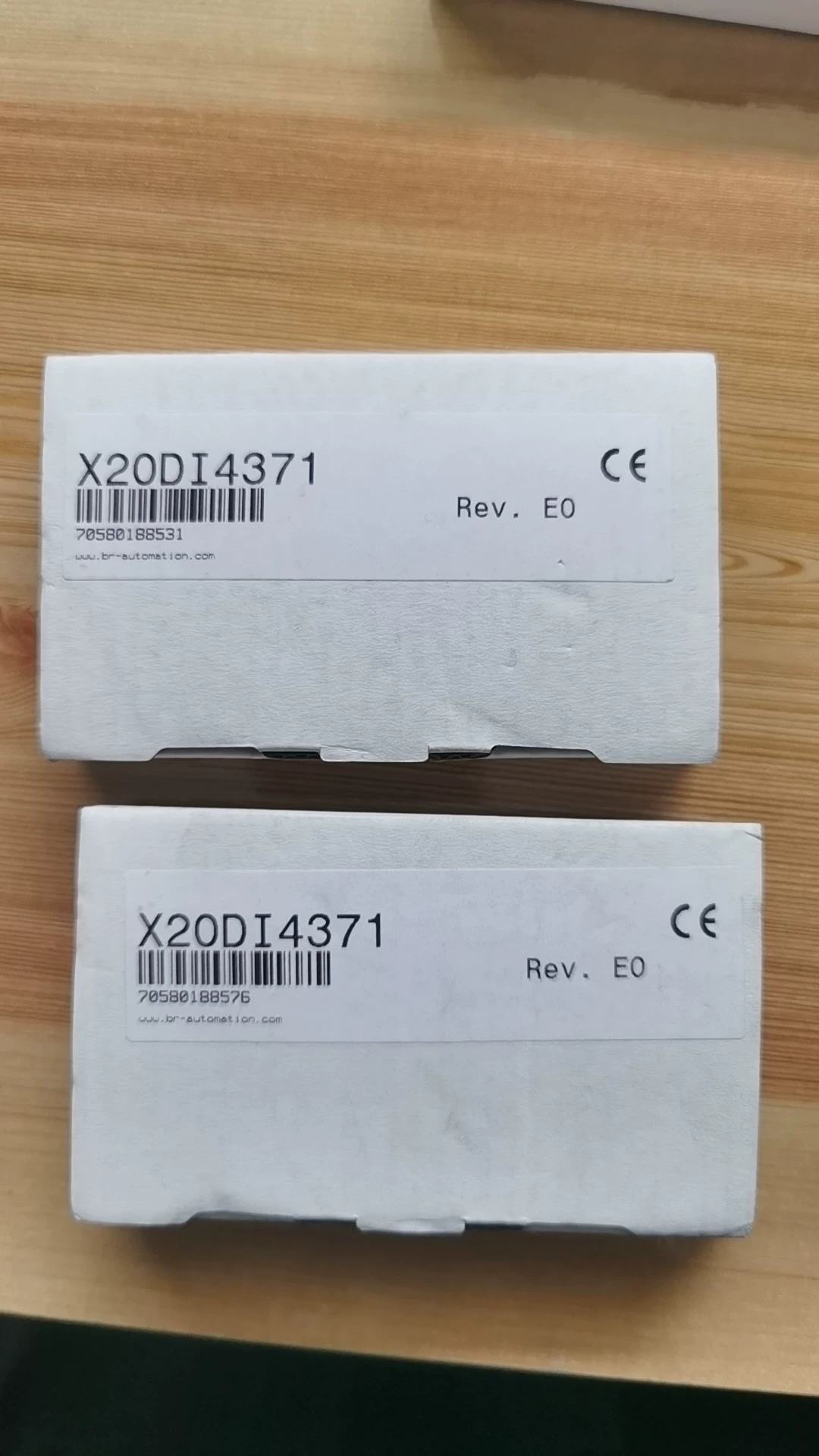

Neues B&R X20DI4371 Eingangsmodul in der Originalverpackung.
Spezifikationen
| Brand | B&R |
|---|---|
| MPN | X20DI4371 |
| Input voltage | 24 VDC -15% / +20% |
| Counter frequency | Max. 1 kHz (if input filter switched off) |
| Nominal voltage | 24 VDC |
| Summation current | 0.5 A |
| Voltage | Module power supply minus voltage drop for short-circuit protection |
| Input frequency | Max. 1 kHz |
| ABS | Yes |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| B&R ID code | 0x1B92 |
| Bus | 0.14 W |
| BV | EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck |
| CCS | Yes |
| CE | Yes |
| Connection type | 3-wire connections |
| Counter size | 16-bit |
| CRA (Cyber Resilience Act) | In preparation |
| DNV | Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck) |
| Electrical isolation | Channel isolated from bus Channel not isolated from channel |
| Evaluation | Configurable edge event, cyclical counter |
| Event counters | Input 1 |
| Event counters | Input 2 |
| Event counters | Input 3 |
| Event counters | Input 4 |
| Hardware | ≤100 μs |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| High | >15 VDC |
| Horizontal | Yes |
| Horizontal mounting orientation | -25 to 60°C |
| Input circuit | Sink |
| Input resistance | Typ. 6.4 kΩ |
| Installation elevation above sea level | Reduction of ambient temperature by 0.5°C per 100 m |
| Installation elevation above sea level | No limitation |
| Installation elevation above sea level | IP20 |
| Insulation voltage between channel and bus | 500 V eff |
| Internal I/O | 0.59 W |
| KC | Yes |
| KR | Yes |
| LR | ENV1 |
| Module run/error | Yes, using LED status indicator and software |
| Operation | 5 to 95%, non-condensing |
| Pitch | 12.5 +0.2 mm |
| Power consumption | Max. 12 W |
| Quantity | 4 |
| Sensor power supply | Max. 2 VDC |
| Short-circuit proof | Yes |
| Signal form | Square wave pulse |
| Software | Default 1 ms, configurable between 0 and 25 ms in 0.2 ms increments |
| Status indicators | I/O function per channel, operating state, module status |
| Storage | -40 to 85°C |
| Storage | 5 to 95%, non-condensing |
| Switching threshold | Typ. 3.75 mA |
| Switching threshold | Type 1 |
| Transport | -40 to 85°C |
| Transport | 5 to 95%, non-condensing |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| Vertical | Yes |
| Vertical mounting orientation | -25 to 50°C |
